Woodham 1

1125 sq ft
Premium Model
$72,925.00 USD
$93,494.00 CAD
FREE SHIPPING
Rooms
Bedrooms4
Bathrooms2
Cabin sizes
Cabin size433" x 374"
Roof & floor
Roof pitch5/12 - 22D
Roof boards3/4"
Package, area, vol ect.
Size (sq ft)1125
Wall height95"
Ridge height202"
Wall thickness2-3/4”

Model Documentation

Contact Us

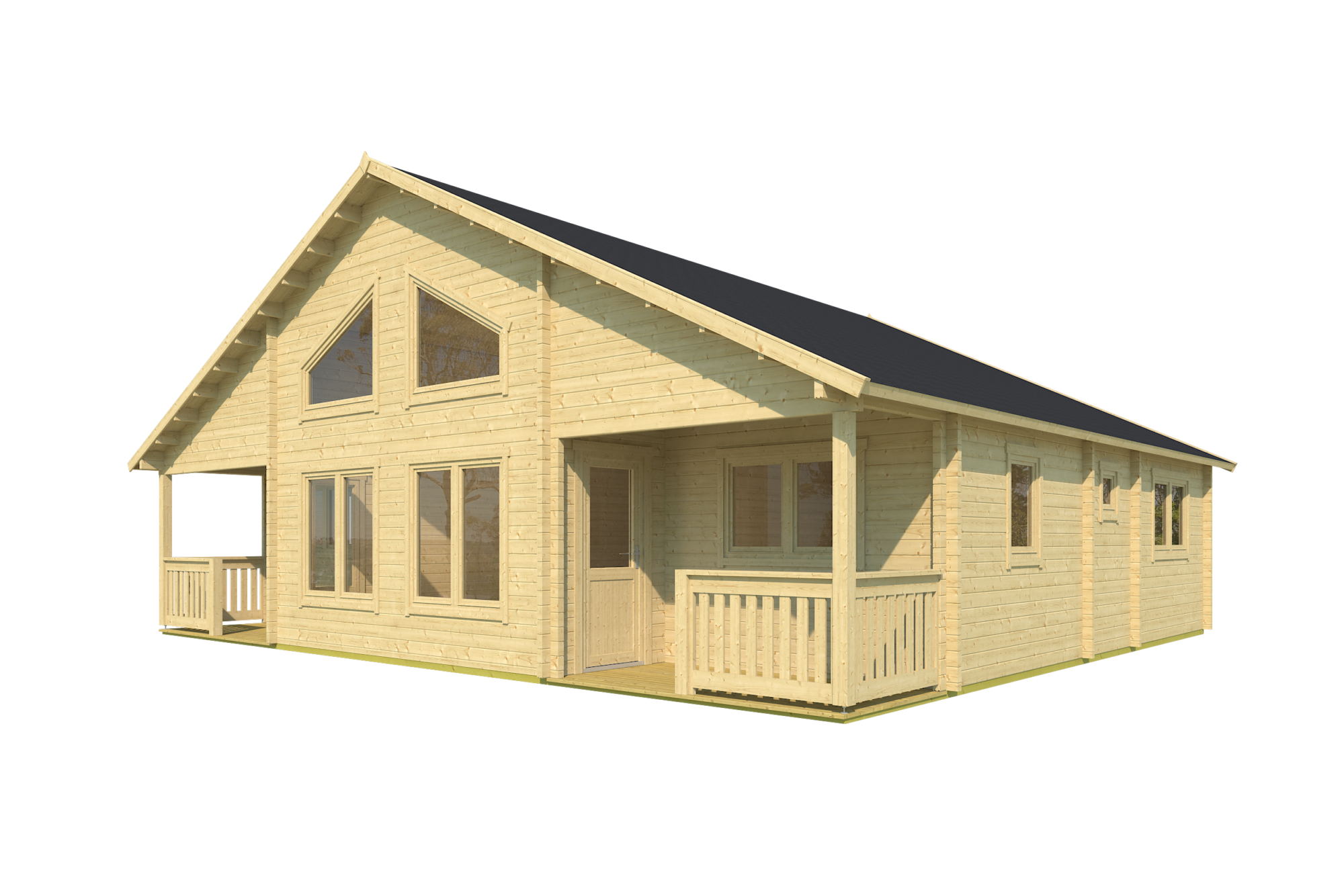

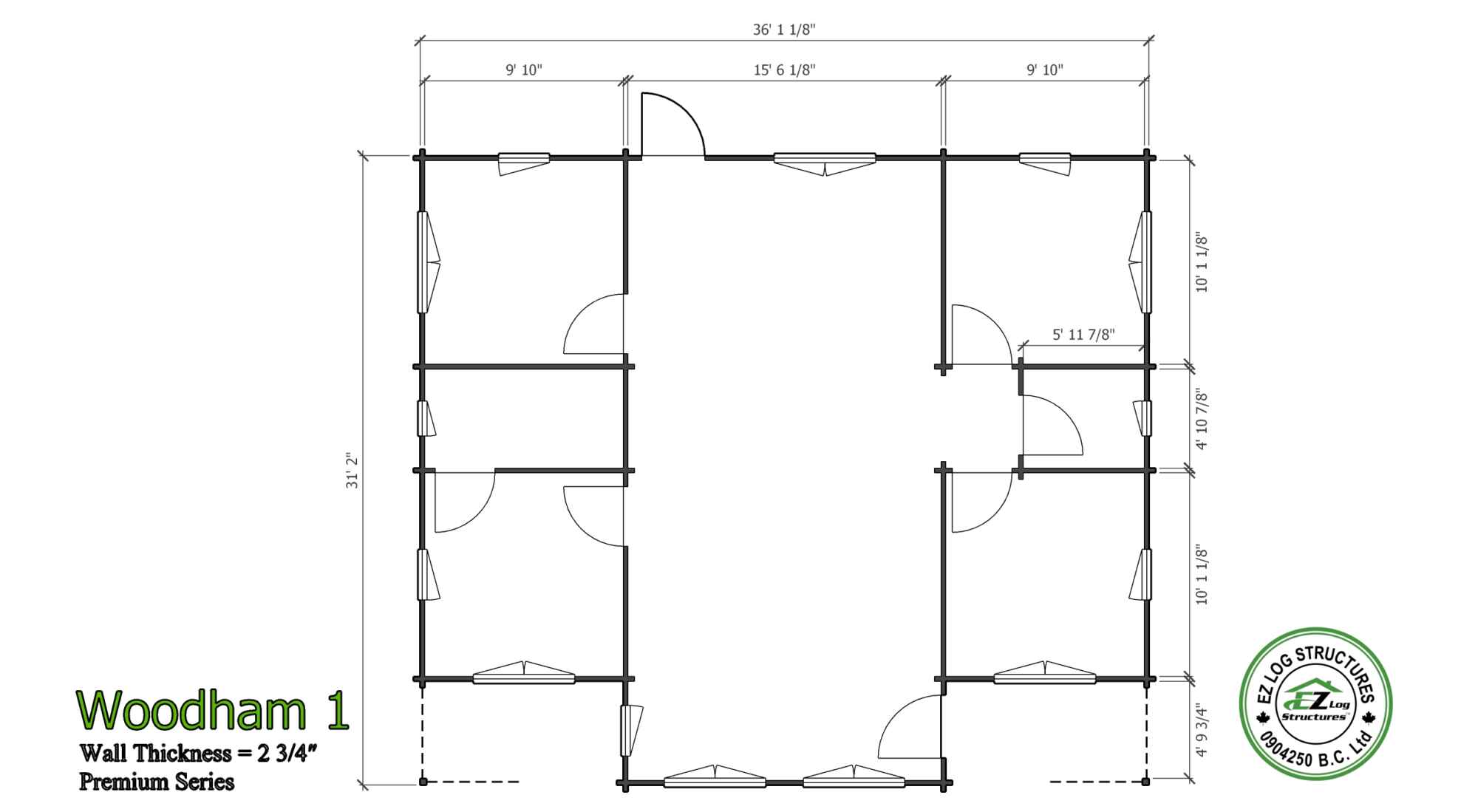

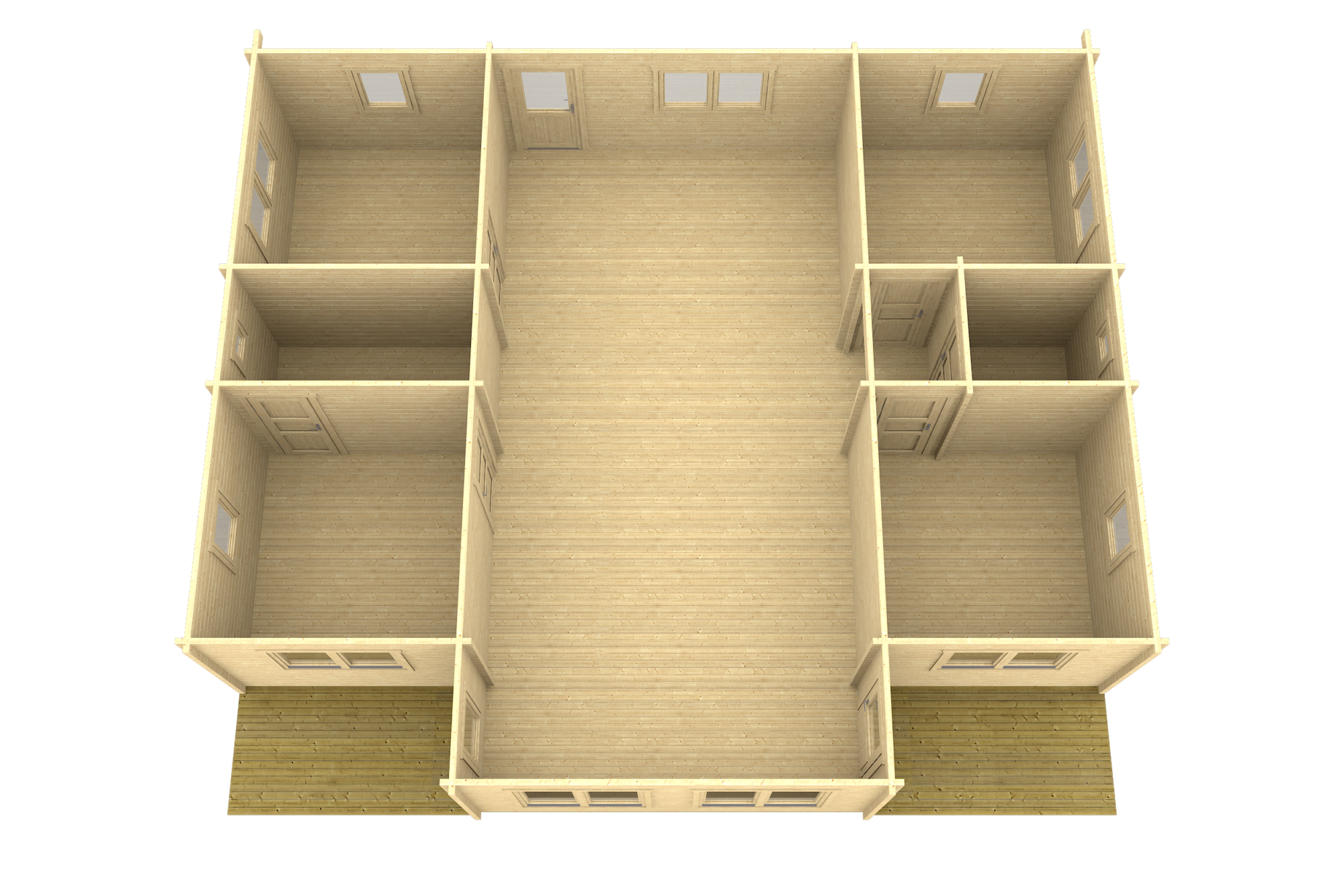

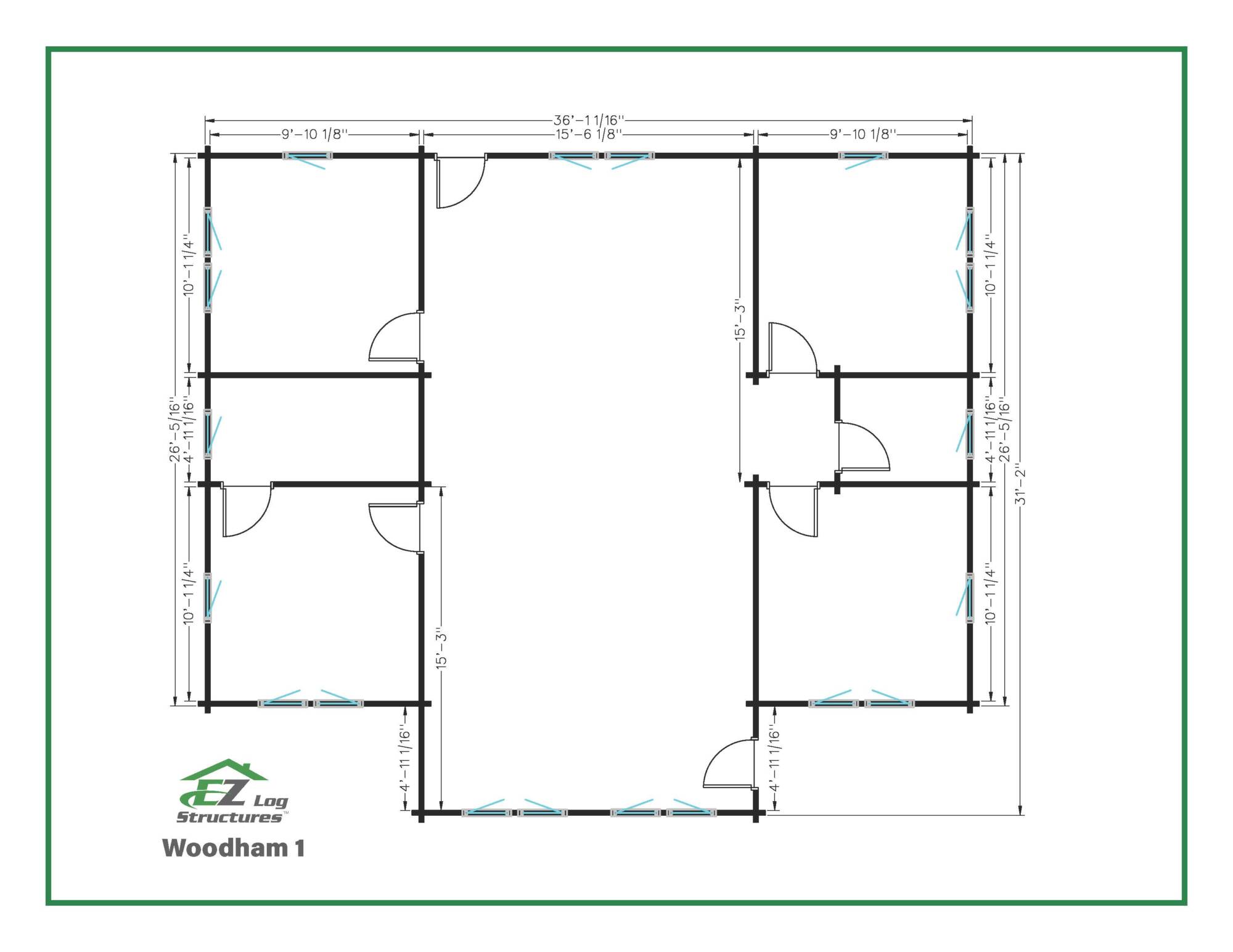

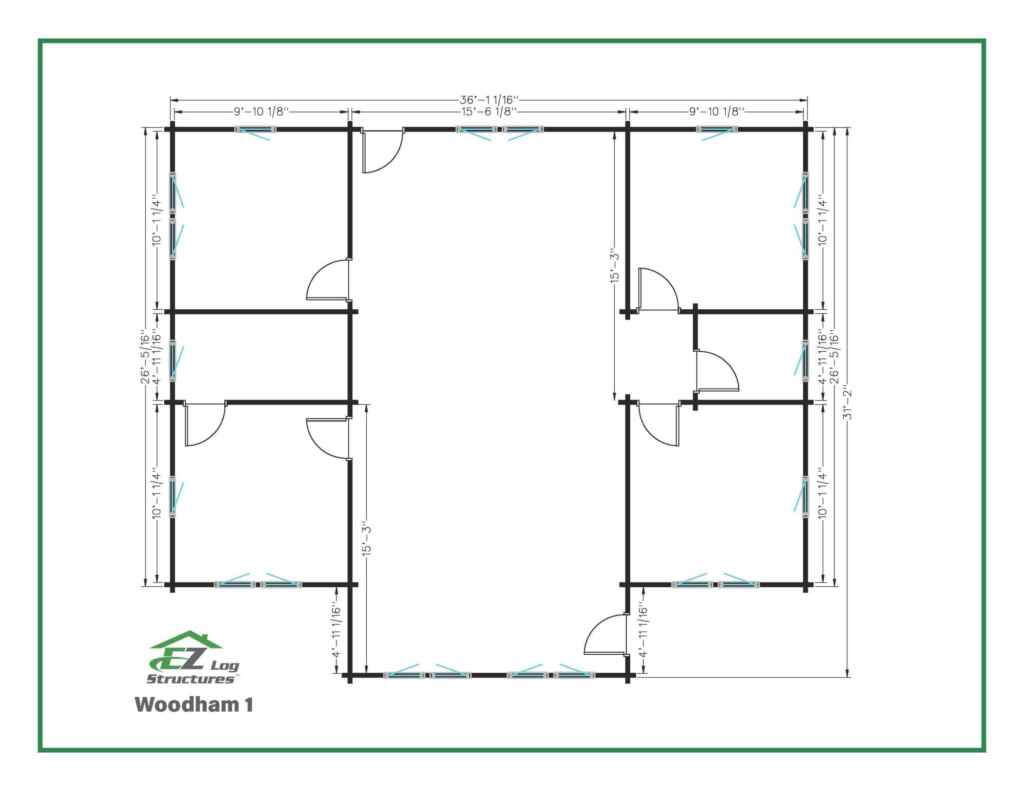

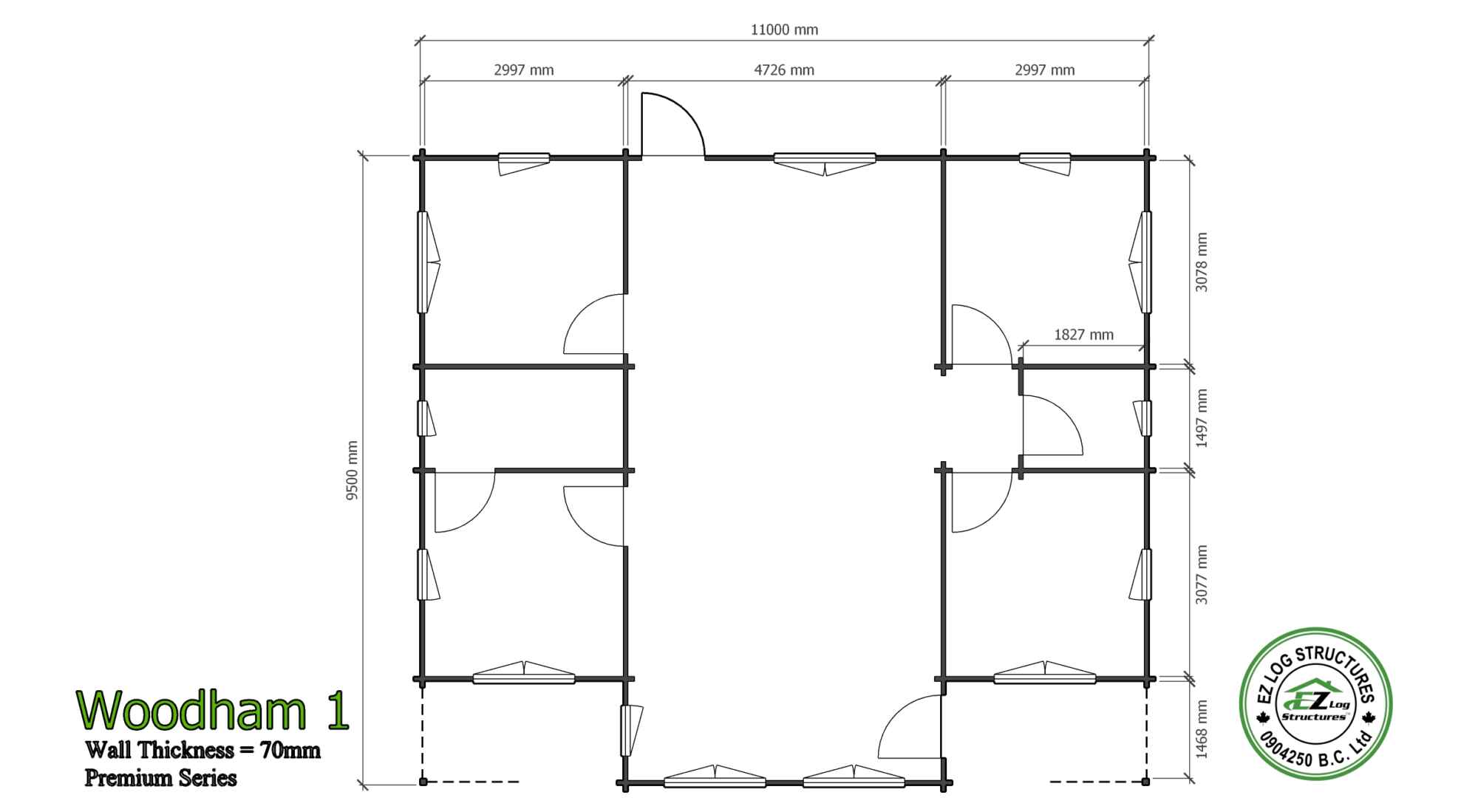

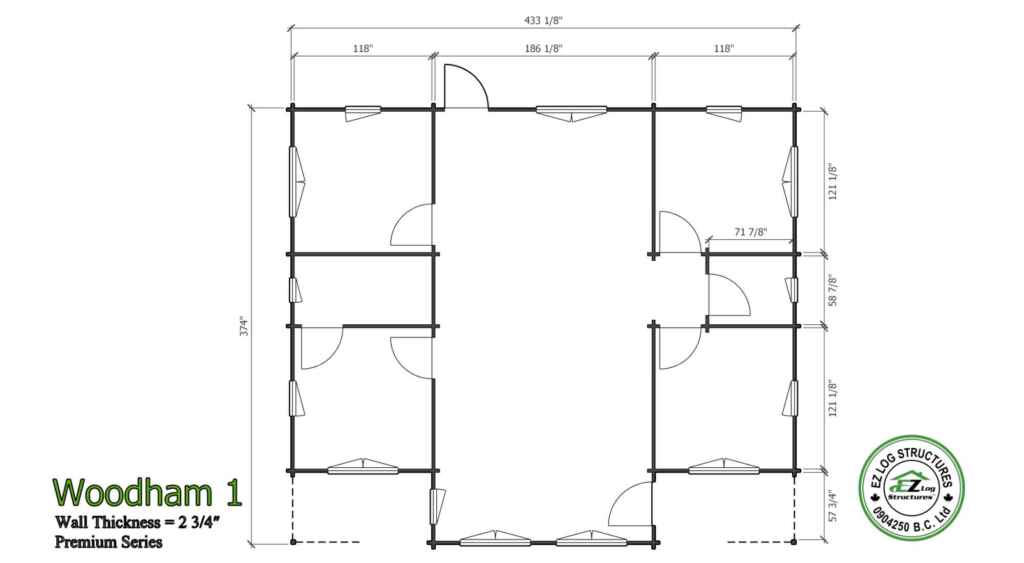

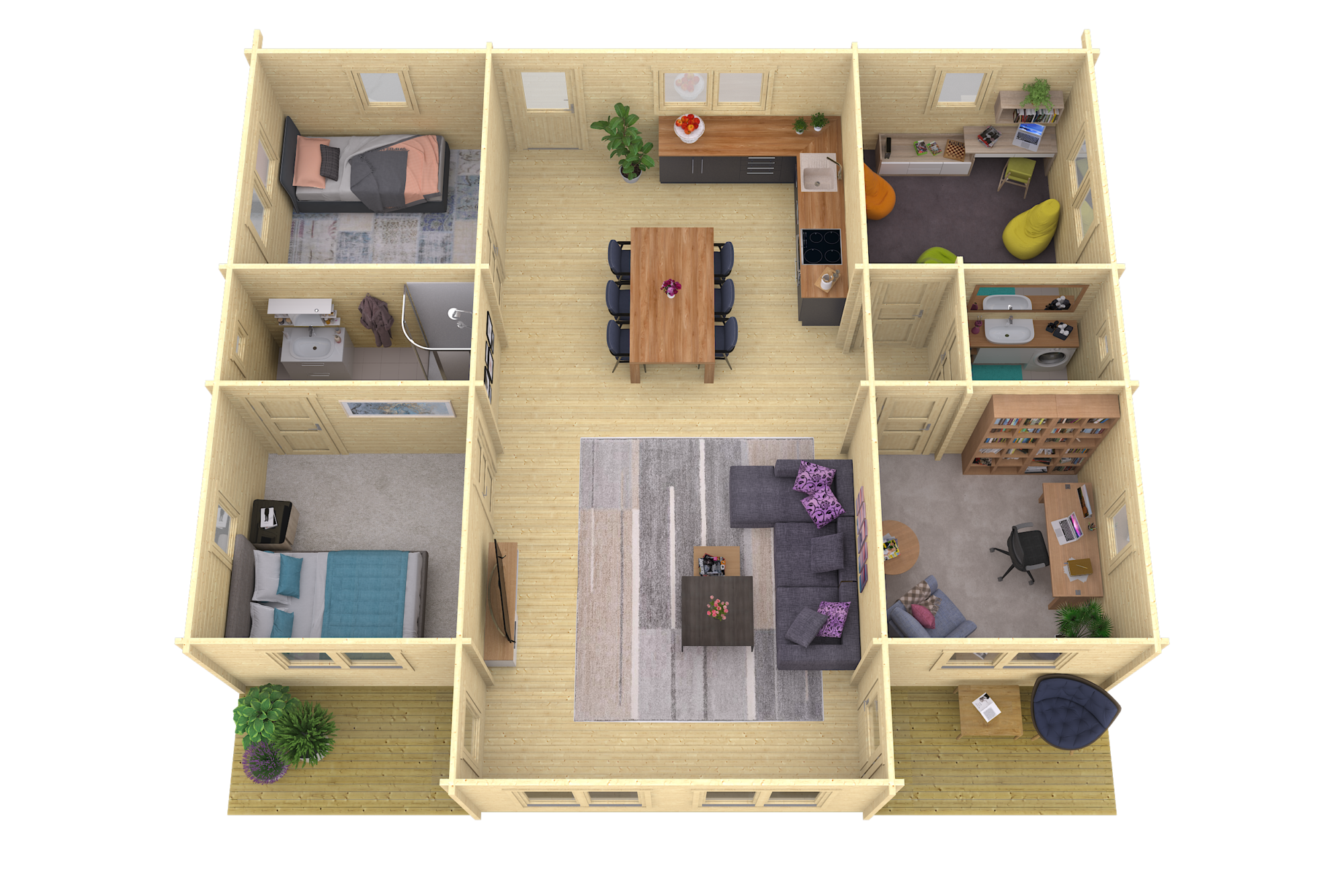

 Woodham 1  is a single level home using 70mm (2-3/4″) thick wall logs.  This model is 1125 sq’ with 4 bedrooms, 2 bathrooms and an extremely open concept with vaulted ceilings almost 17′ high. Modifications to the floor plan can be made at NO CHARGE providing no additional materials are required. (sq footage is based the total footprint, living space could be less, see floor plans)

Kit Includes:

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • 5/12 roof pitch (22 degrees)
  • vaulted, cathedral ceilings
  • pre-cut, 100mm x 200mm (4″x8″) numbered glulam roof purlins/beams, spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 5 interior doors 812mm x 2040mm (32″x80″)
  • 2 single wide wood windows 530mm x 530mm (21″ x 21″)
  • 4 single wide wood windows 765mm x 990mm (30″x39″)
  • 5 double wide wood windows 1530mm x 990mm (60″x39″)
  • 2 double wide wood windows 1530mm x 1530mm (60″ x 60″)
  • 2 rake/angled window 1530mm x 1430mm (60″ x 56″)
  • 2 exterior doors 990mm x 2040mm (36″x80″) 1/2 glass tempered
  • adjustable posts
  • prebuilt deck railings with vertical balustrades
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins

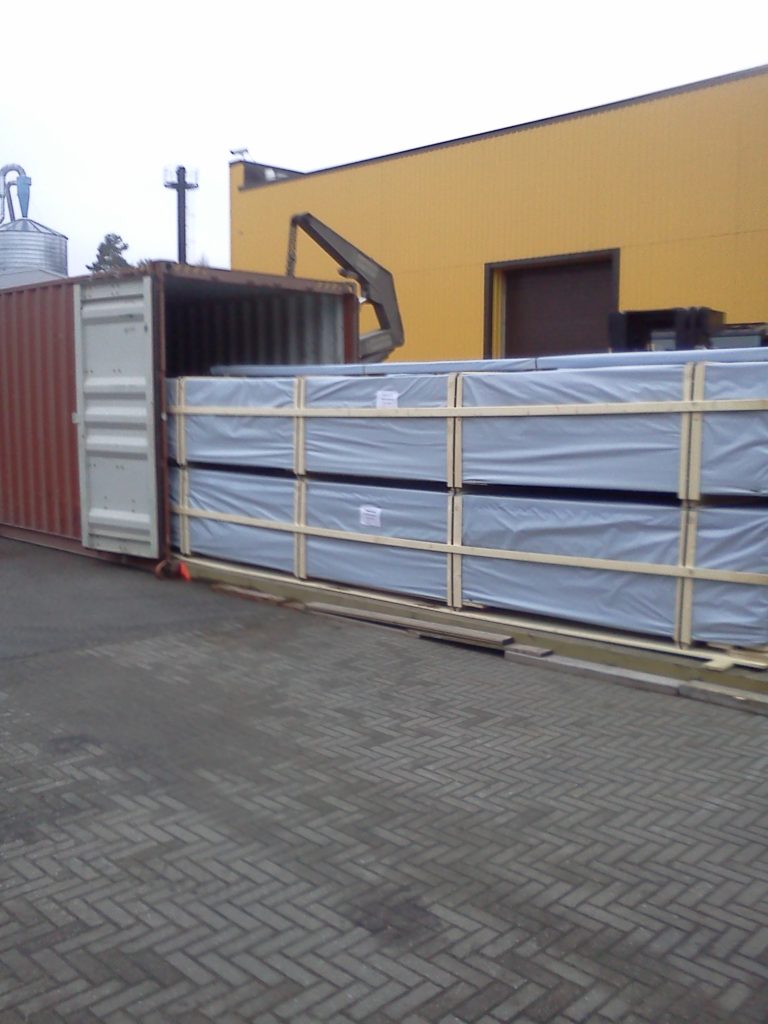

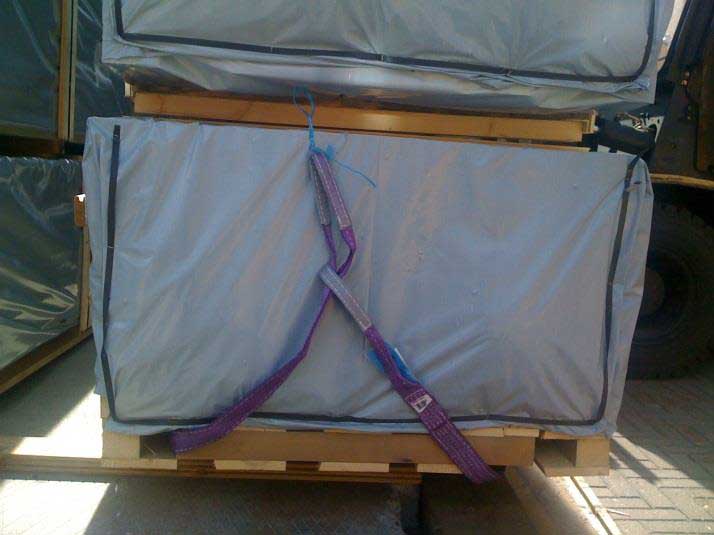

  • packaged/wrapped and marked for sequence of assembly

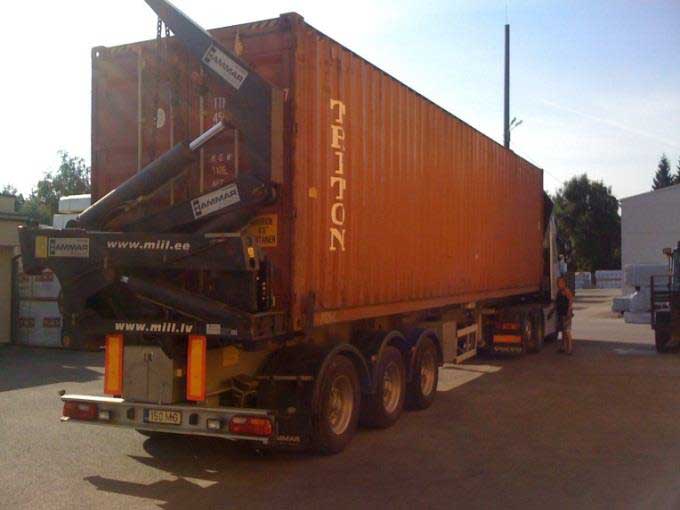

  • FREE SHIPPING

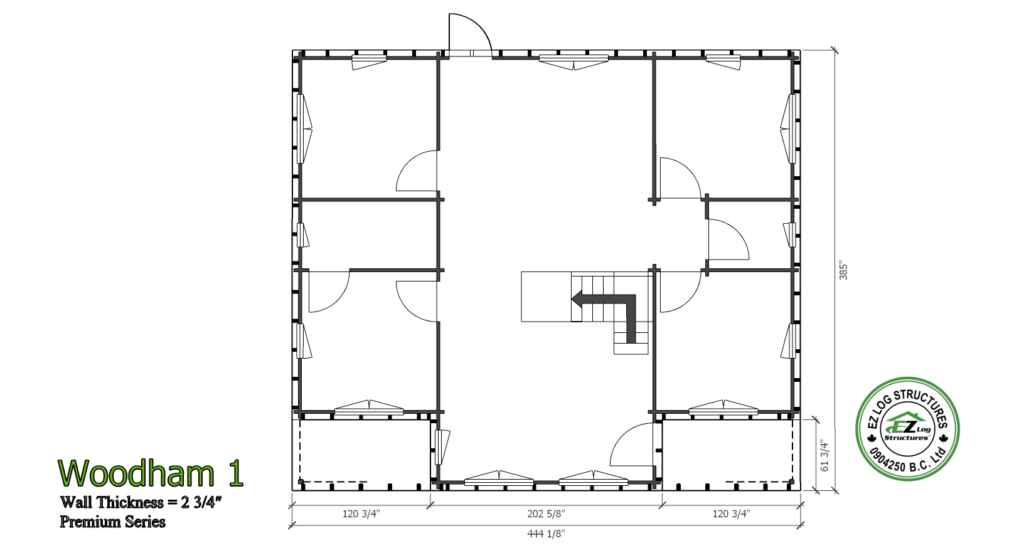

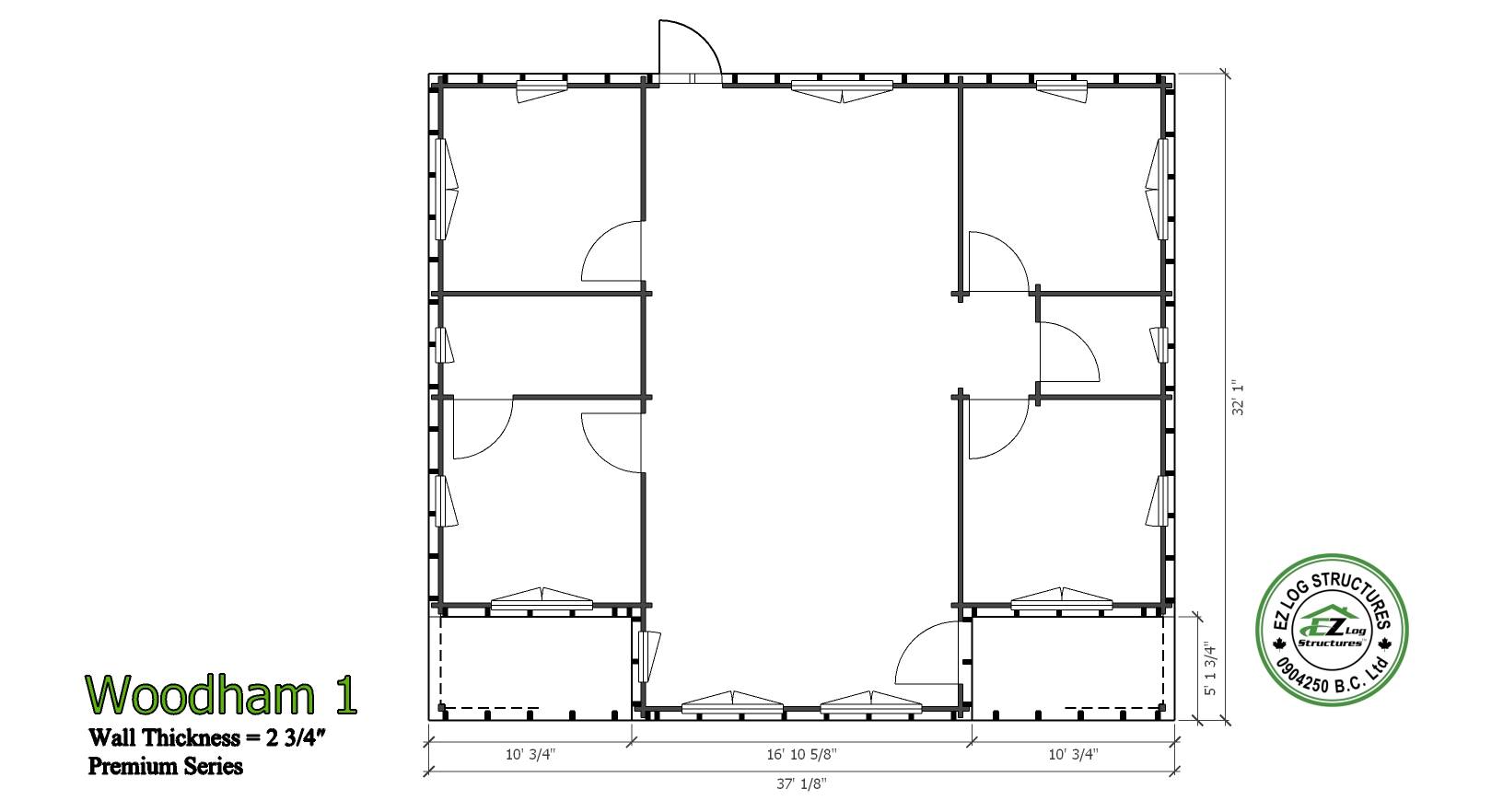

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING

    Exterior Stud & Siding Options:
    Exterior stud & siding kits include: 2×6 studs, stud screws, wood siding, corner blocks

    Add 14%  – Otoczak Full D-Log siding 1-1/8″ x 5-1/8″ (28mm x 130mm)

    Add 10%  – Max Semi D-Log siding 3/4″ x 5-1/8″ (18mm x 130mm)

    Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

    Window Options:

    Upgrade all the wood windows to triple glazed/Low E/Argon filled glass

    Add – $ 2,153.00 USD

    Add – $ 2,760.00 CAD

    OR

    Upgrade all wood window to our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass plus exterior rolling shutters that are controlled from the interior. Add comfort and security, improve the energy efficiency, reduce outside noise levels & provide complete darkness for daytime sleepers. (See the video on the video section)

    Add – $ 4,485.00 USD

    Add – $ 5,750.00 CAD
