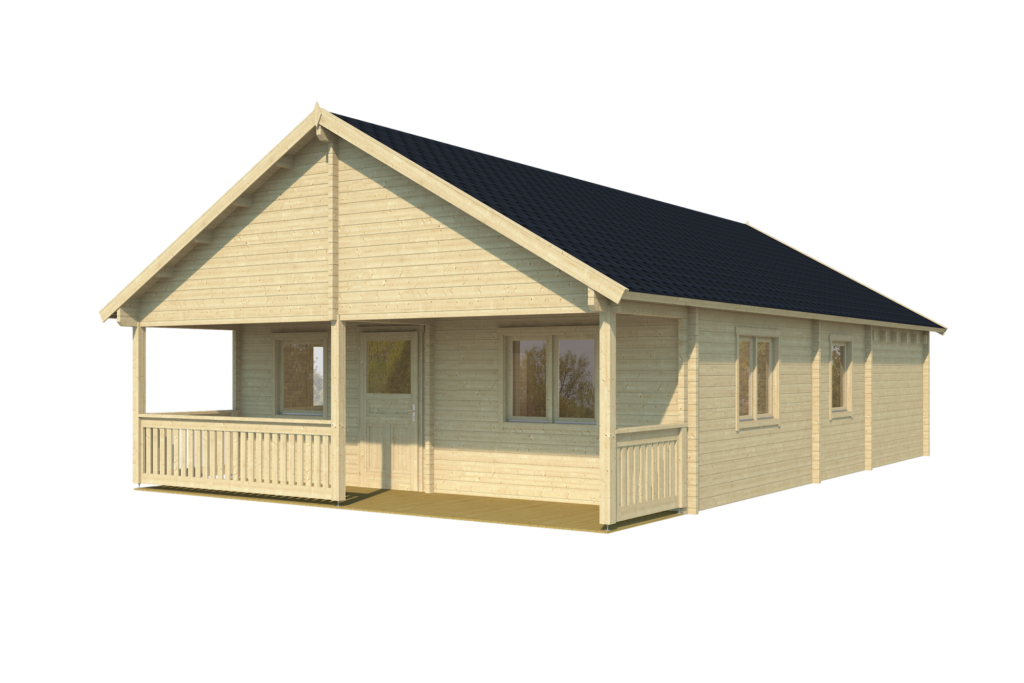

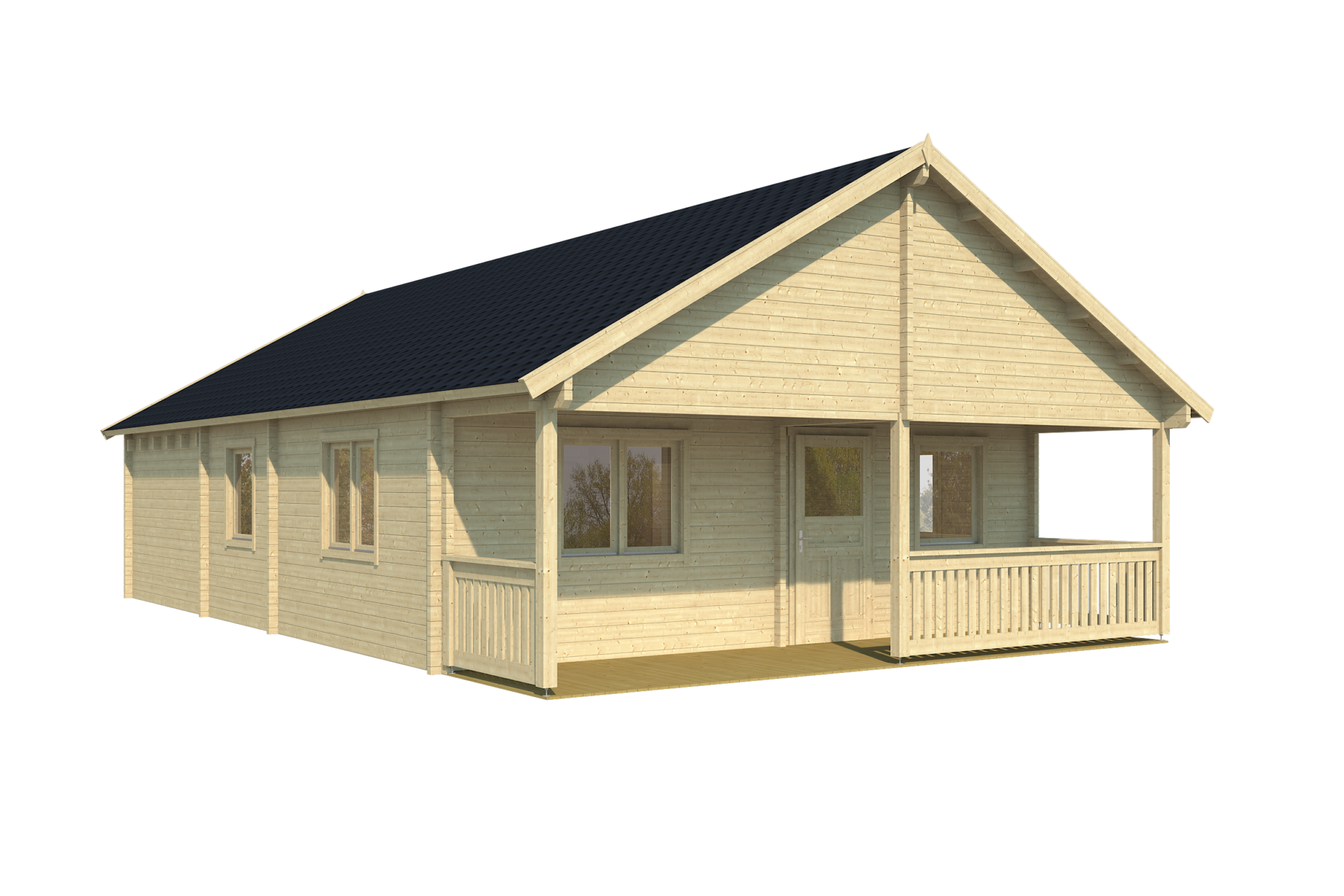

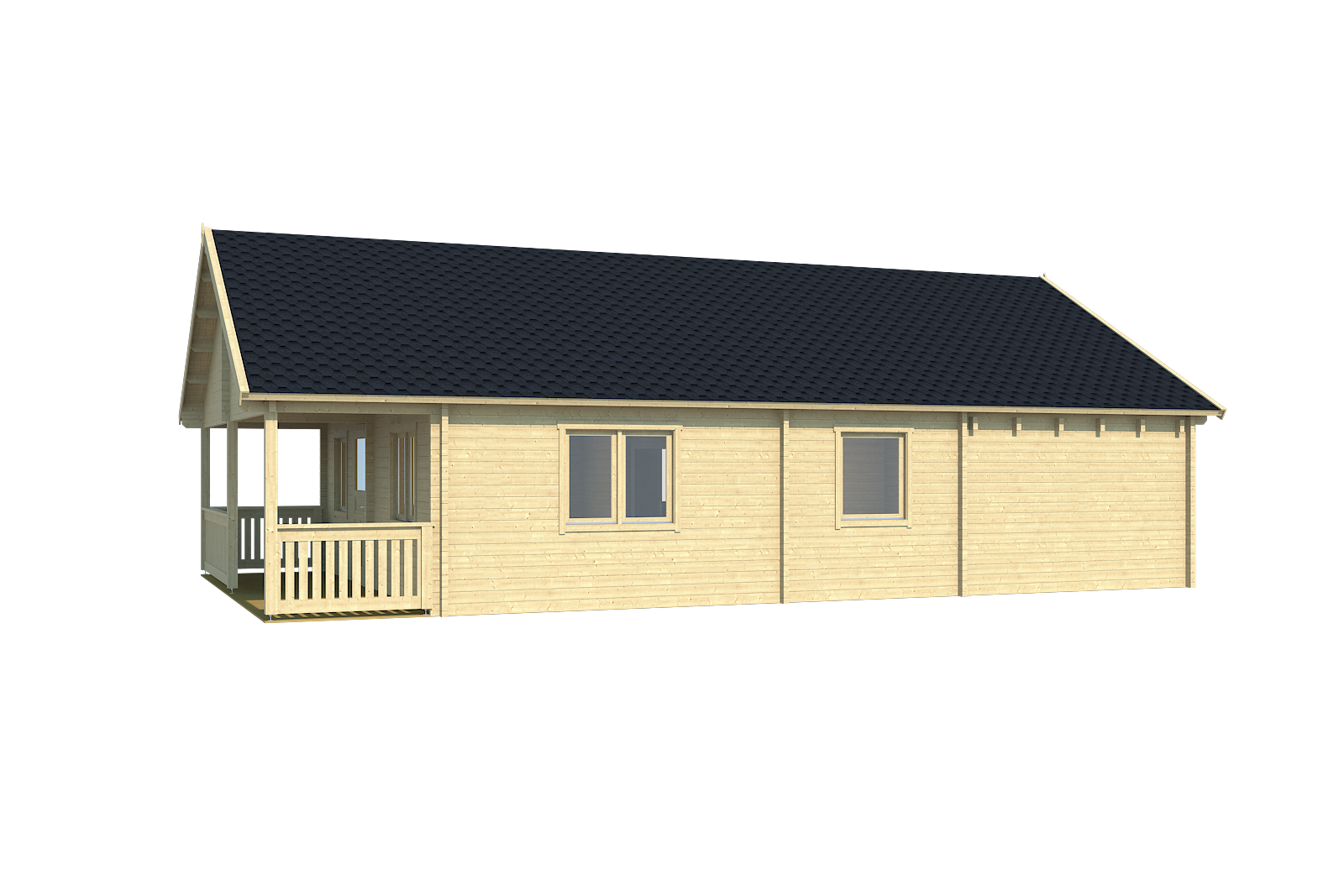

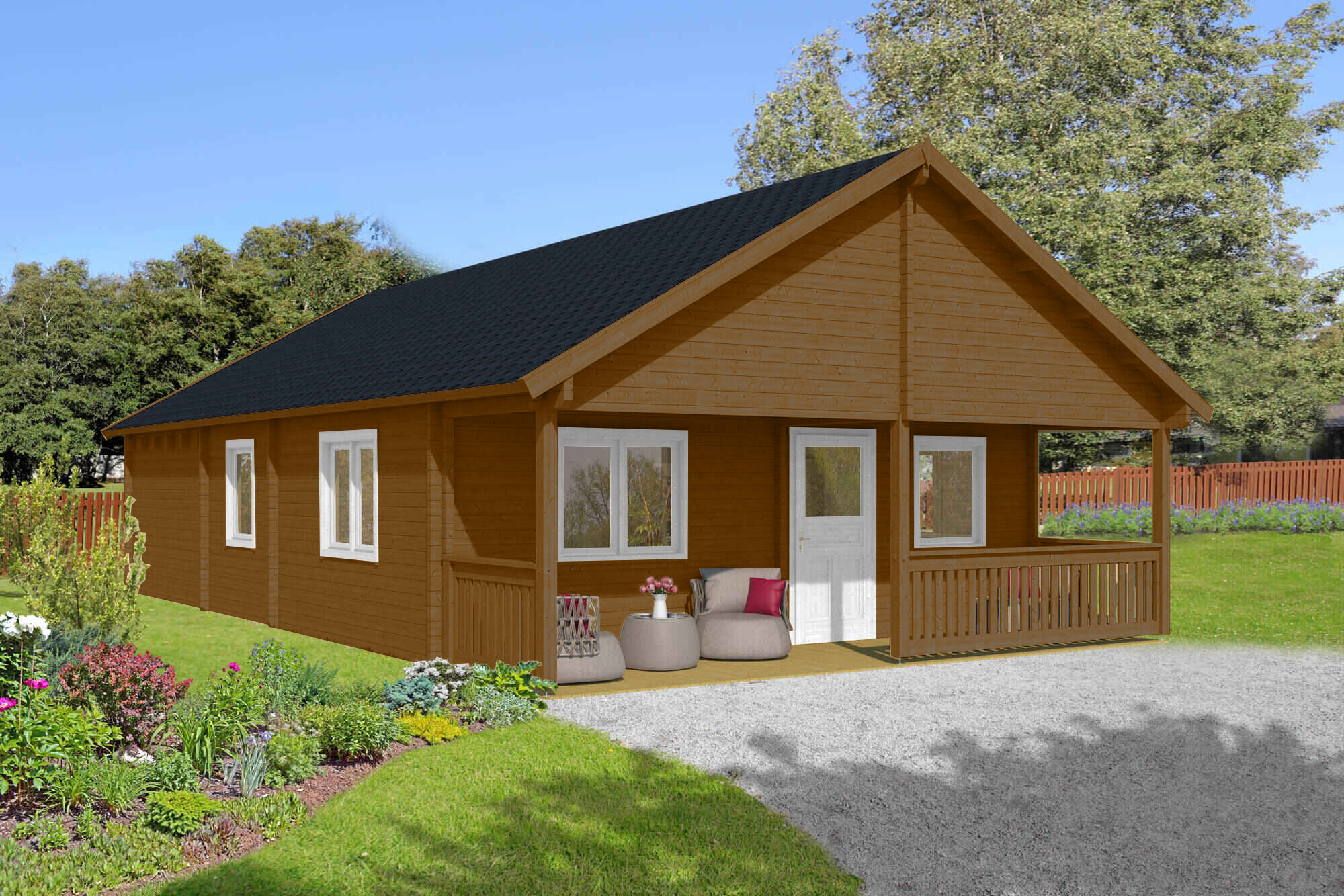

Toledo E-29 Lofted

960 sq ft
Premium Model
$72,757.00 USD
$93,279.00 CAD
FREE SHIPPING
Rooms
Bedrooms2
Bathrooms1
Cabin sizes
Cabin size288" x 480"
Roof & floor
Roof pitch7/12 - 30D
Roof boards3/4"
Package, area, vol ect.
Size (sq ft)960
Size (sq ft)291
Attic92"
Wall height95"
Ridge height196"
Wall thickness2-3/4"

Model Documentation

Contact Us

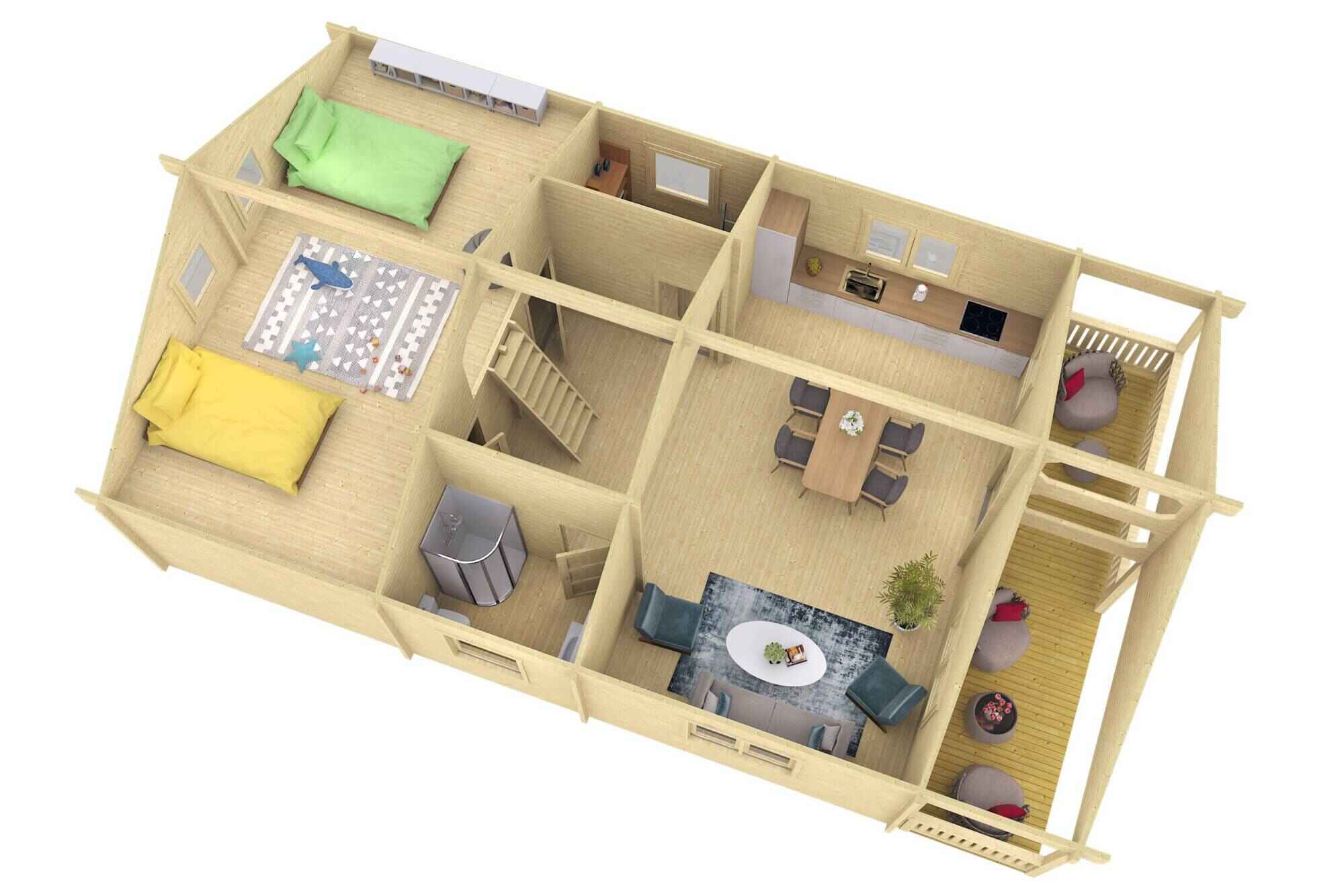

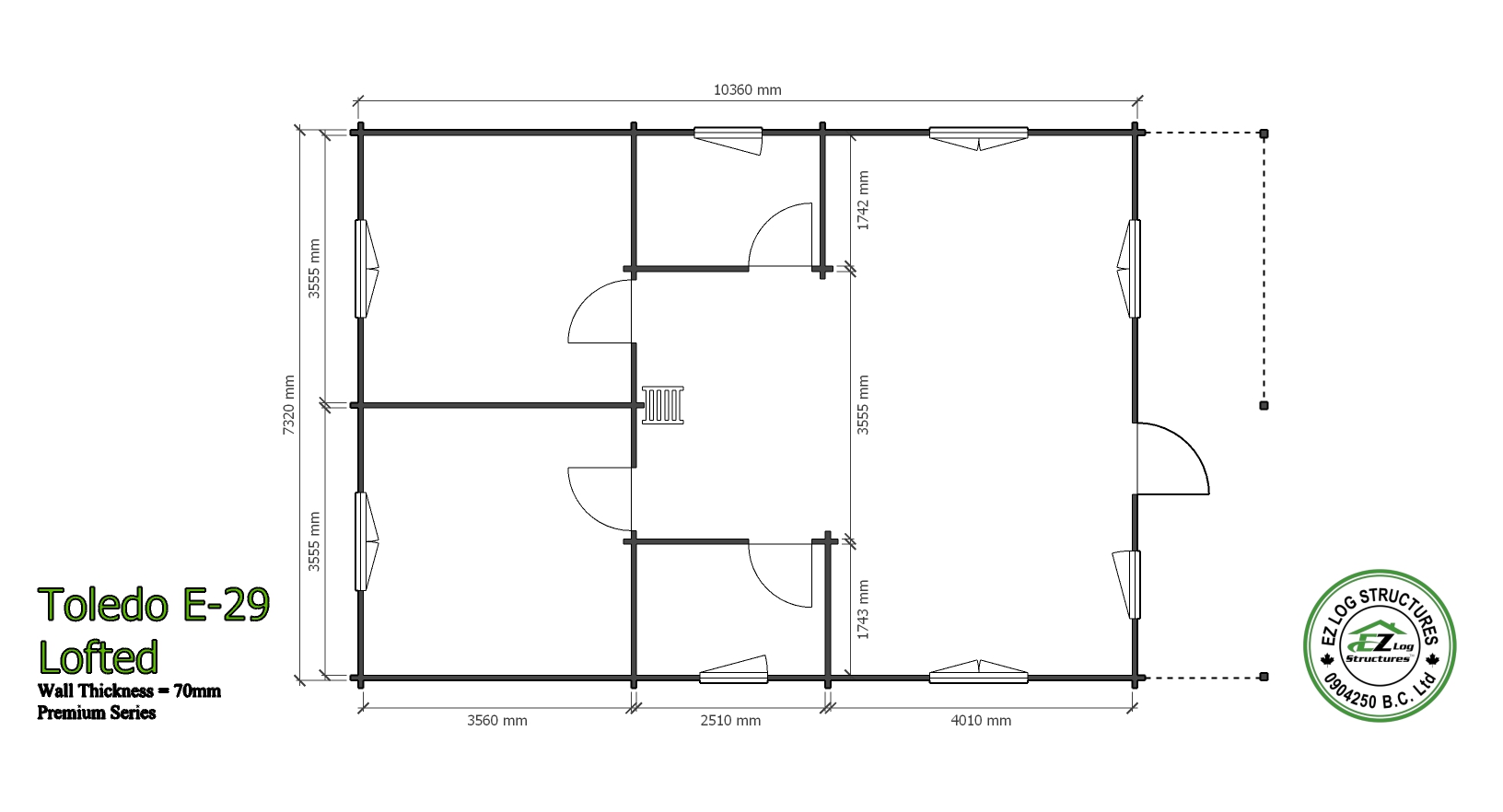

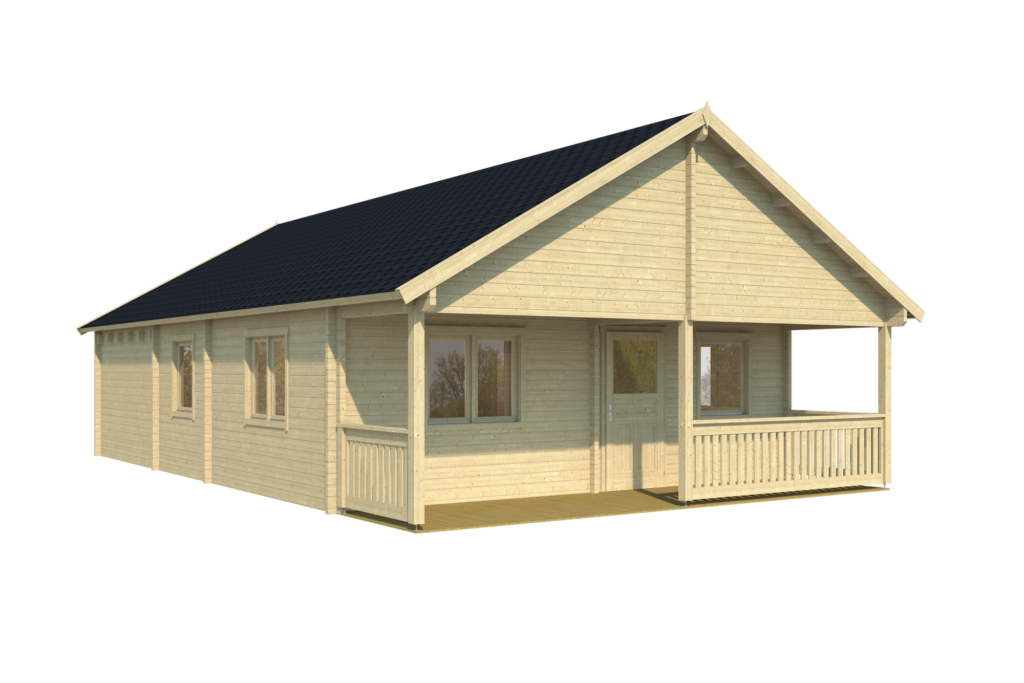

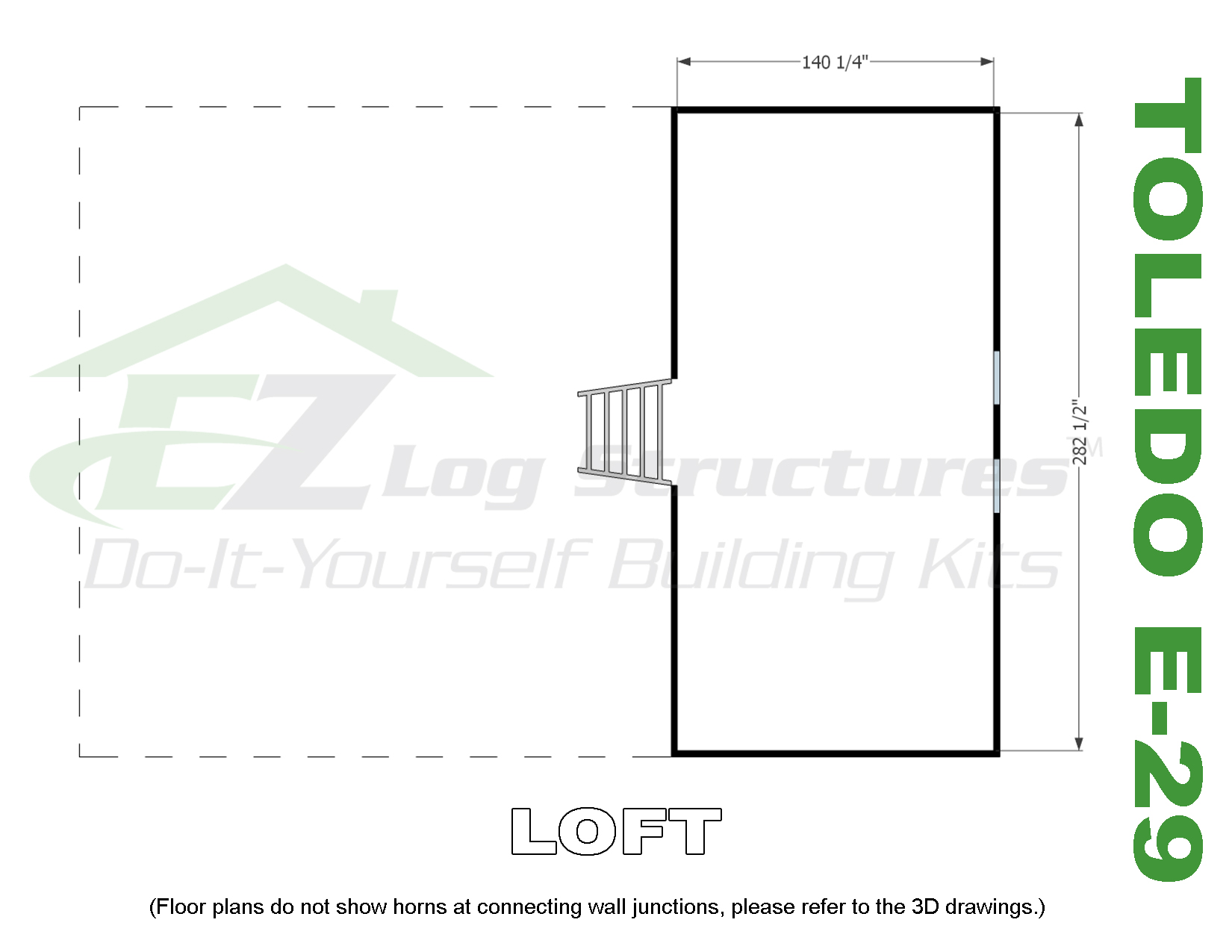

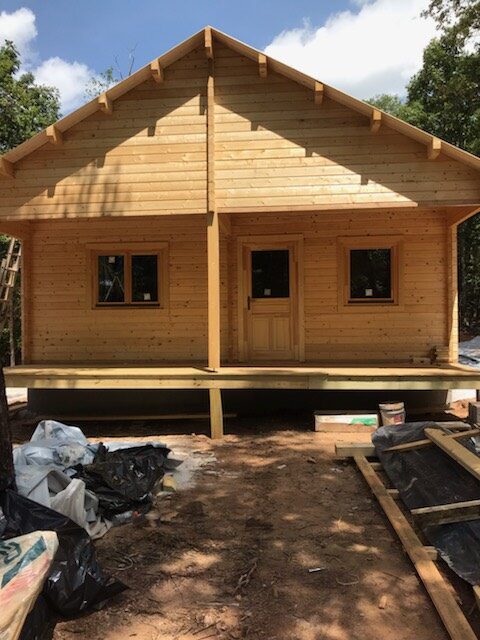

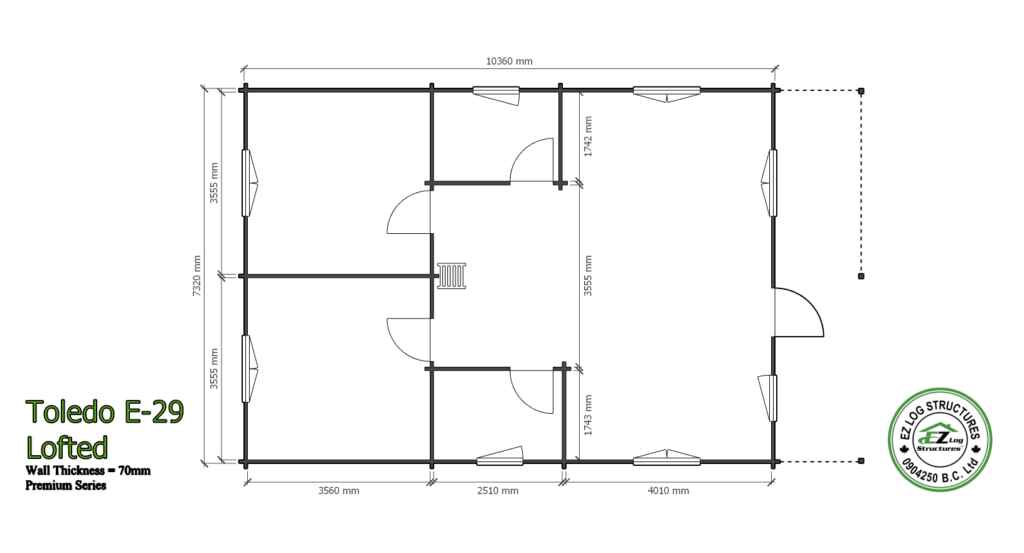

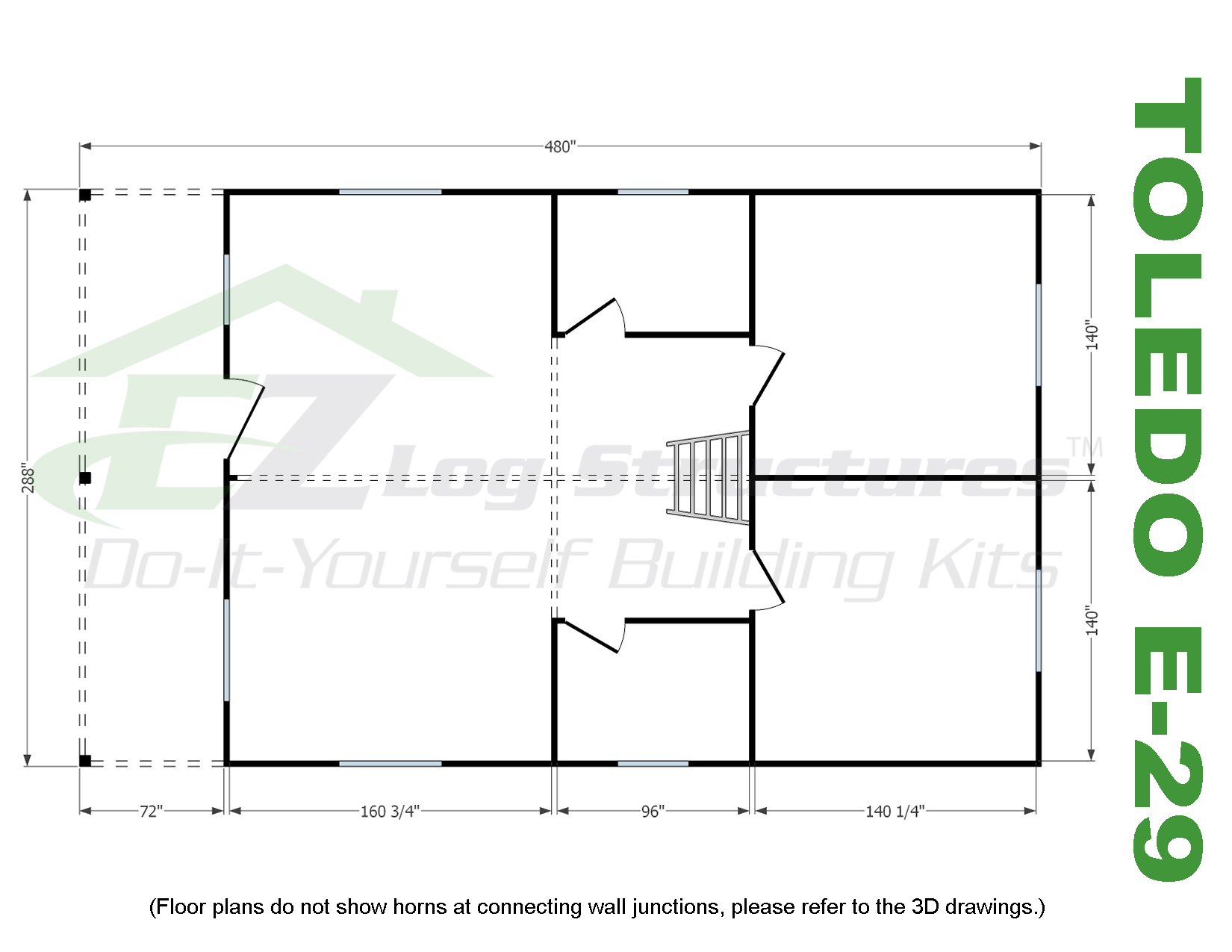

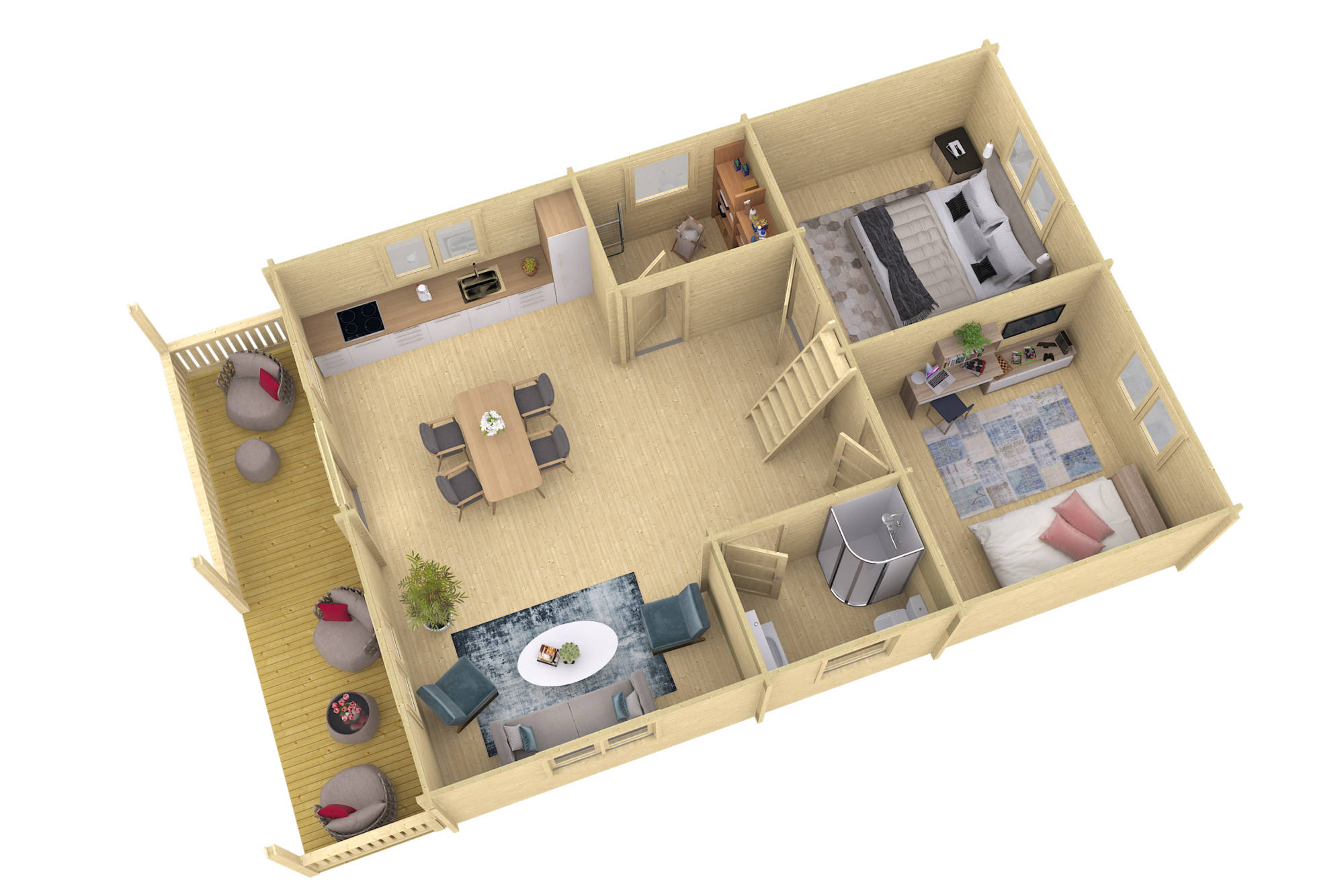

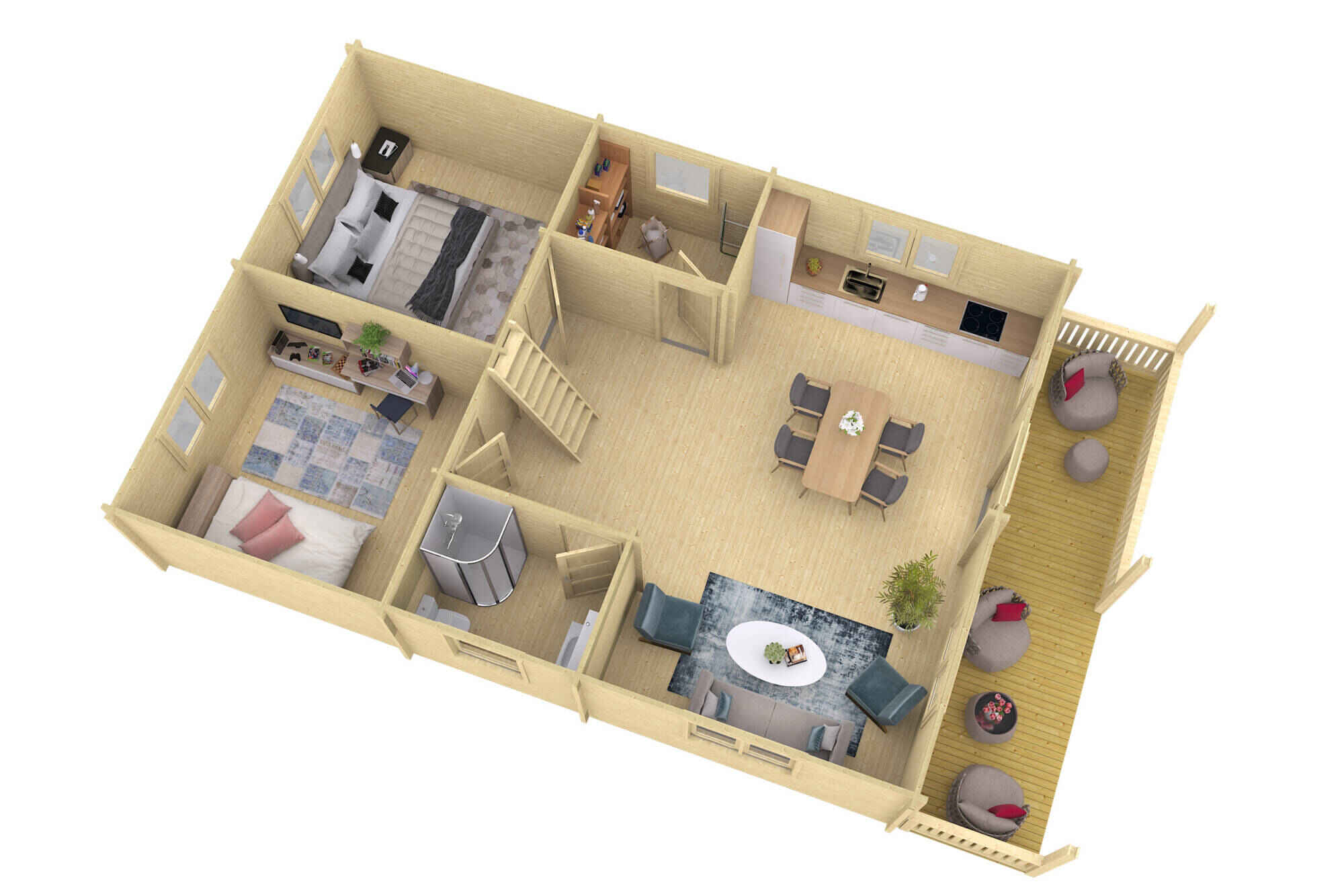

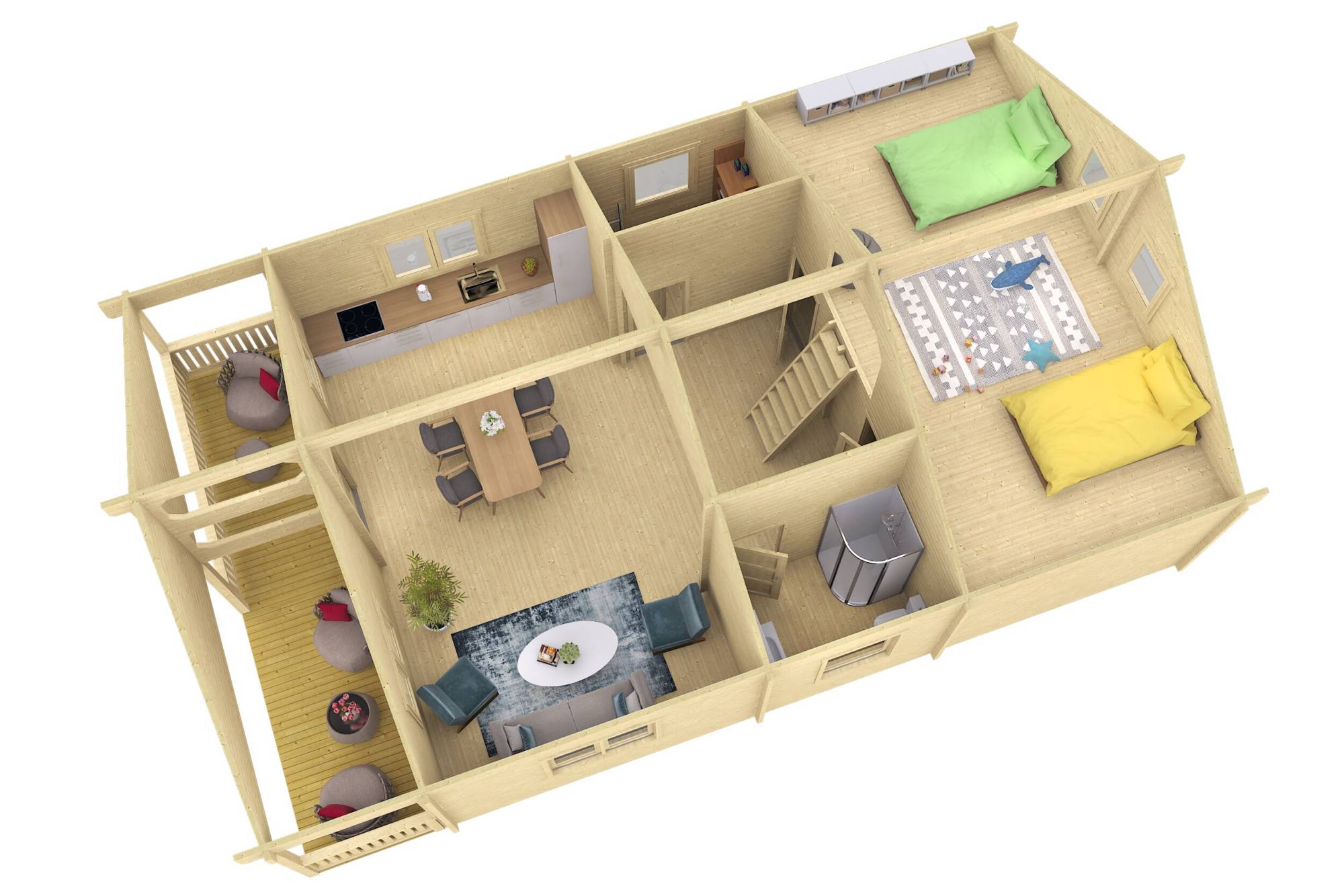

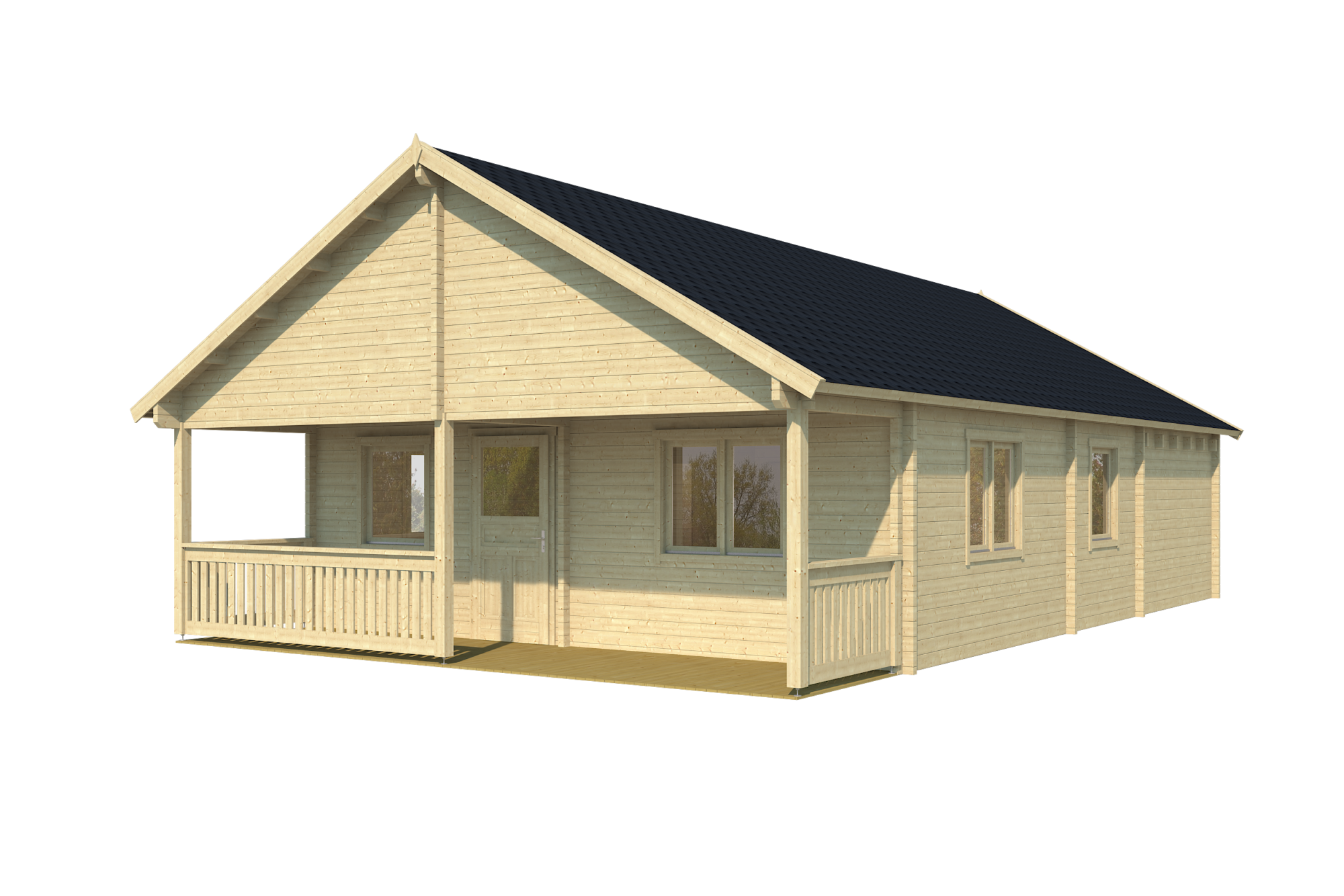

Toledo E-29 comes with a solid front gable or open timber frame gable at the same price. A solid gables can be used if the front deck area is to be closed off with screens or glass to create an enclosed porch area. (sq footage is based the total footprint, living space could be less, see floor plans)

Kit Includes:

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • 7/12 roof pitch (30 degrees)
  • vaulted, cathedral ceilings
  • roof pitch 7/12 (30 degrees)

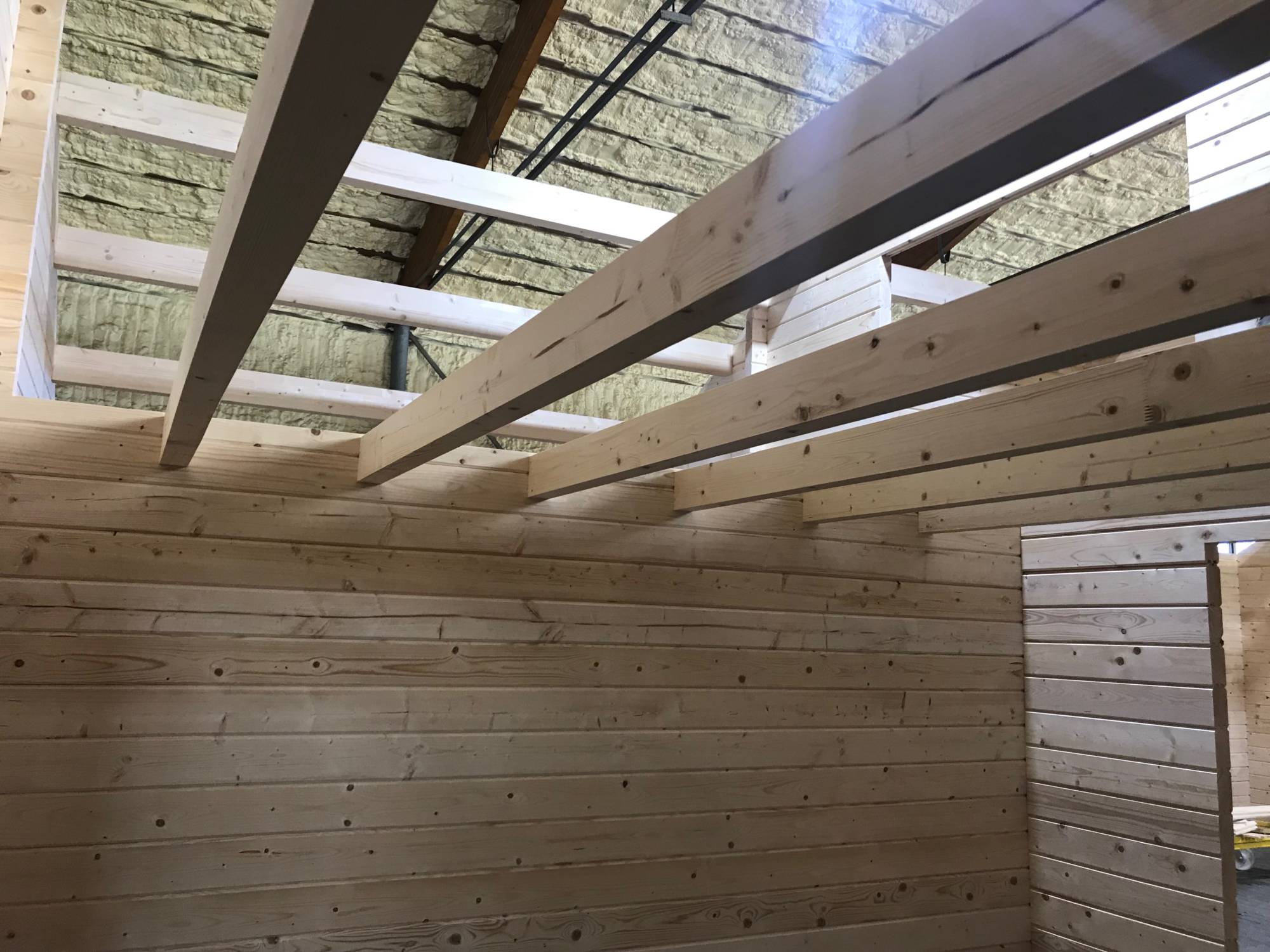

  • pre-cut, 100mm x 200mm (4″x8″) glulam roof purlins spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • pre-cut 100mm x 200mm (4″x8″) glulam floor beams spaced 558mm (22″) or less

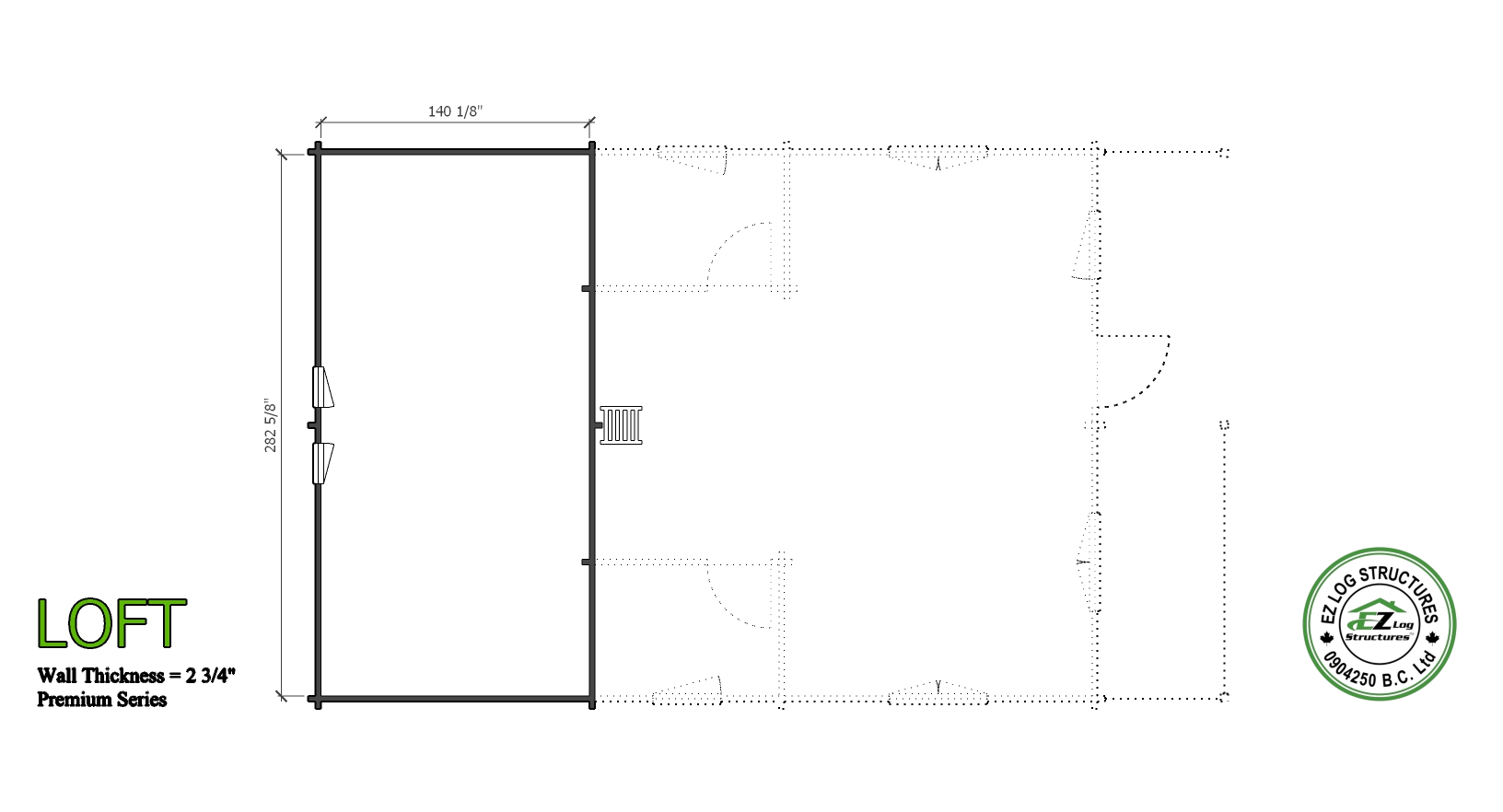

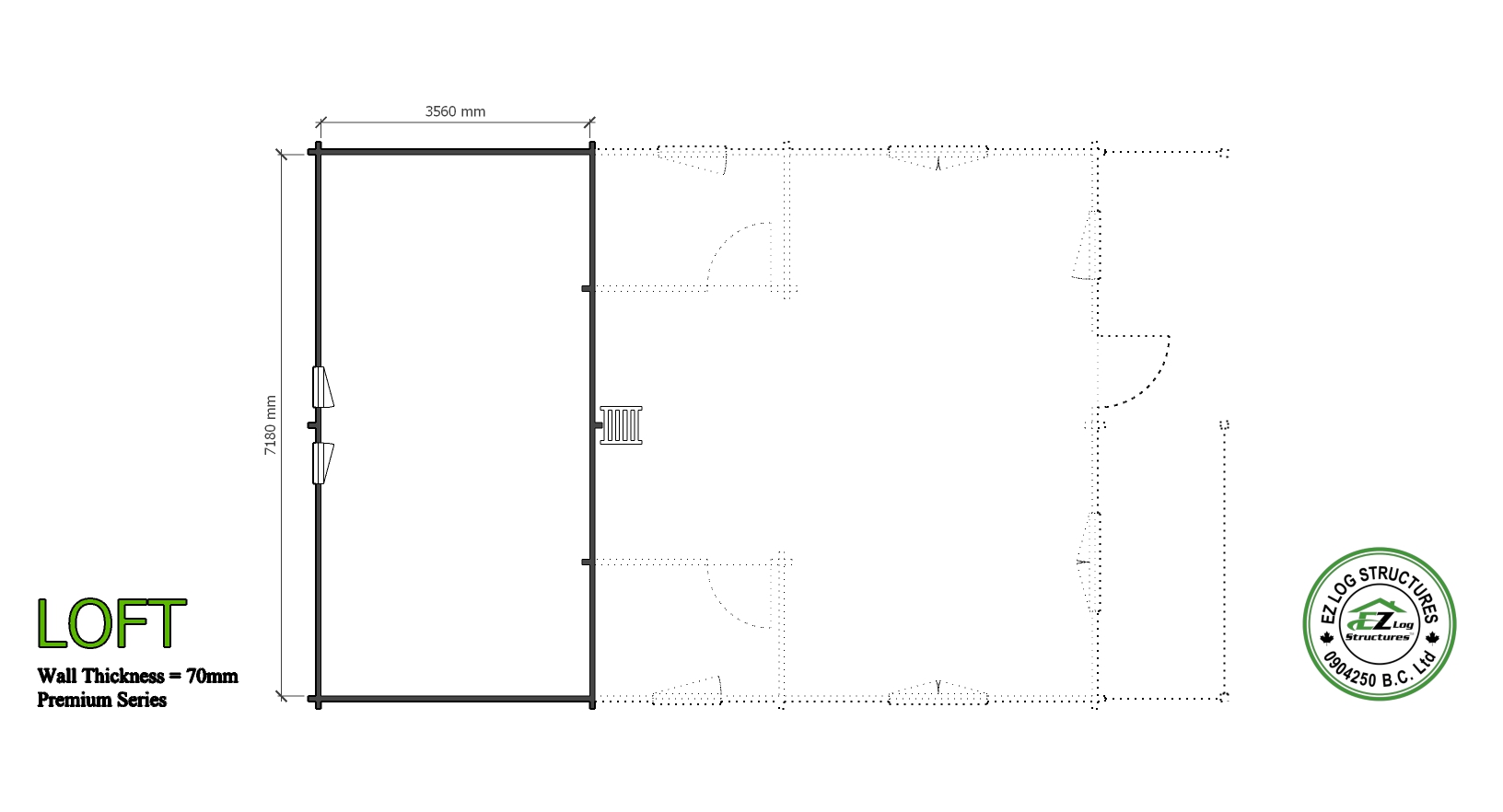

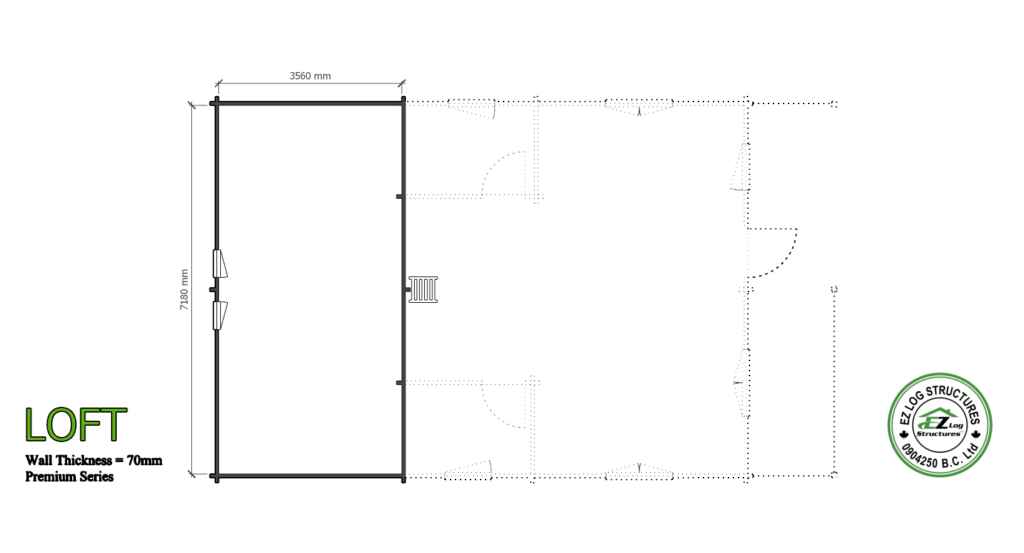

  • pre-cut loft floor boards 28mm (1-18″)
  • loft ladder
  • 4 interior doors 900mm x 2040mm (36″x80″)
  • 4 single wide wood windows 765mm x 990mm (30″x39″)
  • 5 double wide wood windows 1530mm x 990mm (60″x39″)
  • 2 exterior doors 990mm x 2040mm (36″x80″) 1/2 glass tempered
  • adjustable posts
  • prebuilt deck railings with vertical balustrades
  • stacked log front gable
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped and marked for sequence of assembly
  • FREE SHIPPING

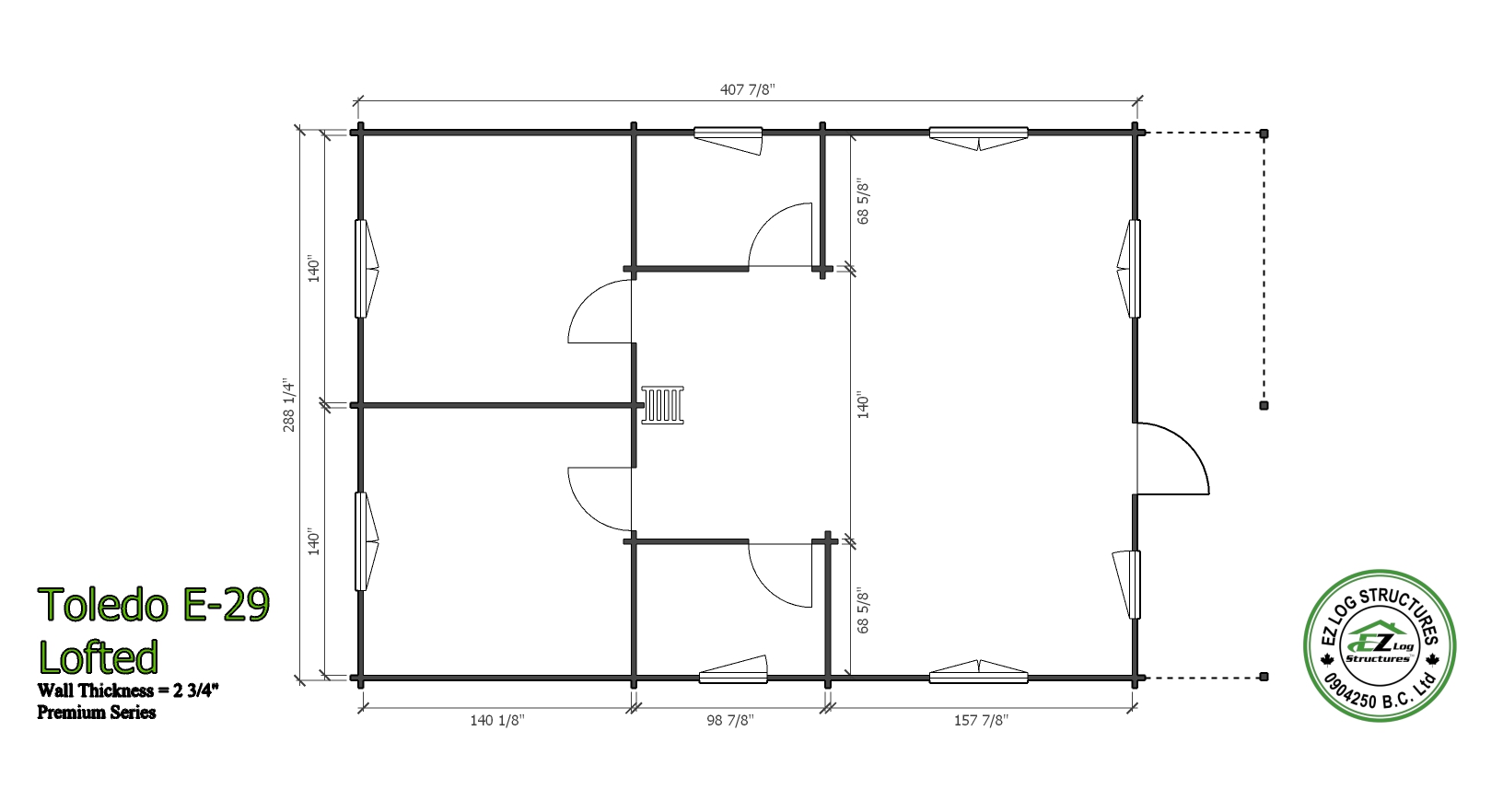

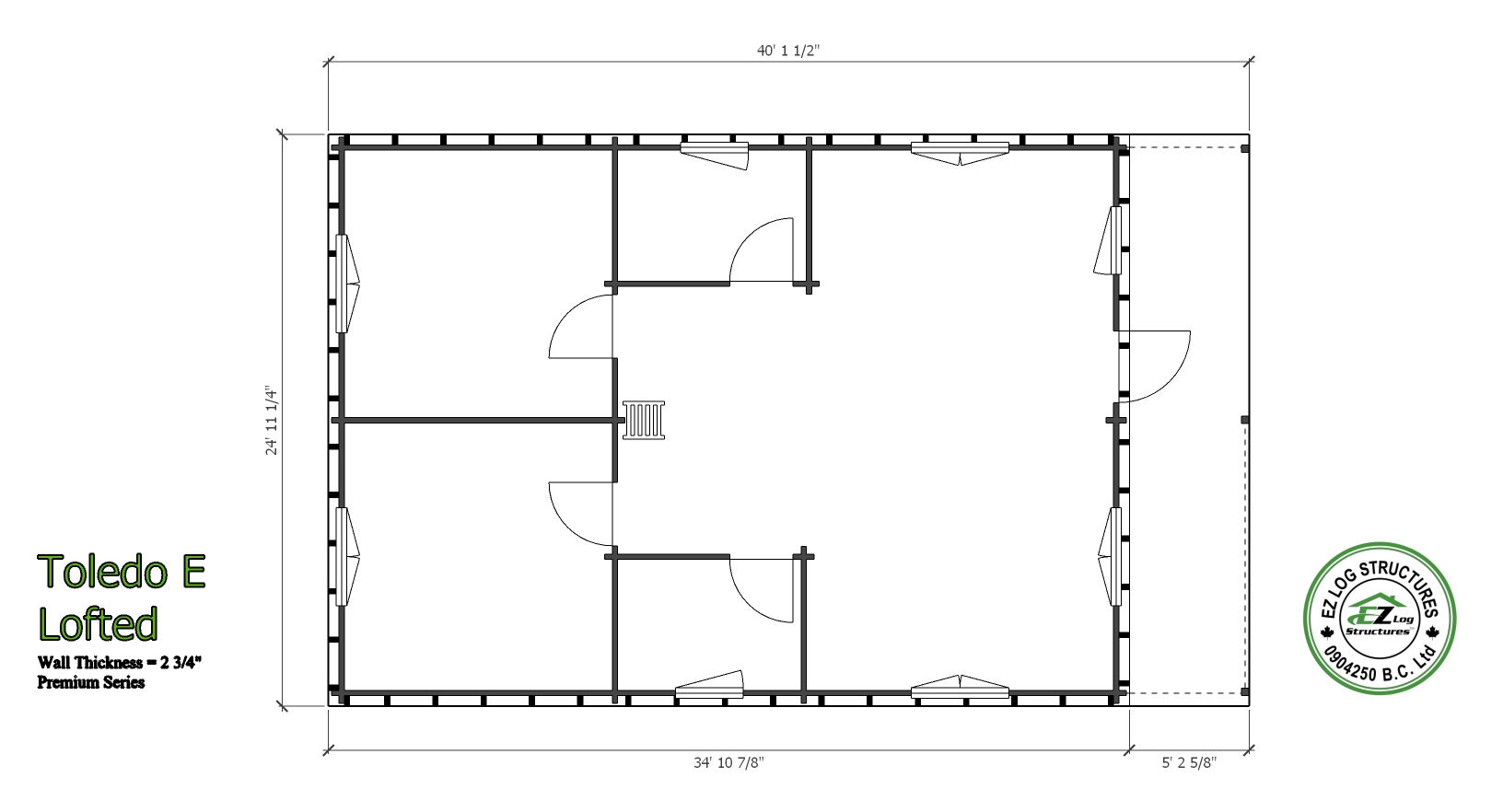

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING

    Exterior Stud & Siding Options:
    Exterior stud & siding kits include: 2×6 studs, stud screws, wood siding, corner blocks

    Add 14%  – Otoczak Full D-Log siding 1-1/8″ x 5-1/8″ (28mm x 130mm)

    Add 10%  – Max Semi D-Log siding 3/4″ x 5-1/8″ (18mm x 130mm)

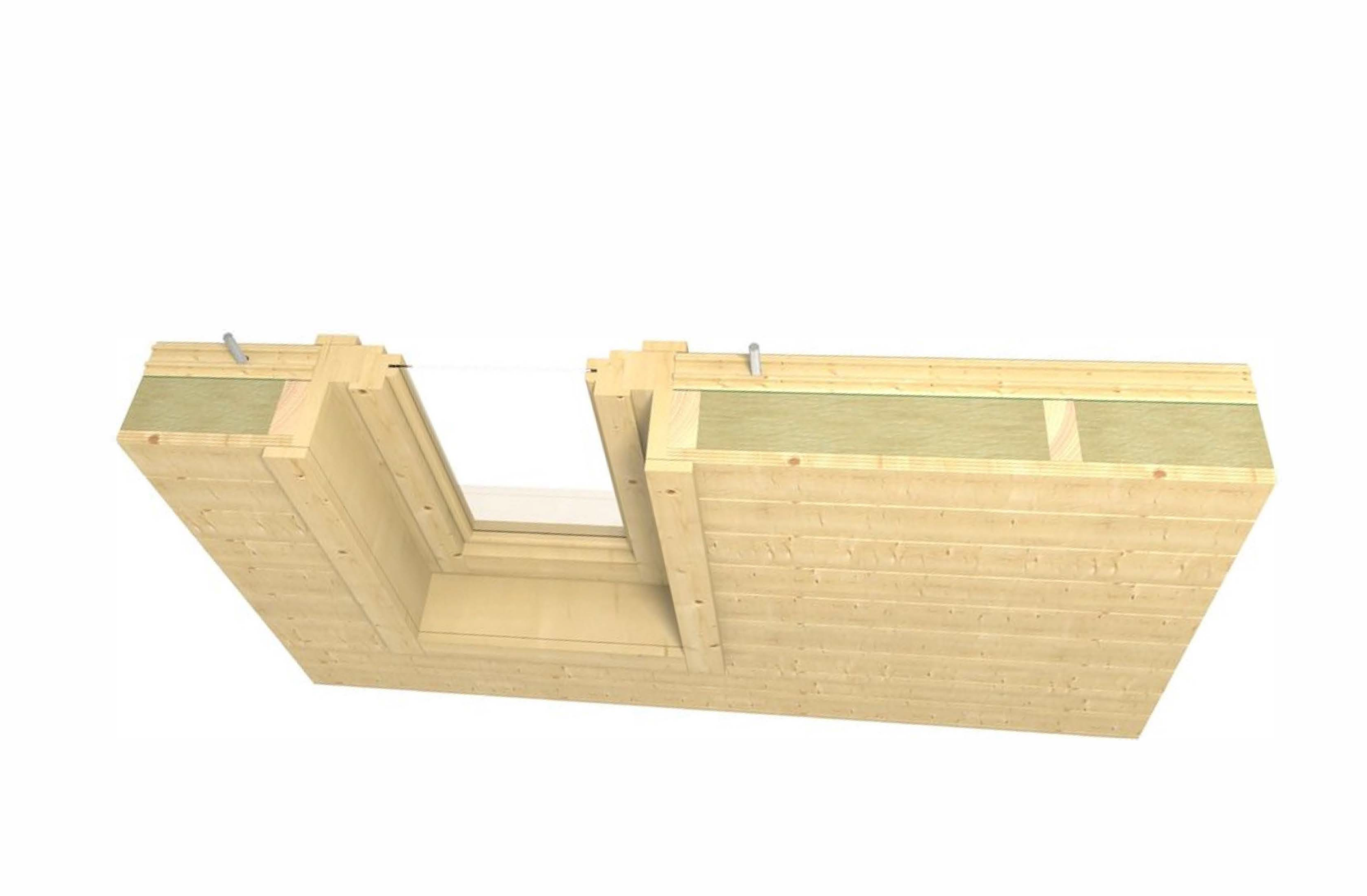

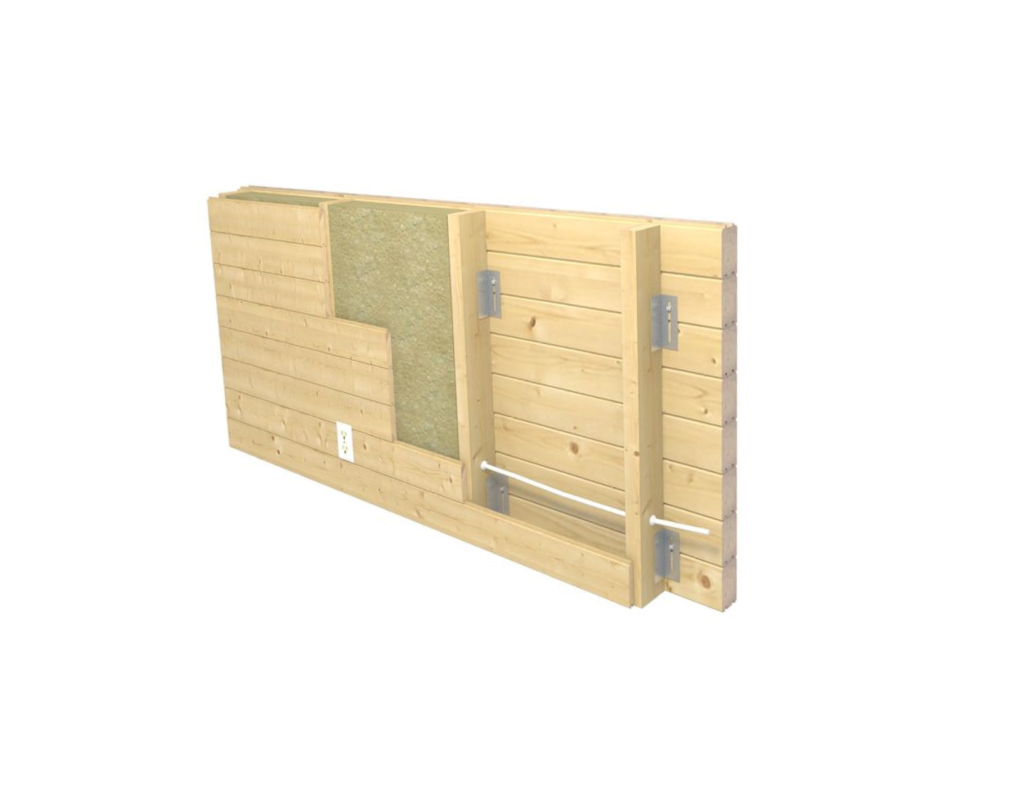

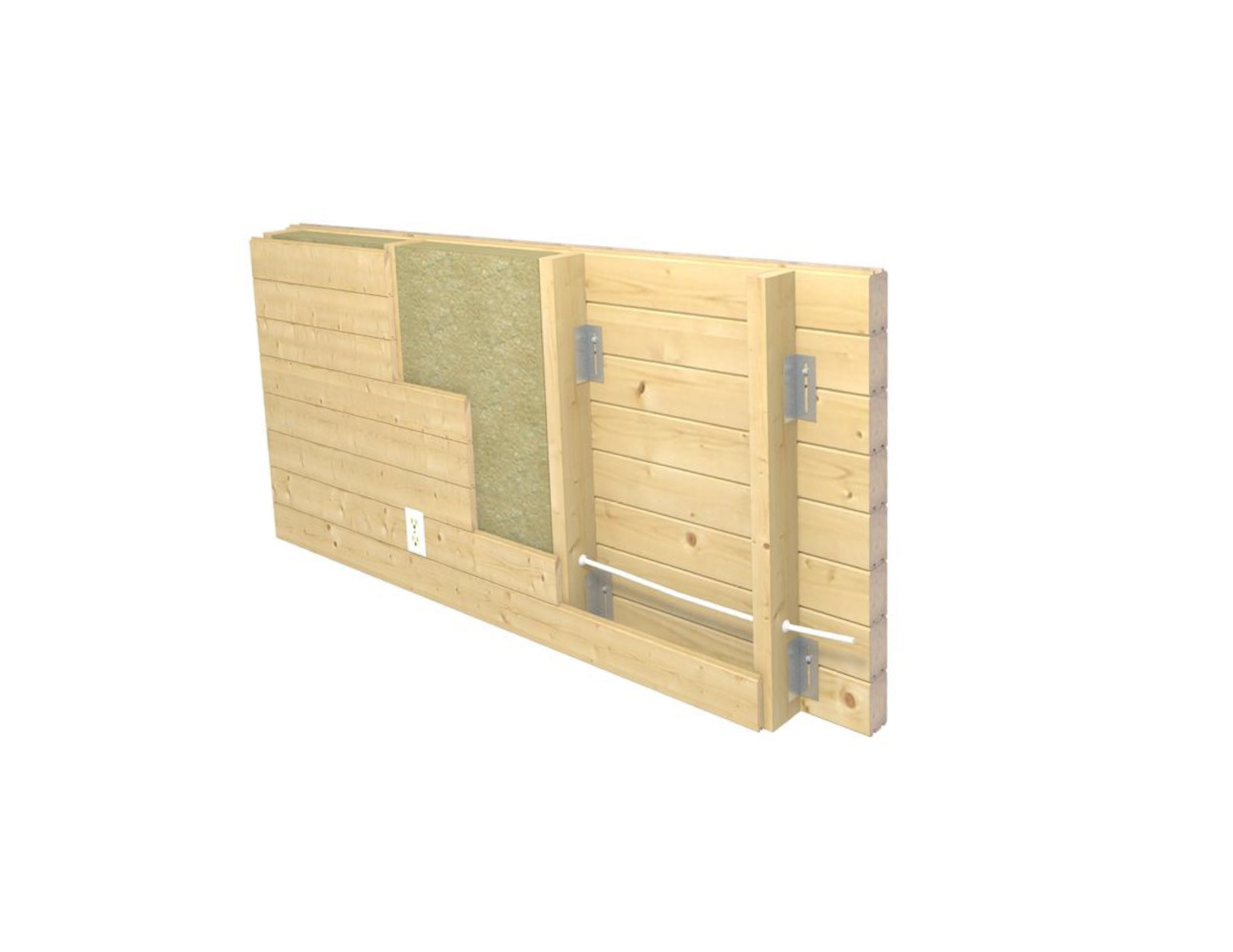

    Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

    Window Options:

    Upgrade all the wood windows to triple glazed/Low E/Argon filled glass

    Add – $ 1,310.00 USD

    Add – $ 1,680.00 CAD

    OR

    Upgrade all wood window to our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass plus exterior rolling shutters that are controlled from the interior. Add comfort and security, improve the energy efficiency, reduce outside noise levels & provide complete darkness for daytime sleepers. (See the video on the video section)

    Add – $ 2,730.00 USD

    Add – $ 3,500.00 CAD
