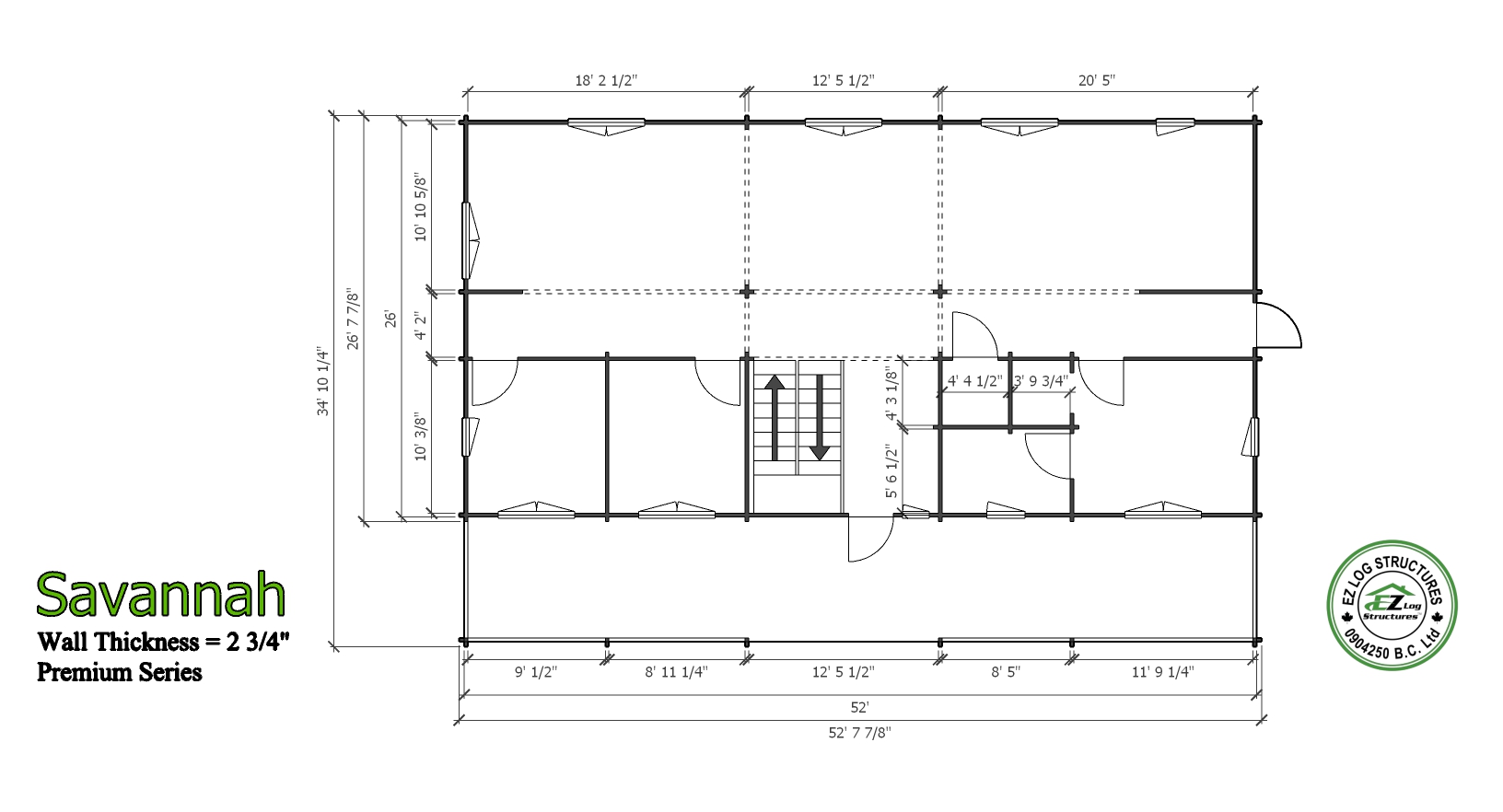

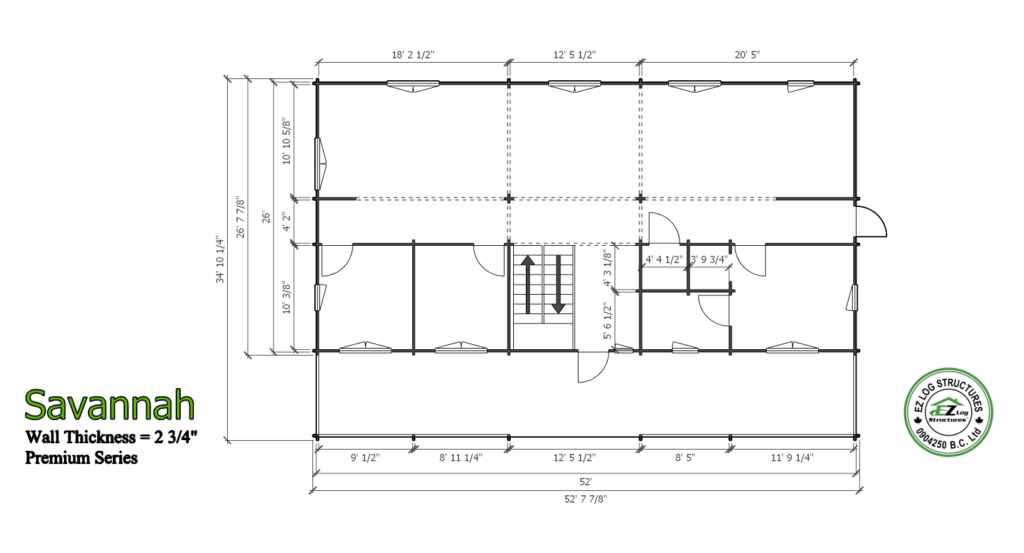

Savannah

2088 sq ft
Premium Model
$210,473.00 USD
$269,837.00 CAD
FREE SHIPPING
Rooms
Bedrooms7
Bathrooms3
Roof & floor
Roof boards3/4"
Package, area, vol ect.
Size (sq ft)1350
Size (sq ft)736
Volume4295
Wall height95"
Ridge height228"
Wall thickness2-3/4"
Contact Us

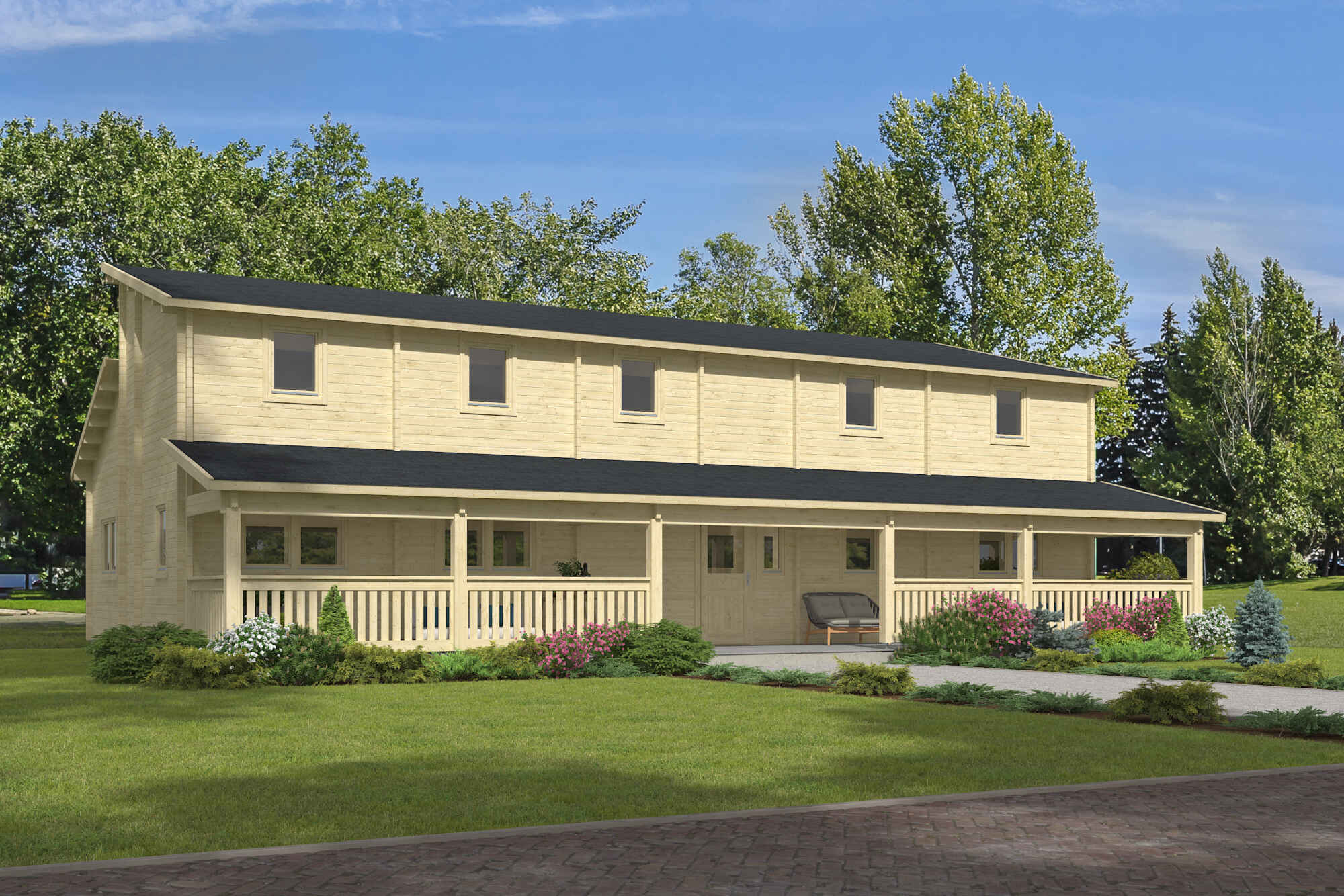

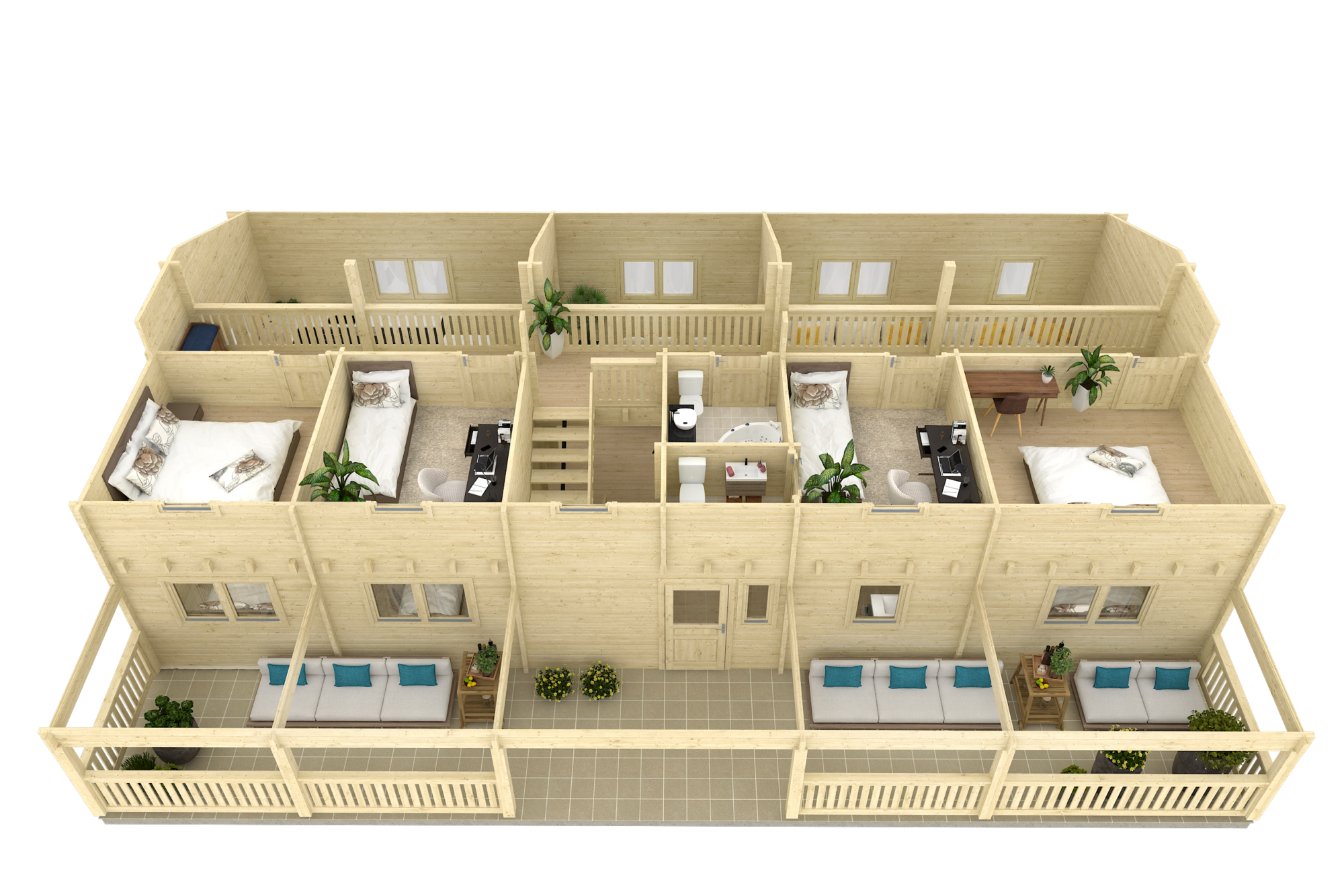

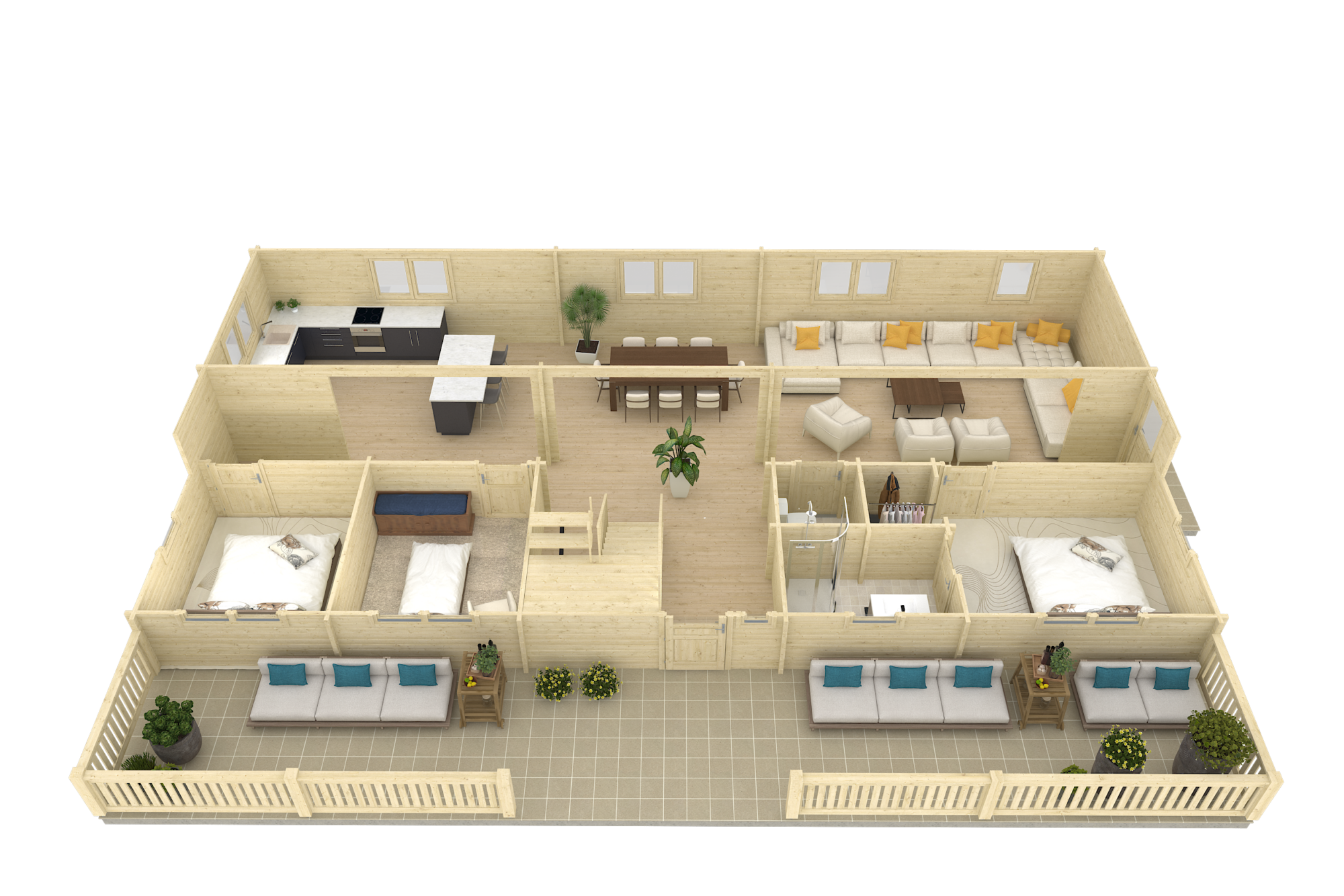

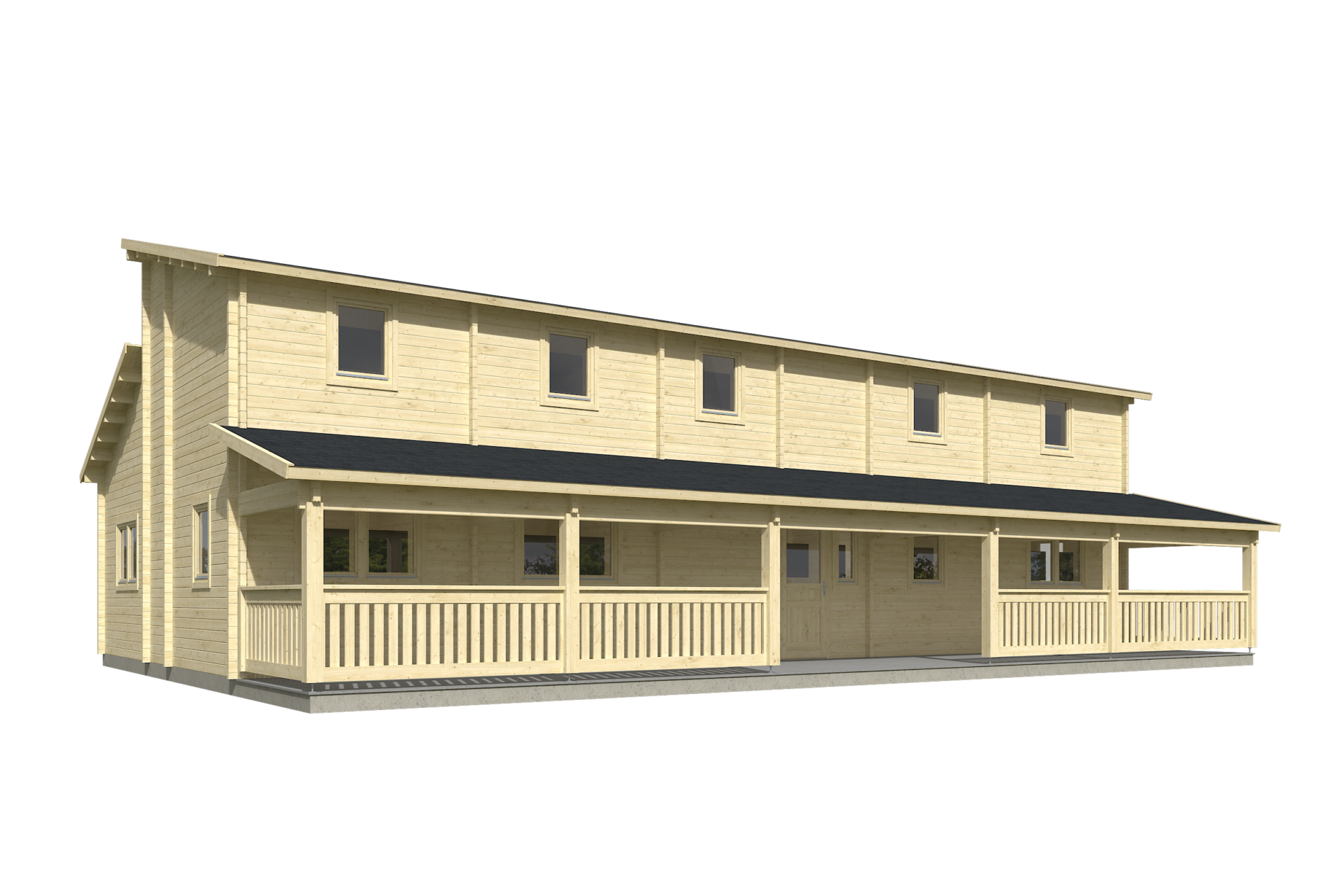

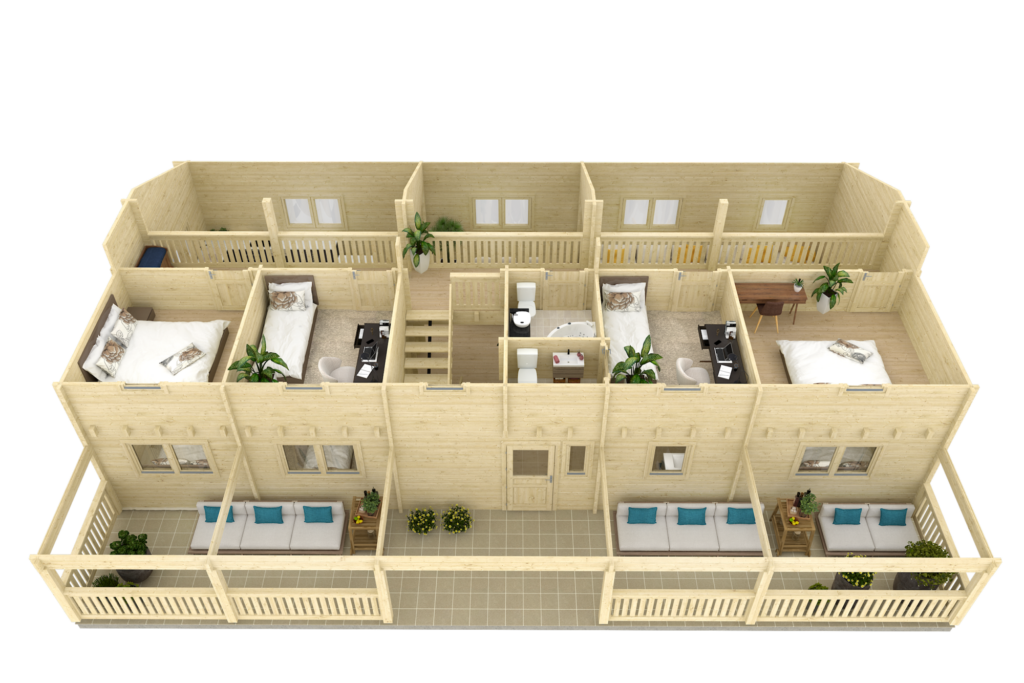

SAVANNAH is one of the most complex home designs we offer and has a high usage of material due to the high walls and overall sq footage. This model can be a 7 bedroom, 3 bath barndominium home for the larger family.  The vaulted ceilings throughout provide a spacious open design. Assembly can be done in 15 days with 4 people



Kit includes:

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • sidewall height main floor 95″ (2413mm)
  • stairs, handrails, landing build to code
  • loft floor beams 4″ x 9.5′ (100mm x 240mm) spaced 22″ (558m) or less
  • pre-cut loft floor boards 1-1/8″ (28mm)
  • vaulted, cathedral ceilings
  • roof pitch  3.2/12 (15 degree) 3/12 (14 degree) 5/12 (23 degree)
  • pre-cut 4″ x 9.5″ (100mm x 240mm) glulam roof purlins/beams, spaced 22″ (558mm) or less
  • pre-cut, numbered 3/4″ (18mm) tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 4295 total sq’ of wall area
  • 2342 sq’ of exterior wall surface
  • 310 lineal’ per row
  • 11 interior doors 32″x 80″ (812mm x 2040mm), hardware
  • 1 single wide wood window 21″ x21″ (530mm x 530mm)
  • 10 single wide wood windows 30″x39″ (765mm x 990mm)
  • 7 double wide wood window 60″x39″ (1530mm x 990mm)
  • 2 exterior doors 36″x80″ (990mm x 2040mm) 1/2 glass tempered, multi locking hardware
  • deck posts, railing with vertical balustrades
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped for sequence of assembly
  • FREE SHIPPING

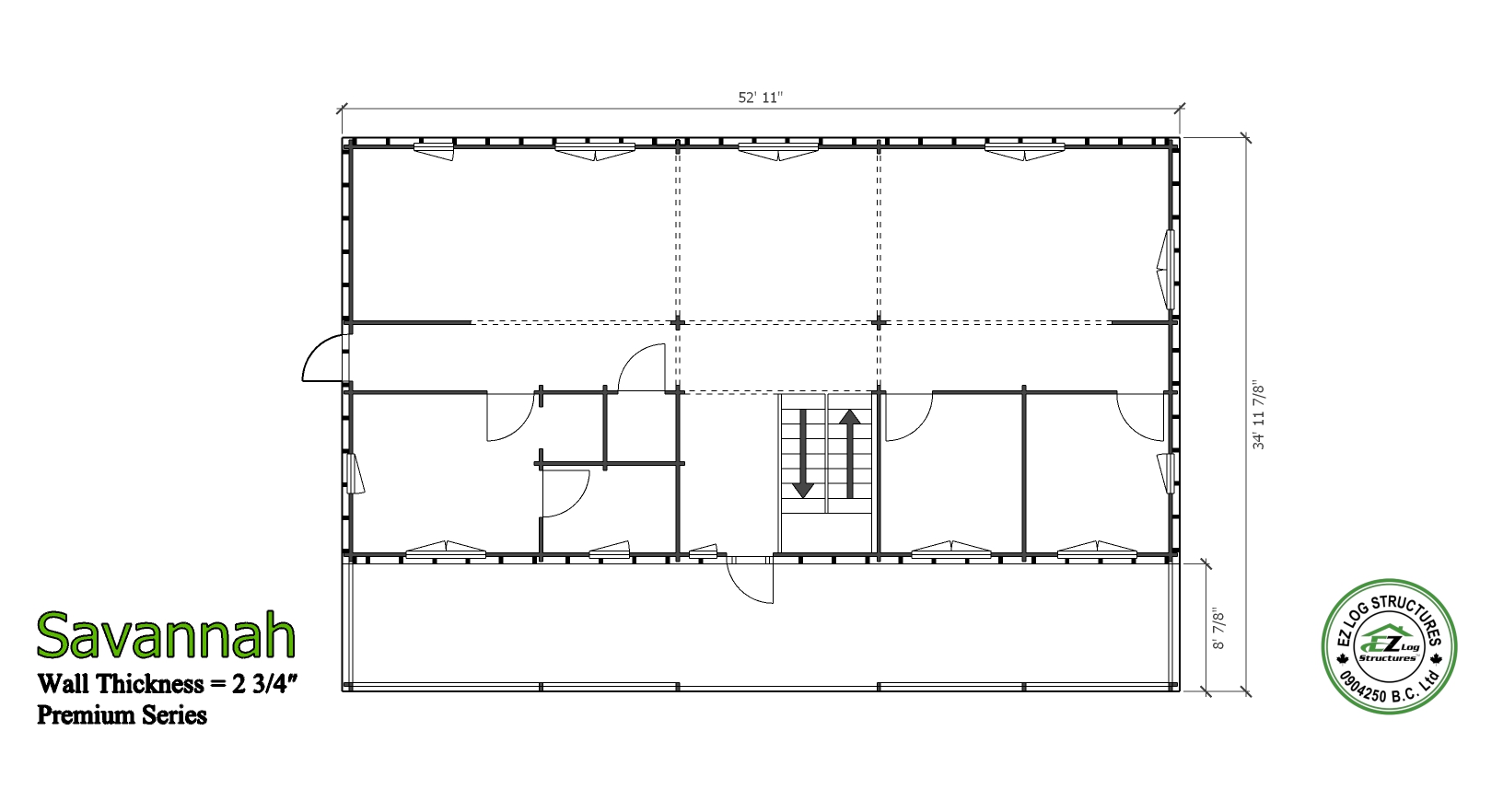

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING





EXTERIOR STUD & SIDING KITS

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

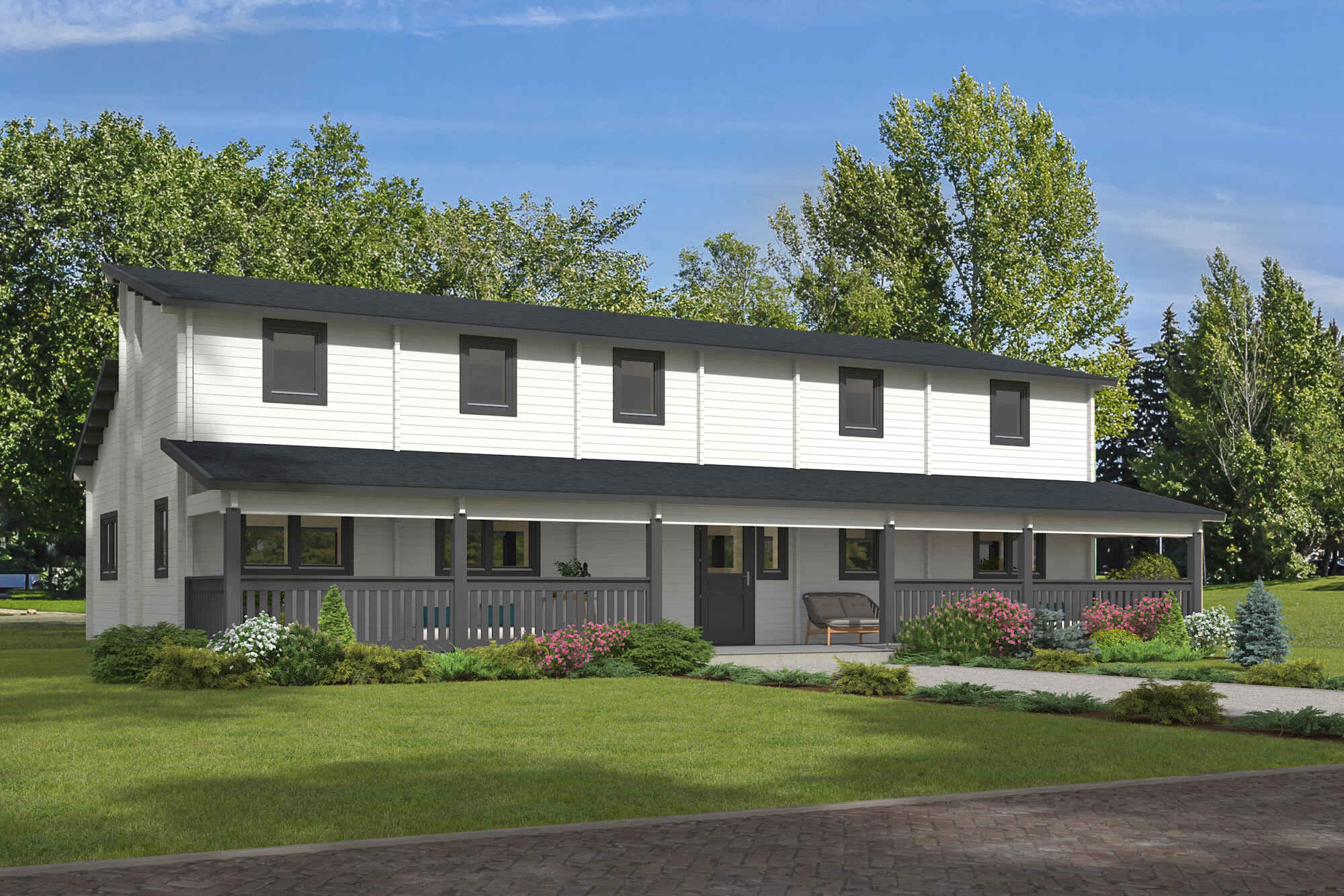

We offer 3 types of siding kits to cover the exterior of the home or cabin: EZ Log Semi D-Log tongue & groove wood siding, EZ Log Full D-Log tongue & groove wood siding & a heavy duty maintenance free extruded PVC polymer siding



Each kit includes: 2×6 studs, stud screws, siding, corner blocks, trims & extending the roof overhang 6″













1) ADD 10% – Semi D-Log siding (Max)  3/4″ x 5-1/8″ (18mm x 130mm)

































2) ADD 14% – Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)

































3) ADD 20% – Vox extruded prefinished PVC polymer siding 3/8″ x 8″ (8.3mm x 200mm)




















Window Options:










1) Kit includes double glazed residential grade wood windows. To upgrade all windows to triple glazed/Low E/Argon gas filled (26 sash)


Add – $ 2,839.00 USD


Add – $ 3,640.00 CAD














OR





PVC window - white frame. PVC window with built-in external shutters. Shutter window.





2) Replace all wood windows with our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)


Add – $ 6,084.00 USD


Add – $ 7,800.00 CAD
