Rockford

355 sq ft
Premium Model
$30,827.00 USD
$39,523.00 CAD
FREE SHIPPING
Rooms
Bedrooms2
Bathrooms1
Cabin sizes
Cabin size226" x 226"
Roof & floor
Roof pitch3/13 - 14D
Roof boards3/4"
Package, area, vol ect.
Size (sq ft)355
Wall height89"
Ridge height117"
Wall thickness2-3/4”

Model Documentation

Contact Us

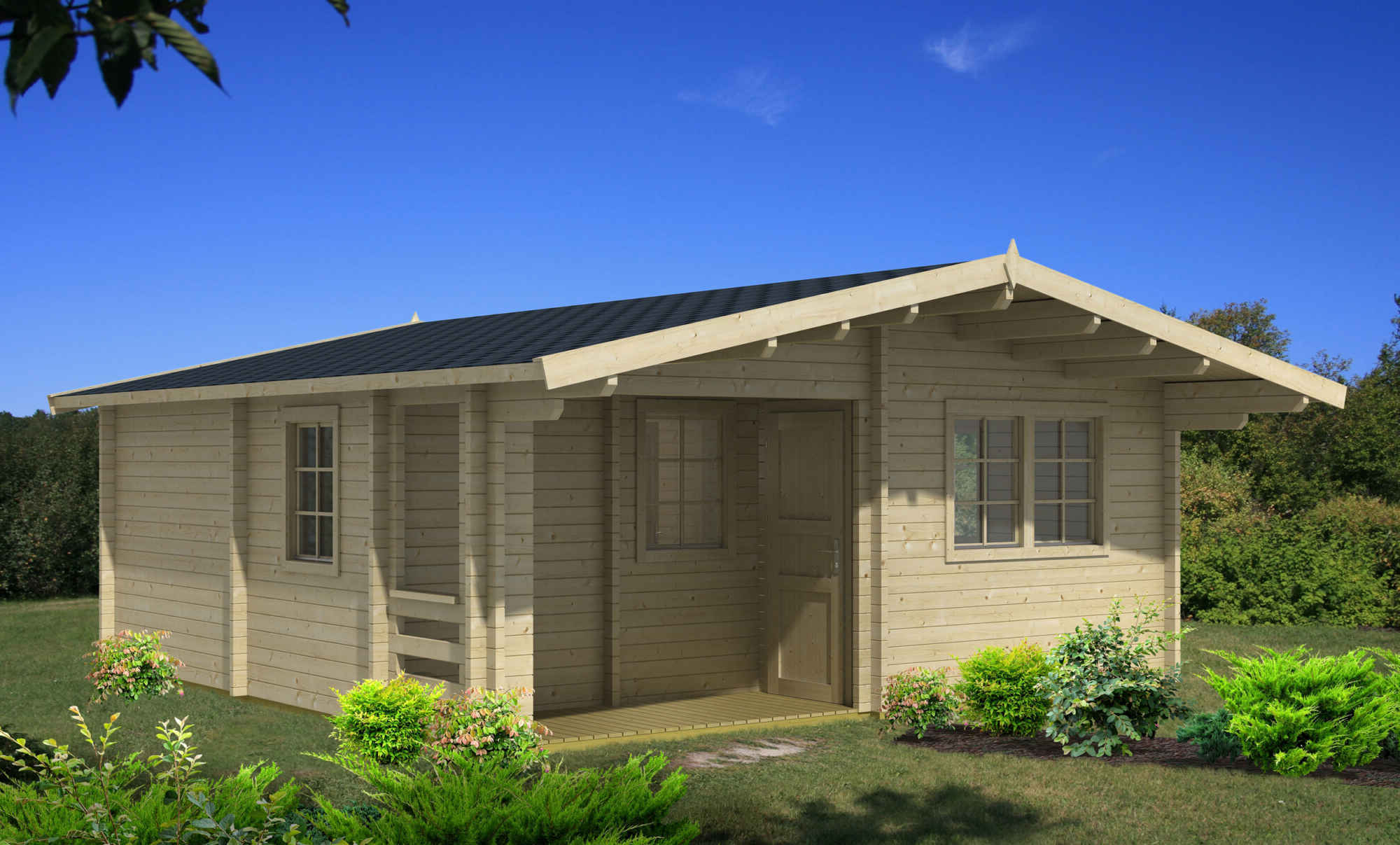

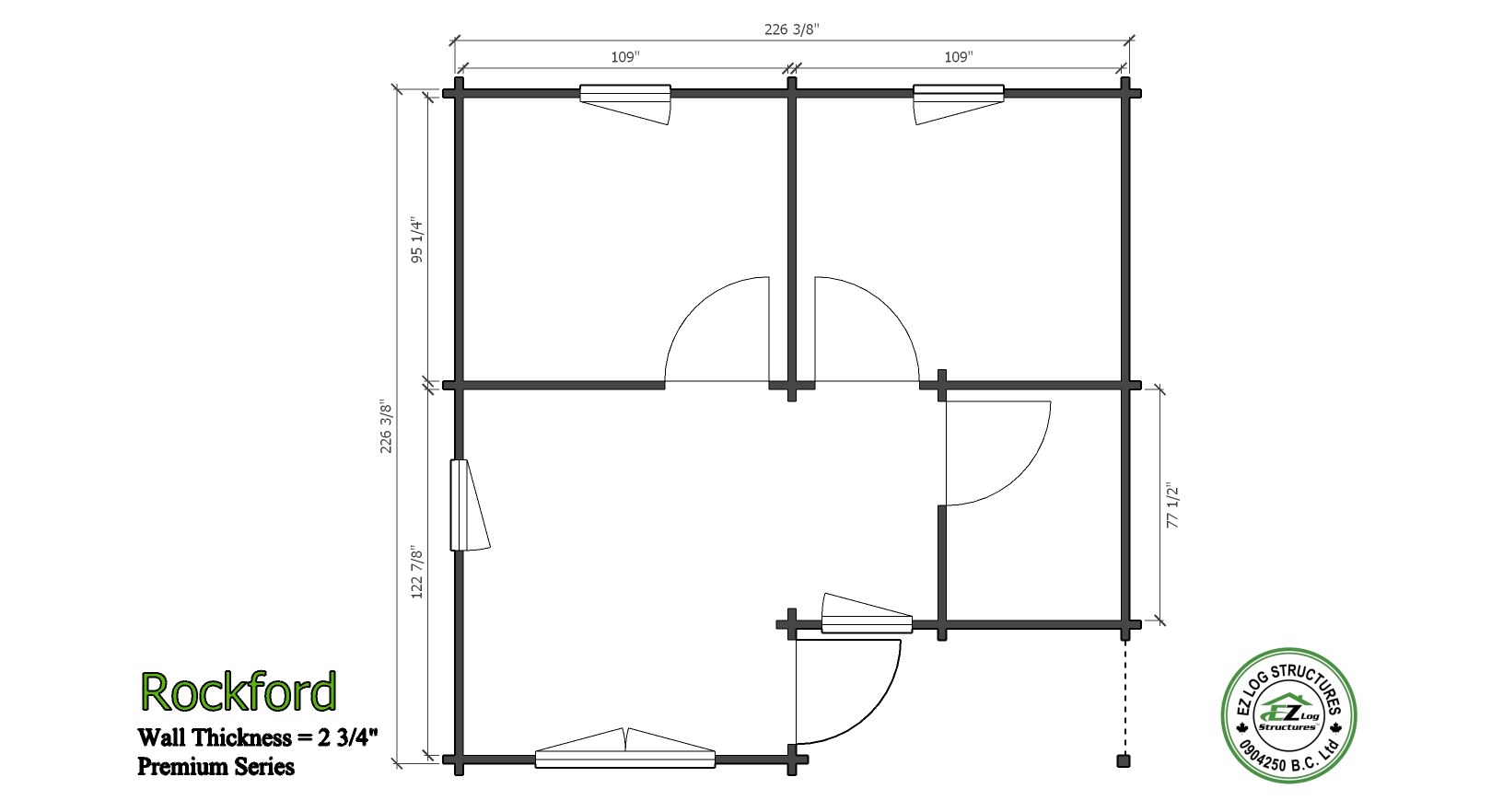

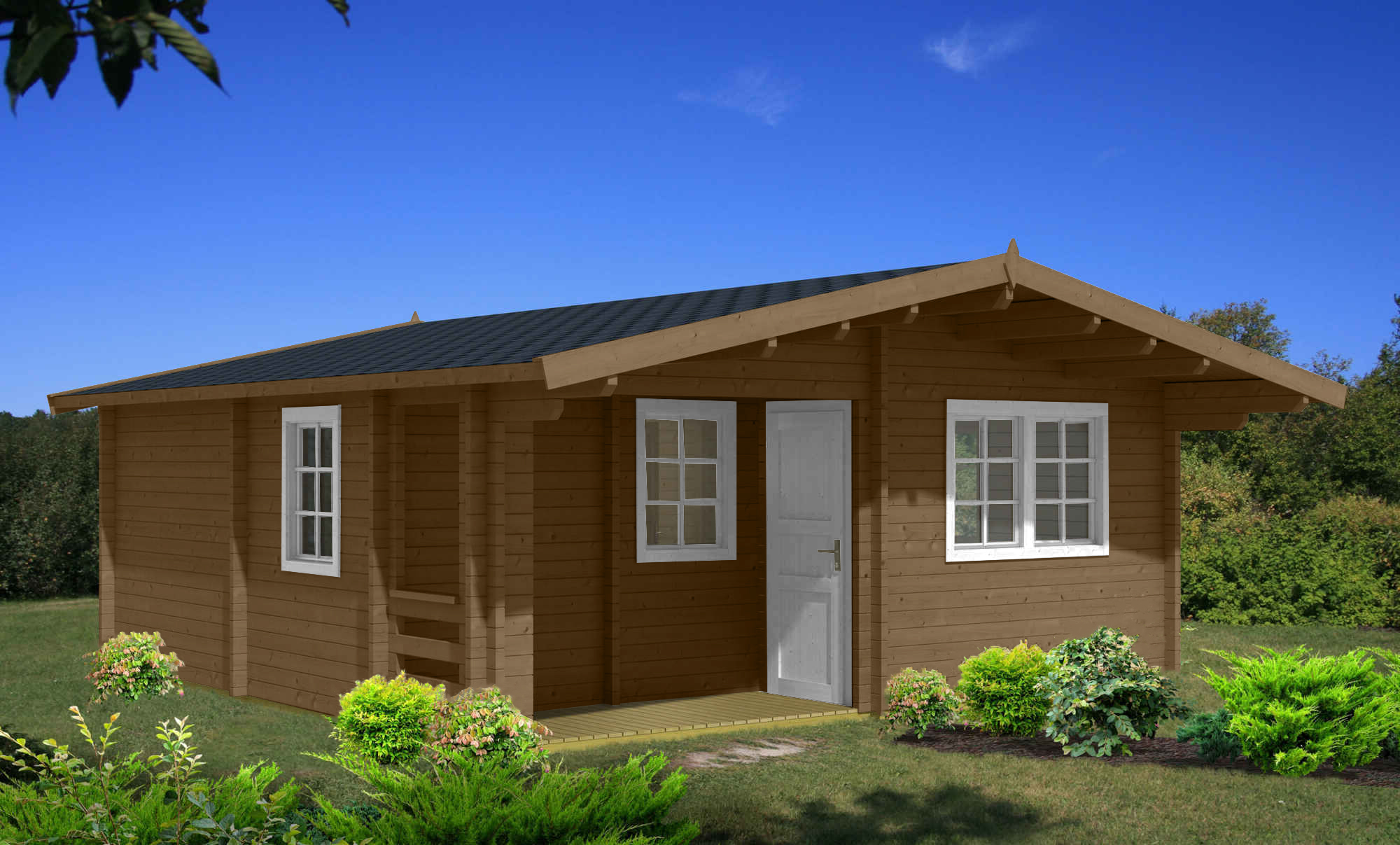

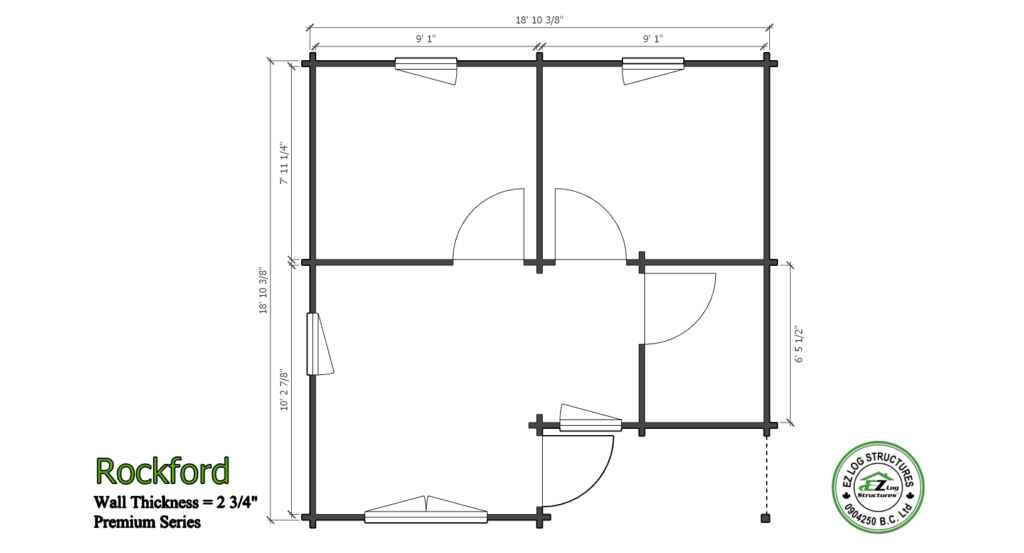

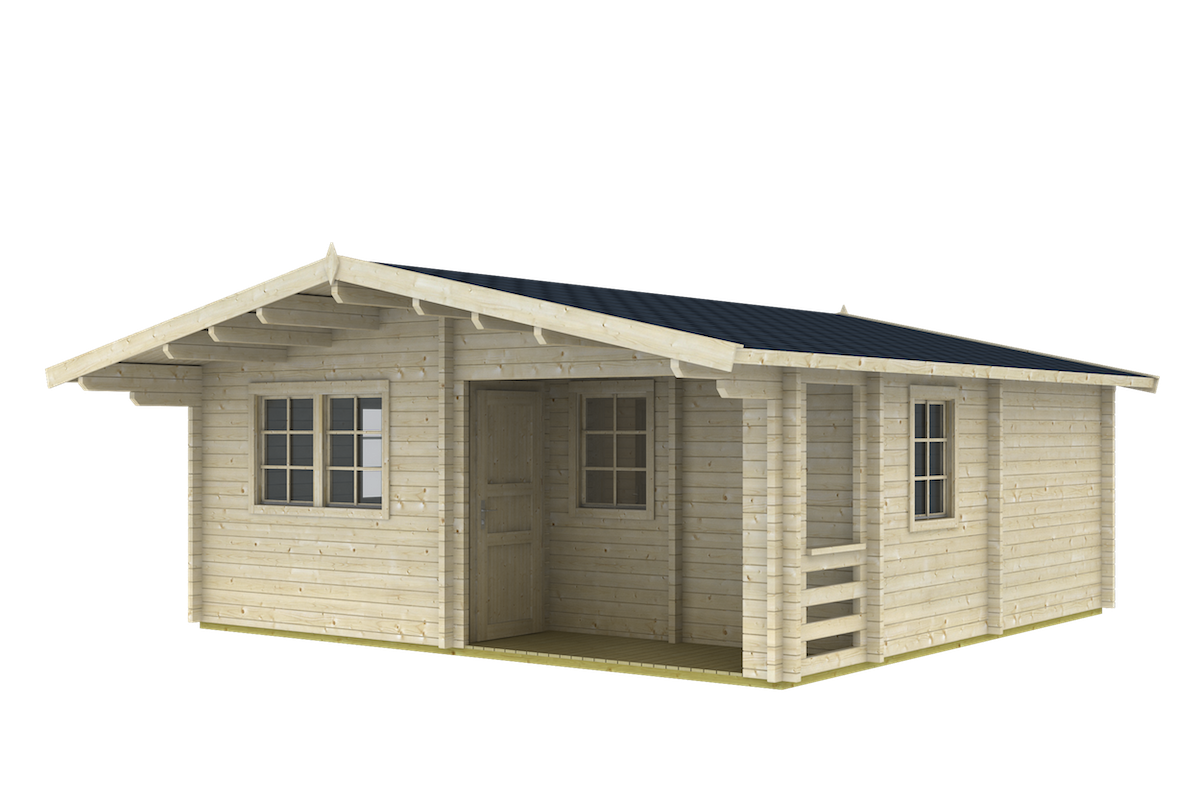

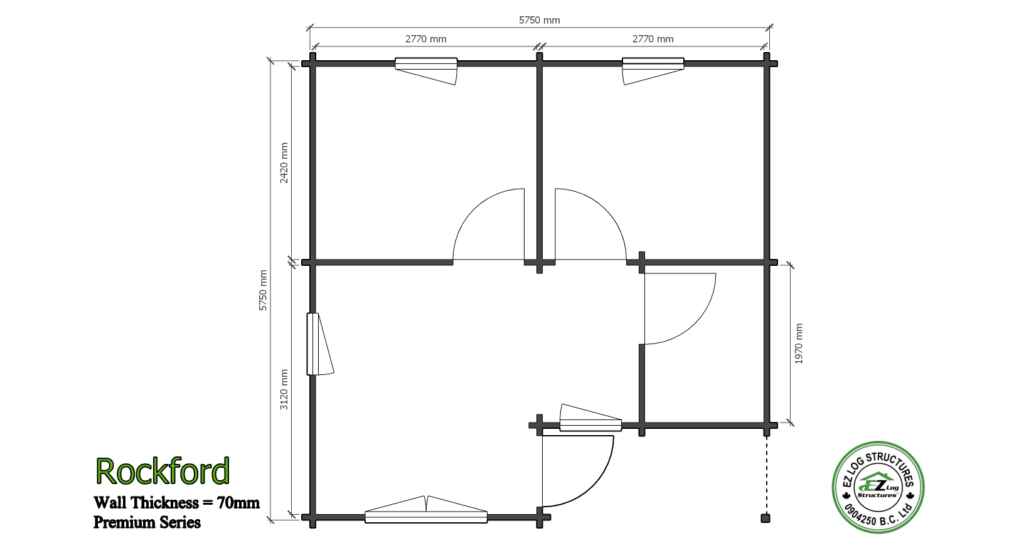

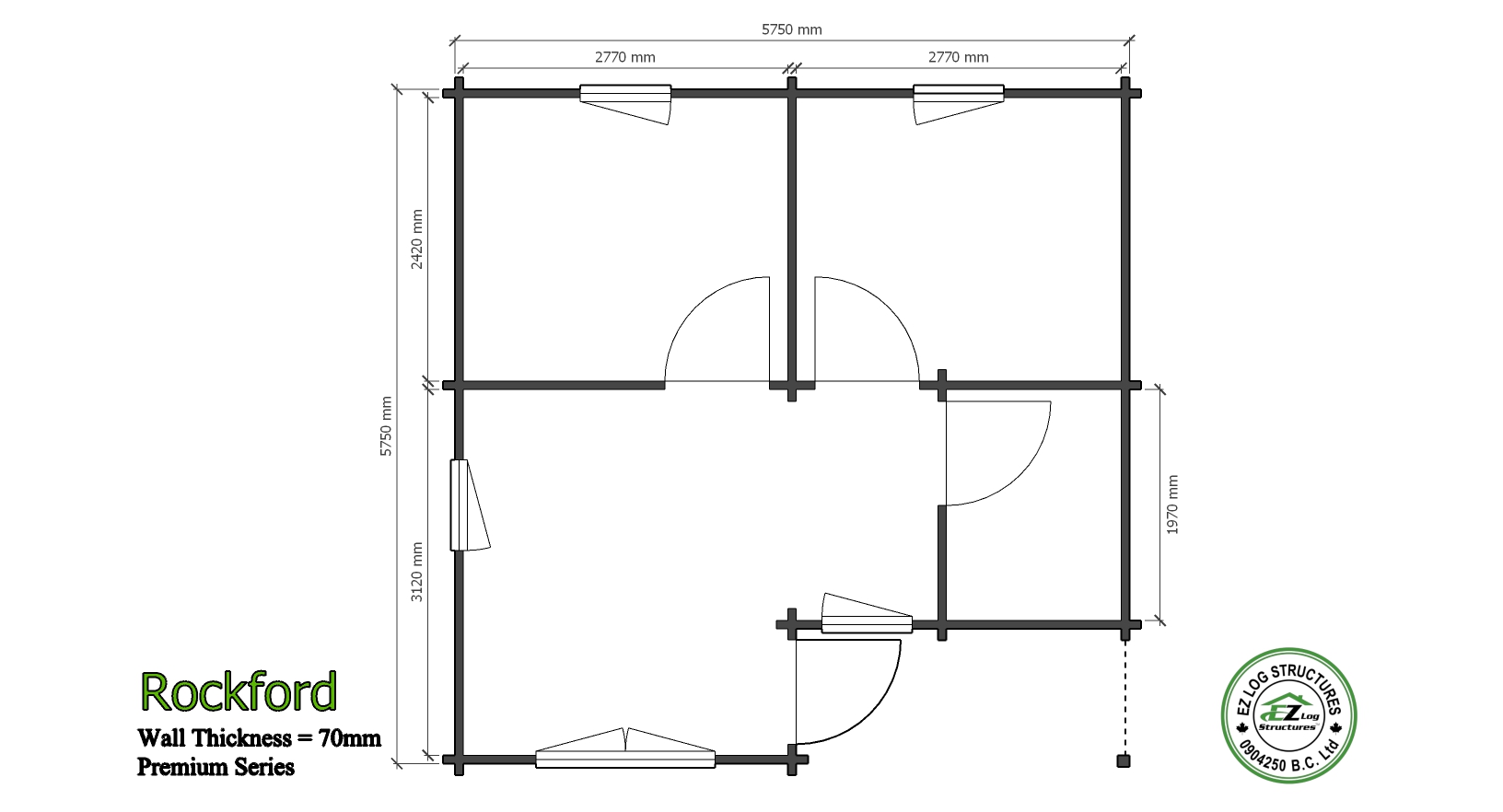

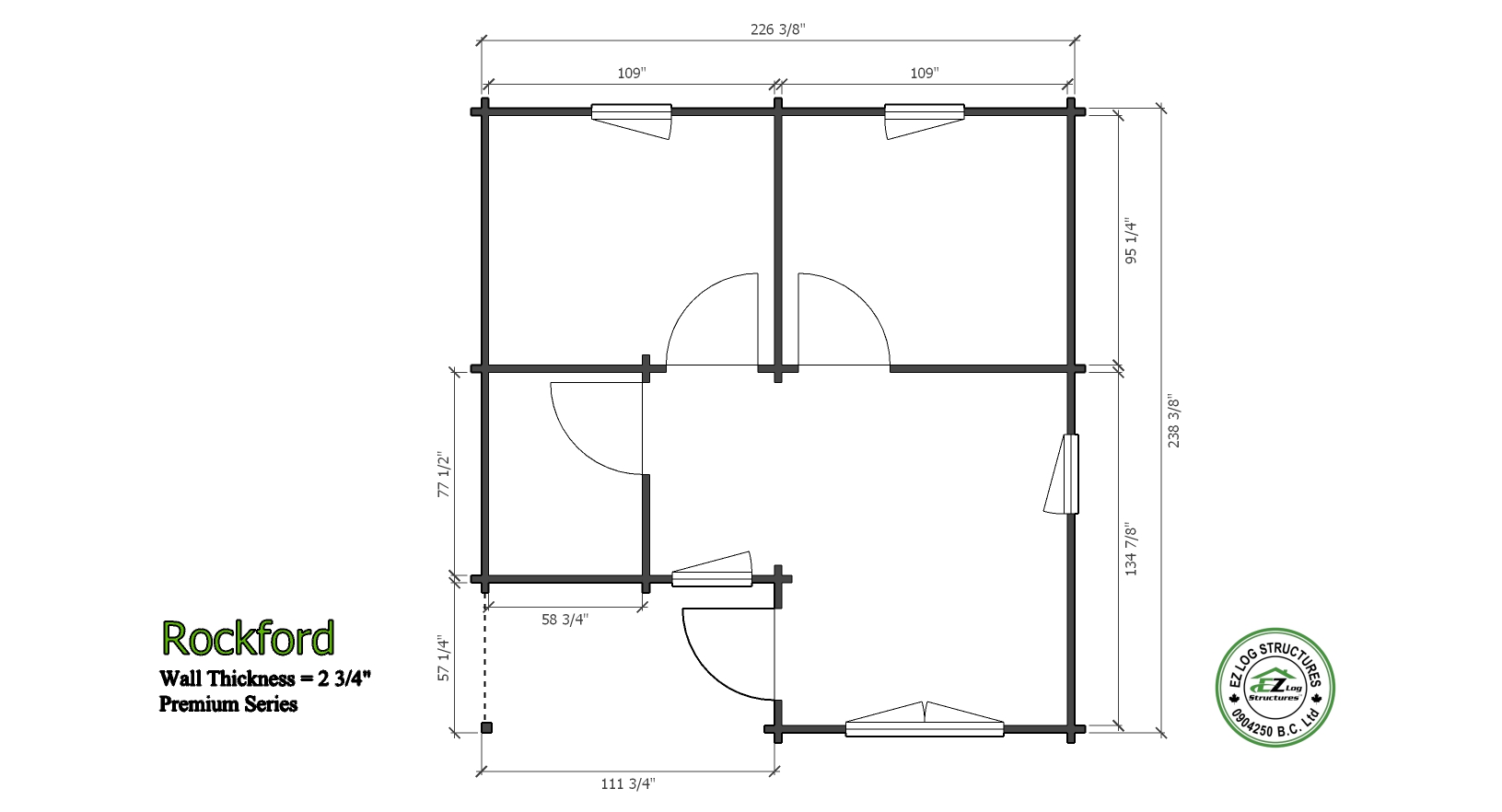

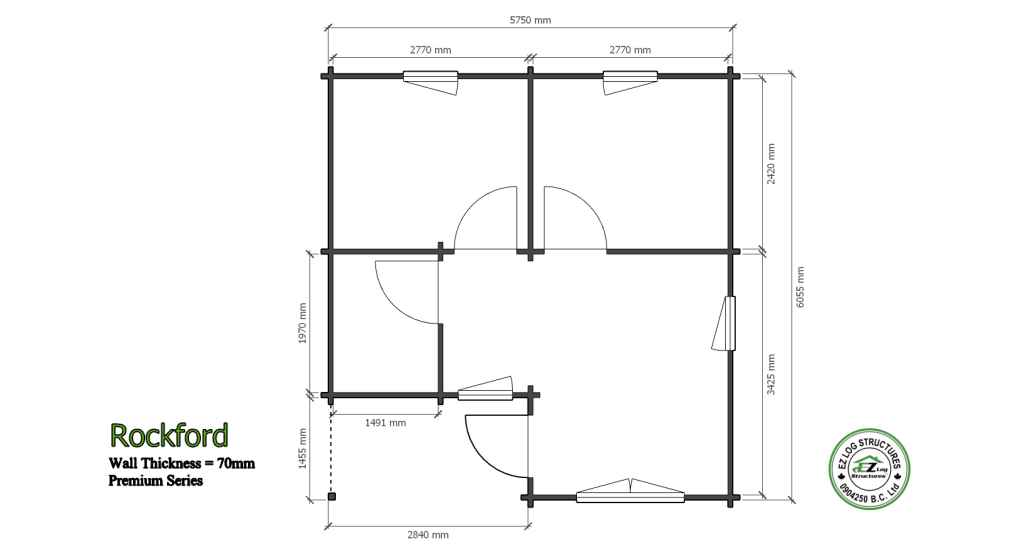

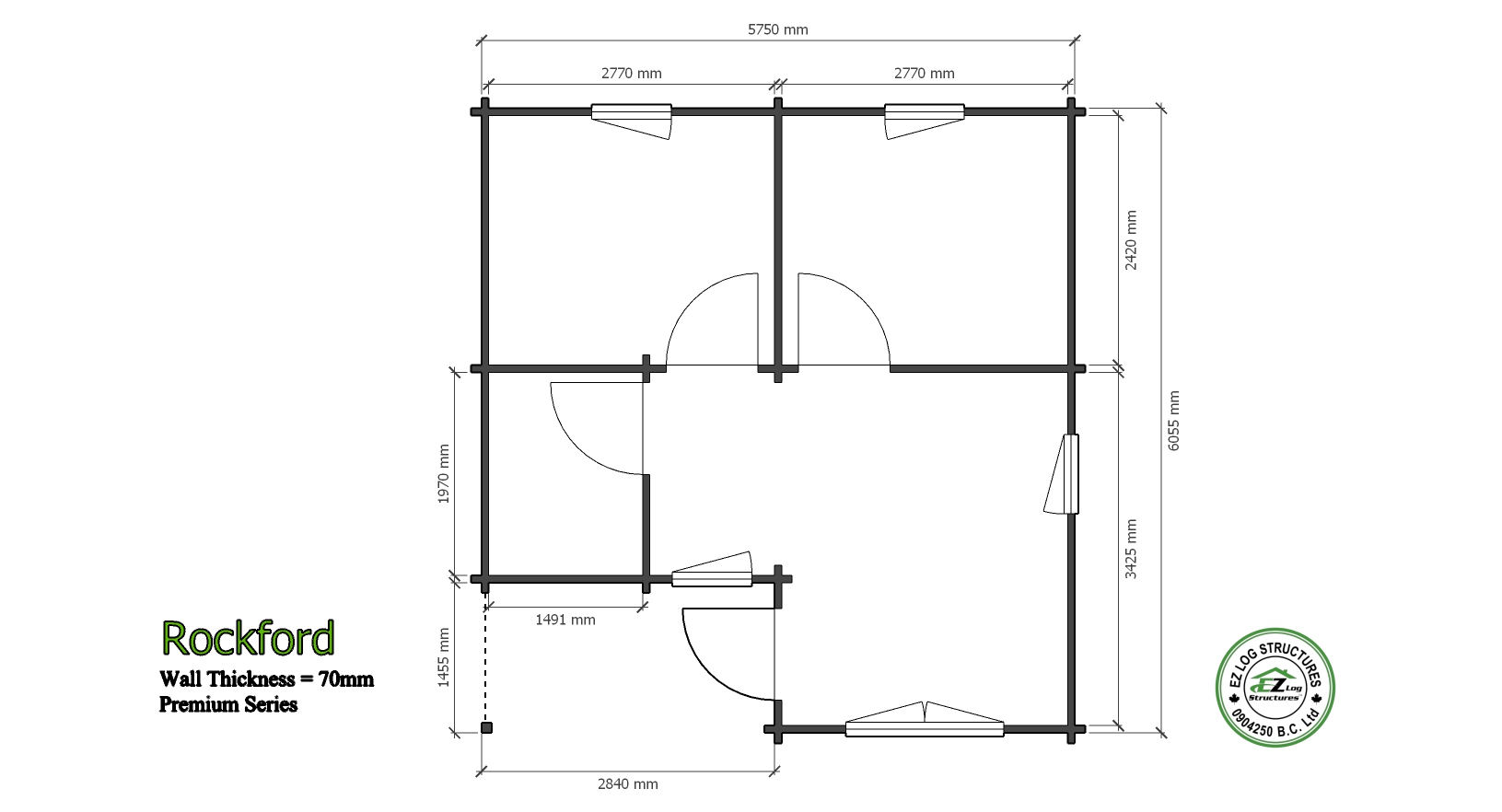

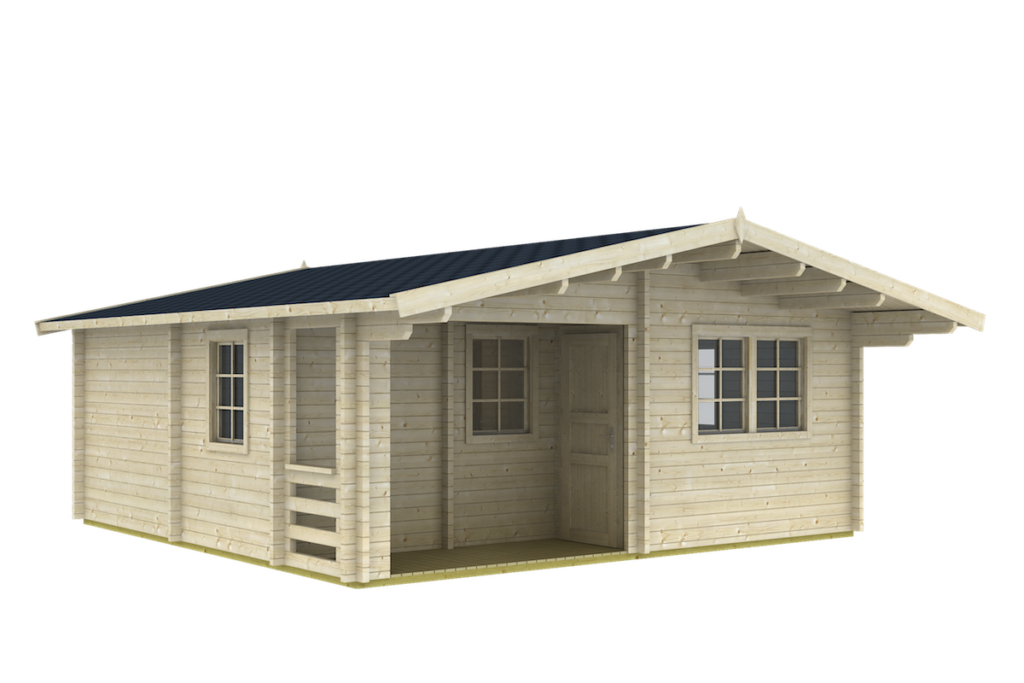

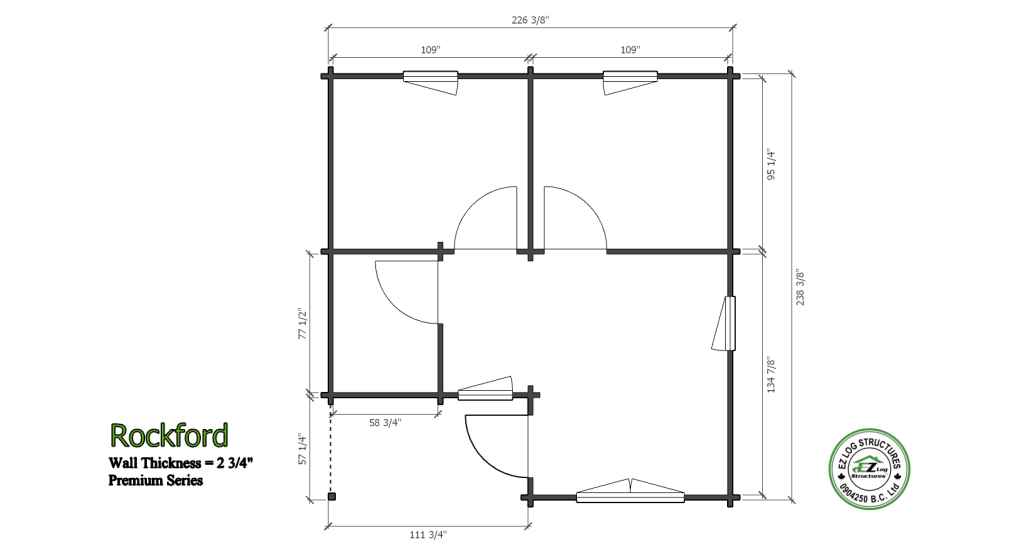

Rockford is an ideal tiny home, cabin, granny flat, in-law suite, ADU with 1 bedroom, 1 bathroom and vaulted ceilings throughout.  It has solid stacked walls using 70mm (2-3/4″) thick logs. Like all our models it can be customized to fit your personal needs. (sq footage is based on the total footprint, living space could be less, see floor plans)



Kit includes:

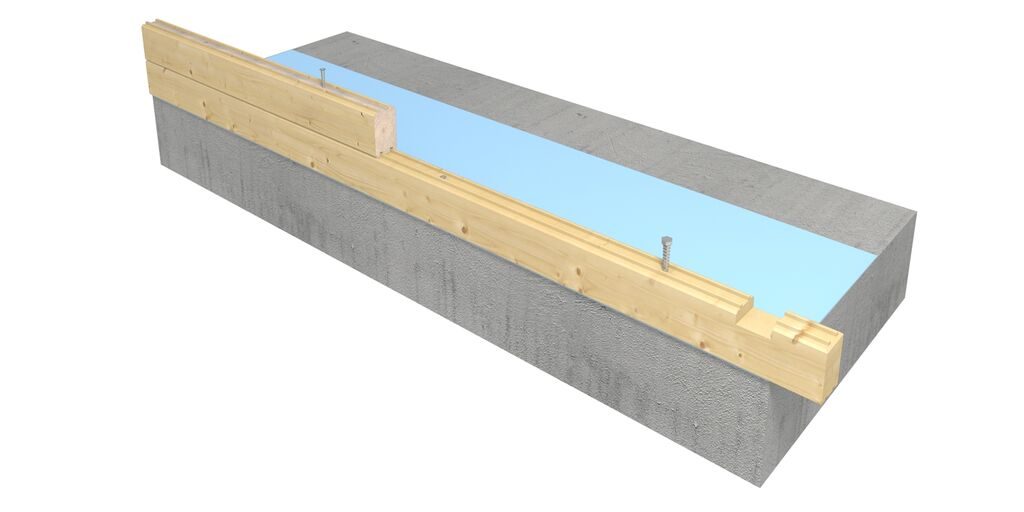

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • 3/12 roof pitch (14 degrees)
  • vaulted, cathedral ceilings
  • pre-cut, 100mm x 200mm (4″x8″) glulam roof purlins spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 3 interior doors 813mm x 2040mm (32″x80″)
  • 1 double wide wood windows 1530mm x 990mm (60″x 39″)
  • 4 single wide wood window 765mm x 990mm (30″x 39″)
  • 1 exterior door 990mm x 2040mm (36″x80″) 1/2 glass tempered, multi locking hardware
  • deck railings with vertical balustrades
  • adjustable posts
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins

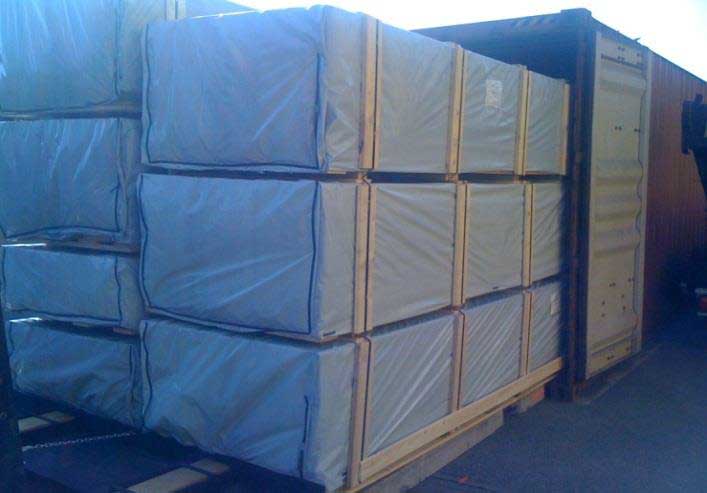

  • packaged/wrapped for sequence of assembly
  • FREE SHIPPING

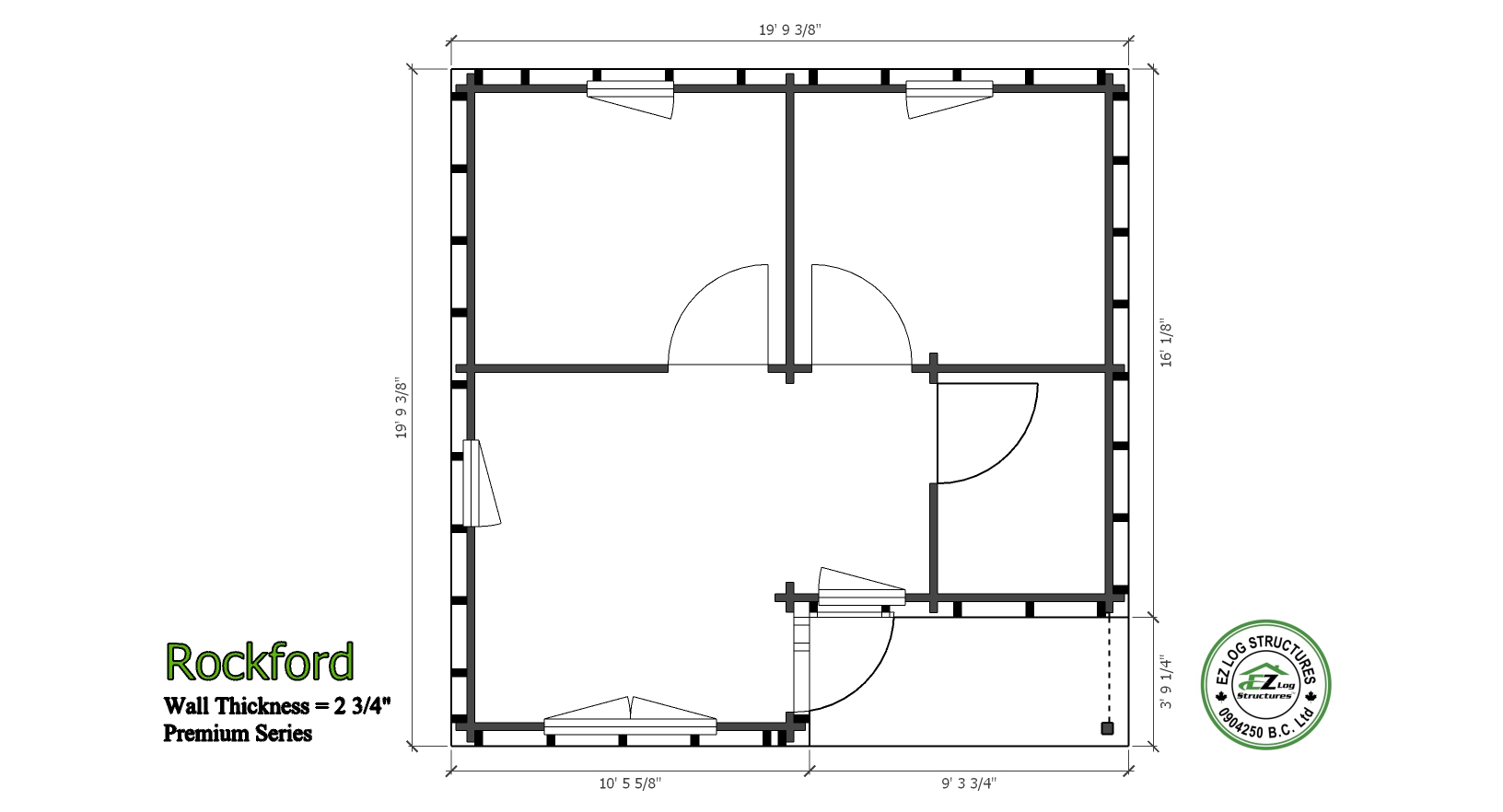

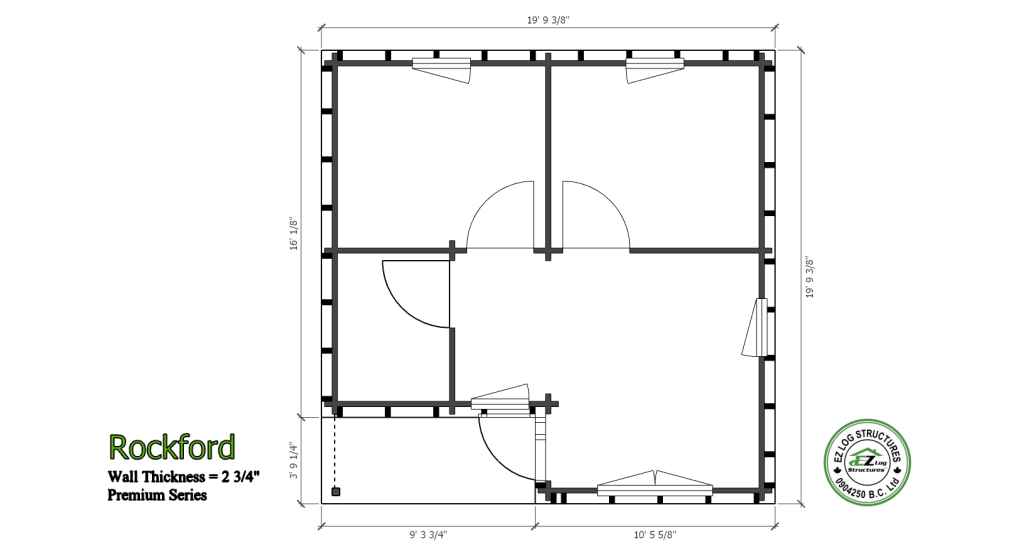

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING

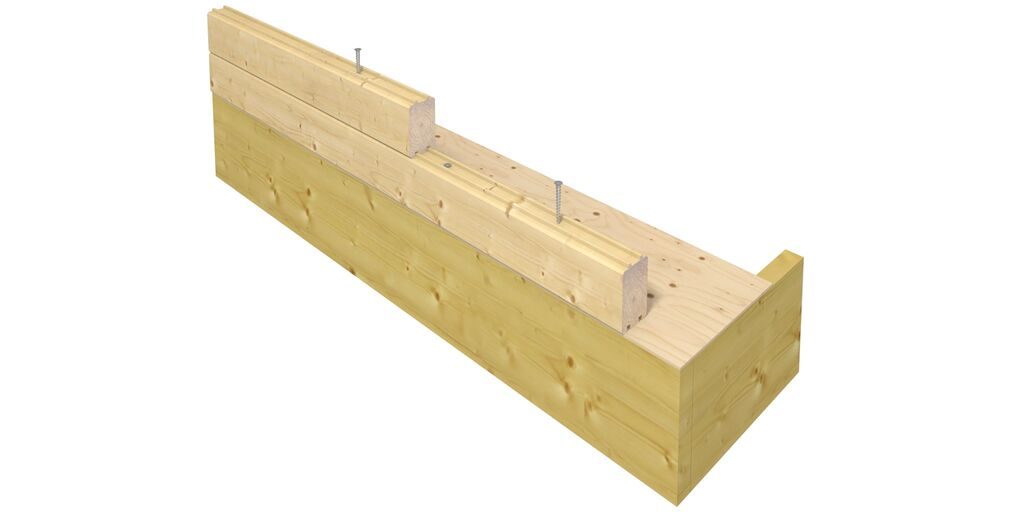

Exterior Stud & Siding Options:
Exterior stud & siding kits include: 2×6 studs, stud screws, wood siding, corner blocks

Add 14%  – Otoczak Full D-Log siding 1-1/8″ x 5-1/8″ (28mm x 130mm)

Add 10%  – Max Semi D-Log siding 3/4″ x 5-1/8″ (18mm x 130mm)

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

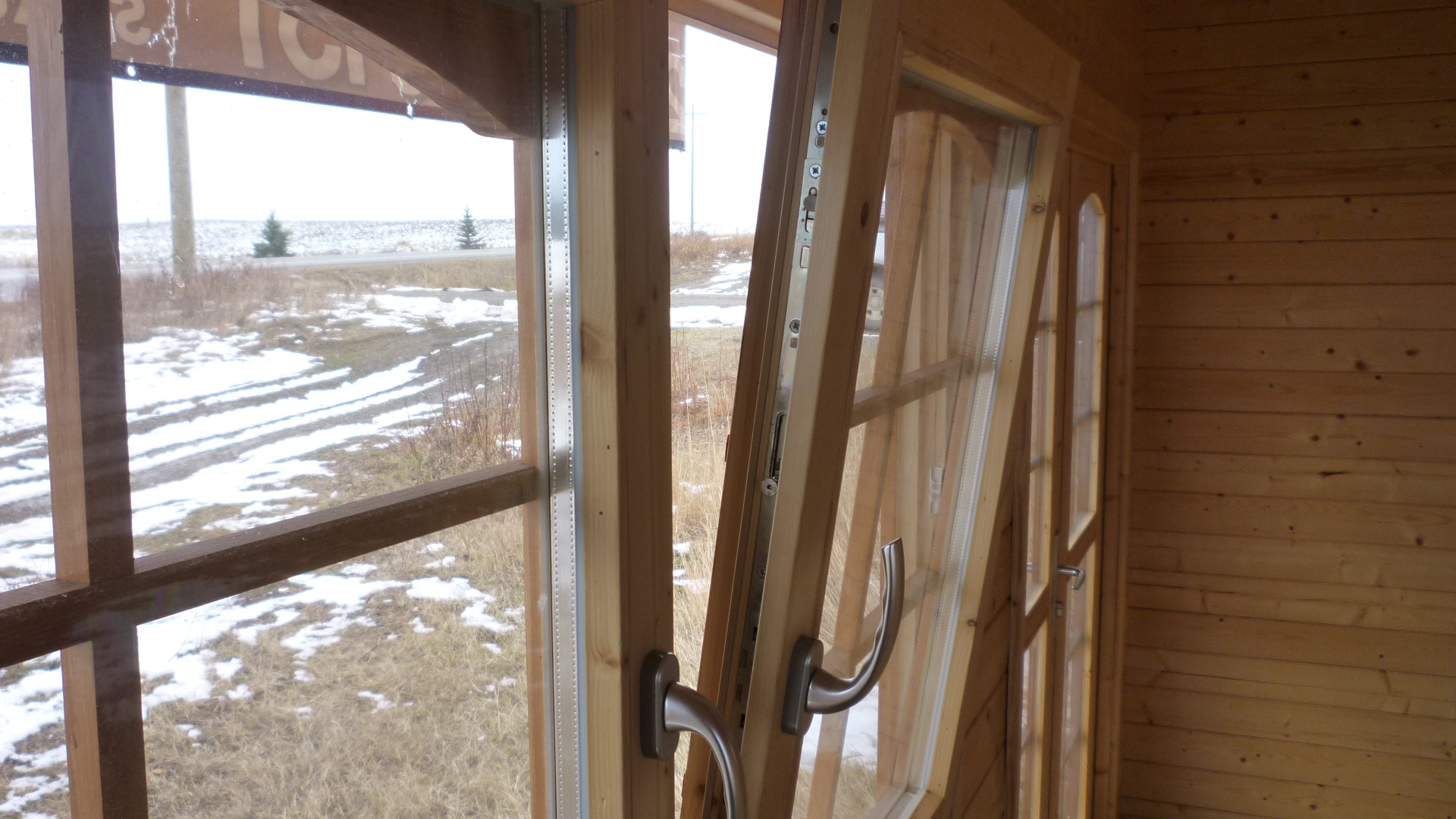

Window Options:

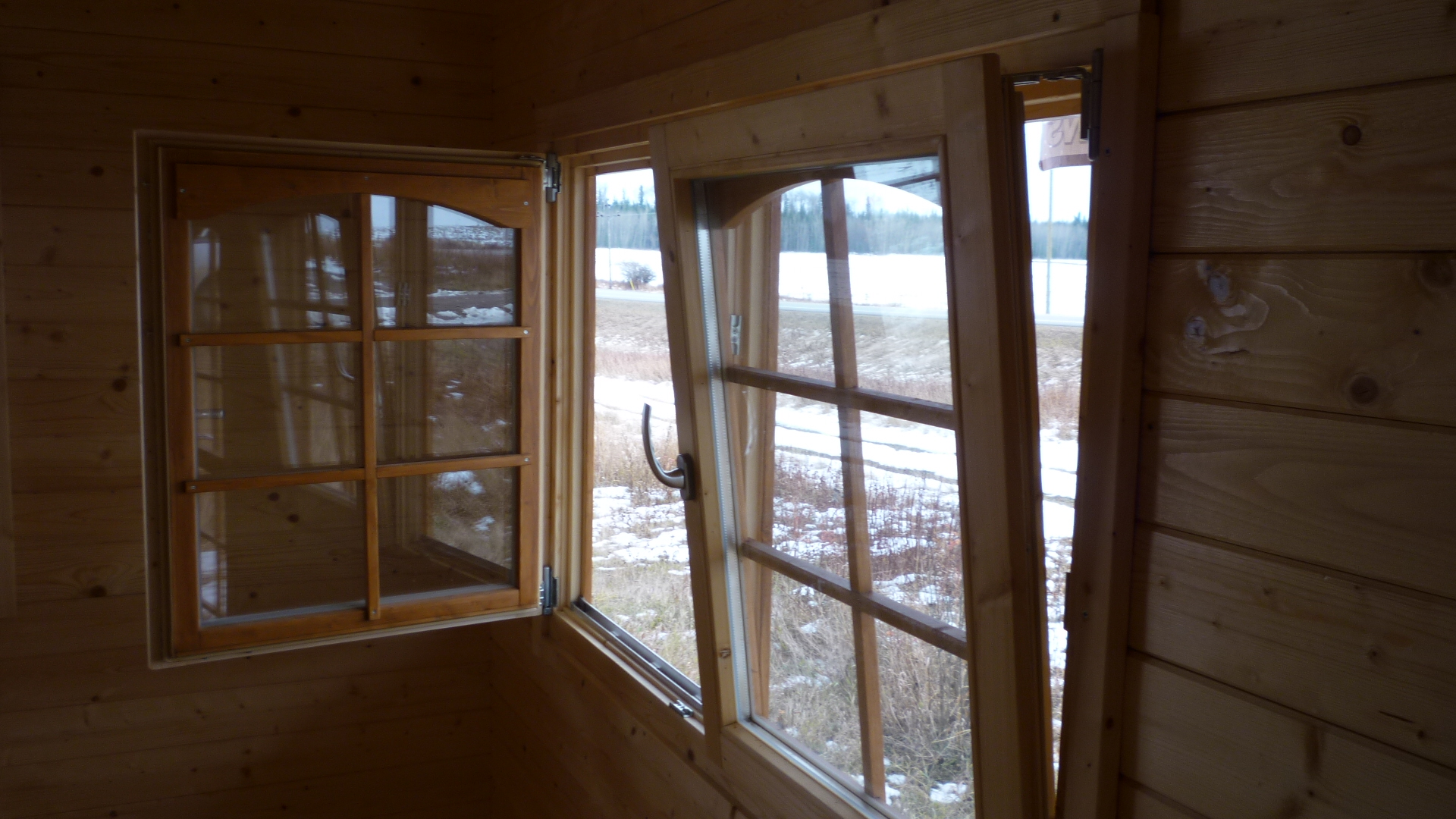

Upgrade all the wood windows to triple glazed/Low E/Argon filled glass

Add – $ 562.00 USD

Add – $ 720.00 CAD

OR

Upgrade all wood window to our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass plus exterior rolling shutters that are controlled from the interior. Add comfort and security, improve the energy efficiency, reduce outside noise levels & provide complete darkness for daytime sleepers. (See the video on the video section)

Add – $ 975.00 USD

Add – $ 1,25.00 CAD
