Muskoka

1030 sq ft
Premium Model
$66,603.00 USD
$85,389.00 CAD
FREE SHIPPING
Rooms
Bedrooms2
Bathrooms1
Cabin sizes
Cabin size227" x 327"
Roof & floor
Roof pitch7/12 - 30D
Roof boards3/4"
Package, area, vol ect.
Size (sq ft)515
Size (sq ft)515
Attic90"
Wall height95"
Ridge height210"
Wall thickness2-3/4"

Model Documentation

Contact Us

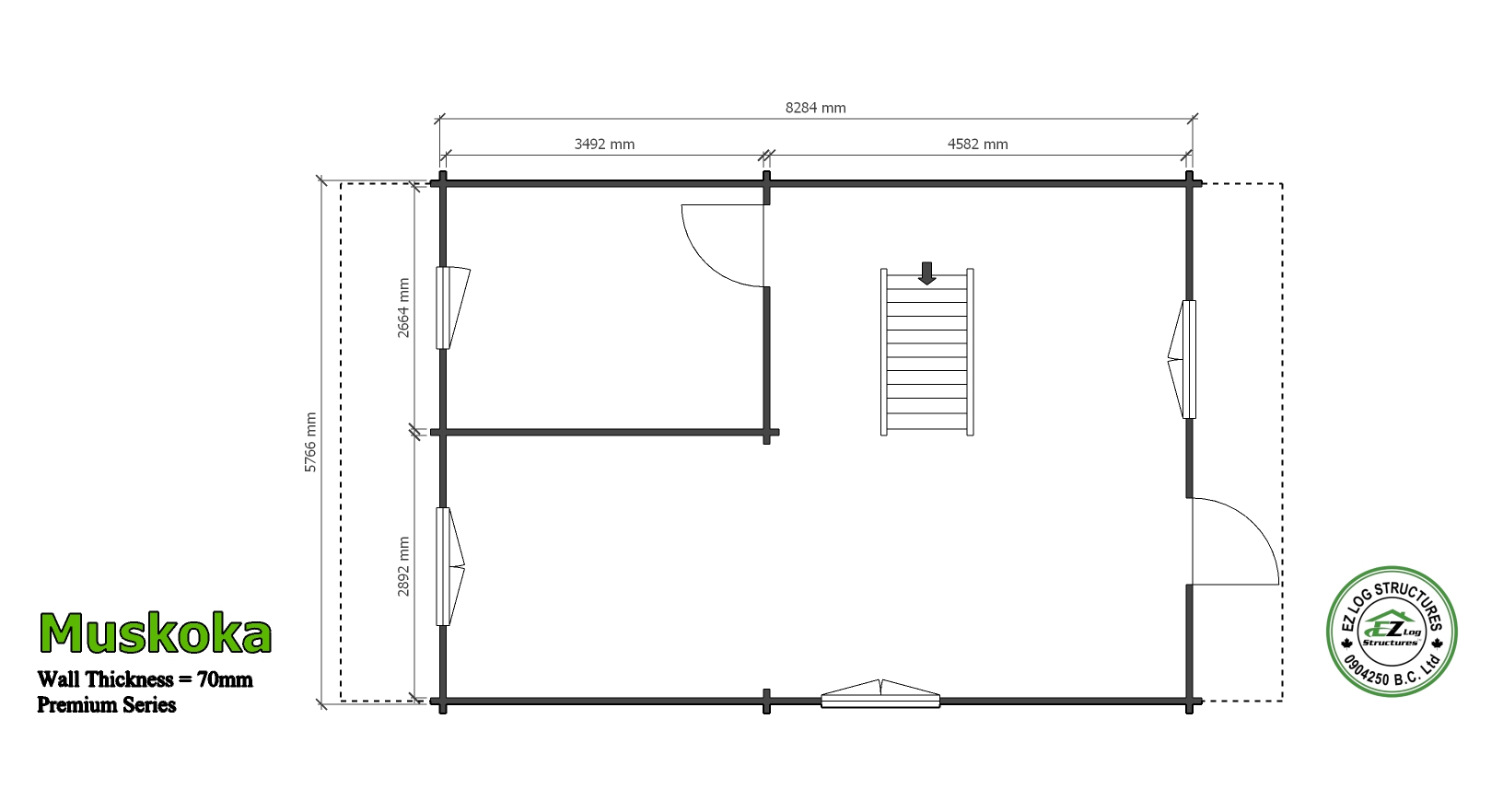

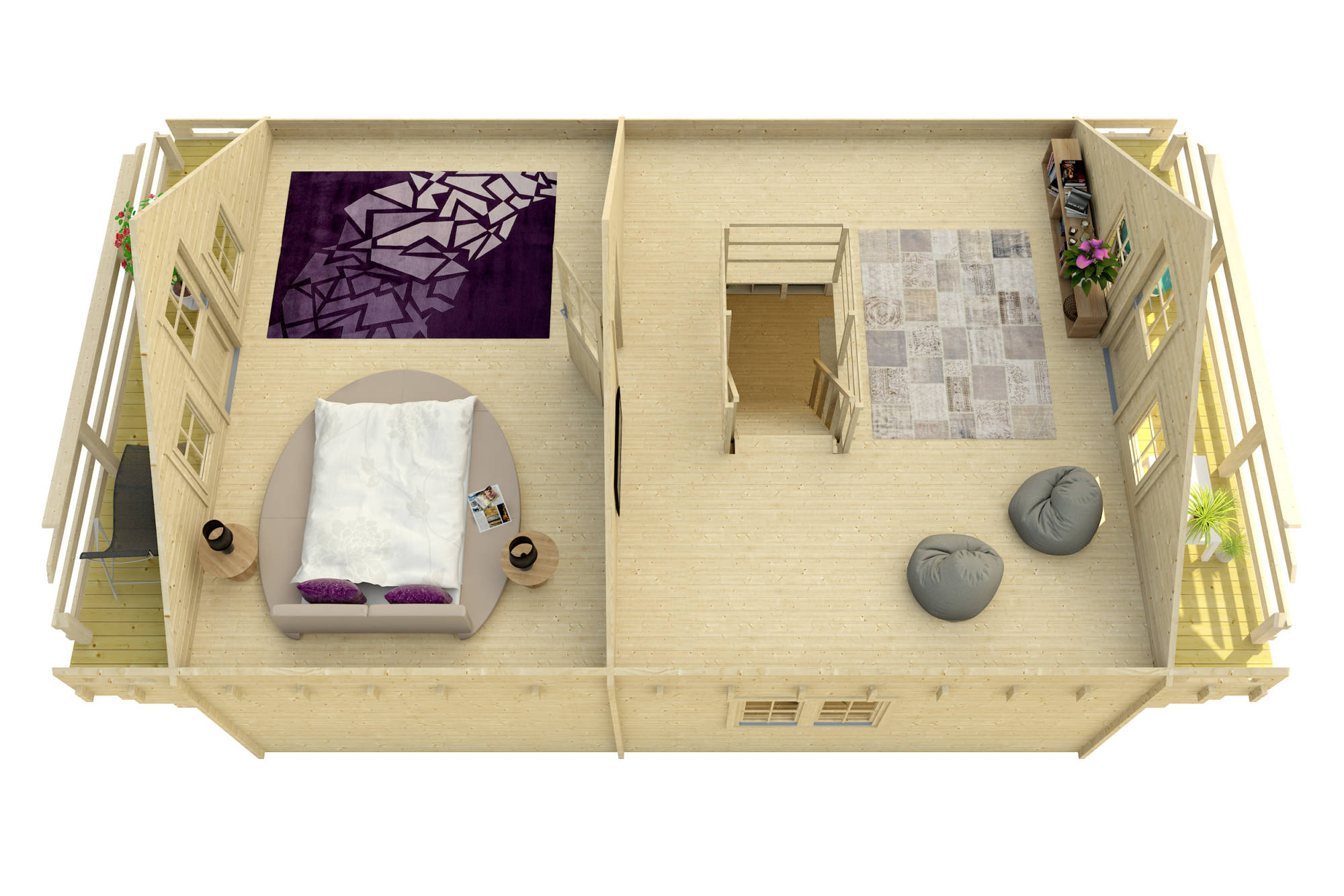

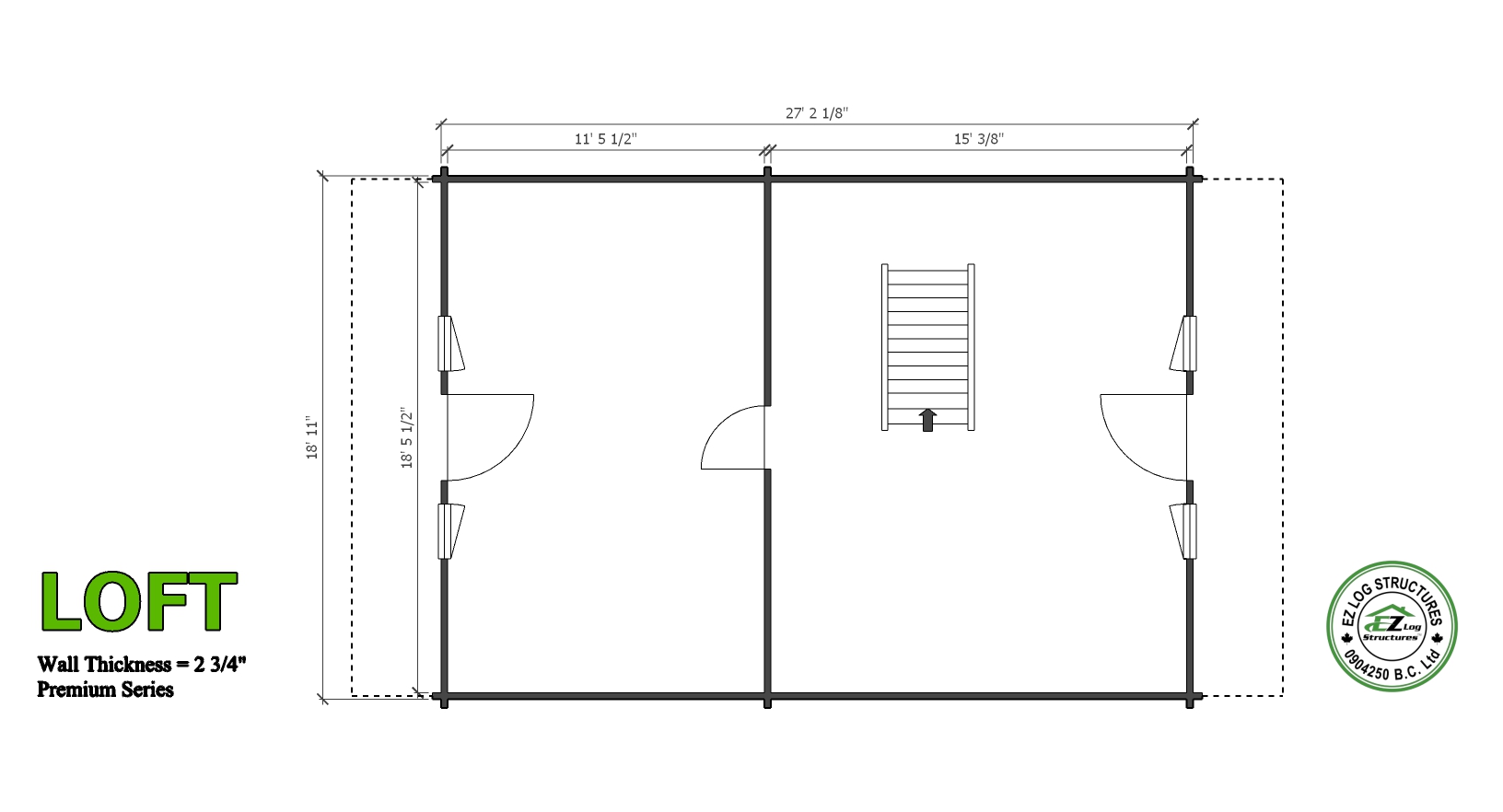

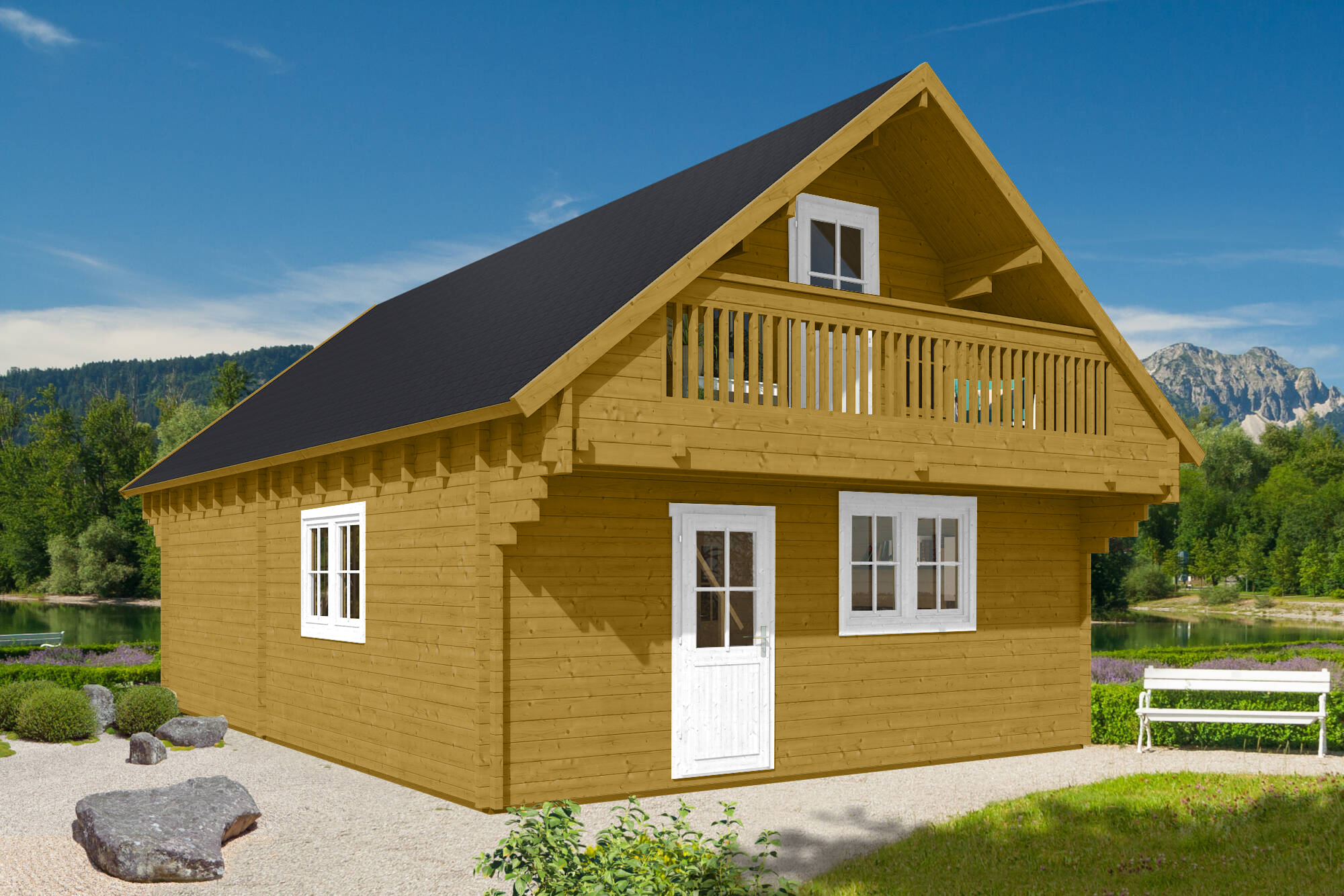

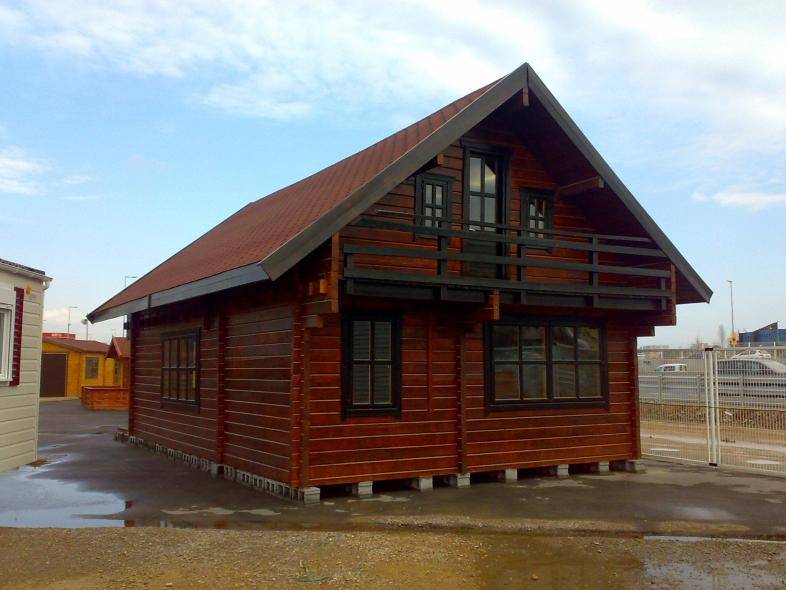

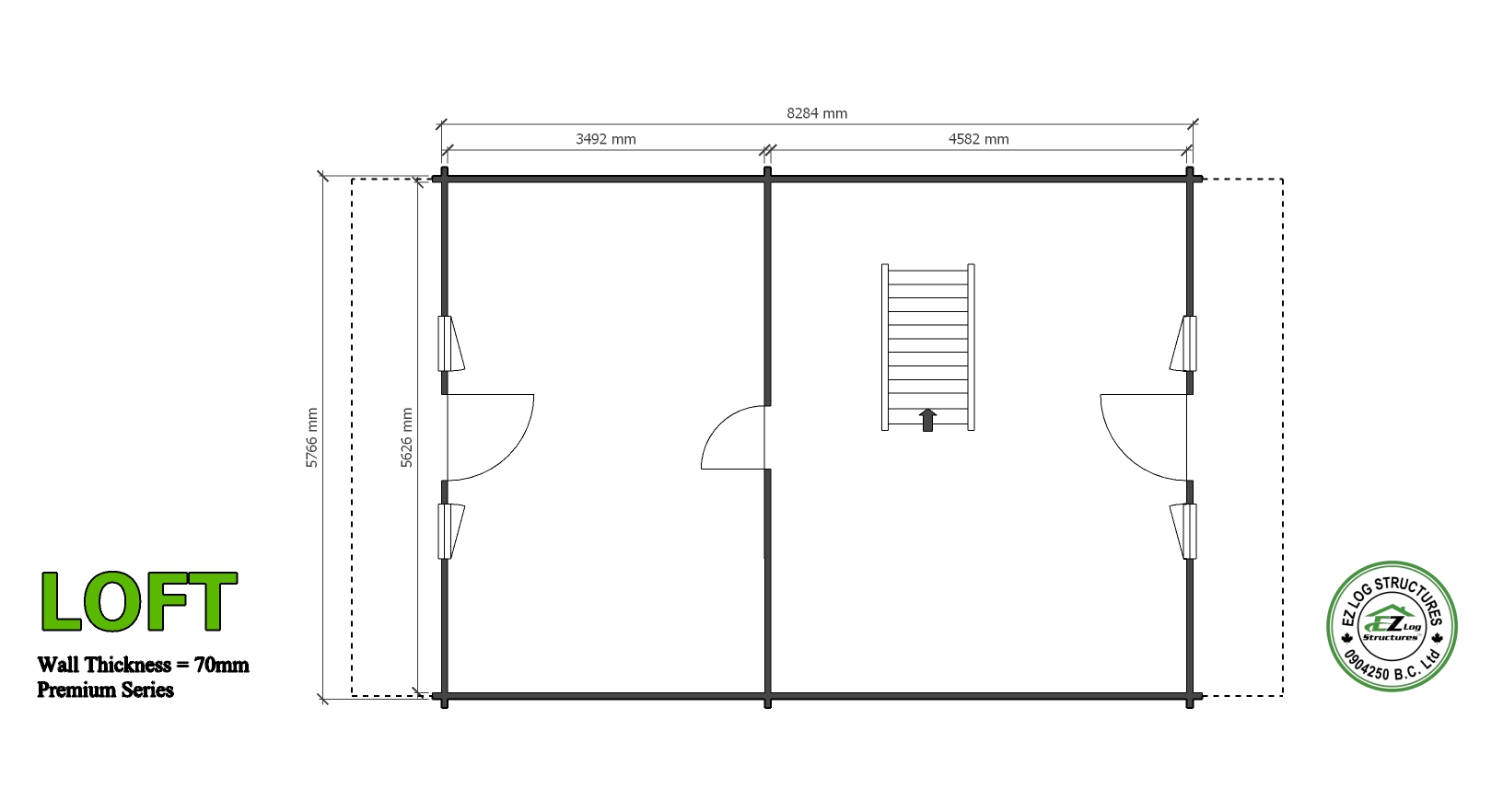

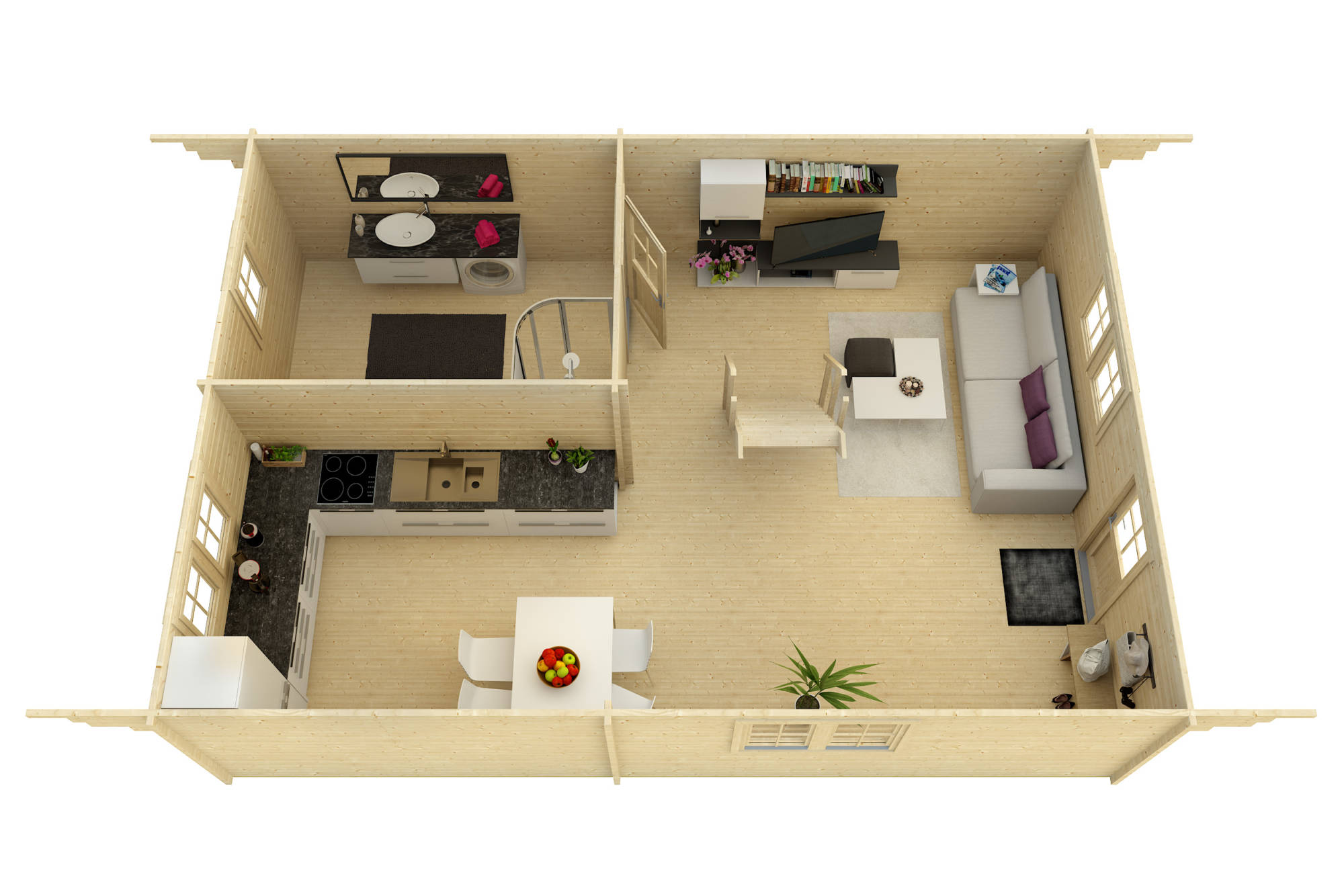

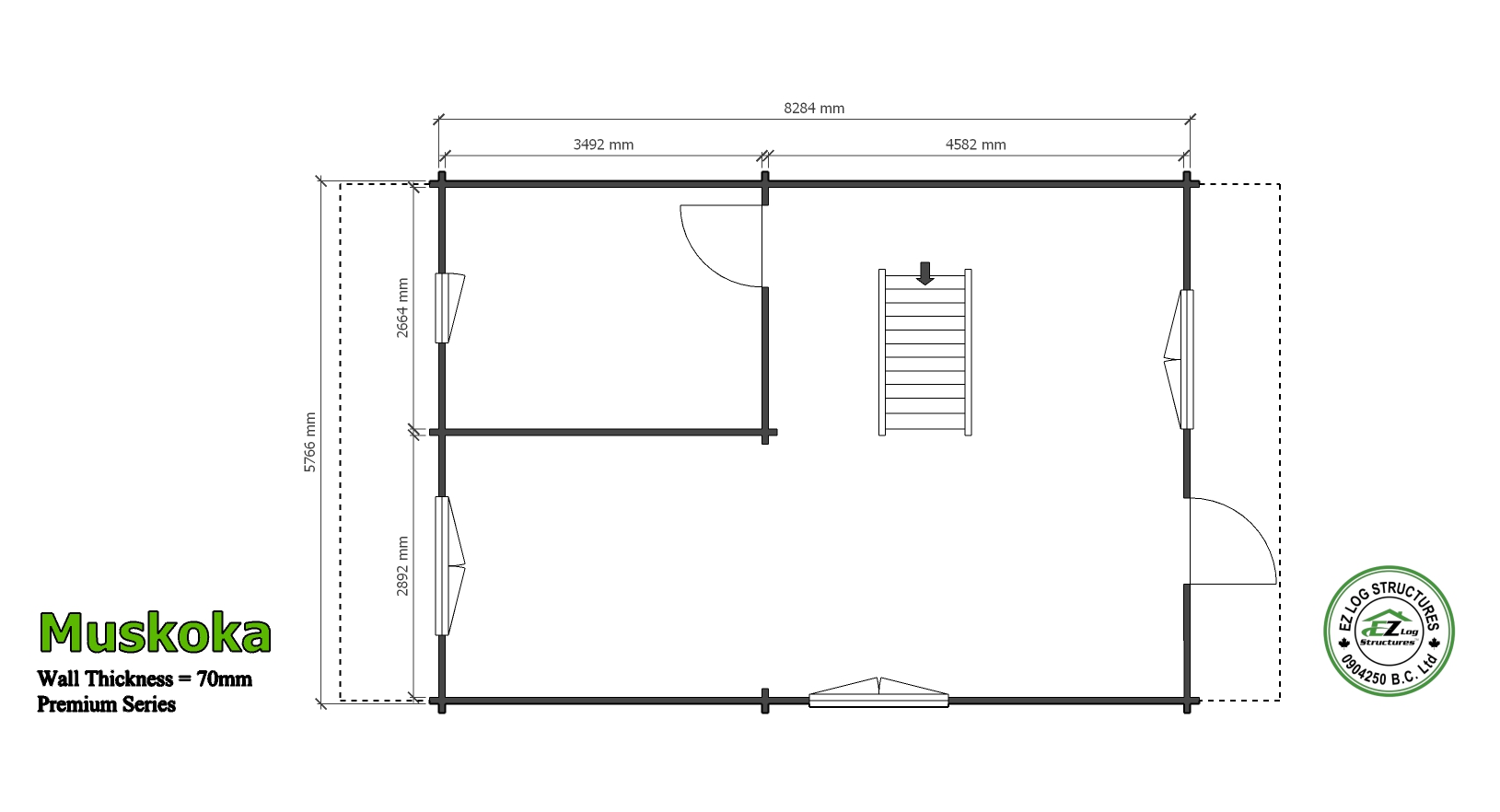

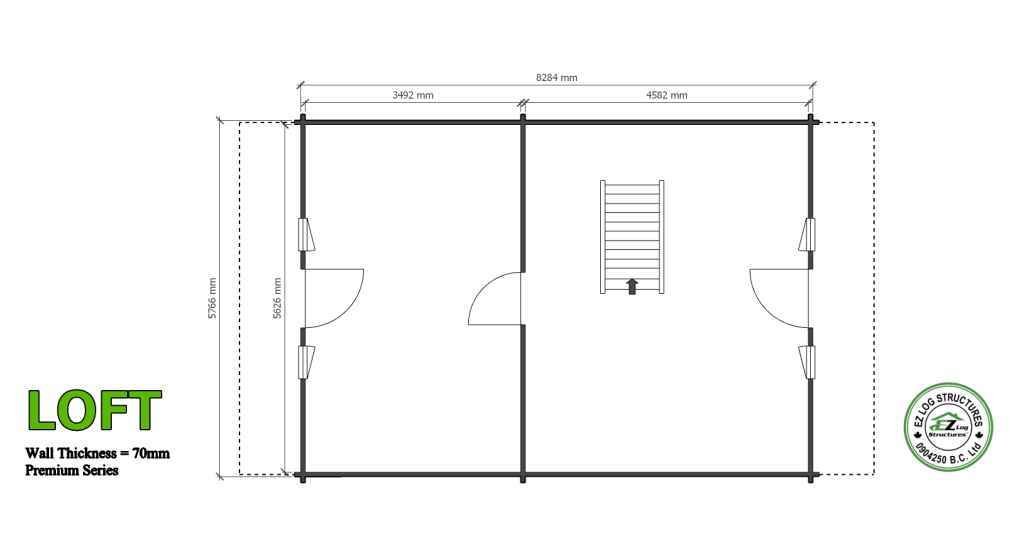

Muskoka is just over 1000 sq’ on 2 levels it features 2 decks on the upper level. A great seasonal cabin or an affordable starter home. (sq footage is based the total footprint, living space could be less, see floor plans)

Kit Includes:

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • 7/12 roof pitch (30 degrees)
  • vaulted, cathedral ceilings
  • pre-cut, 100mm x 200mm (4″x8″) numbered glulam roof purlins/beams, spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • pre-cut 100mm x 200mm (4″x8″) numbered glulam floor beams, spaced 558mm (22″) or less
  • pre-cut loft floor boards 28mm (1-18″)

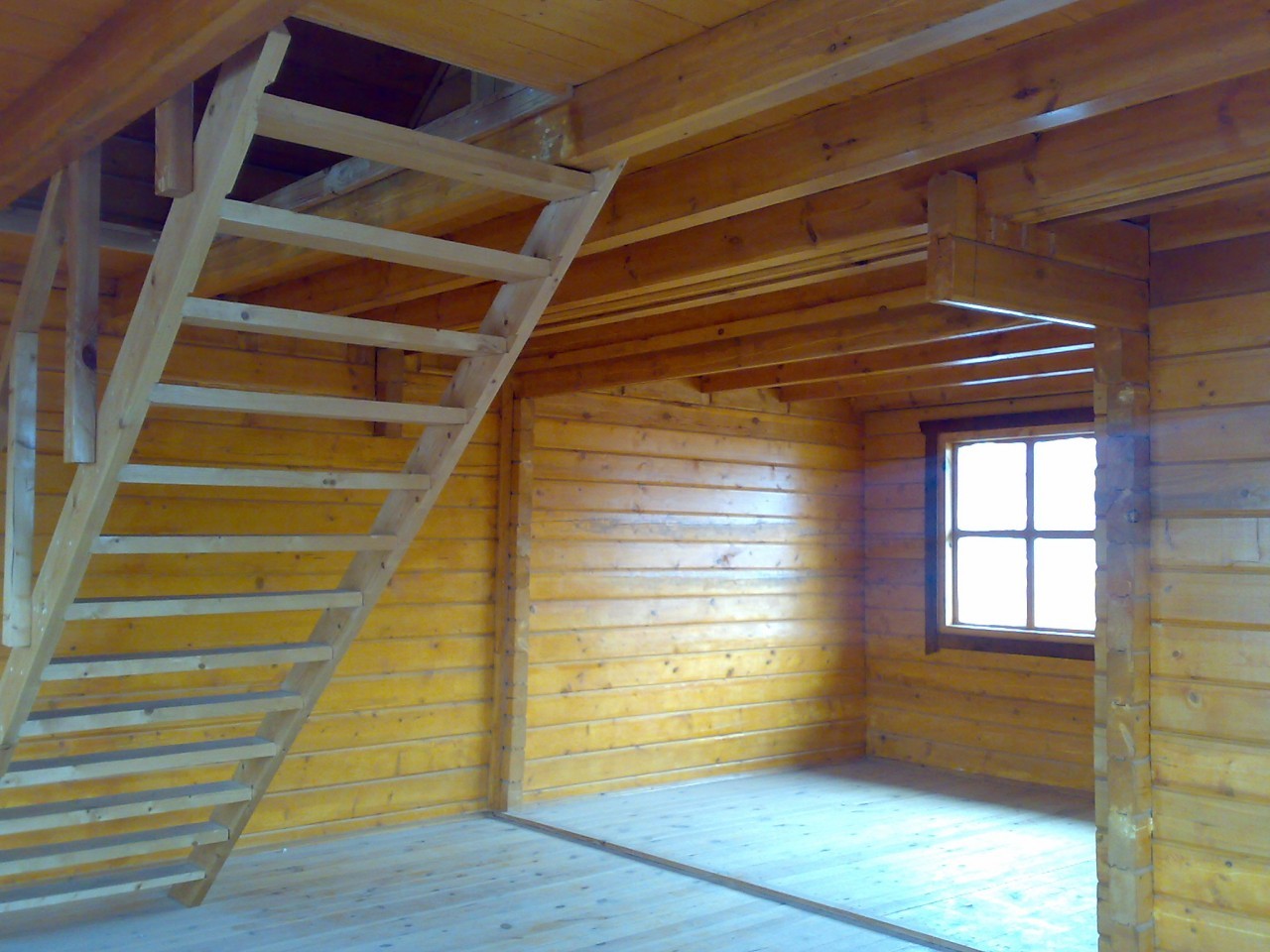

  • stairs, handrails, built to meet codes
  • 2  interior doors 900mm x 2040mm (36″x80″)
  • 1 single wide wood windows 765mm x 990mm (30″x39″)
  • 4 single wide wood windows 530 x 530 (21″ x 21″)
  • 3 double wide wood windows 1530mm x 990mm (60″x39″)
  • 1 exterior doors 914mm x 2040mm (36″x80″) 1/2 glass tempered
  • 2 exterior doors 813mm x 1930mm (32″ x 76″) 1/2 glass tempered
  • 2 covered decks on loft floor
  • 4 adjustable posts – 2 under each covered deck
  • prebuilt deck railings with vertical balustrades
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped and marked for sequence of assembly
  • FREE SHIPPING

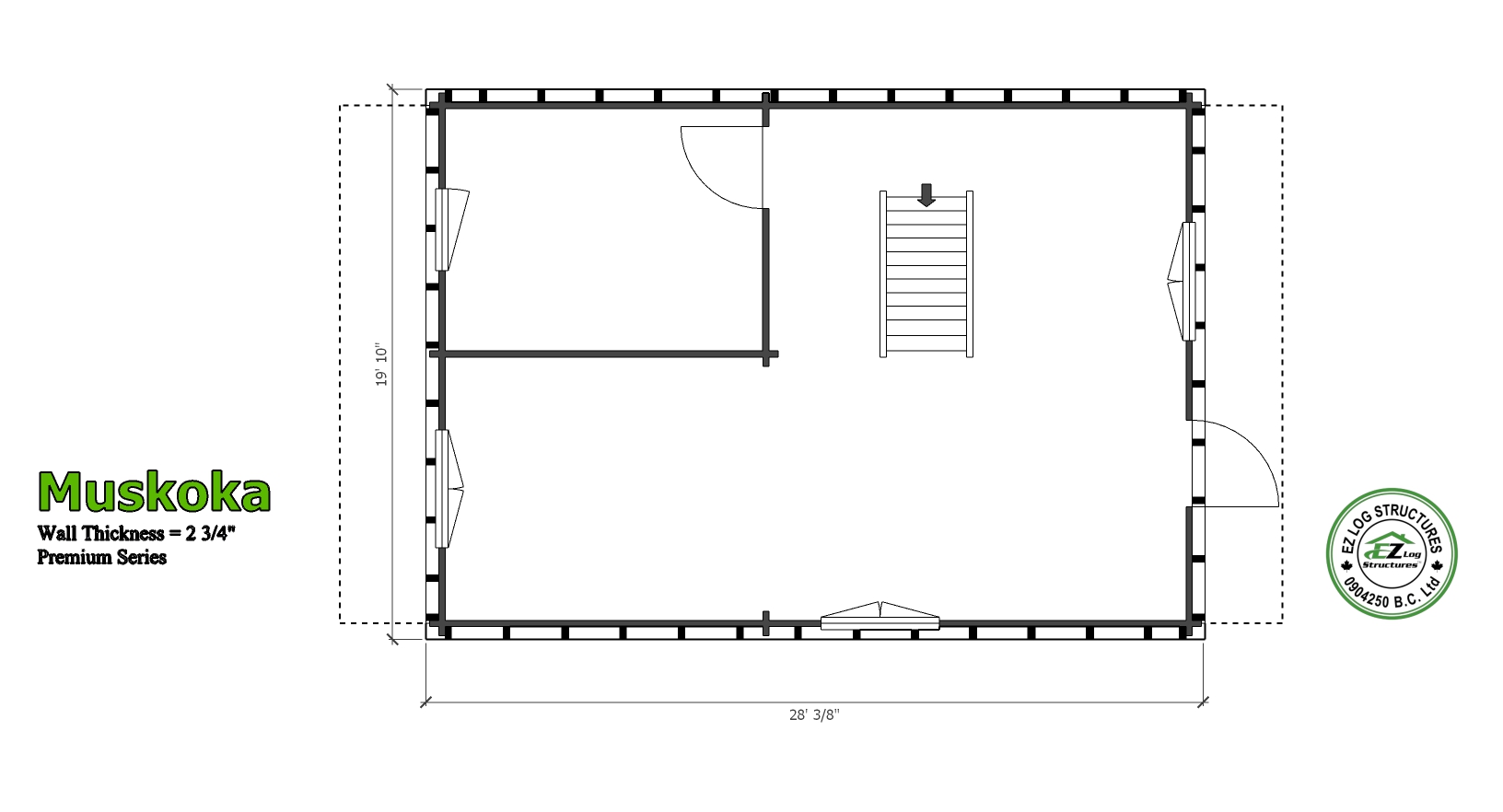

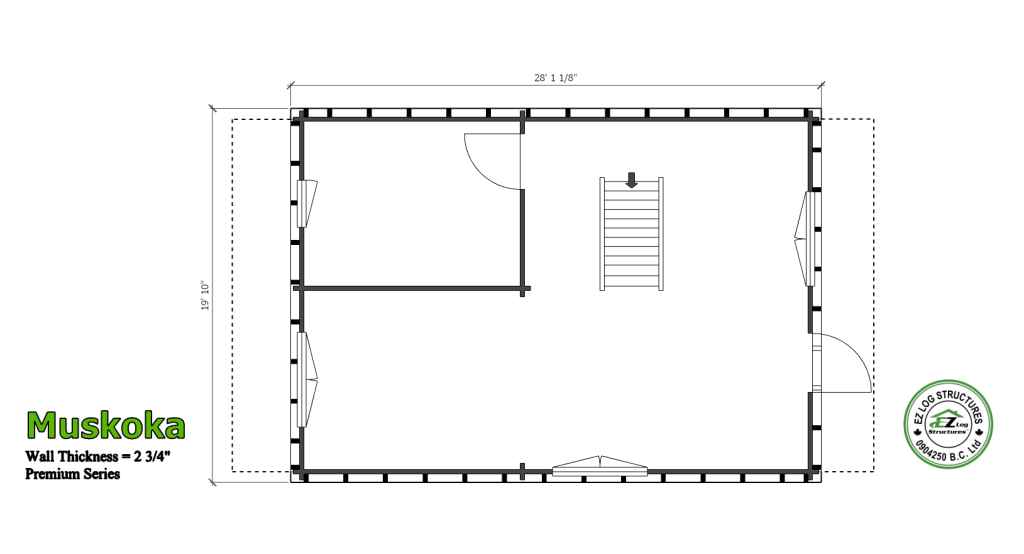

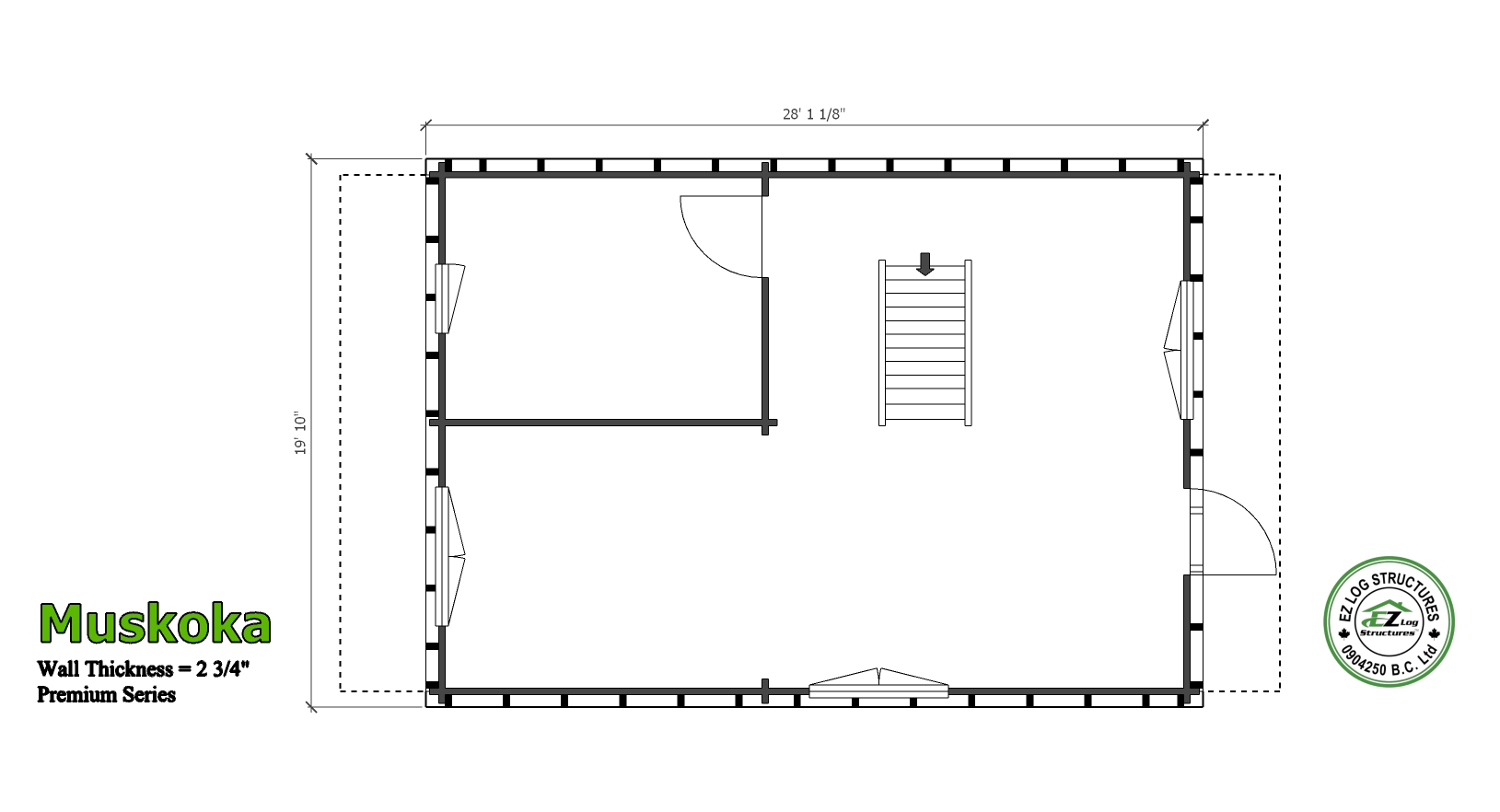

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING

    Exterior Stud & Siding Options:
    Exterior stud & siding kits include: 2×6 studs, stud screws, wood siding, corner blocks

    Add 14%  – Otoczak Full D-Log siding 1-1/8″ x 5-1/8″ (28mm x 130mm)

    Add 10%  – Max Semi D-Log siding 3/4″ x 5-1/8″ (18mm x 130mm)

    Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

    Window Options:

    Upgrade all the wood windows to triple glazed/Low E/Argon filled glass

    Add – $ 1,030.00 USD

    Add – $ 1,320.00 CAD

    OR

    Upgrade all wood window to our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass plus exterior rolling shutters that are controlled from the interior. Add comfort and security, improve the energy efficiency, reduce outside noise levels & provide complete darkness for daytime sleepers. (See the video on the video section)

    Add – $ 2,145.00 USD

    Add – $ 2,750.00 CAD
