Louisville

437 sq ft
Premium Model
$25,764.00 USD
$33,031.00 CAD
FREE SHIPPING
Bedrooms1
Bathrooms1
Cabin size208" x 303"
Roof pitch3/12 - 14D
Roof boards3/4"
Size (sq ft)437
Wall height89"
Ridge height117"
Wall thickness2-3/4”

Model Documentation

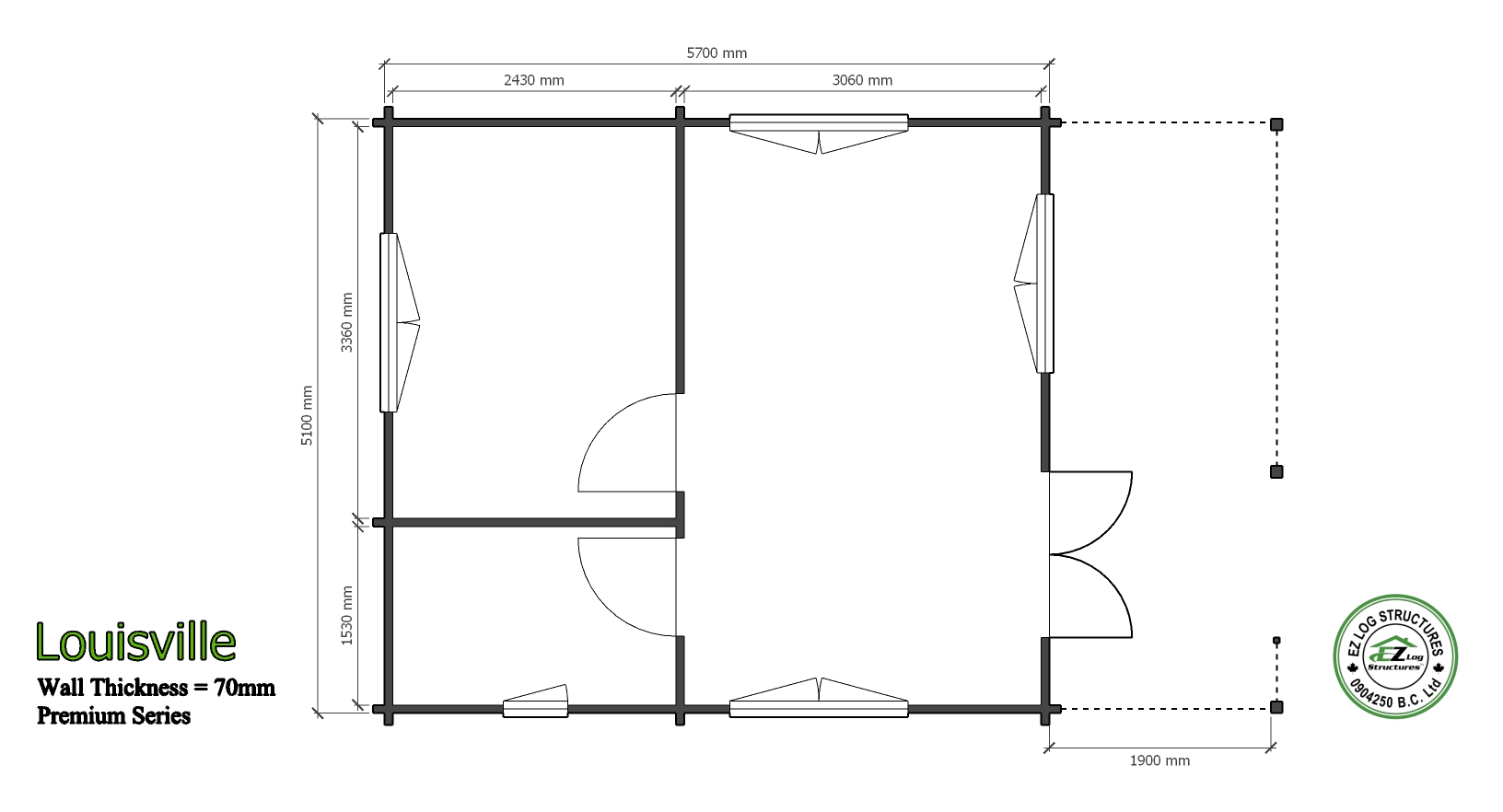

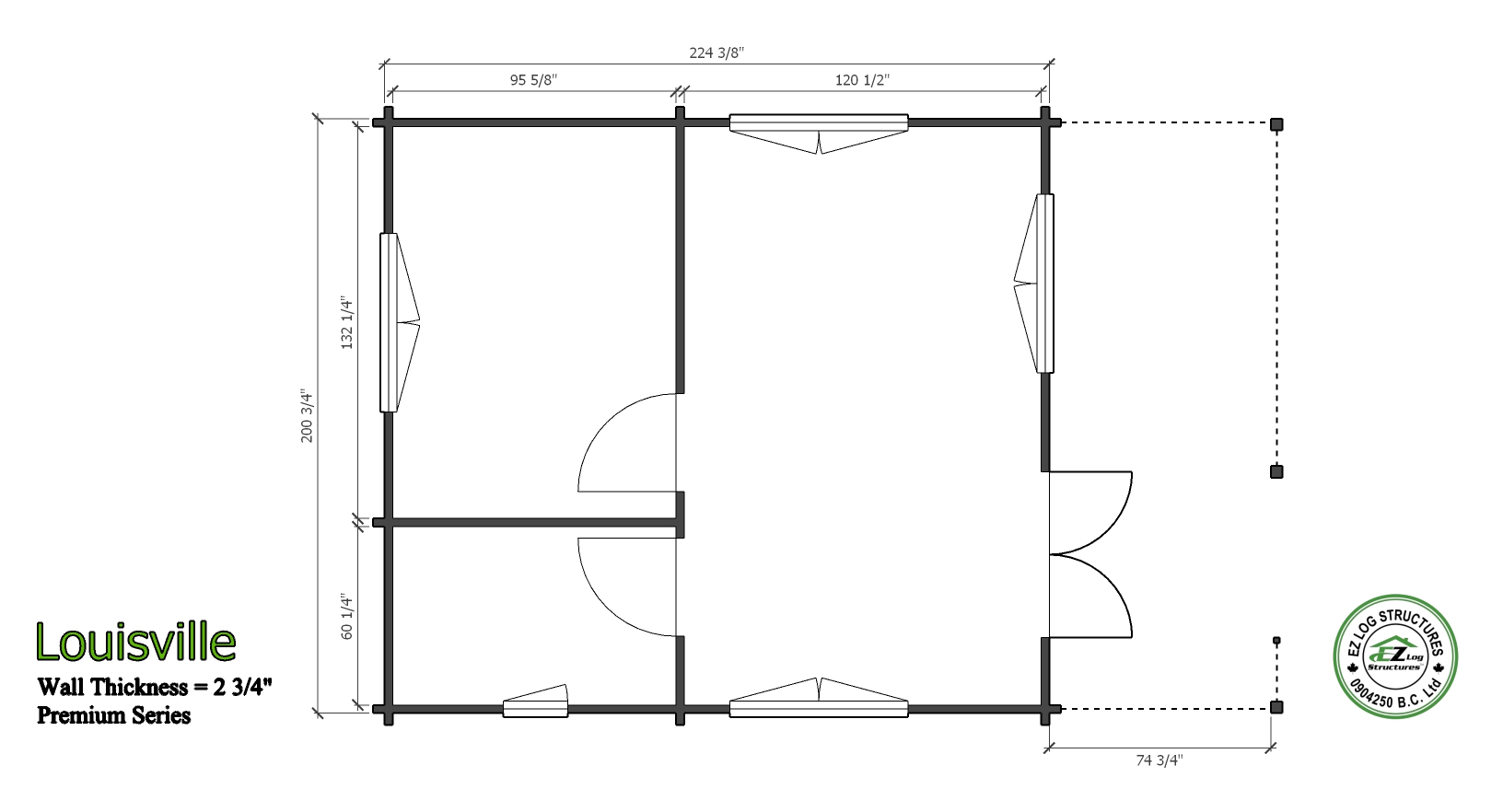

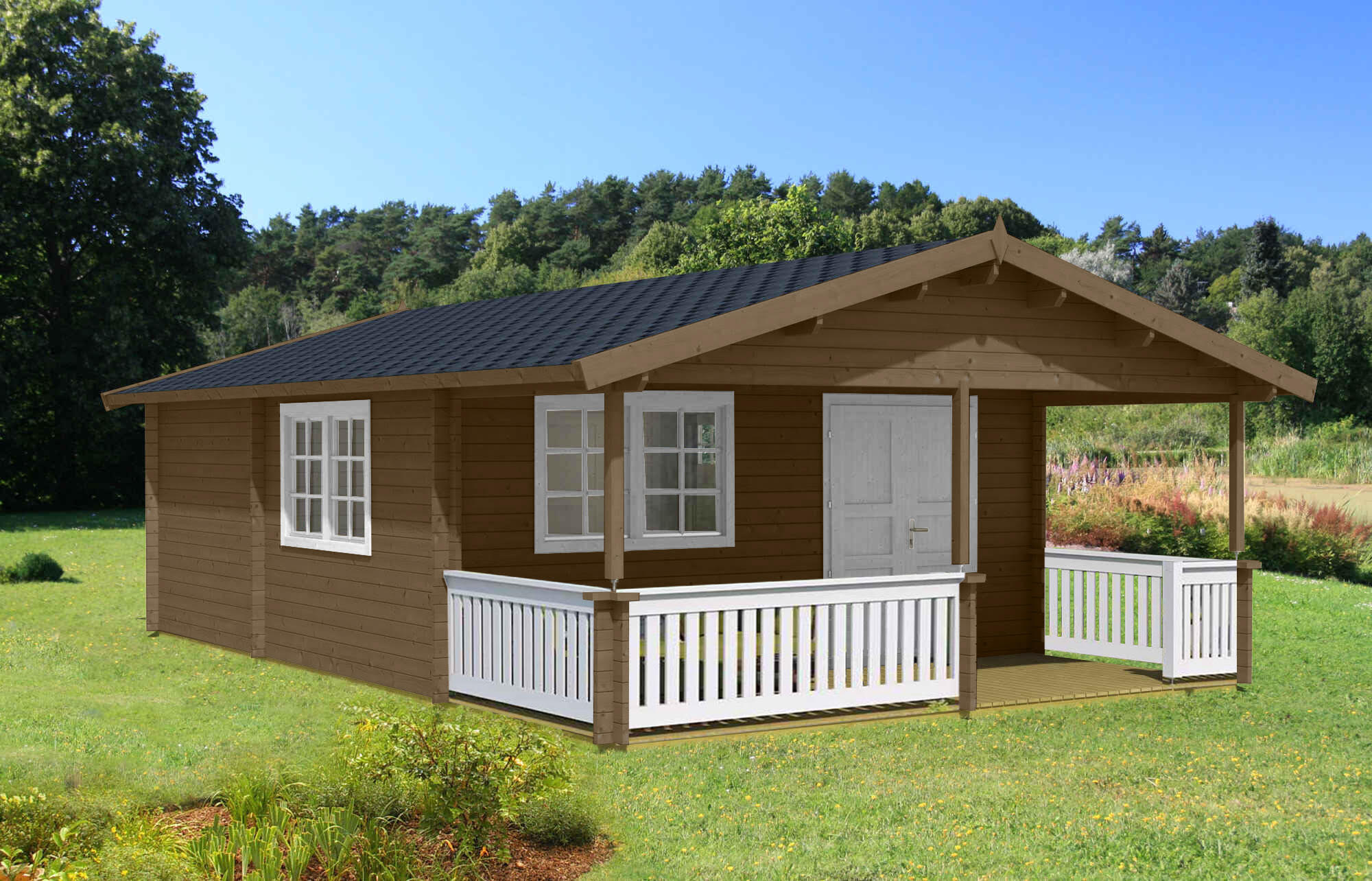

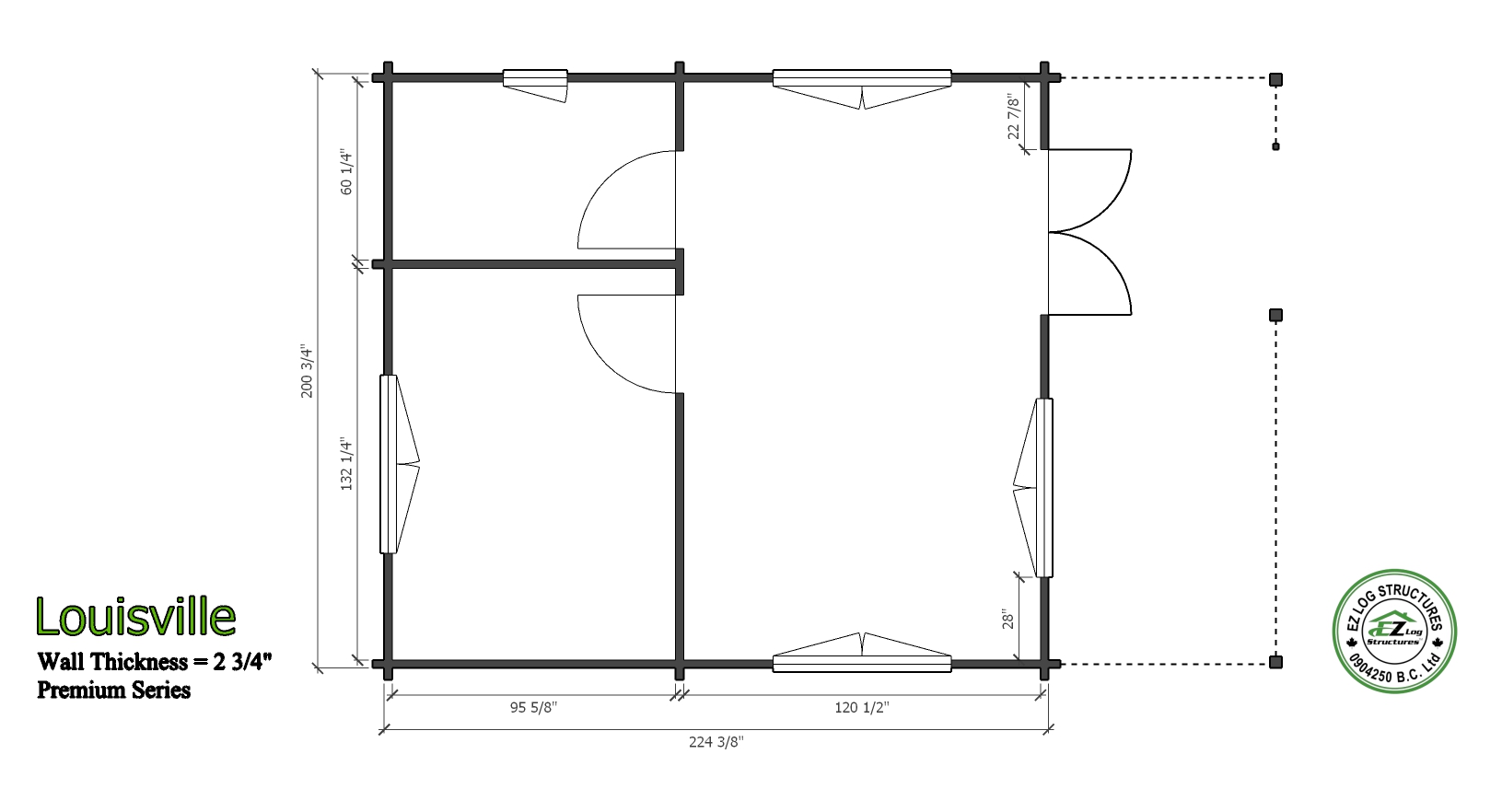

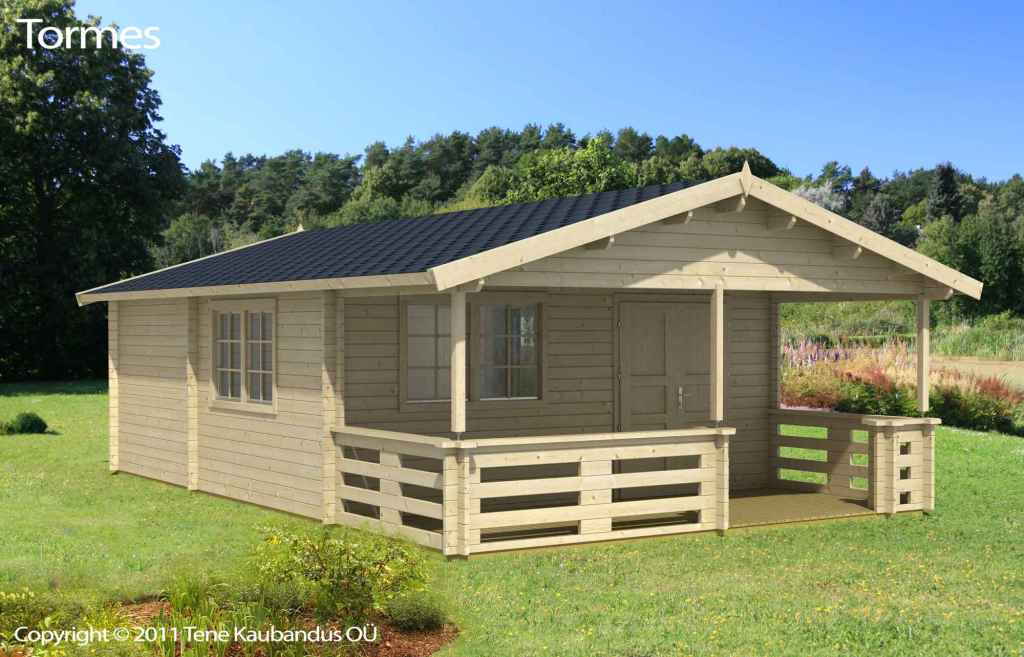

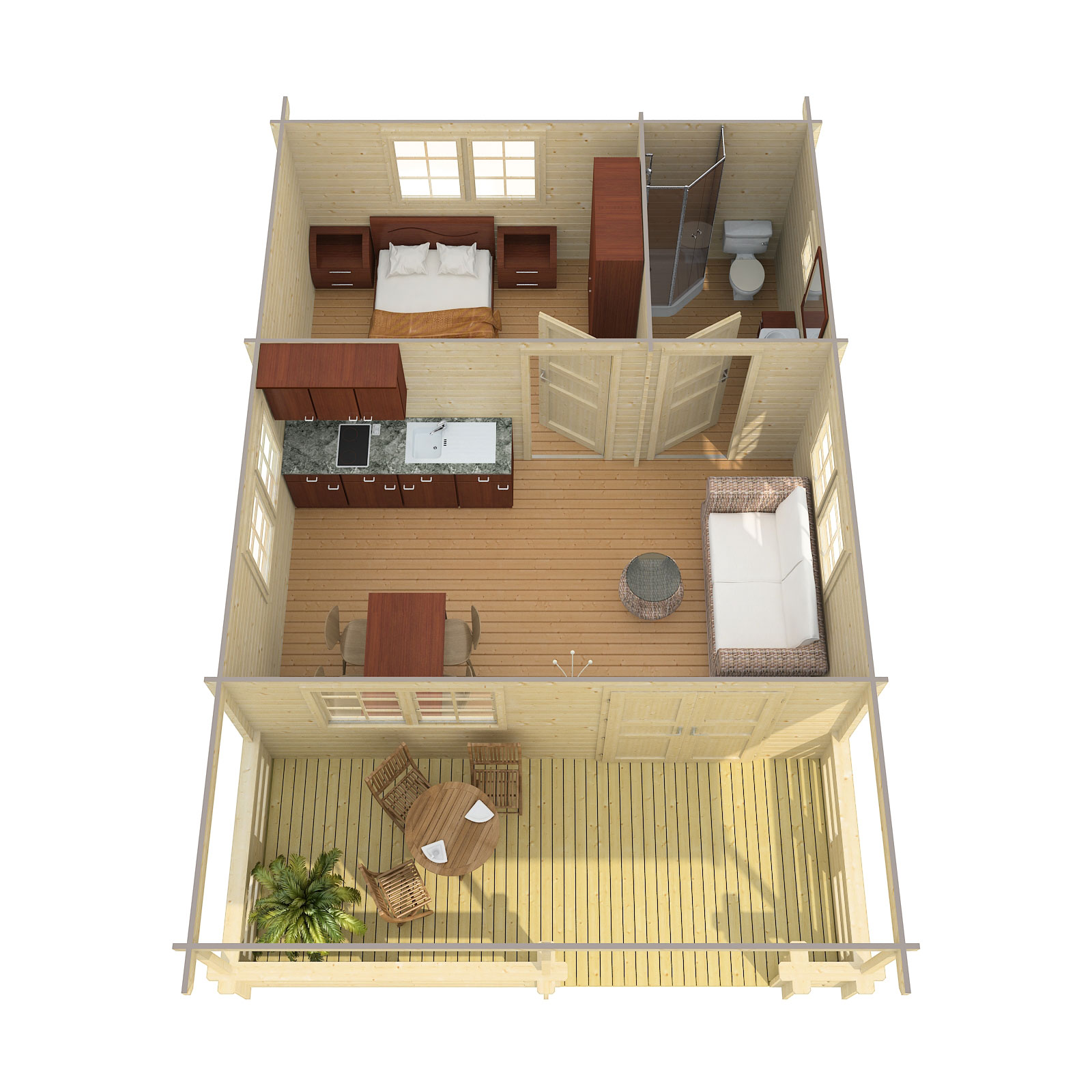

Louisville is an affordable small 1 bedroom home, cabin, ADU or tiny home with vaulted ceilings throughout. (sq footage is based on the total footprint, living space could be less, see floor plans)



Kit includes:

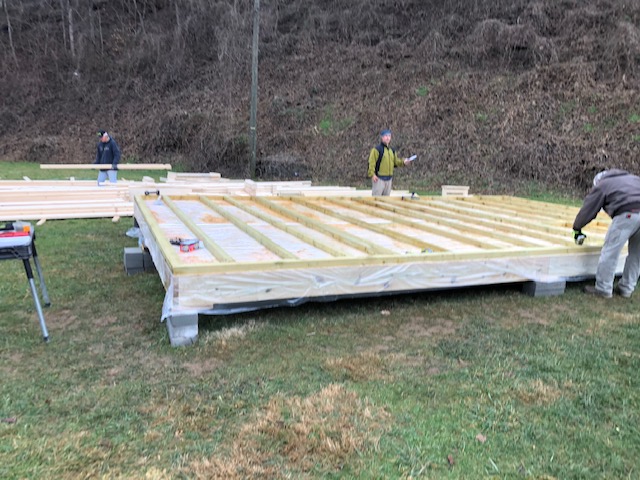

  • no floor, ready to assemble on a concrete slab or wood foundation

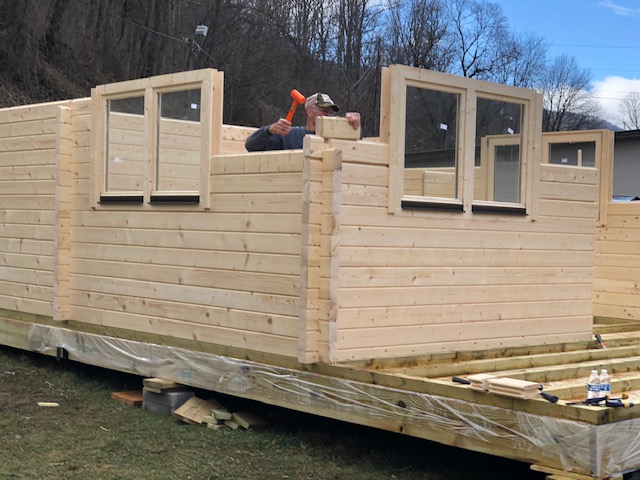

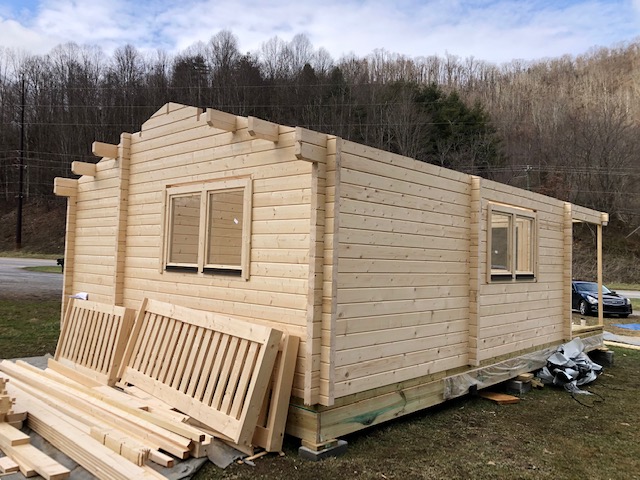

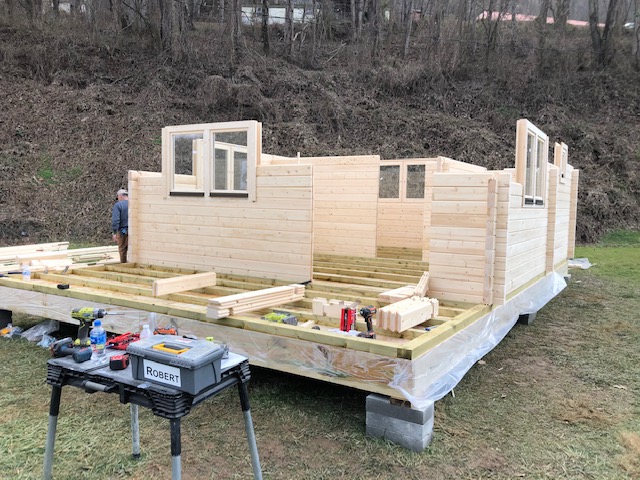

  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components

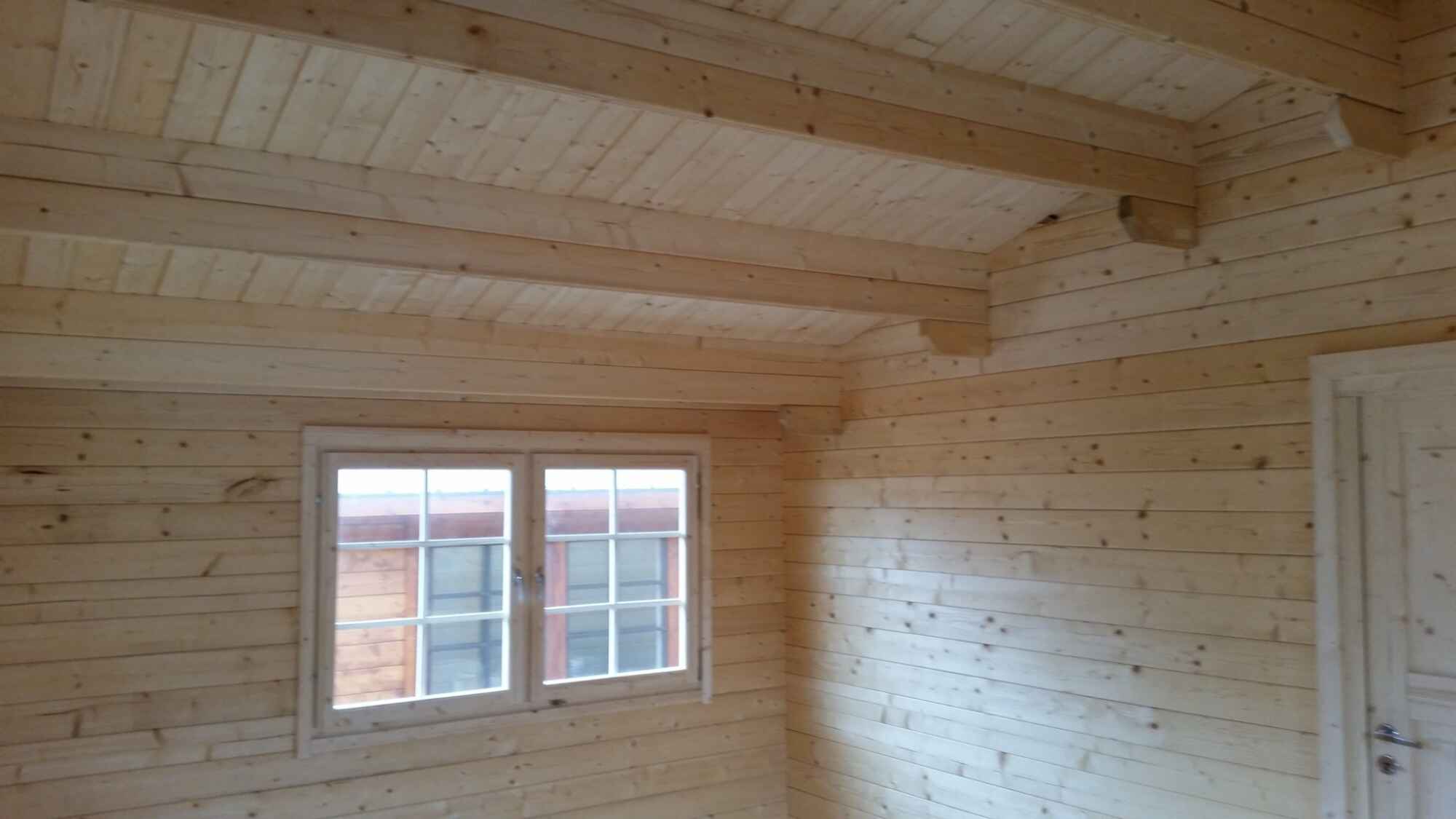

  • vaulted, cathedral ceilings
  • 3/12 roof pitch (14 degrees)

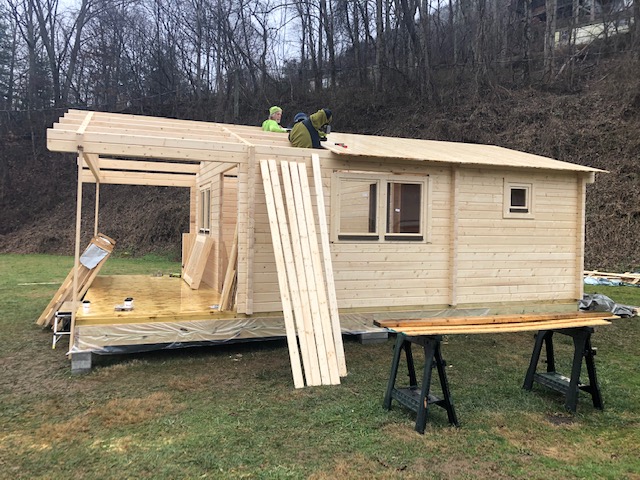

  • pre-cut, 100mm x 200mm (4″x8″) numbered roof purlins, beams, spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards

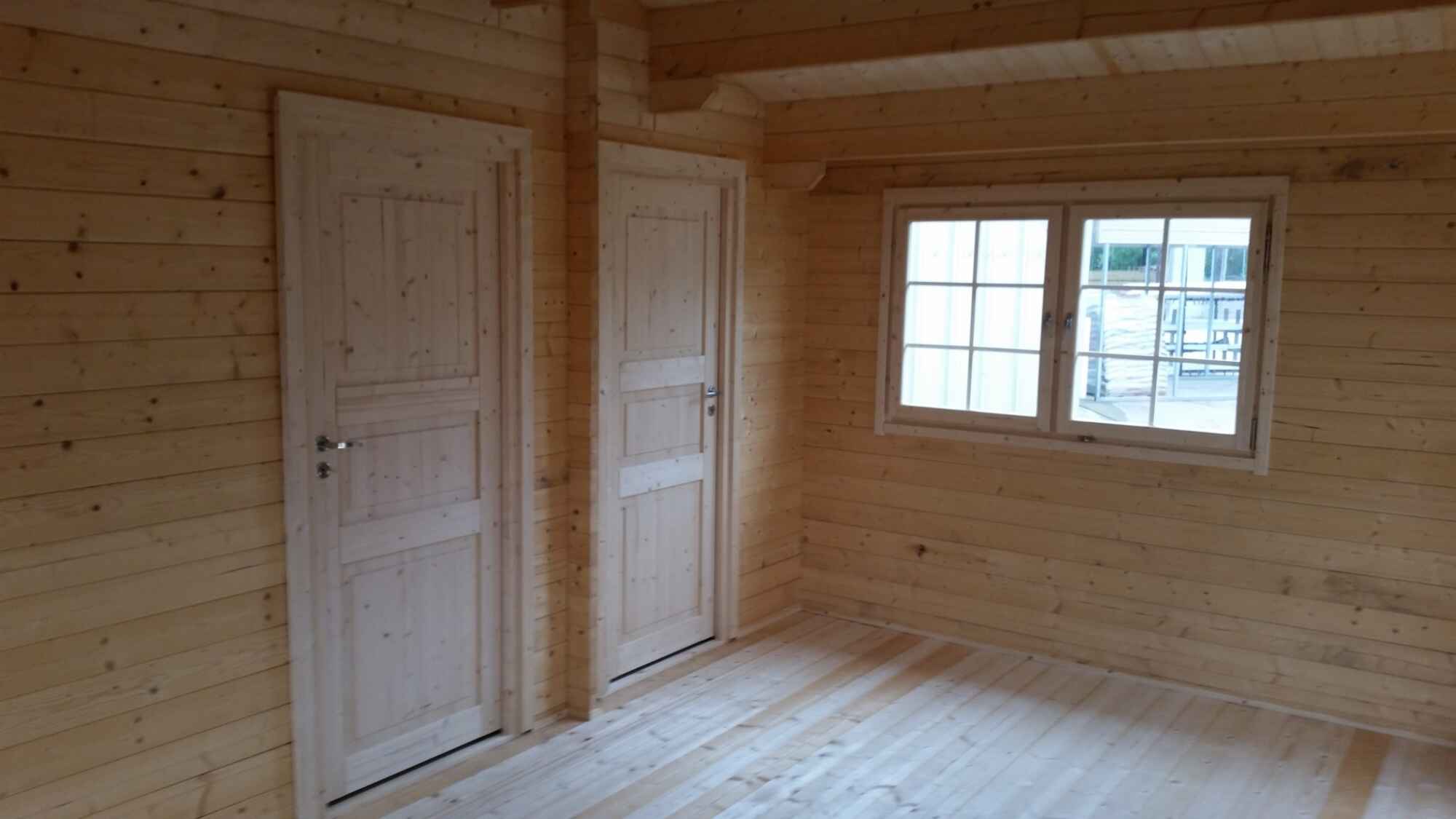

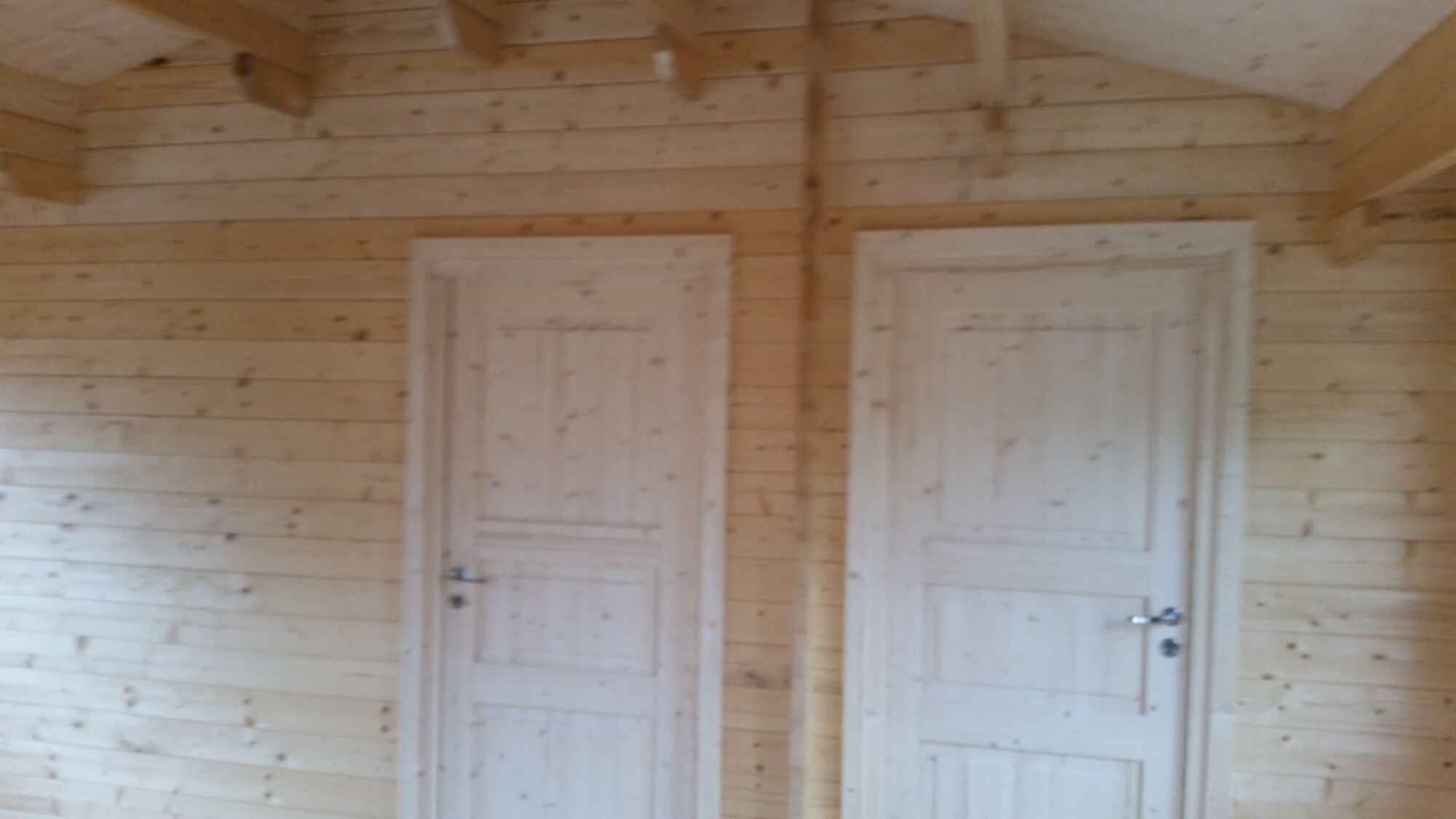

  • 2  interior doors 812mm x 2040mm (32″x80″)
  • 4 double wide wood windows 1530mm x 990mm (60″x 39″)
  • 1 single wide wood windows 530 x 530 (21″x 21″)
  • 1 exterior double door 1550mm x 2040mm (61″ x 80″) 1/2 glass tempered, multi locking hardware
  • deck railings with vertical balustrades
  • adjustable posts
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped for sequence of assembly
  • FREE SHIPPING

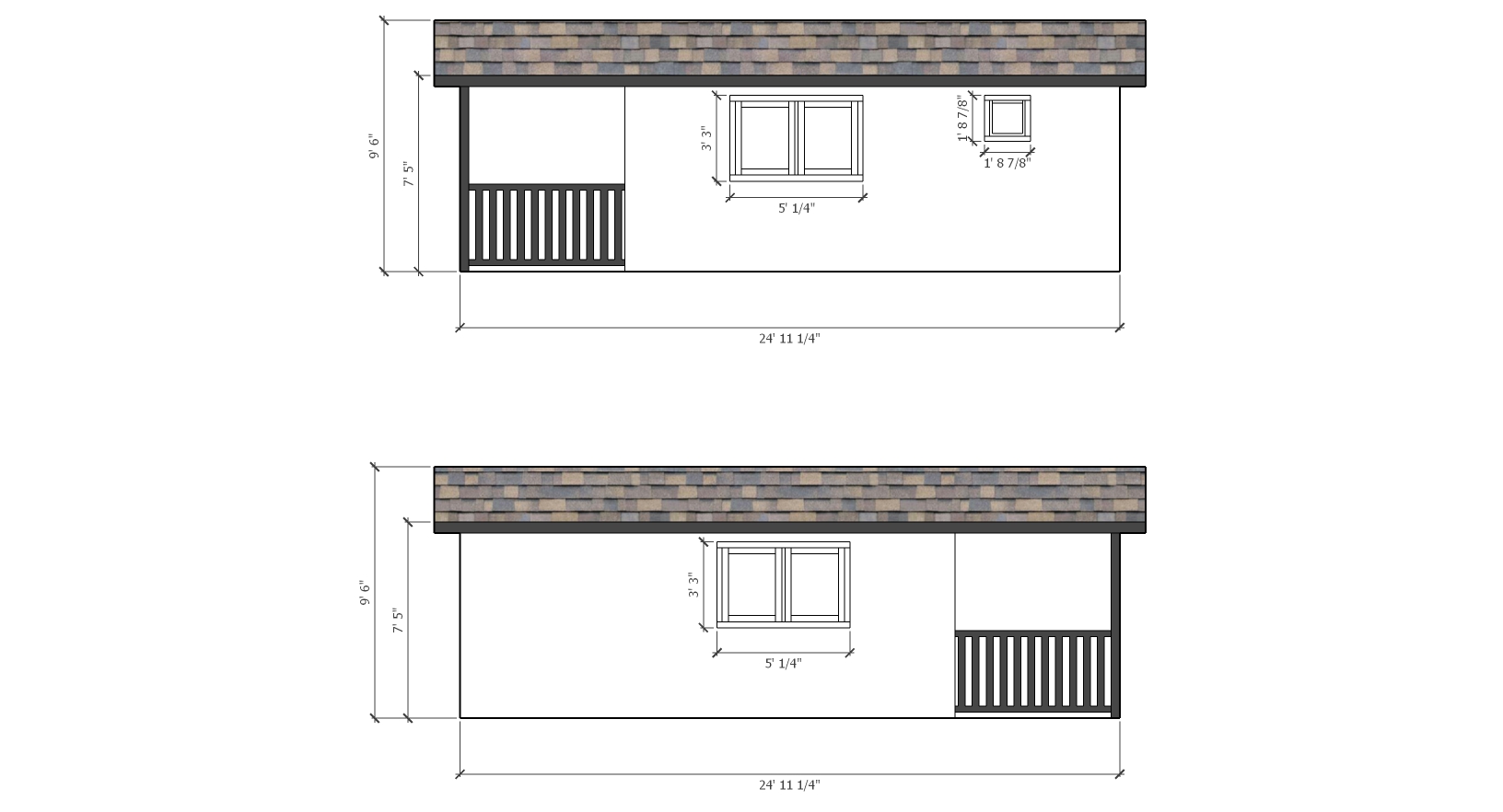

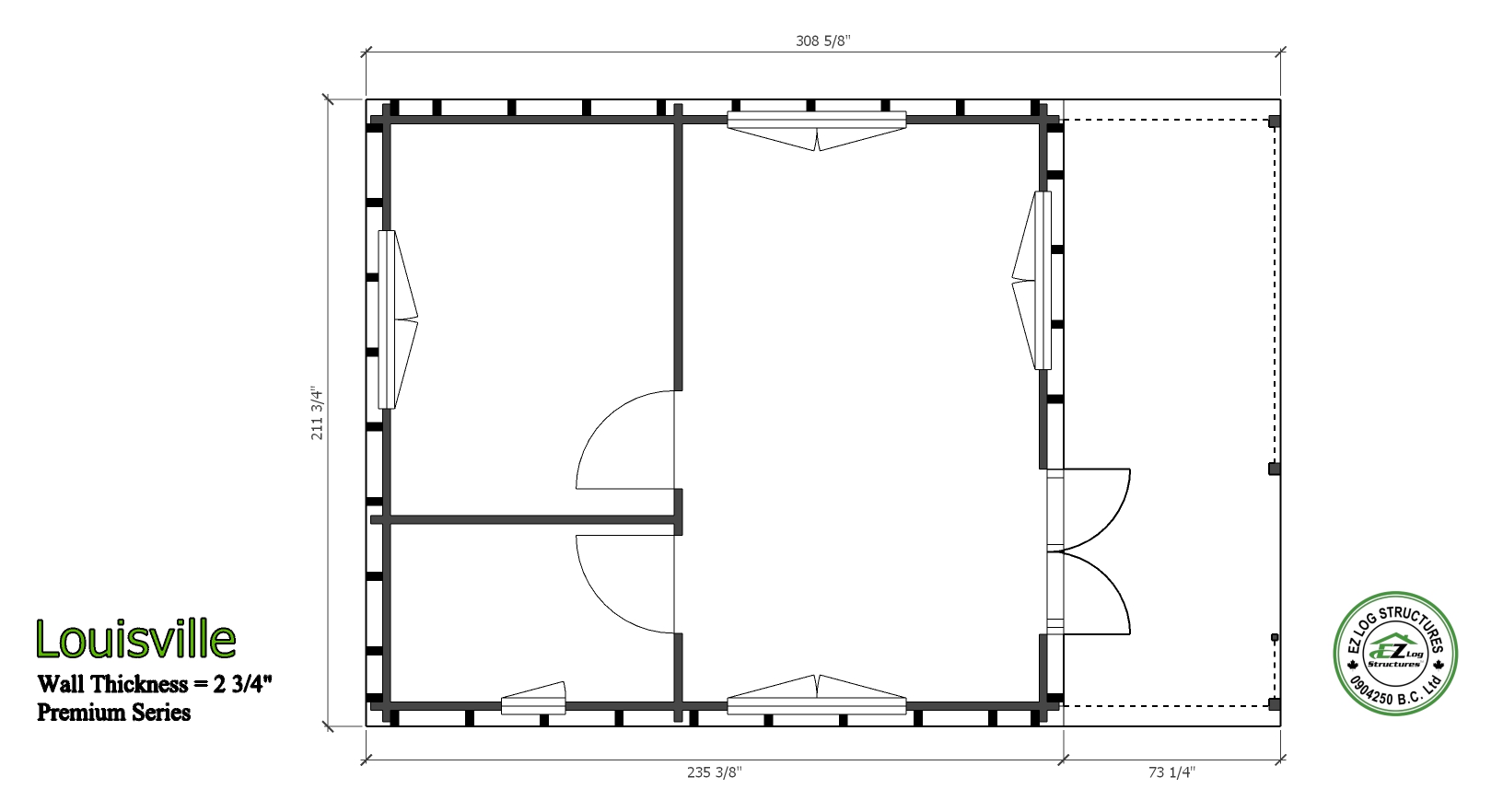

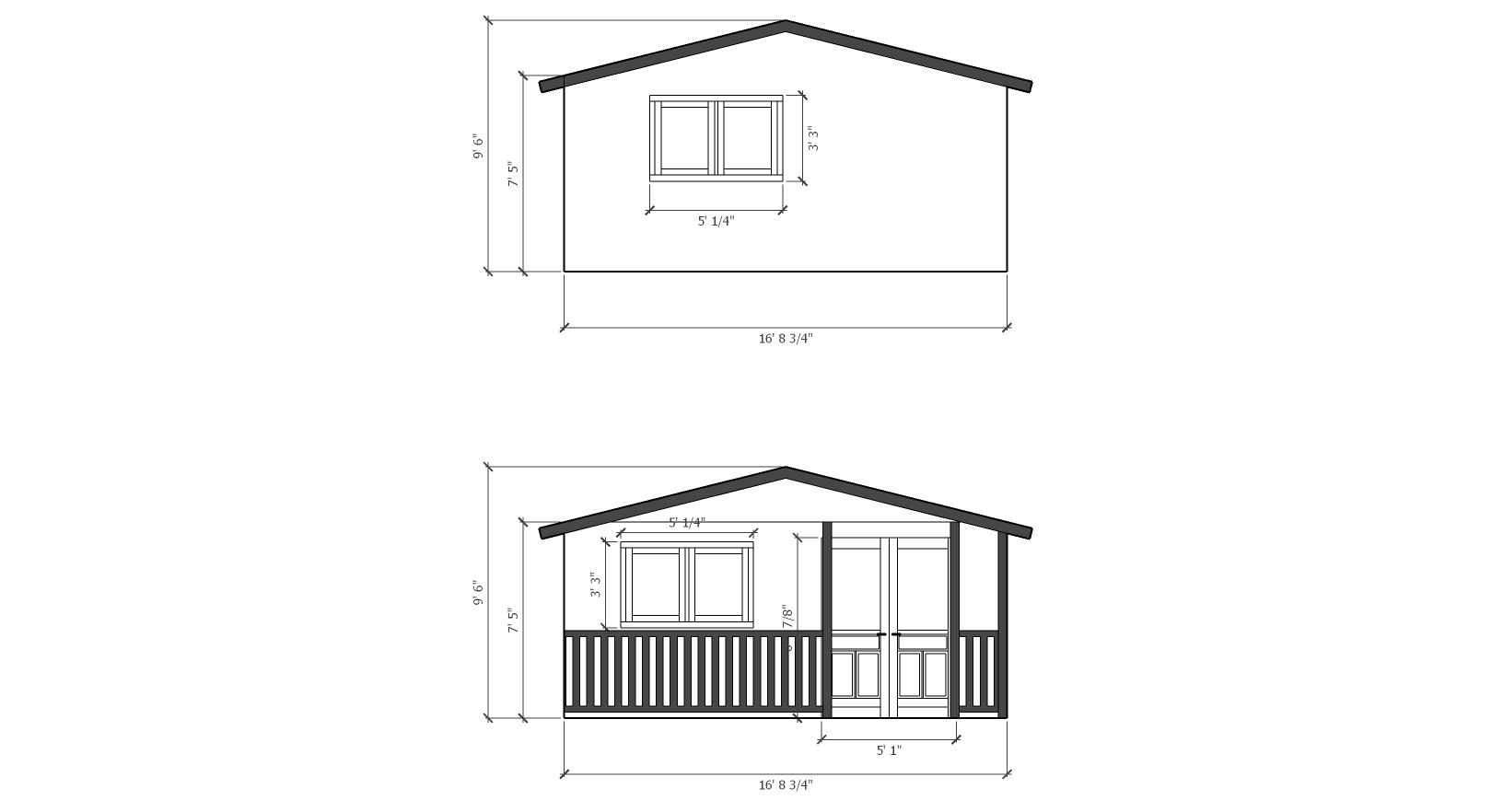

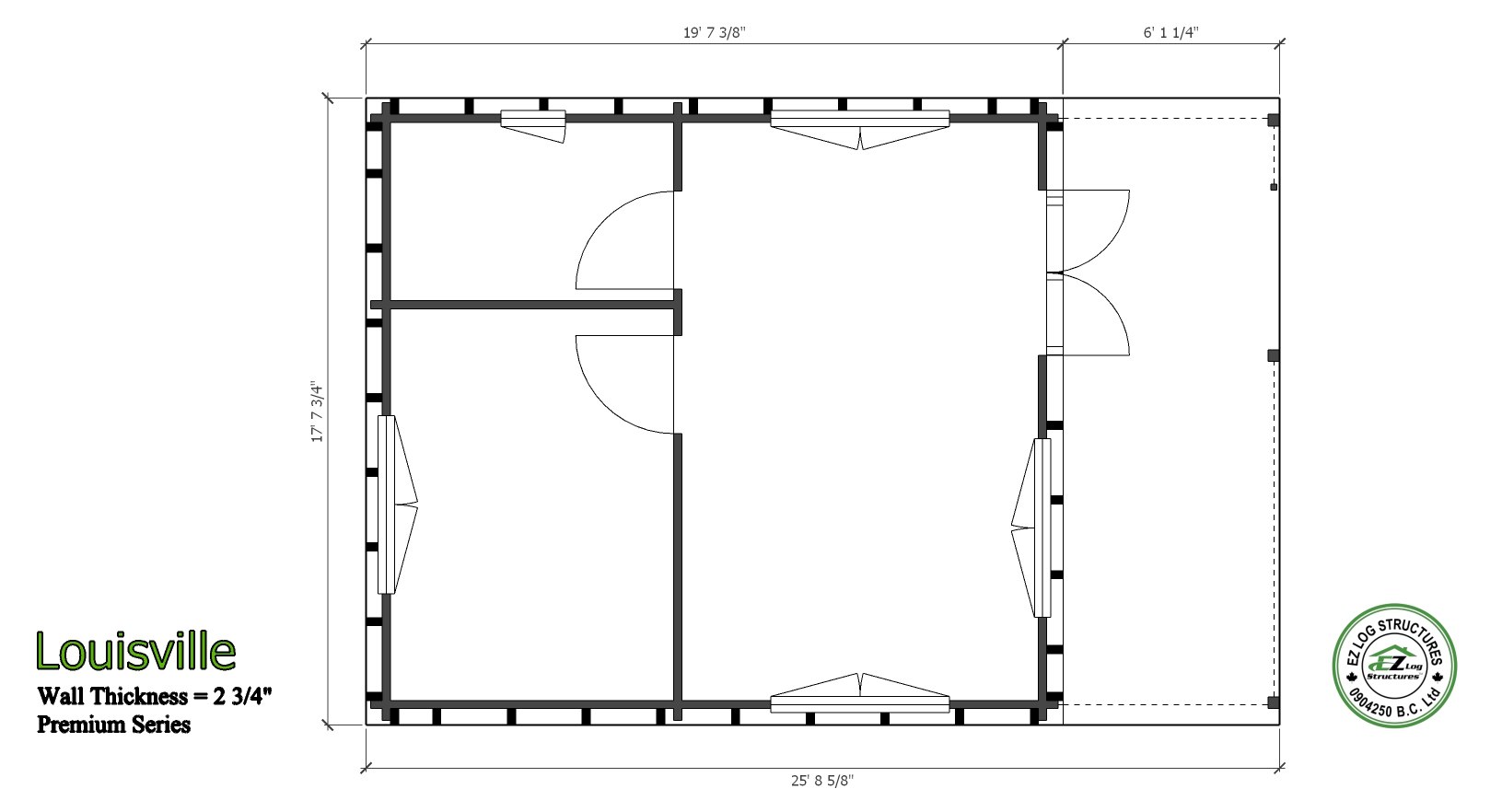

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING



Exterior Stud & Siding Options:
Exterior stud & siding kits include: 2×6 studs, stud screws, wood siding, corner blocks

Add 14%  – Otoczak Full D-Log siding 1-1/8″ x 5-1/8″ (28mm x 130mm)

Add 10%  – Max Semi D-Log siding 3/4″ x 5-1/8″ (18mm x 130mm)

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

Window Options:

Upgrade all the wood windows to triple glazed/Low E/Argon filled glass

Add – $ 842.00 USD

Add – $ 1,080.00 CAD

OR

Upgrade all wood window to our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass plus exterior rolling shutters that are controlled from the interior. Add comfort and security, improve the energy efficiency, reduce outside noise levels & provide complete darkness for daytime sleepers. (See the video on the video section)

Add – $ 1,755.00 USD

Add – $ 2,250.00 CAD
