Laredo Lofted

1574 sq ft
Premium Model
$78,936.00 USD
$101,200.00 CAD
FREE SHIPPING
Bedrooms3
Bathrooms1

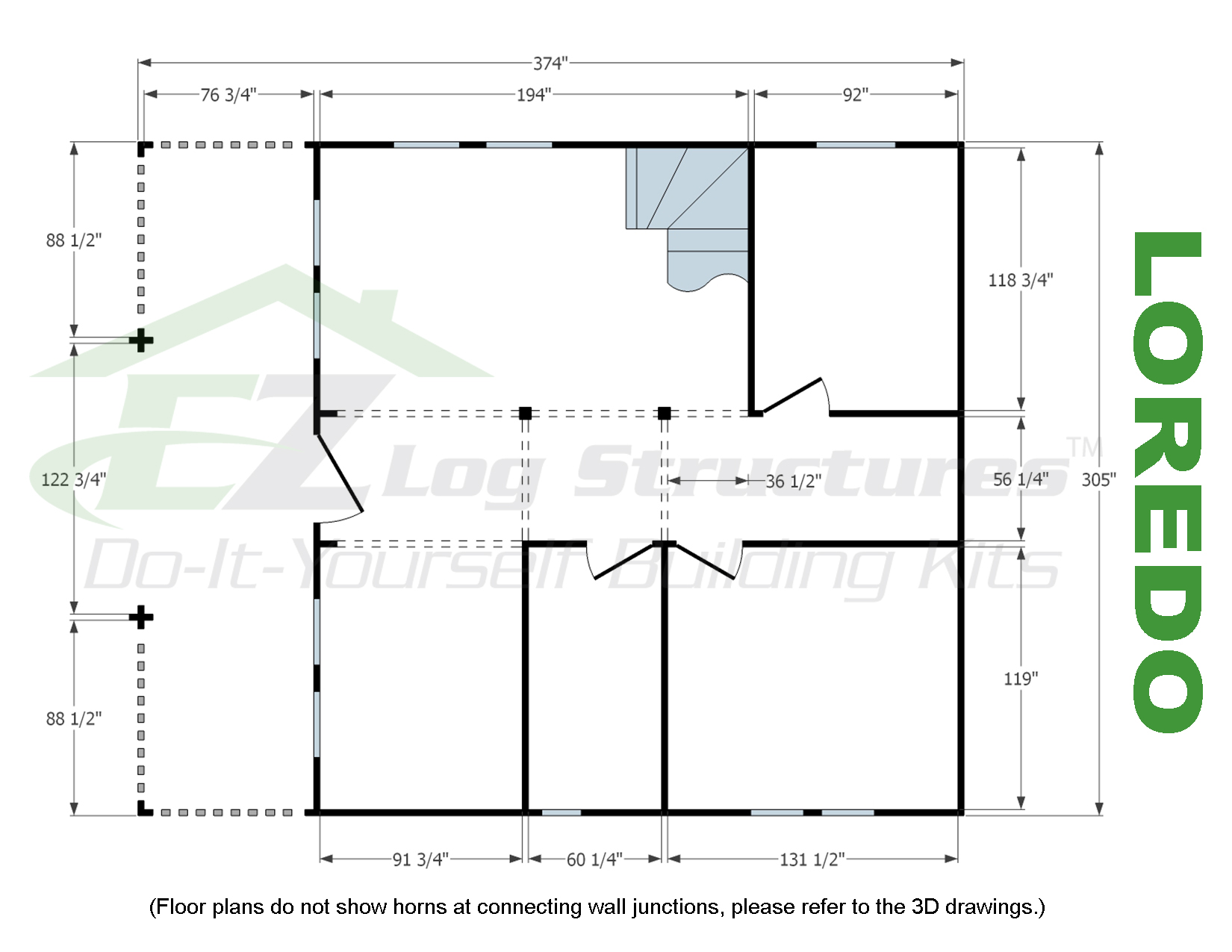

Cabin size305" x 374"
Roof pitch6/12 - 27D
Roof boards3/4"
Size (sq ft)787
Size (sq ft)787
Volume2241
Attic210"
Wall height95"
Ridge height315"
Wall thickness2-3/4”

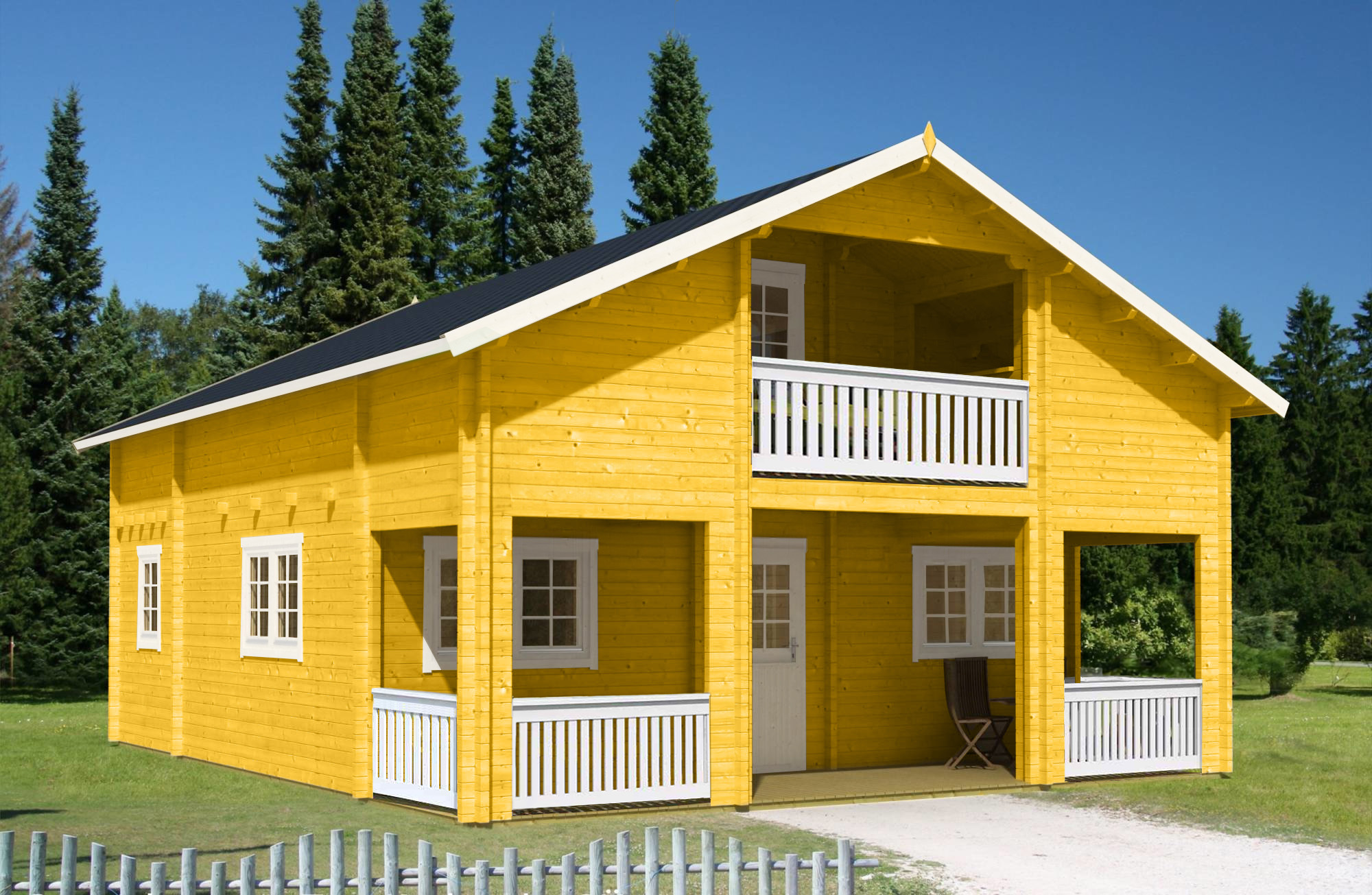

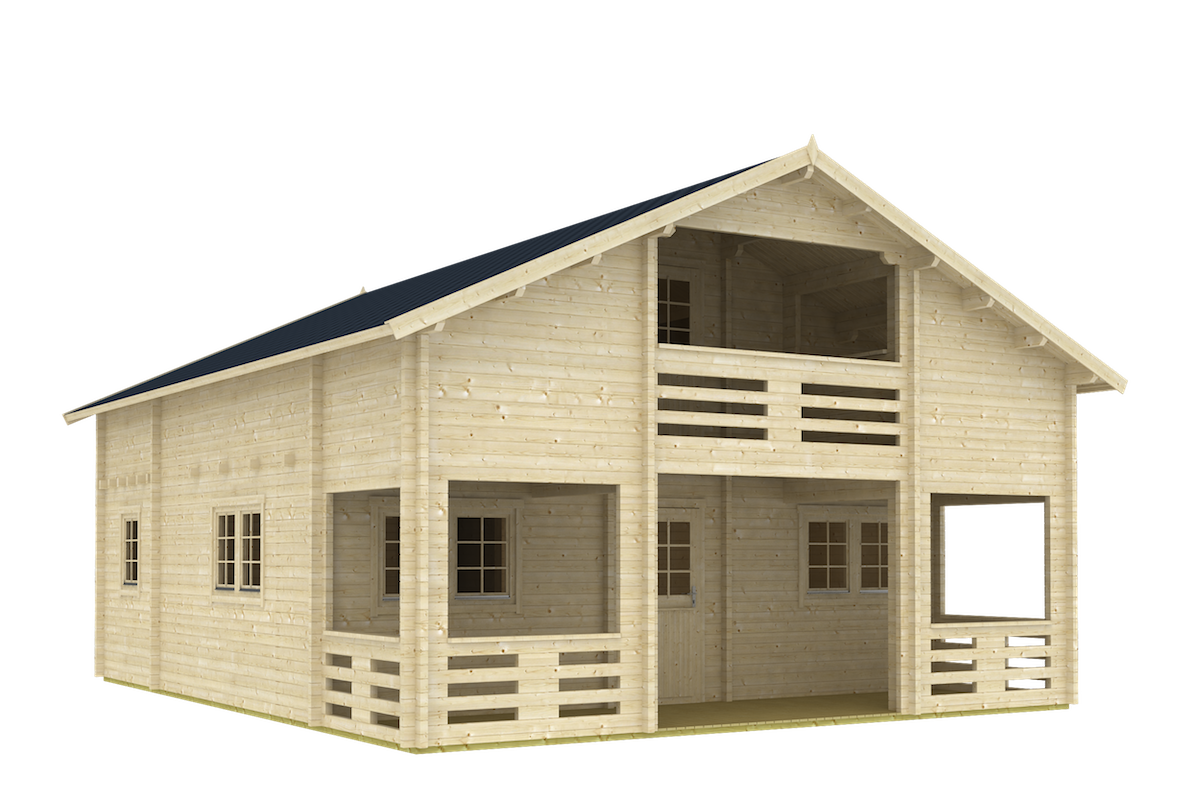

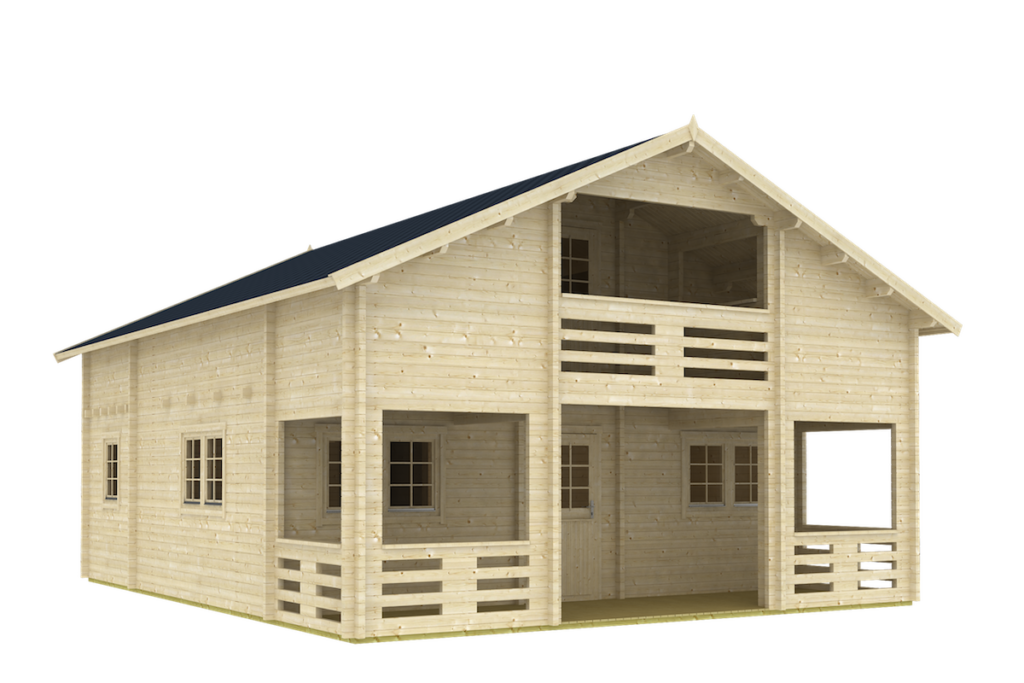

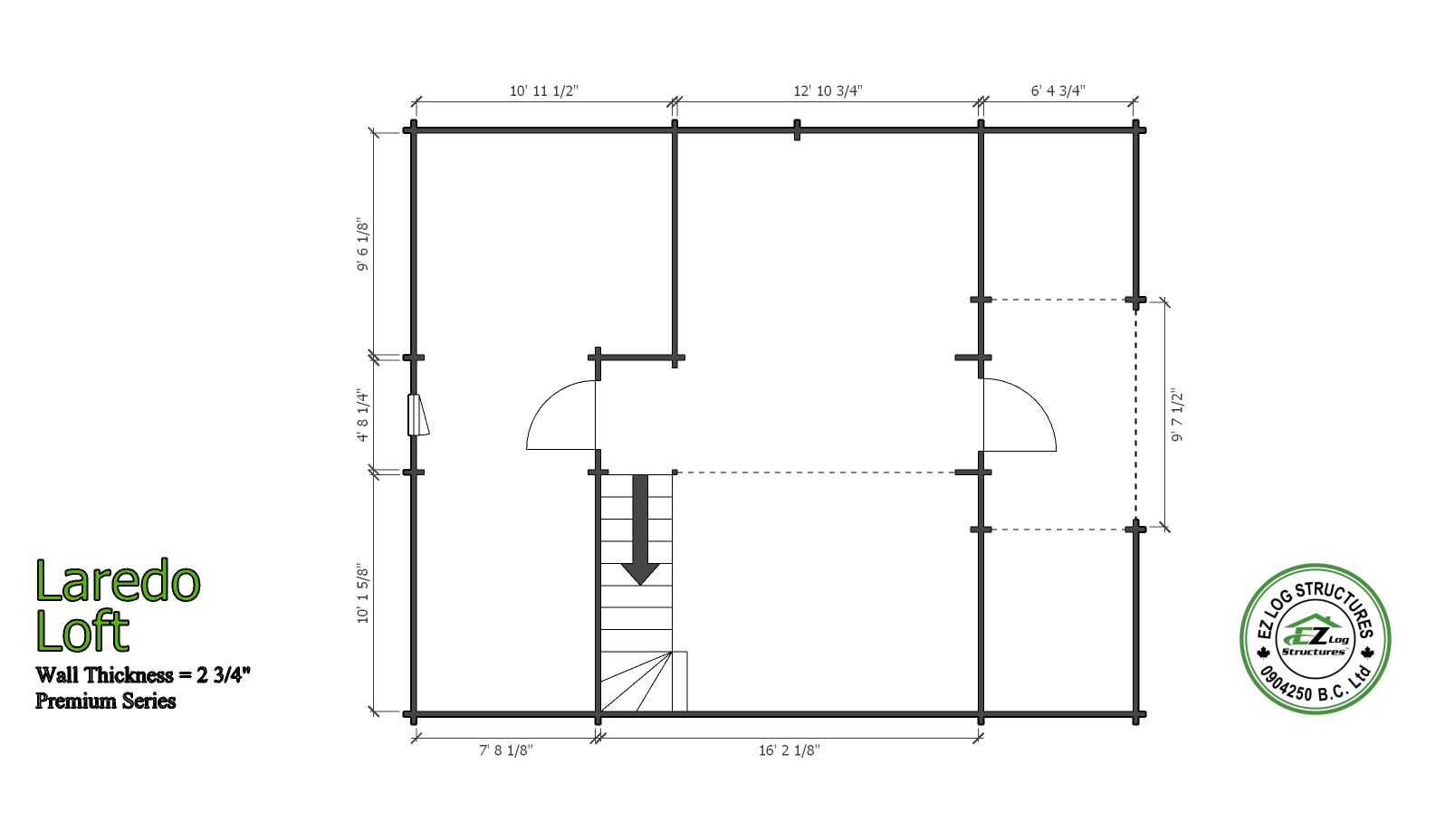

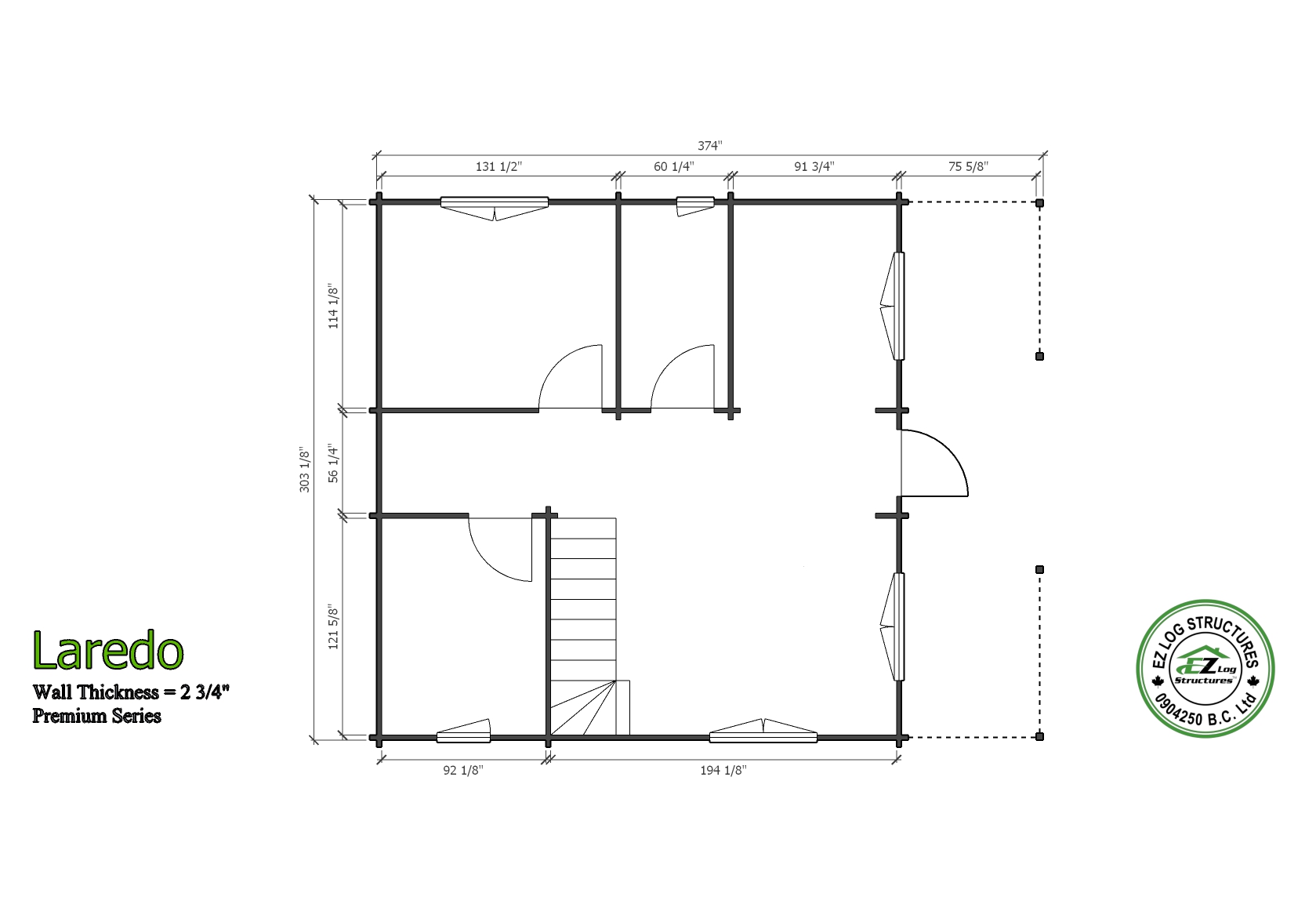

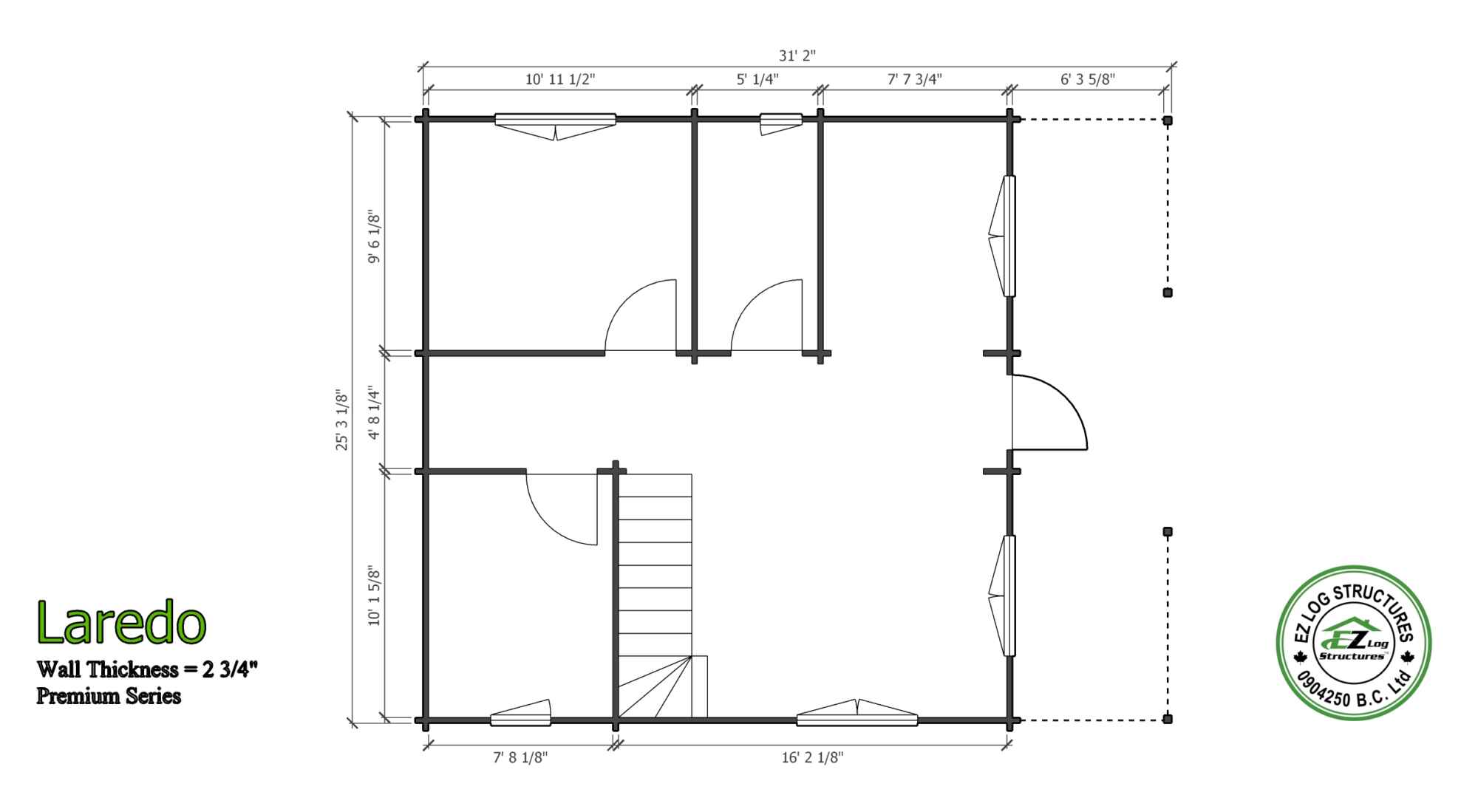

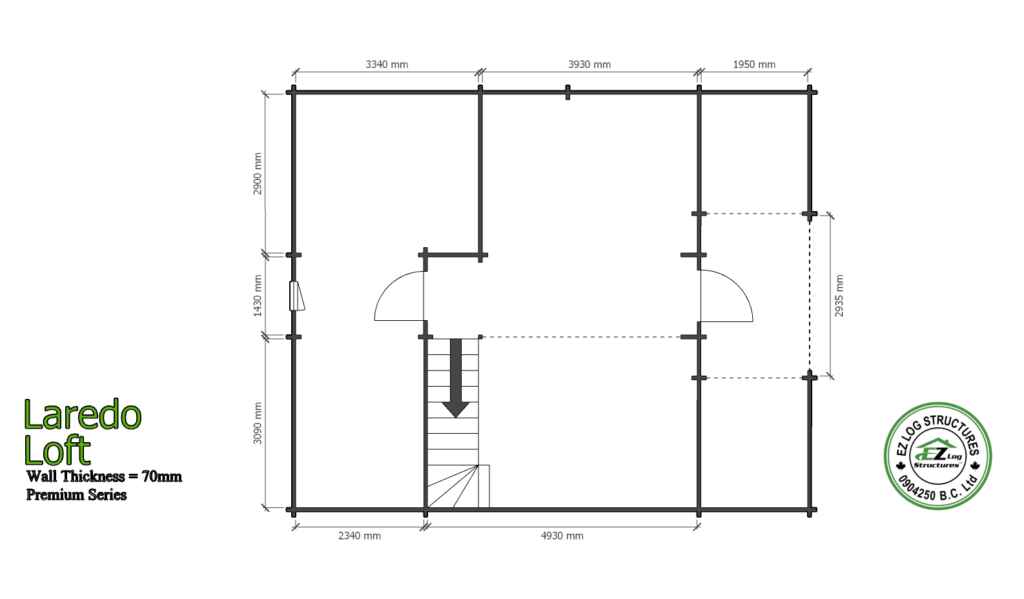

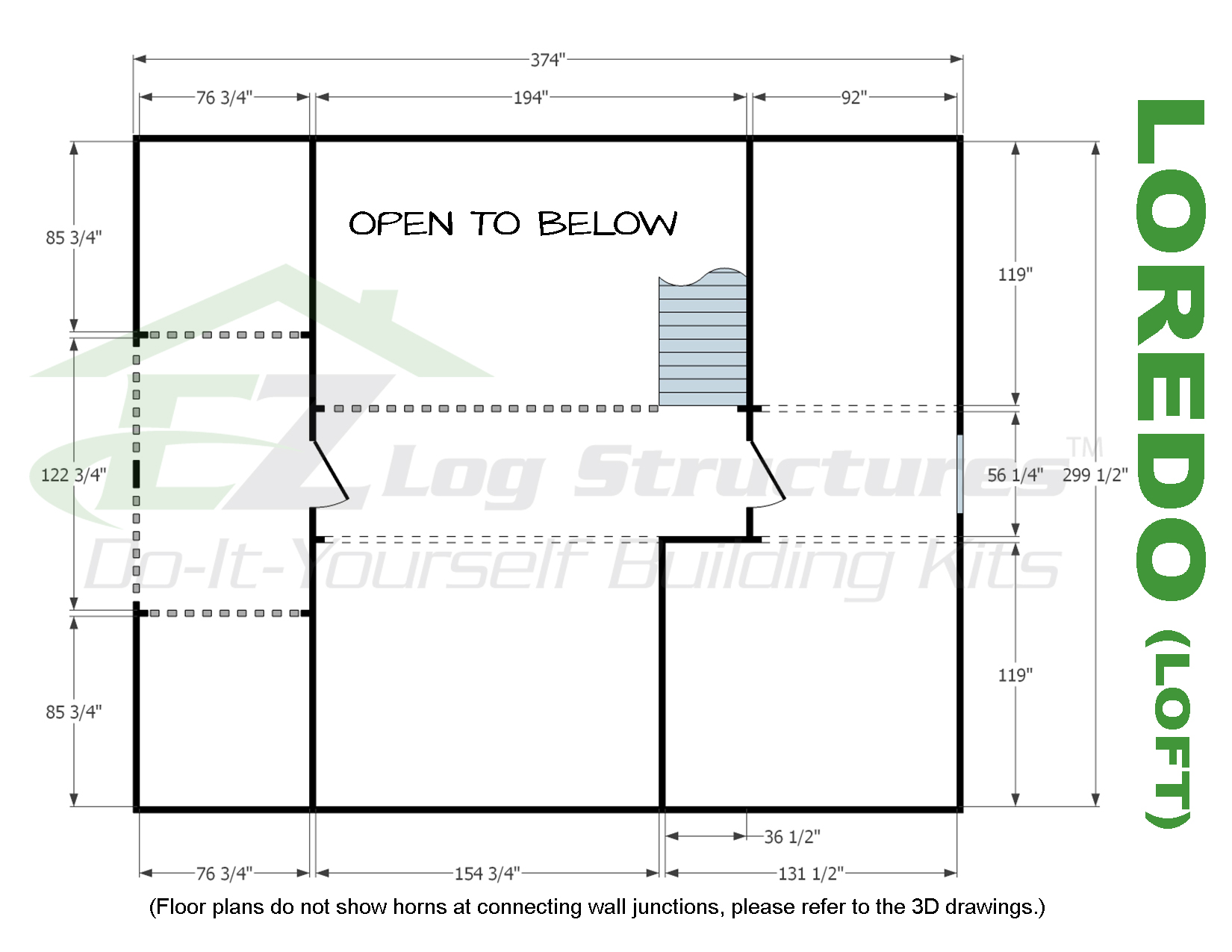

Laredo is a kit home using 70mm (2-3/4) thick wall logs.  This model is a two story with a deck over the front entrance & a foot print of approximately 792 sq’ with a second level for a total of 1584 sq’ This kit can be assembled by 3 people in 11 days

Kit includes:
  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • sidewall height main floor 95″ (2413mm)
  • stairs, handrails, landing build to code
  • loft floor beams 4″ x 8″ (100mm x 200mm) spaced 22″ (558m) or less
  • pre-cut loft floor boards 1-1/8″ (28mm)
  • vaulted, cathedral ceilings
  • roof pitch 6/12 (27 degrees)
  • pre-cut 4″ x 8″ (100mm x 200mm) glulam roof purlins/beams, spaced 22″ (558mm) or less
  • pre-cut, numbered 3/4″ (18mm) tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 4 interior doors 32″x80″ (812mm x 2040mm) or  36″ x 80″ (914mm x 2040mm), hardware
  • 2 single wide wood window 21″ x21″ (530mm x 530mm)
  • 1 single wide wood windows 30″x39″ (765mm x 990mm)
  • 4 double wide wood window 60″x39″ (1530mm x 990mm)
  • 2 exterior doors 36″x80″ (990mm x 2040mm) 1/2 glass tempered, multi locking hardware
  • deck posts, railing with vertical balustrades
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped for sequence of assembly
  • FREE SHIPPING

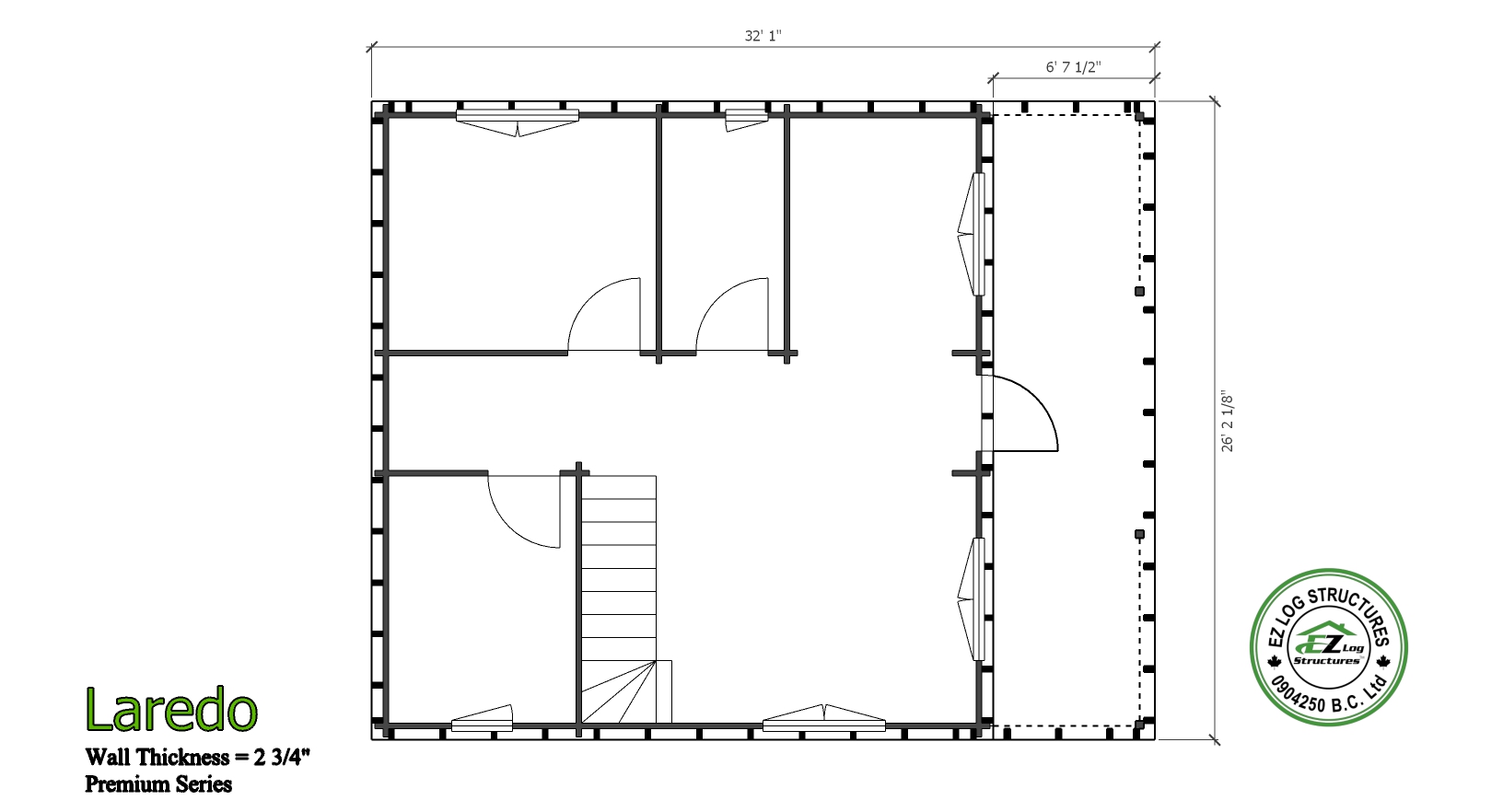

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING





EXTERIOR STUD & SIDING KITS

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.



We offer 3 types of siding kits to cover the exterior of the home or cabin: EZ Log Semi D-Log tongue & groove wood siding, EZ Log Full D-Log tongue & groove wood siding & a heavy duty maintenance free extruded PVC polymer siding



Each kit includes: 2×6 studs, stud screws, siding, corner blocks, trims & extending the roof overhang 6″














1) ADD 10% – Semi D-Log siding (Max)  3/4″ x 5-1/8″ (18mm x 130mm)



















2) ADD 14% – Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)
















3) ADD 20% – Vox extruded prefinished PVC polymer siding 3/8″ x 8″ (8.3mm x 200mm)










Window Options:





1) Kit includes double glazed residential grade wood windows. To upgrade all windows to triple glazed/Low E/Argon gas filled (11 sash)

Add – $ 1,201.00 USD

Add – $ 1,540.00 CAD









OR



PVC window - white frame. PVC window with built-in external shutters. Shutter window.



2) Replace all wood windows with our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)

Add – $ 2,574.00 USD

Add – $ 3,300.00 CAD
