Greenville

919 sq ft
Premium Model
$50,841.00 USD
$65,180.00 CAD
FREE SHIPPING
Rooms
Bedrooms2
Bathrooms1
Cabin sizes
Cabin size405" x 327"
Roof & floor
Roof pitch2.5/12 - 10D
Roof boards3/4"
Package, area, vol ect.
Size (sq ft)919
Volume1627
Wall height95"
Ridge height140"
Wall thickness2-3/4”
Contact Us

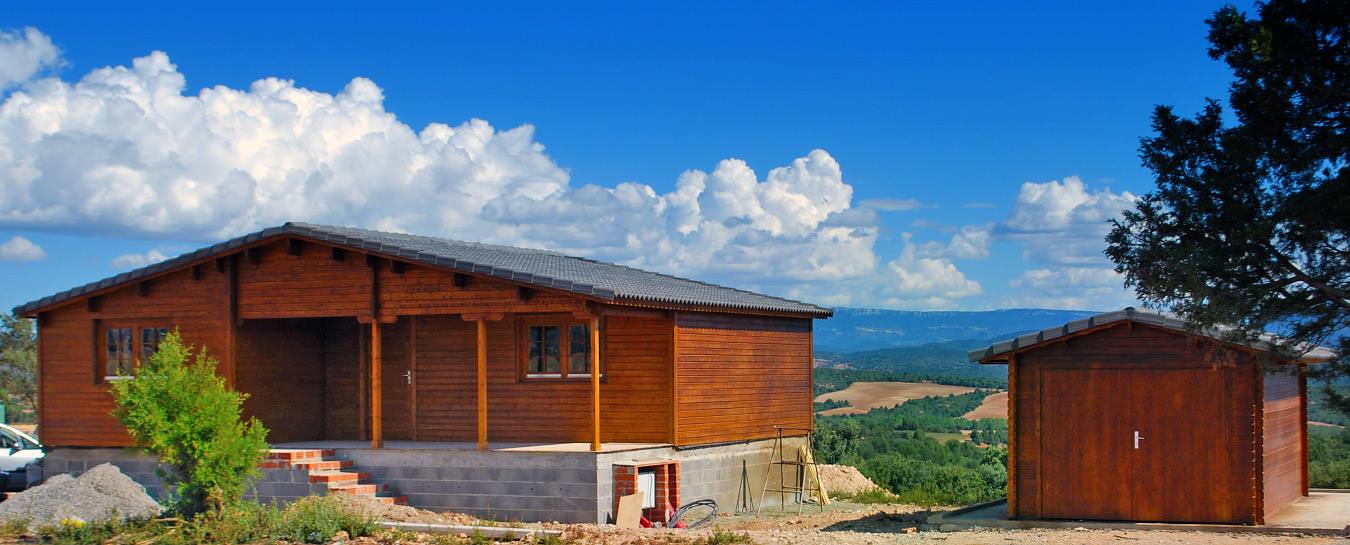

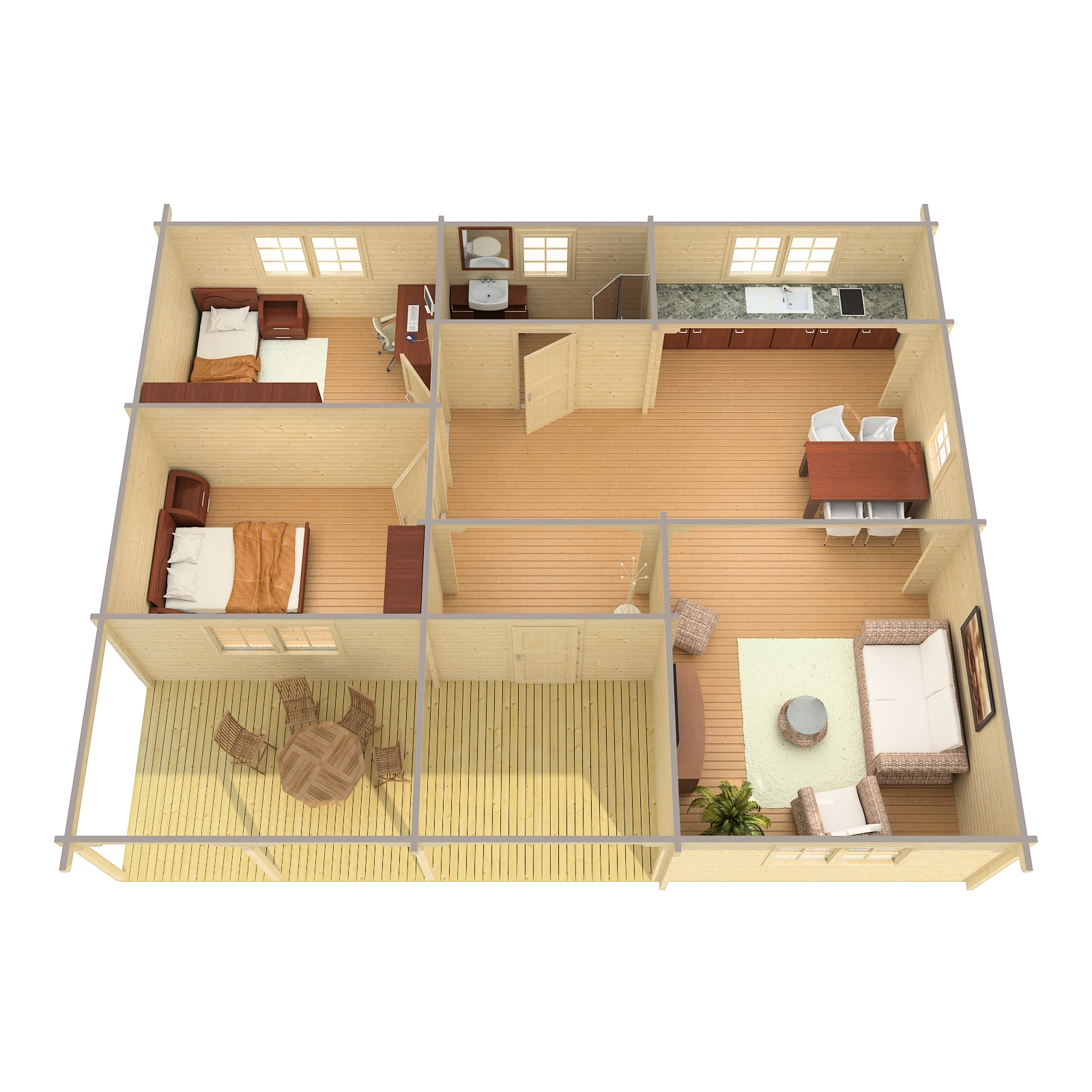

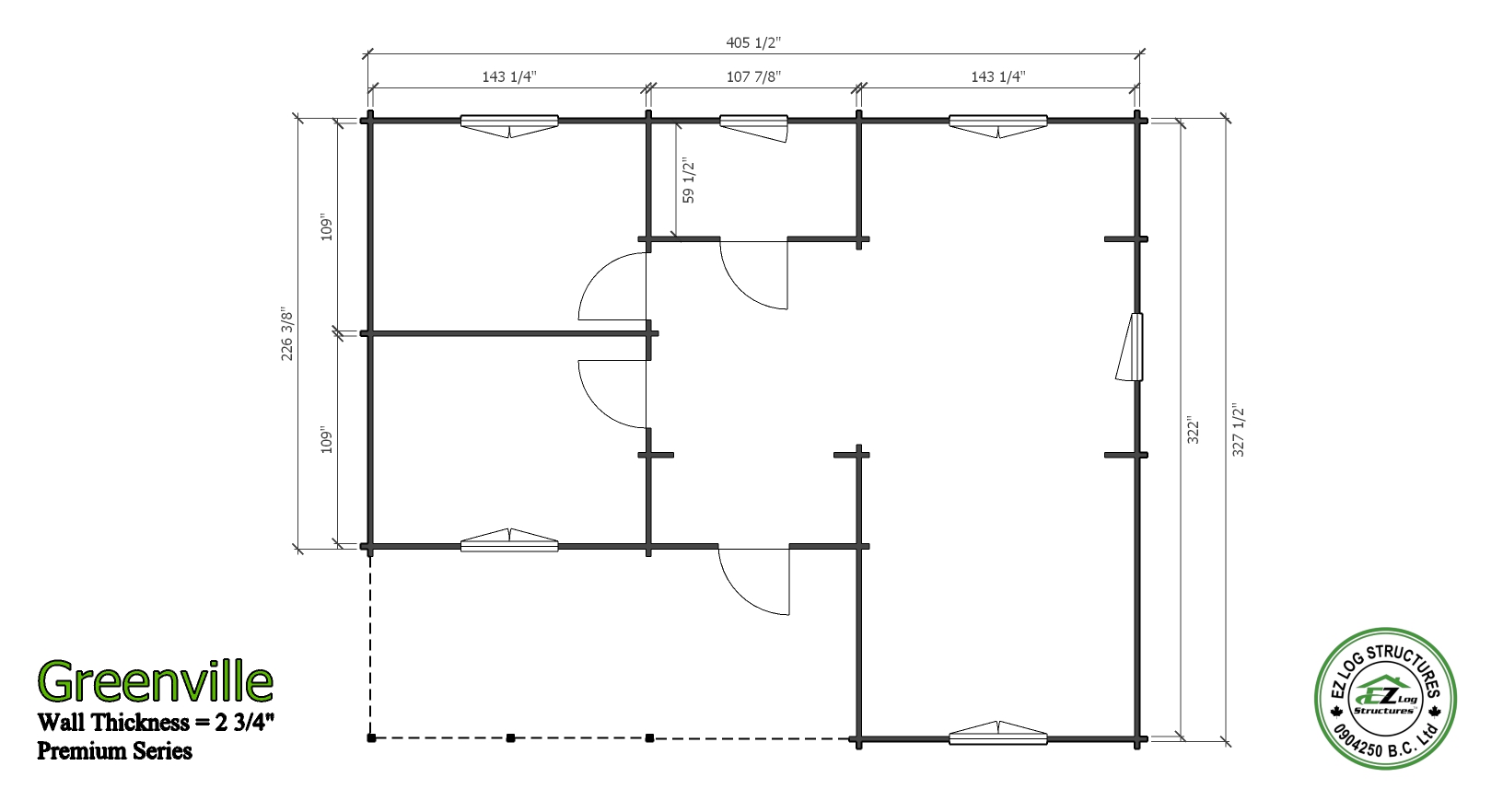

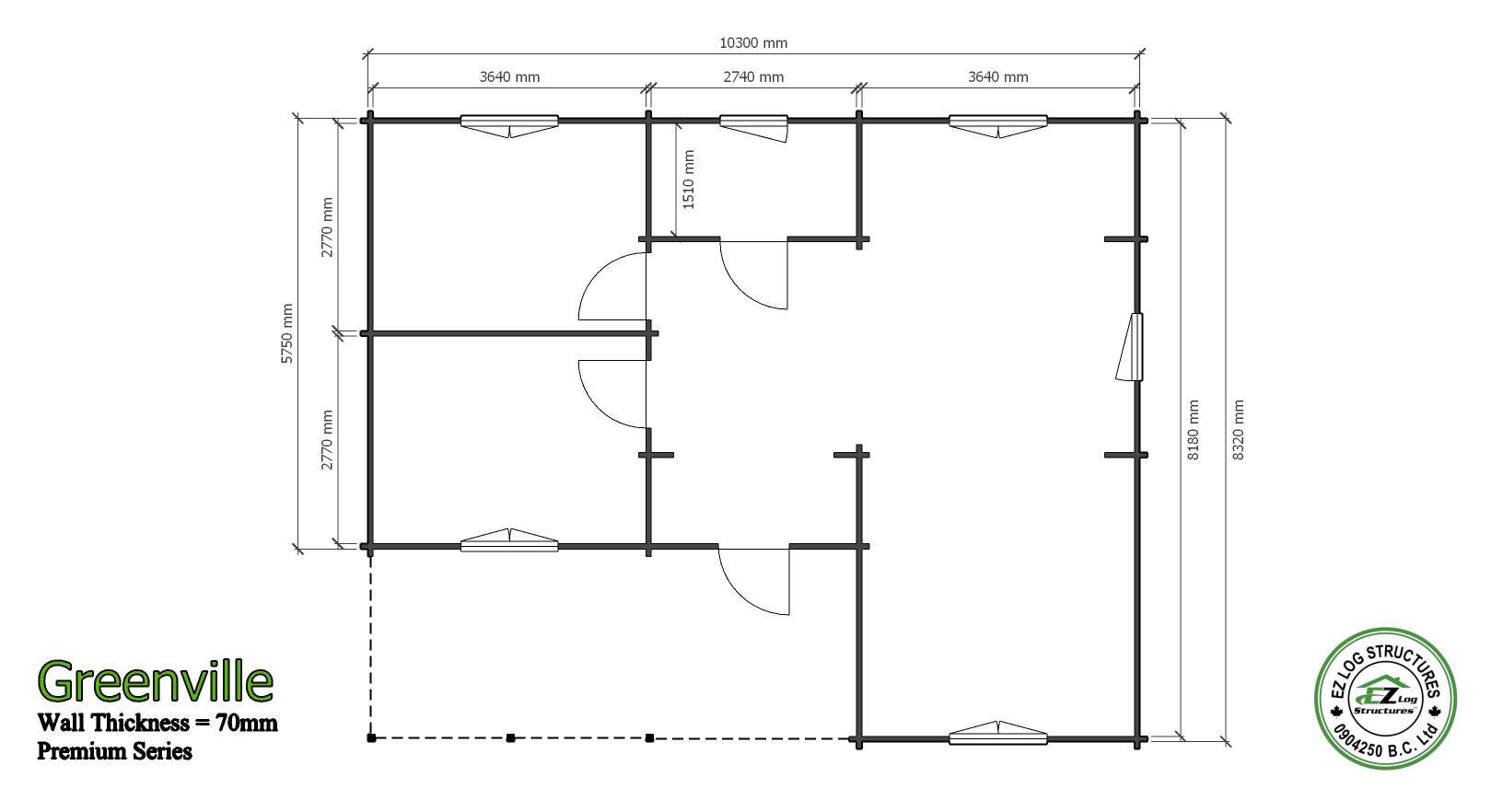

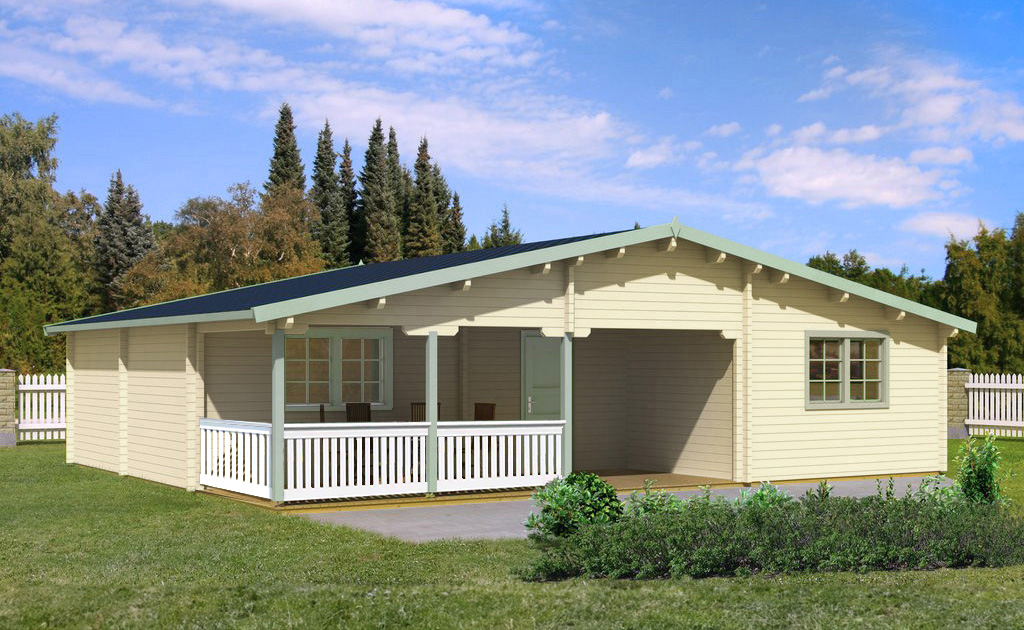

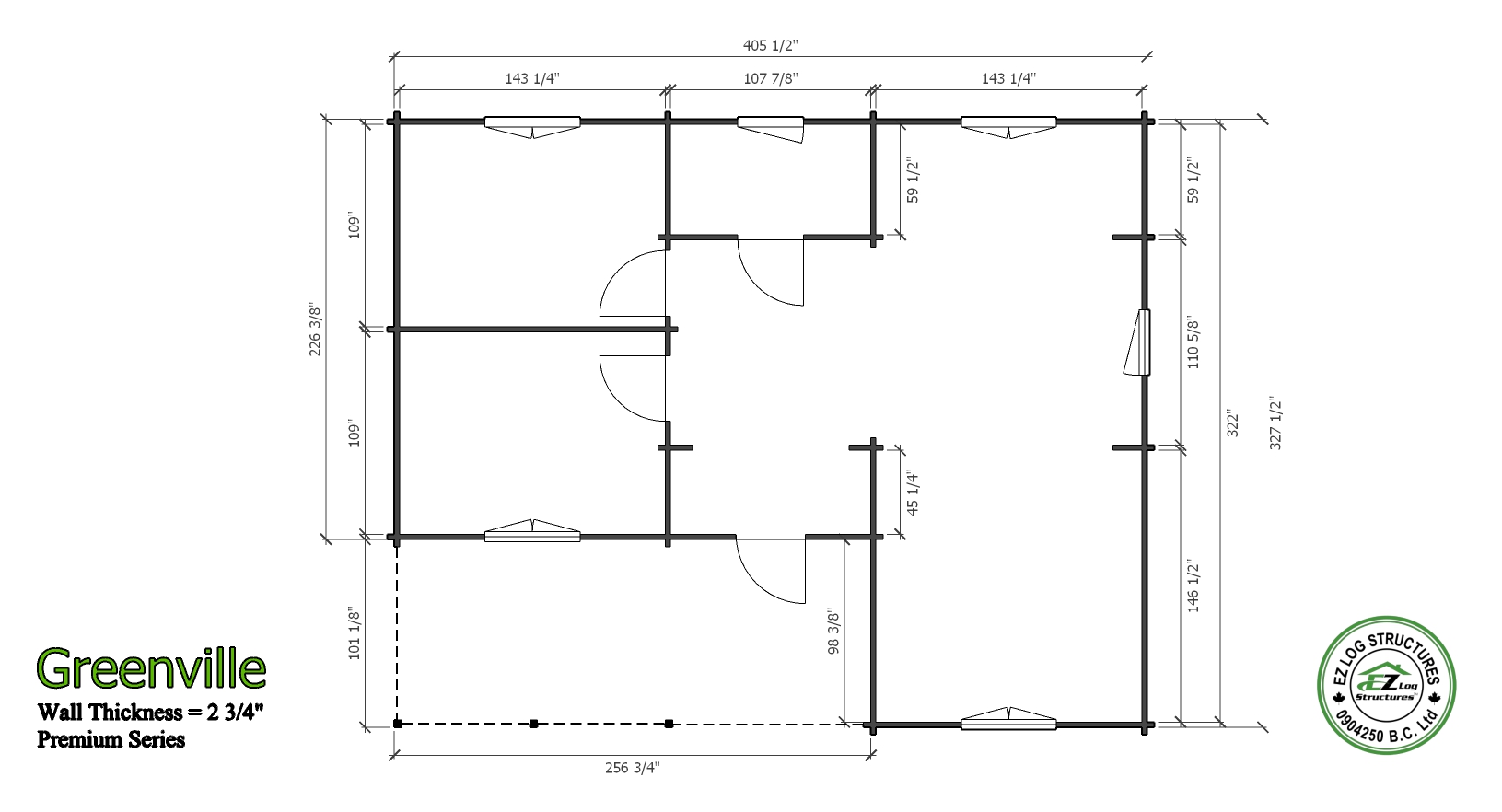

Greenville  has a footprint of 919 sq’, a comfortable 2 bedroom home with a covered front deck area. The vaulted ceilings provide an open concept. (sq footage is based the total footprint, living space could be less, see floor plans)

Kit includes:

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • 2.5/12 roof slope (10 degrees)
  • vaulted, cathedral ceilings
  • pre-cut, 100mm x 200mm (4″x8″) glulam roof purlins spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 1627 total sq’ of wall area
  • 1123 sq’ of exterior wall surface
  • 177 lineal’ per row

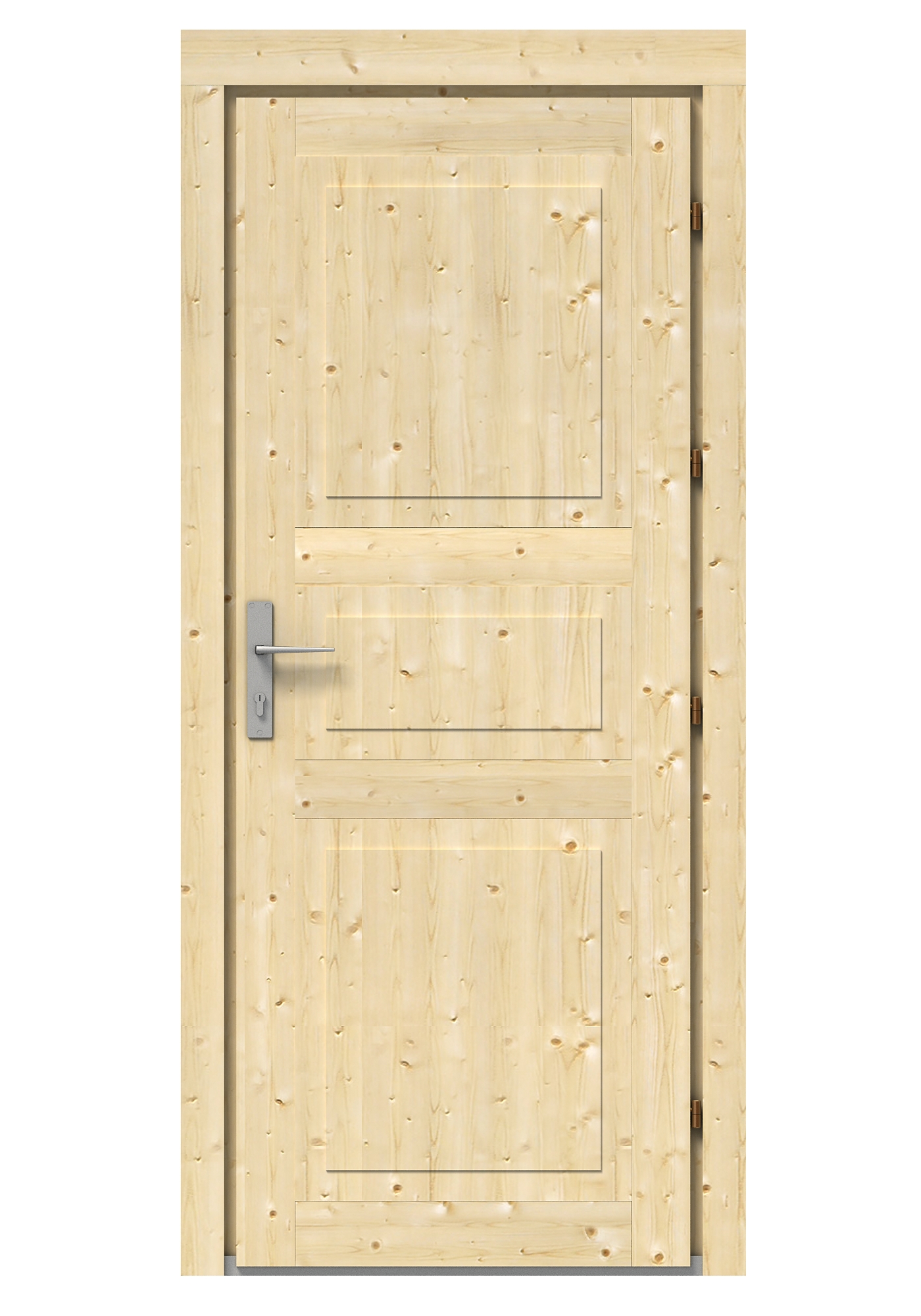

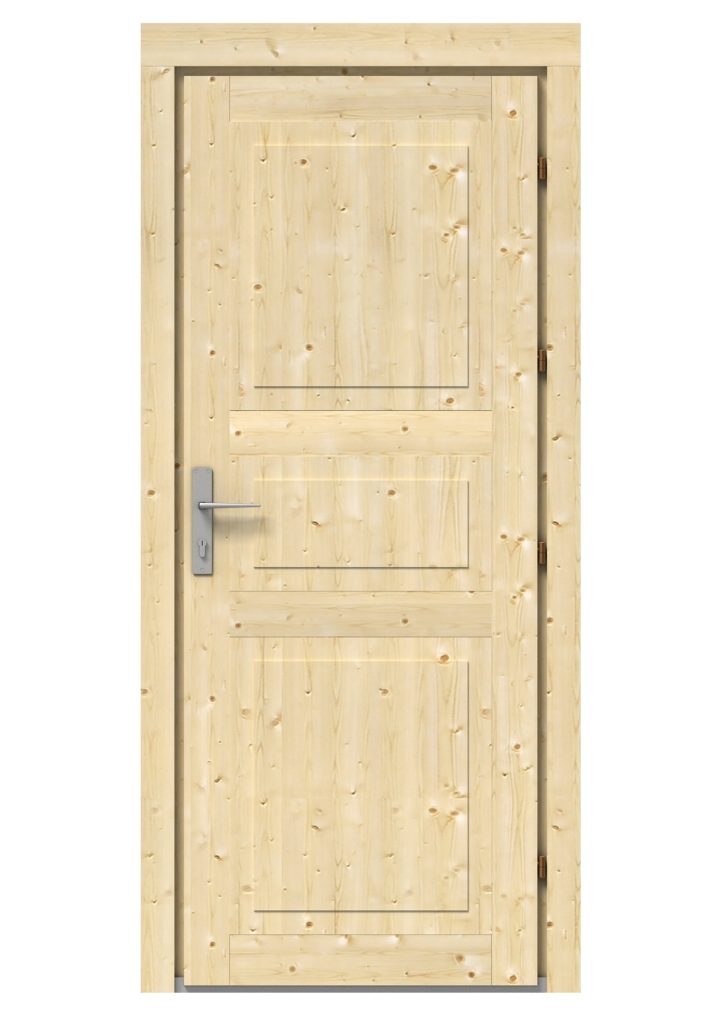

  • 3 interior doors 812mm x 2040mm (32″x80″)
  • 2 single wide wood windows 765mm x 990mm (30″x 39″)
  • 4 double wide wood windows 1530mm x 990mm (60″x 39″)
  • 2 exterior door with multi locking hardware 1/2 glass tempered 990mm x 2040mm (36″x80″)
  • pre-built deck railings with vertical balustrades
  • adjustable posts
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped and marked for sequence of assembly
  • FREE SHIPPING

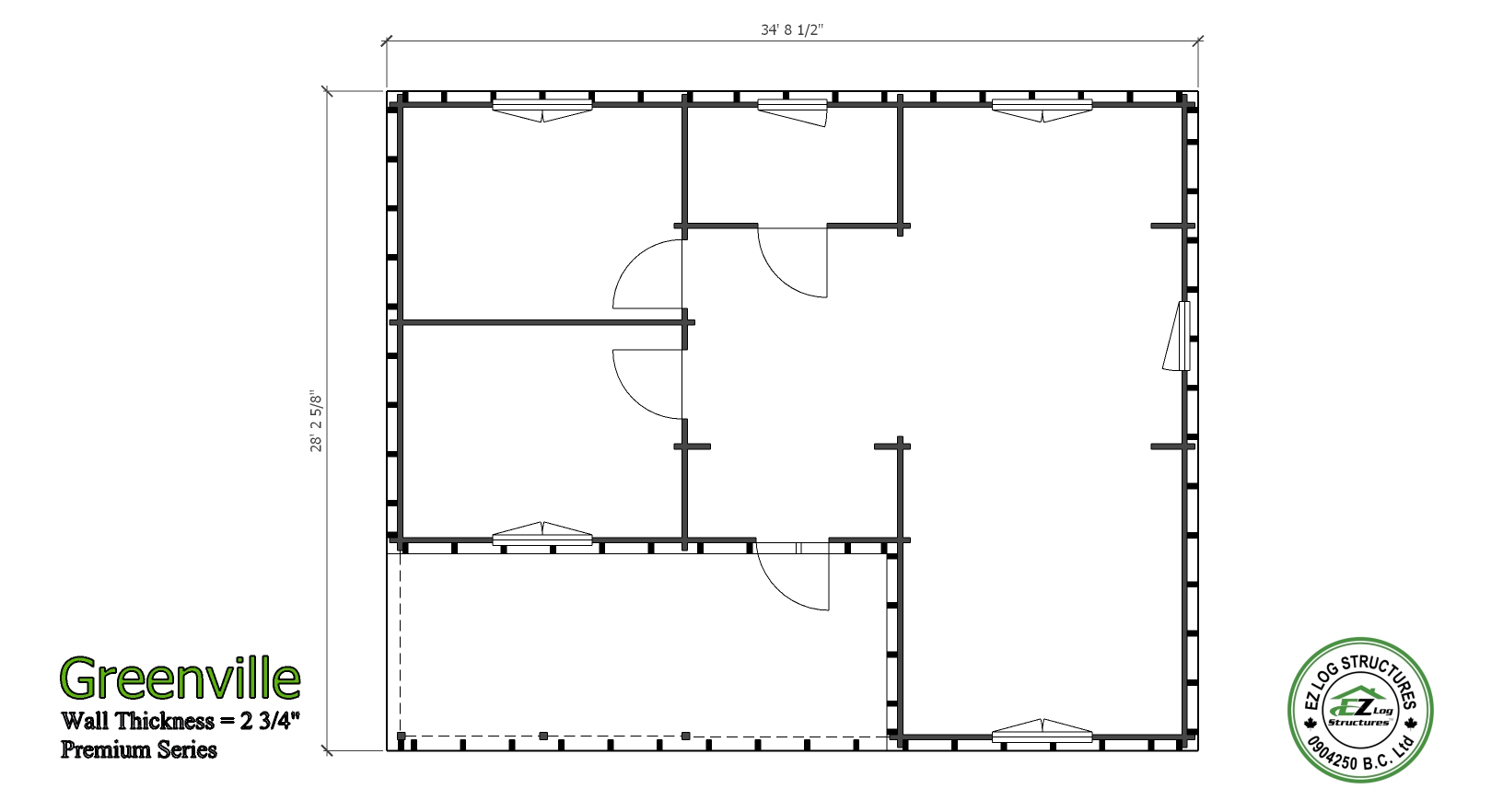

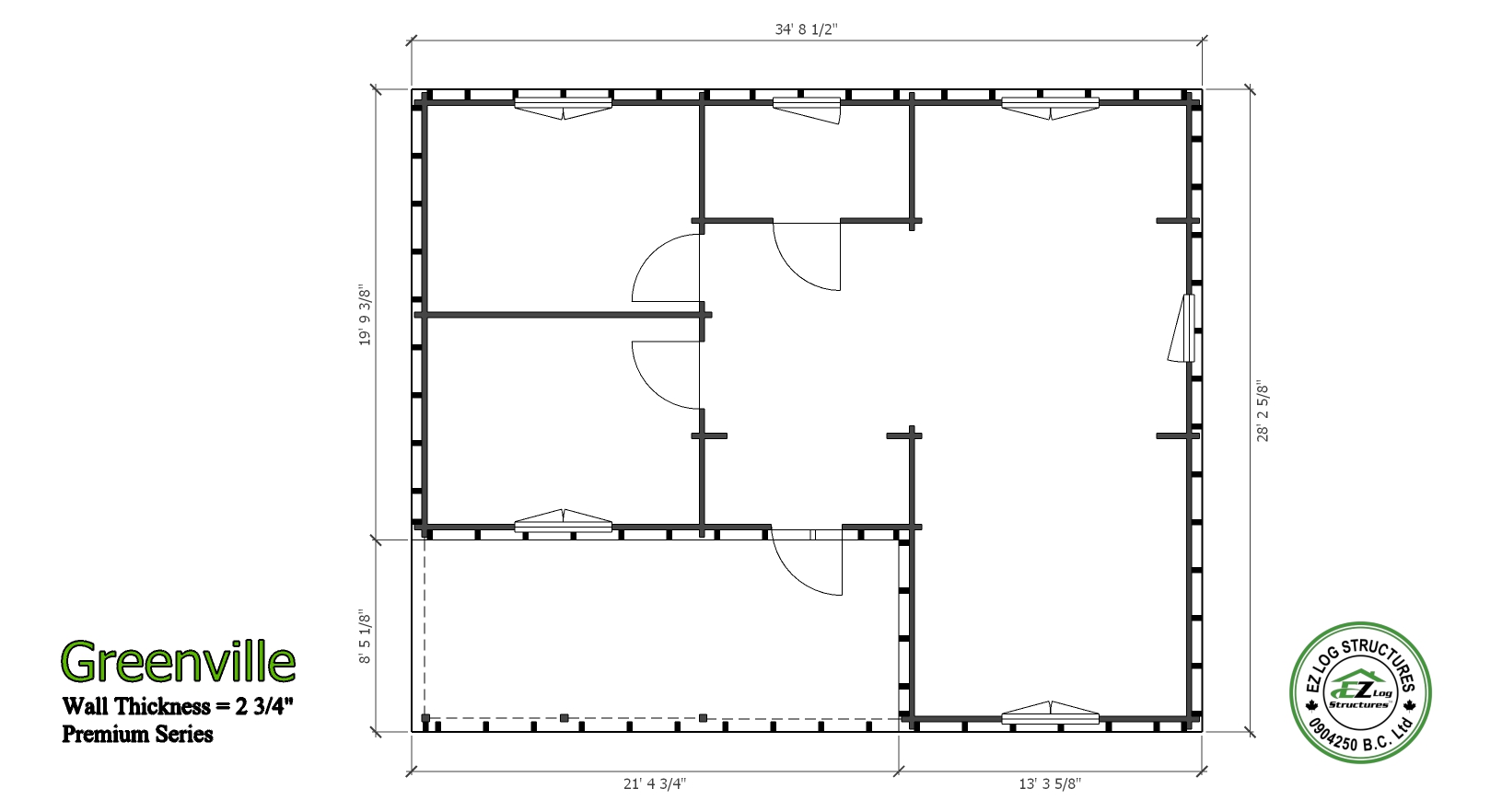

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING

EXTERIOR STUD & SIDING KITS

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.



We offer 3 types of siding kits to cover the exterior of the home or cabin: EZ Log Semi D-Log tongue & groove wood siding, EZ Log Full D-Log tongue & groove wood siding & a heavy duty maintenance free extruded PVC polymer siding



Each kit includes: 2×6 studs, stud screws, siding, corner blocks, trims & extending the roof overhang 6″













1) ADD 10% – Semi D-Log siding (Max)  3/4″ x 5-1/8″ (18mm x 130mm)

































2) ADD 14% – Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)

































3) ADD 20% – Vox extruded prefinished PVC polymer siding 3/8″ x 8″ (8.3mm x 200mm)




















Window Options:










1) Kit includes double glazed residential grade wood windows. To upgrade all windows to triple glazed/Low E/Argon gas filled (10 sash)


Add – $ 1,092.00 USD


Add – $ 1,400.00 CAD














OR





PVC window - white frame. PVC window with built-in external shutters. Shutter window.





2) Replace all wood windows with our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)


Add – $ 2,340.00 USD


Add – $ 3,000.00 CAD
