Desert Springs

1640 sq ft
Premium Model
$113,982.00 USD
$146,131.00 CAD
FREE SHIPPING
Rooms
Bedrooms2
Bathrooms2
Cabin sizes
Cabin size696" x 336"
Roof & floor
Roof pitch2/12 - 9.5D
Roof boards3/4"
Package, area, vol ect.
Size (sq ft)1640
Wall thickness2-3/4"

Model Documentation

Contact Us

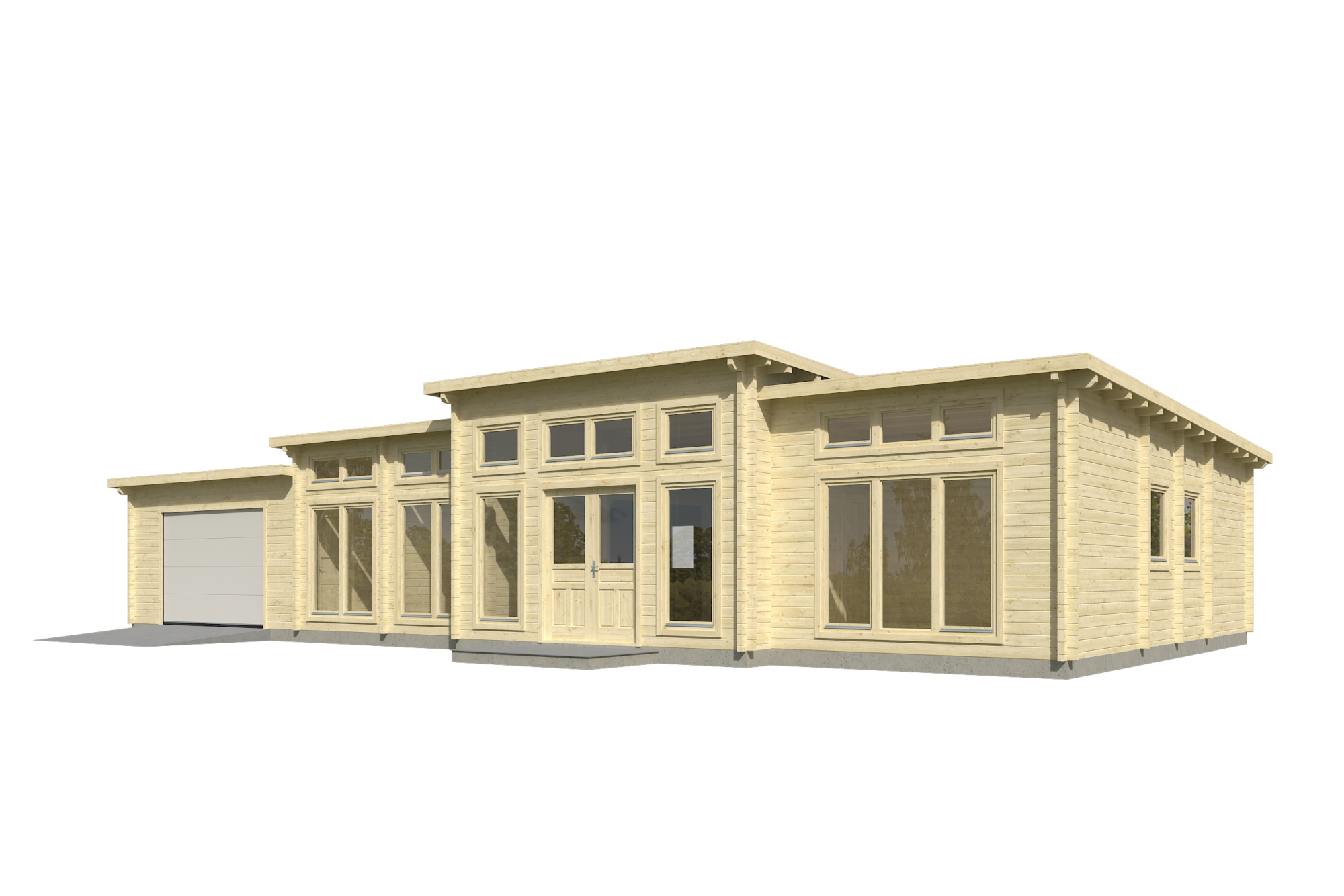

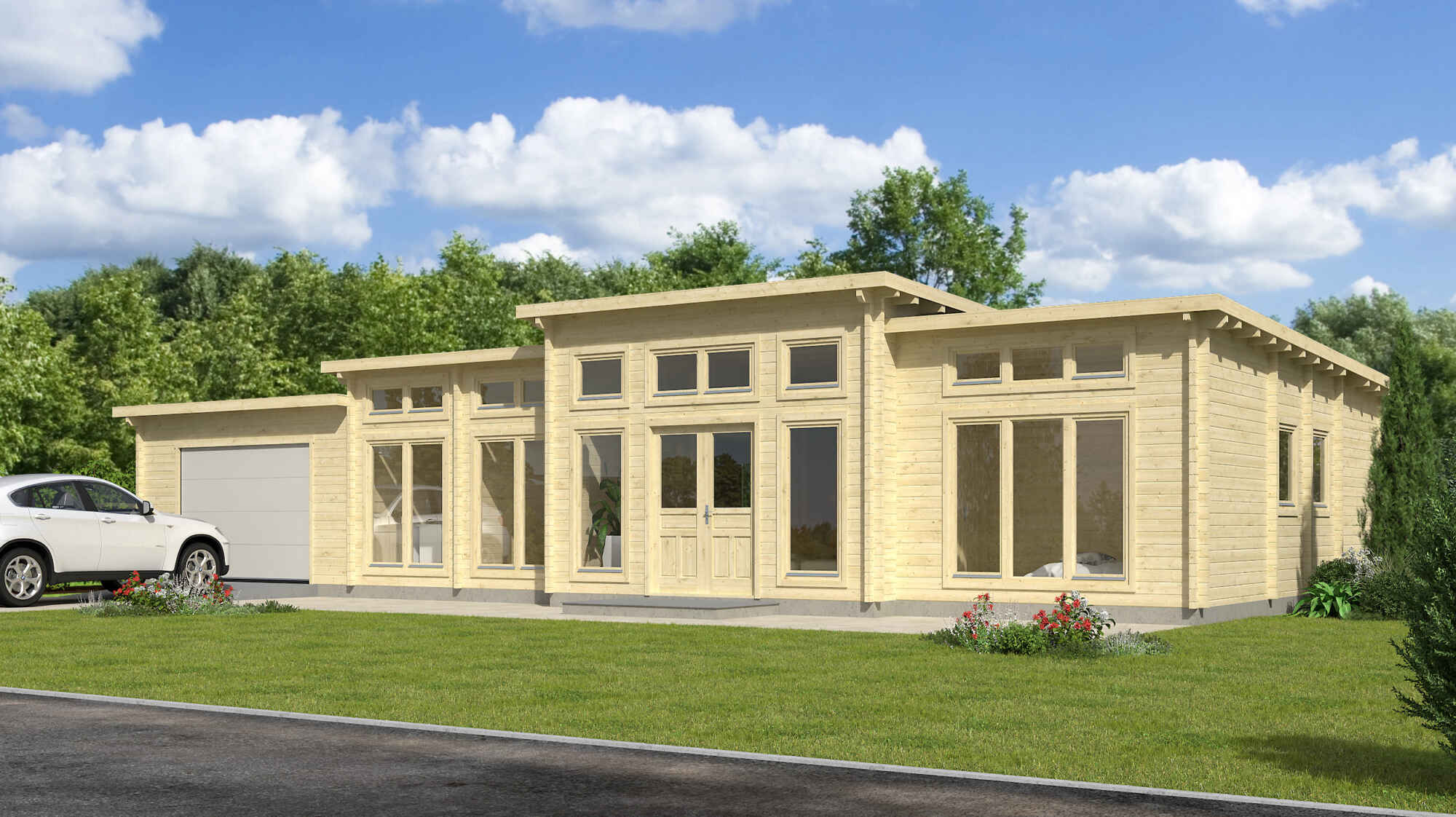

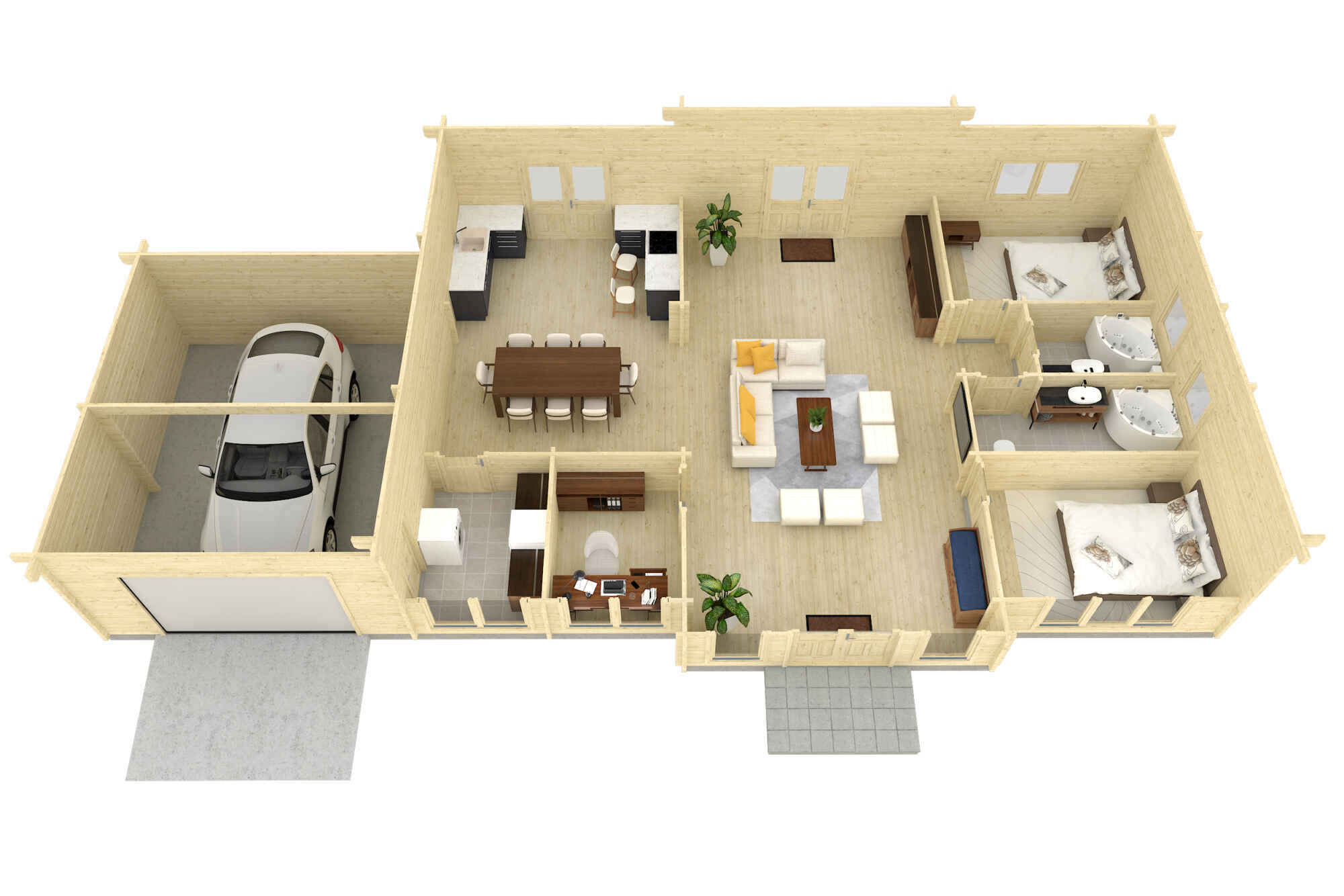

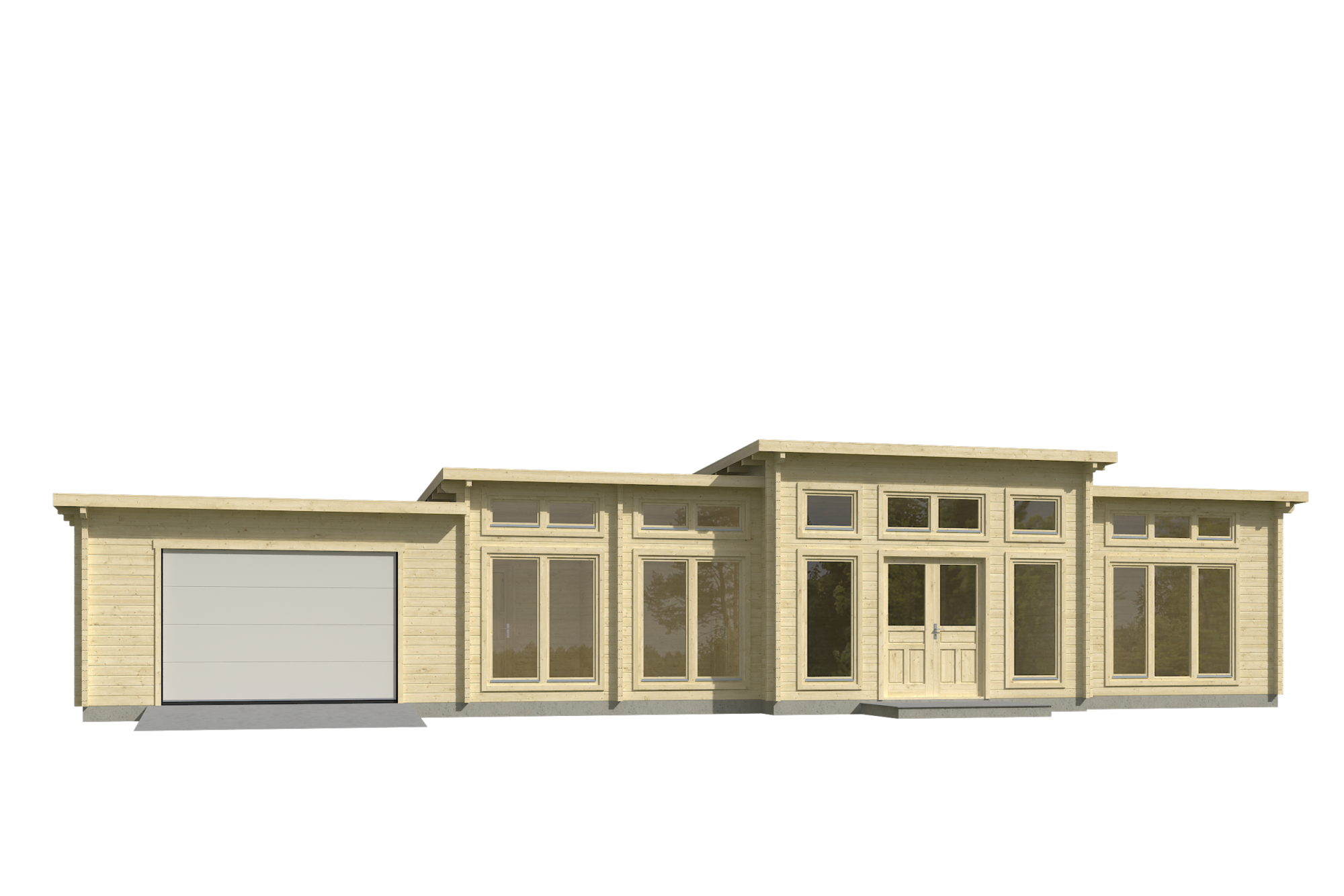

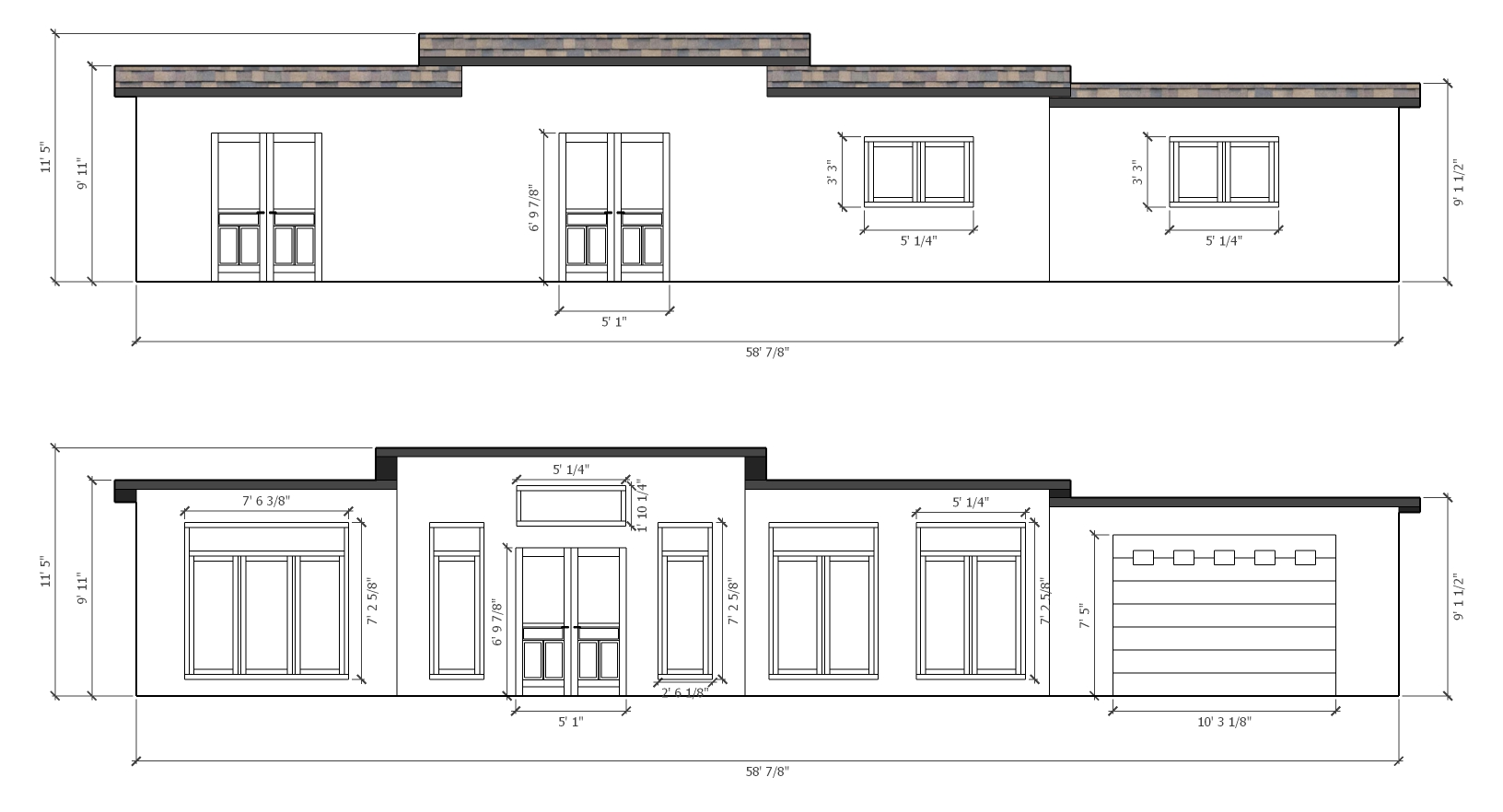

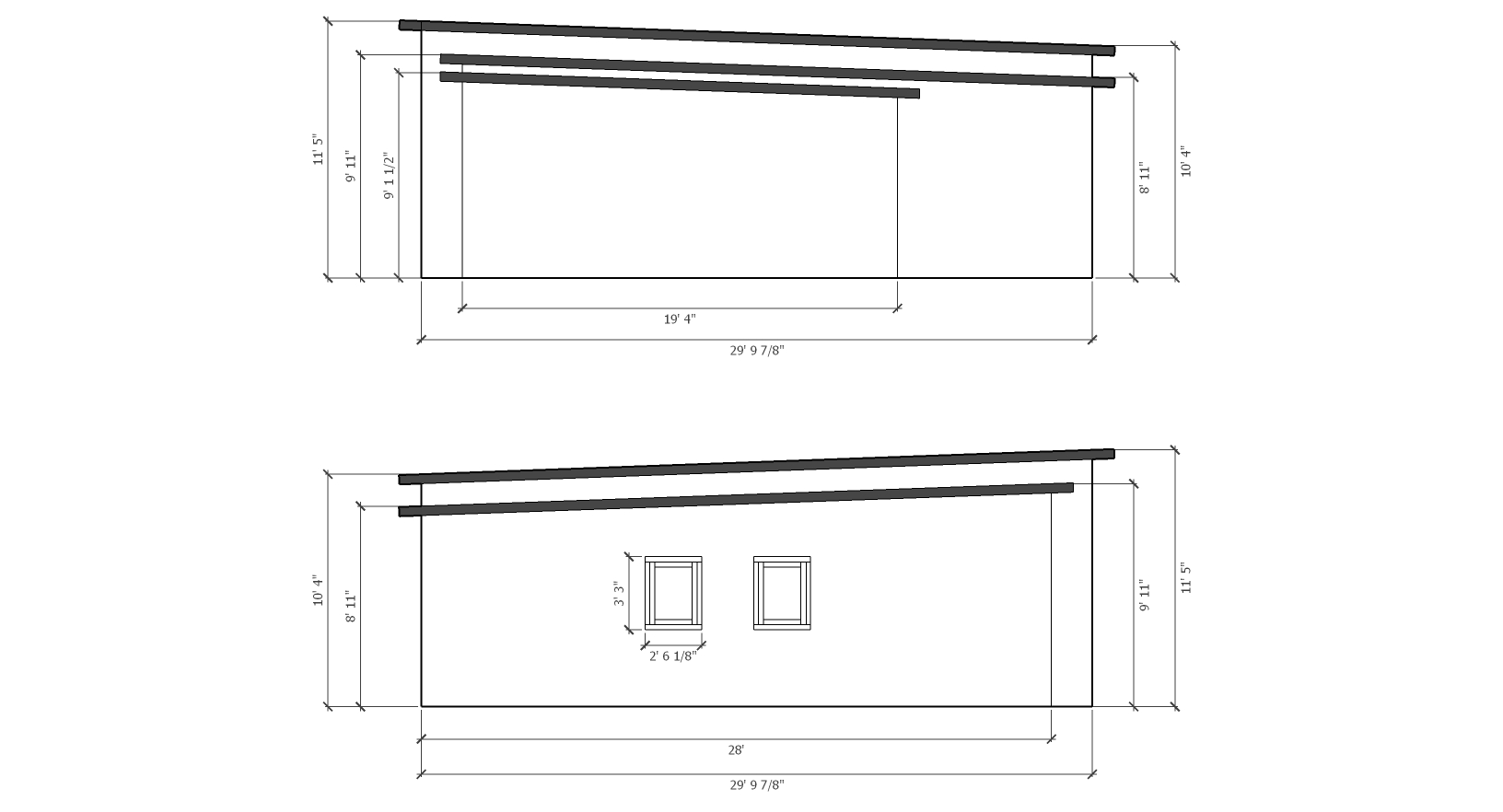

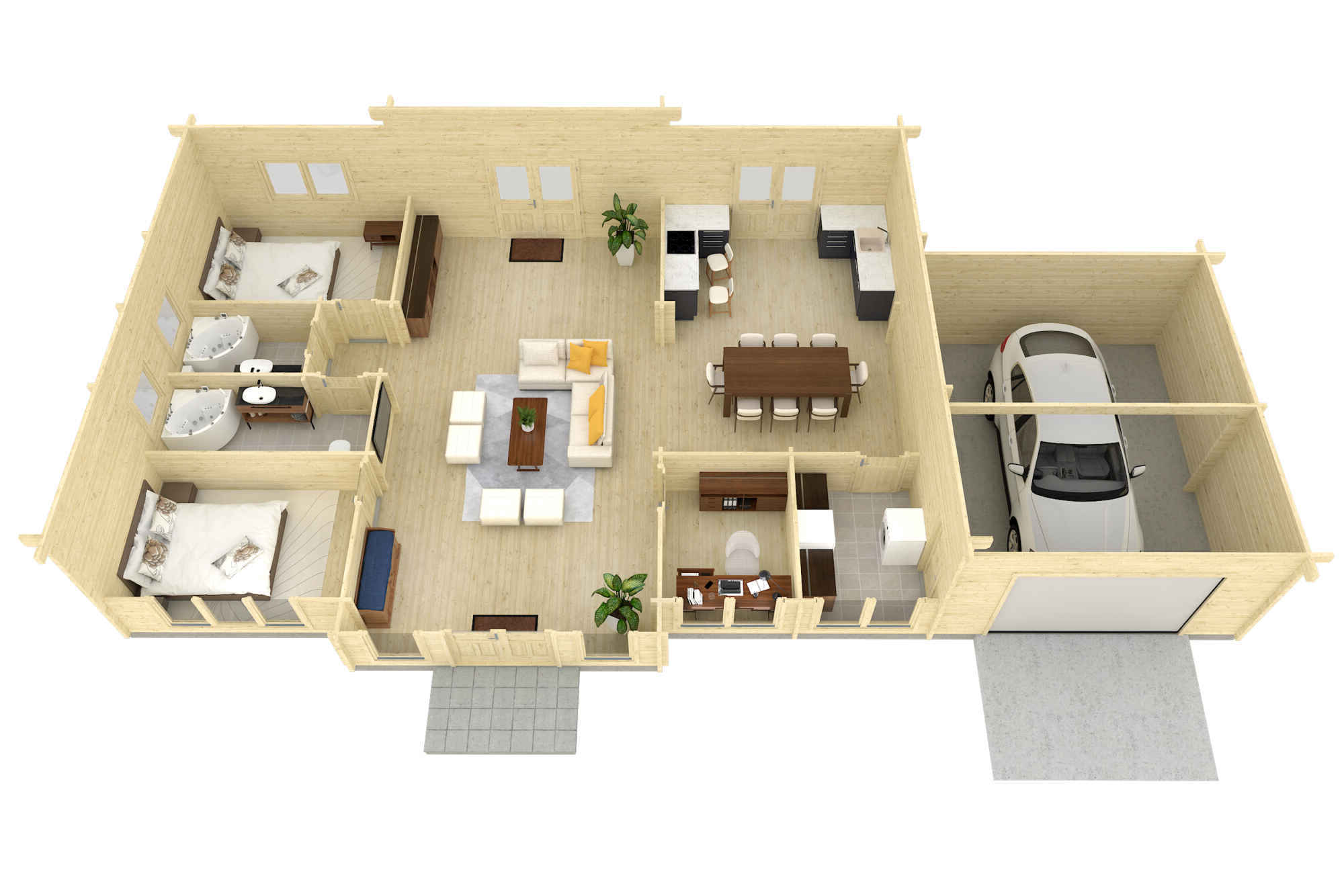

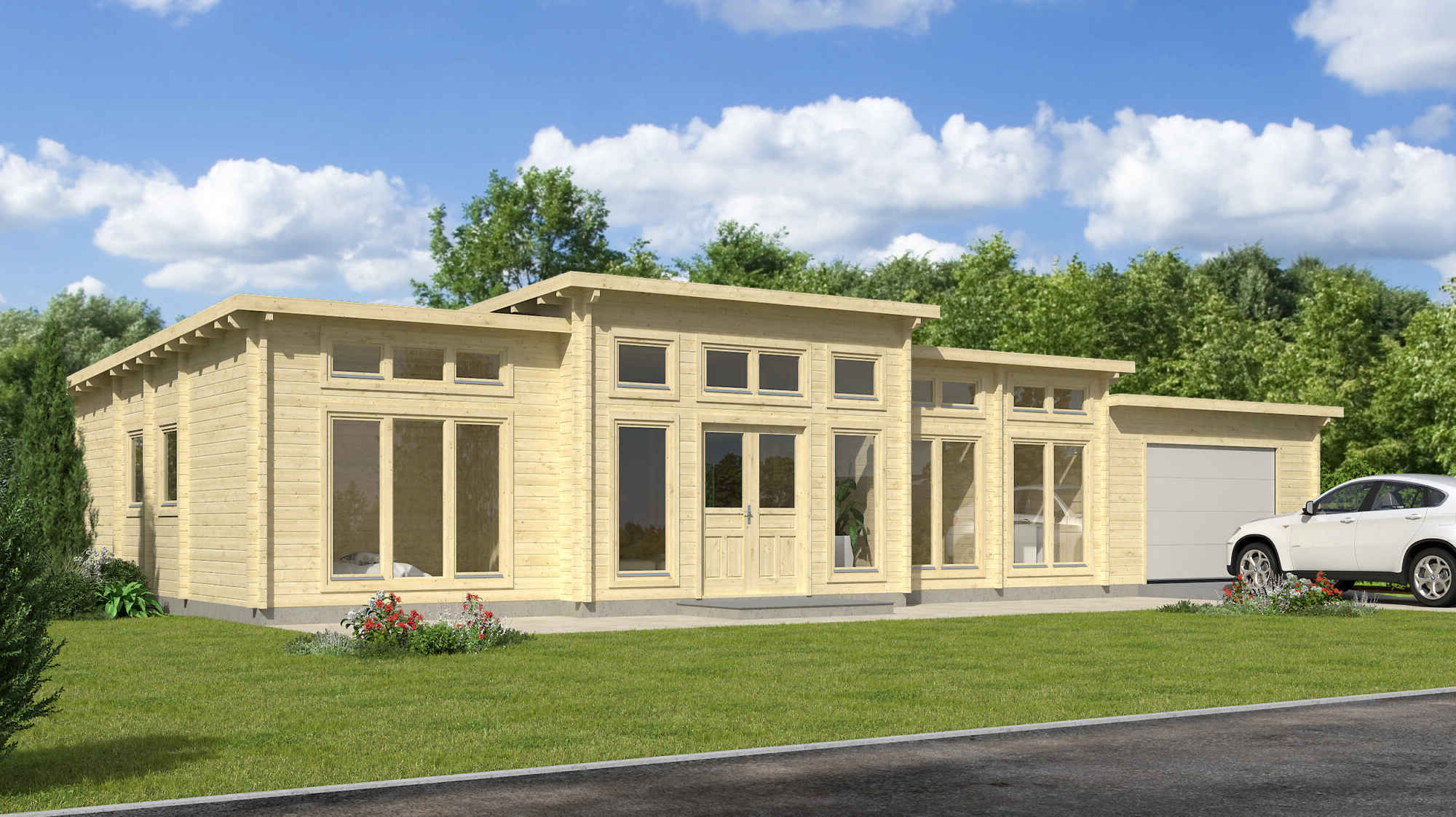

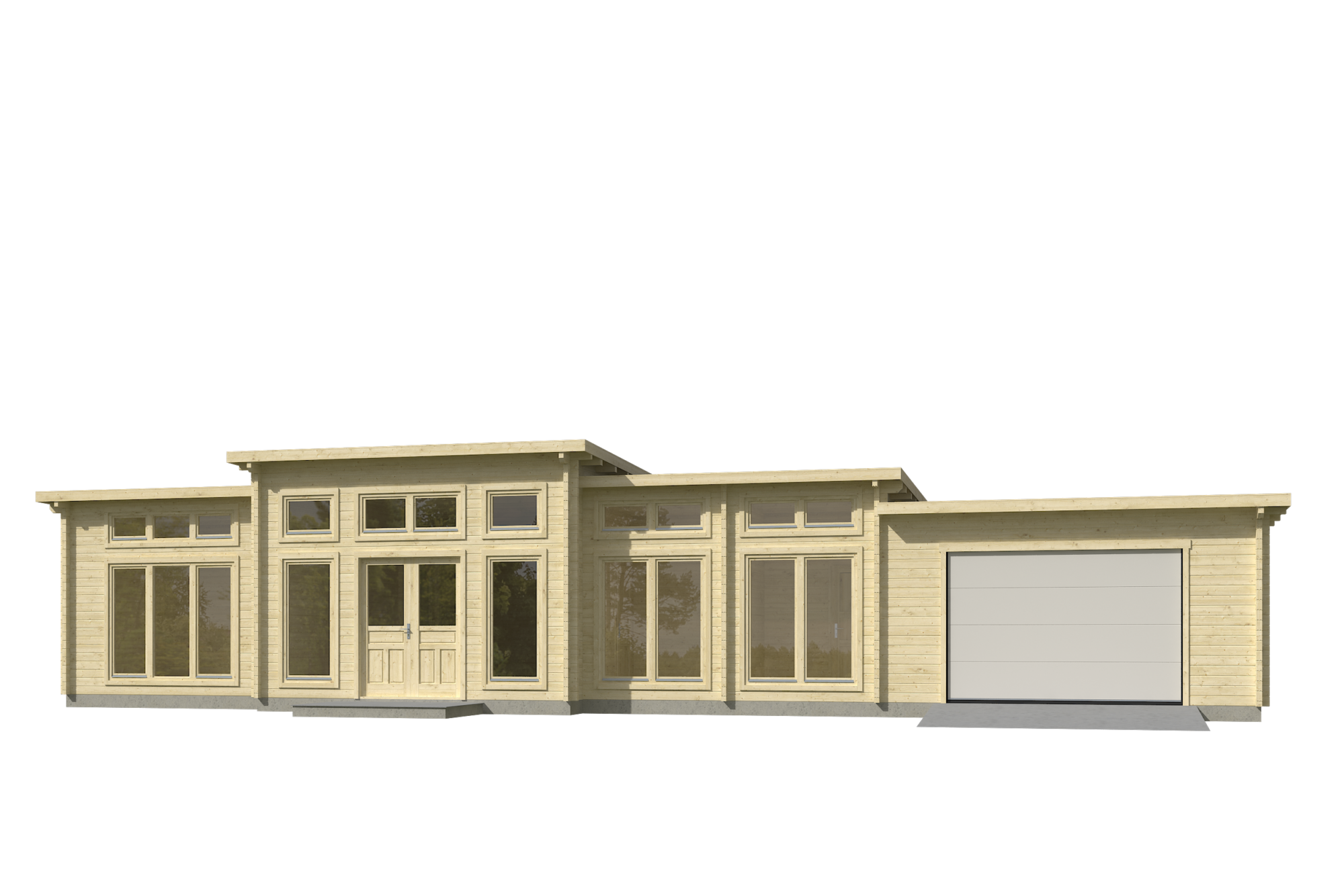

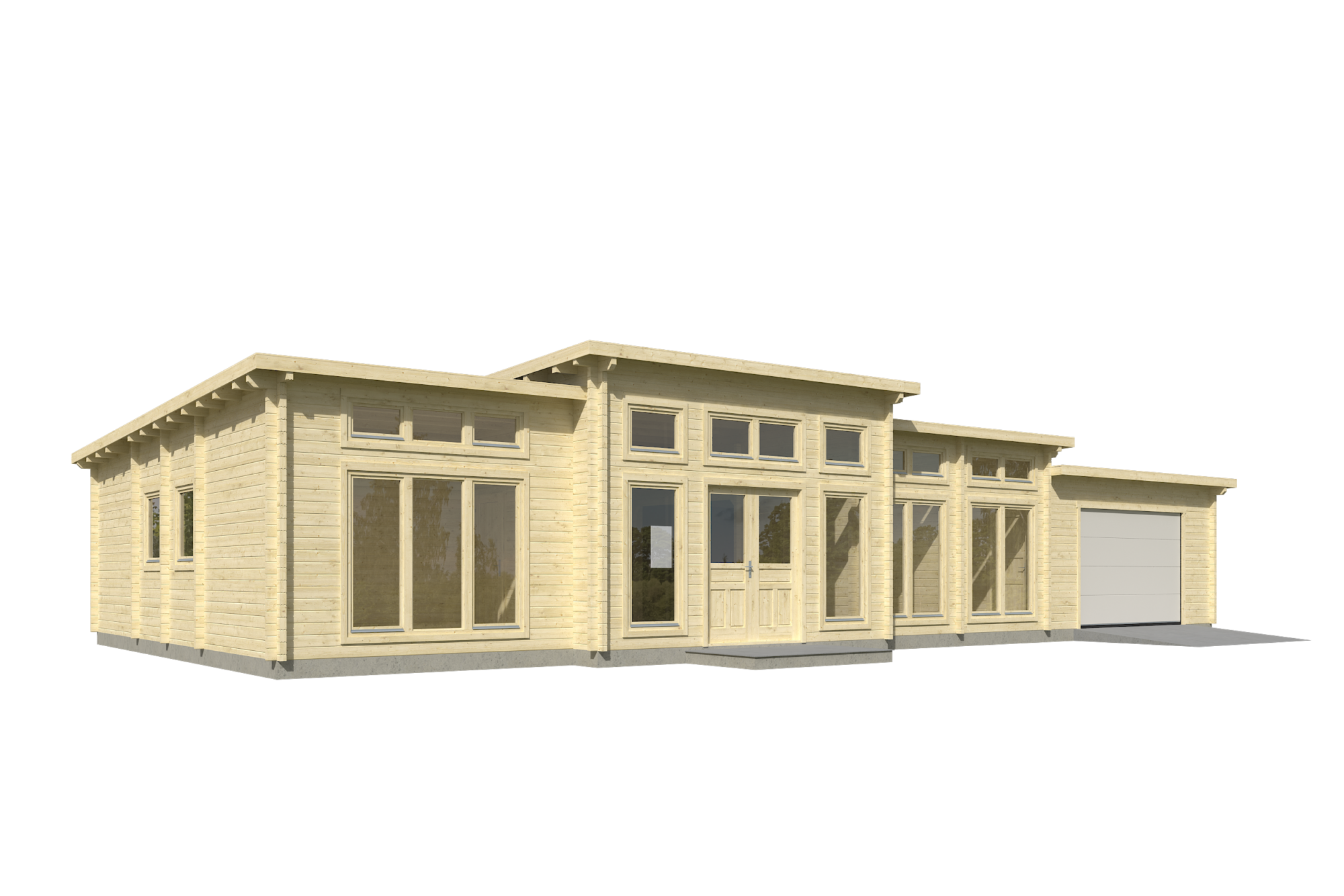

Desert Springs is a modern open and spacious home with just under 1640 sq’ including the garage, 2 bedrooms and 2 bathrooms. The roof line has 3 levels all with vaulted/cathedral ceilings and the center section has 11′ high ceilings at the front and 9’11” at the back. Modifications to the floor plan can be done as needed. Can be assembled by 3 people in 12 days


Kit includes:
  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • vaulted, cathedral ceilings
  • roof pitch 2/12 (9.5 degrees)
  • pre-cut 4″ x 8″ (100mm x 200mm) glulam roof purlins/beams, spaced 22″ (558mm) or less
  • pre-cut, numbered 3/4″ (18mm) tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 6 interior doors 32″x80″ (812mm x 2040mm) or  36″ x 80″ (914mm x 2040mm), hardware
  • 2 double wide wood window 60″x 39″ (1530mm x 990mm)
  • 2 single wide wood windows 30″ x 39″ (765mm x 990mm)
  • 1 triple wide wood window 90″ x 71″ (2286mm x 1800mm)
  • 1 triple wide wood transom window 90″ x 12″ (2286mm x 305mm) non-opening
  • 2 single wide wood windows 30″ x 71″ (765mm x 1800mm)
  • 2 single wide wood transom windows 30″ x 24″ (765mm x 610mm) non-opening
  • 2 double wide wood windows 60″ x 71″ (1530mm x 1800mm)
  • 2 double wide wood transom windows 60″ x 12″ (1530mm x 305mm) non-opening
  • 1 single wide wood transom window 61″ x 24″ (1549mm x 610mm) non-opening
  • 3 exterior double doors 61″ x 80″ (1550mm x 2040mm) 1/2 glass tempered, multi locking hardware
  • 1 rough opening for locally supplied fire rated door from garage to house
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped for sequence of assembly
  • NOTE: overhead garage door not included
  • FREE SHIPPING

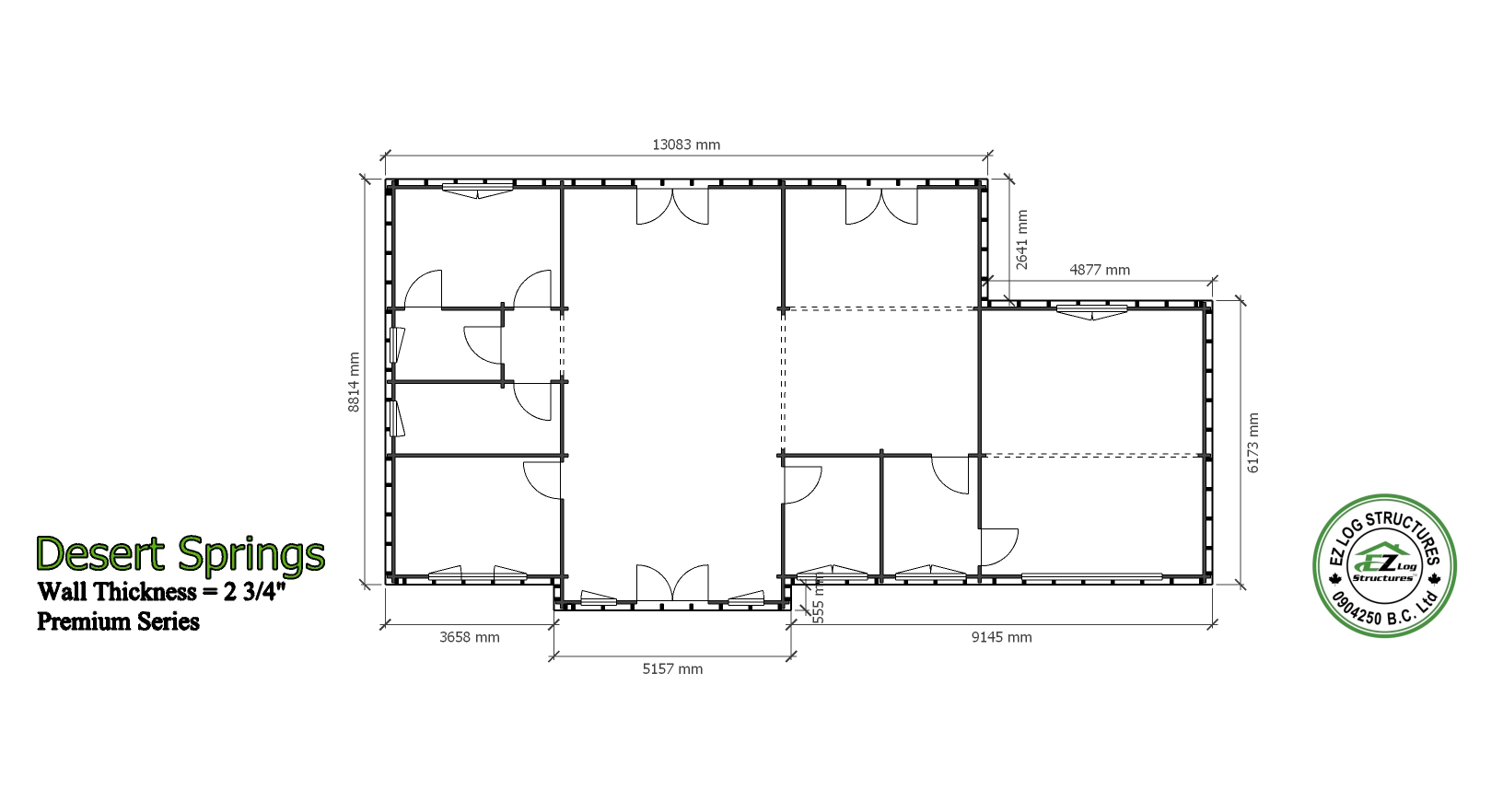

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING



Exterior Stud & Siding Options:
Exterior stud & siding kits include: 2×6 studs, stud screws, wood siding, corner blocks

Add 14%  – Otoczak Full D-Log siding 1-1/8″ x 5-1/8″ (28mm x 130mm)

Add 10%  – Max Semi D-Log siding 3/4″ x 5-1/8″ (18mm x 130mm)

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

Window Options:

Upgrade all the wood windows to triple glazed/Low E/Argon filled glass

Add – $ 2,246.00 USD

Add – $ 2,880 CAD

OR

Upgrade all wood window to PVC, triple glazed/Low E/ Argon filled glass

(Rolling shutters are not available on this model)

Add – $ 2,925.00 USD

Add – $ 3,750.00 CAD
