Chicago 3 Lofted

259 sq ft
Premium Model
$28,679.00 USD
$36,768,00 CAD
Rooms
Bedrooms1
Cabin sizes
Cabin size165" x 226"
Roof & floor
Roof pitch4/12 - 18D
Package, area, vol ect.
Size (sq ft)259
Size (sq ft)64
Volume871

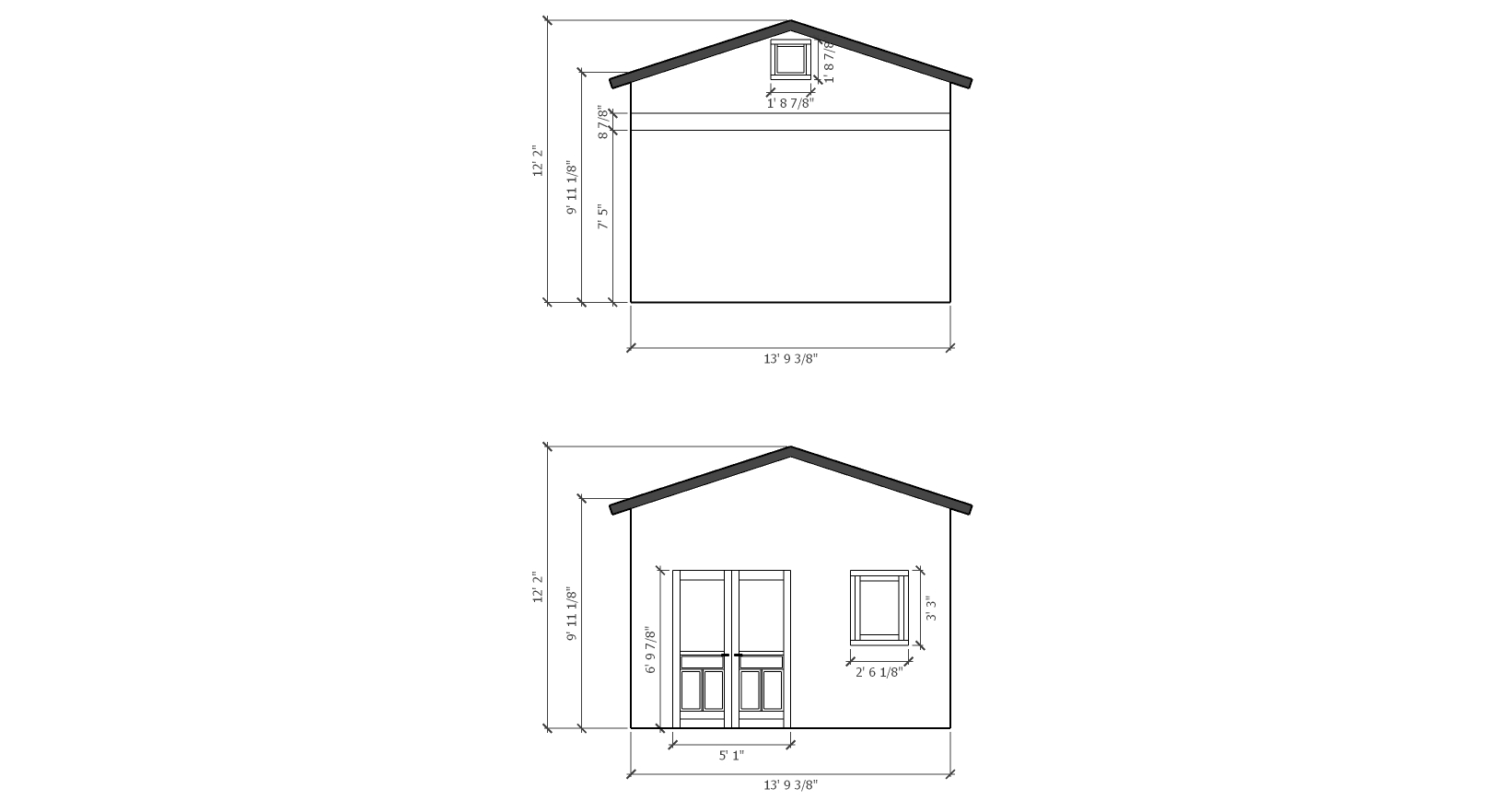

Wall height89"
Ridge height146"
Wall thickness2-3/4”
Contact Us

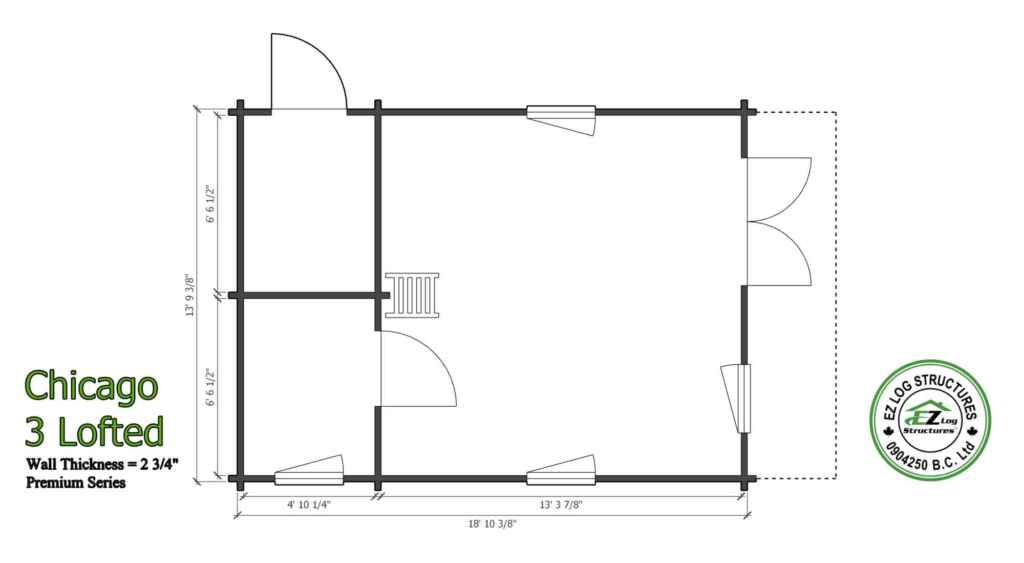

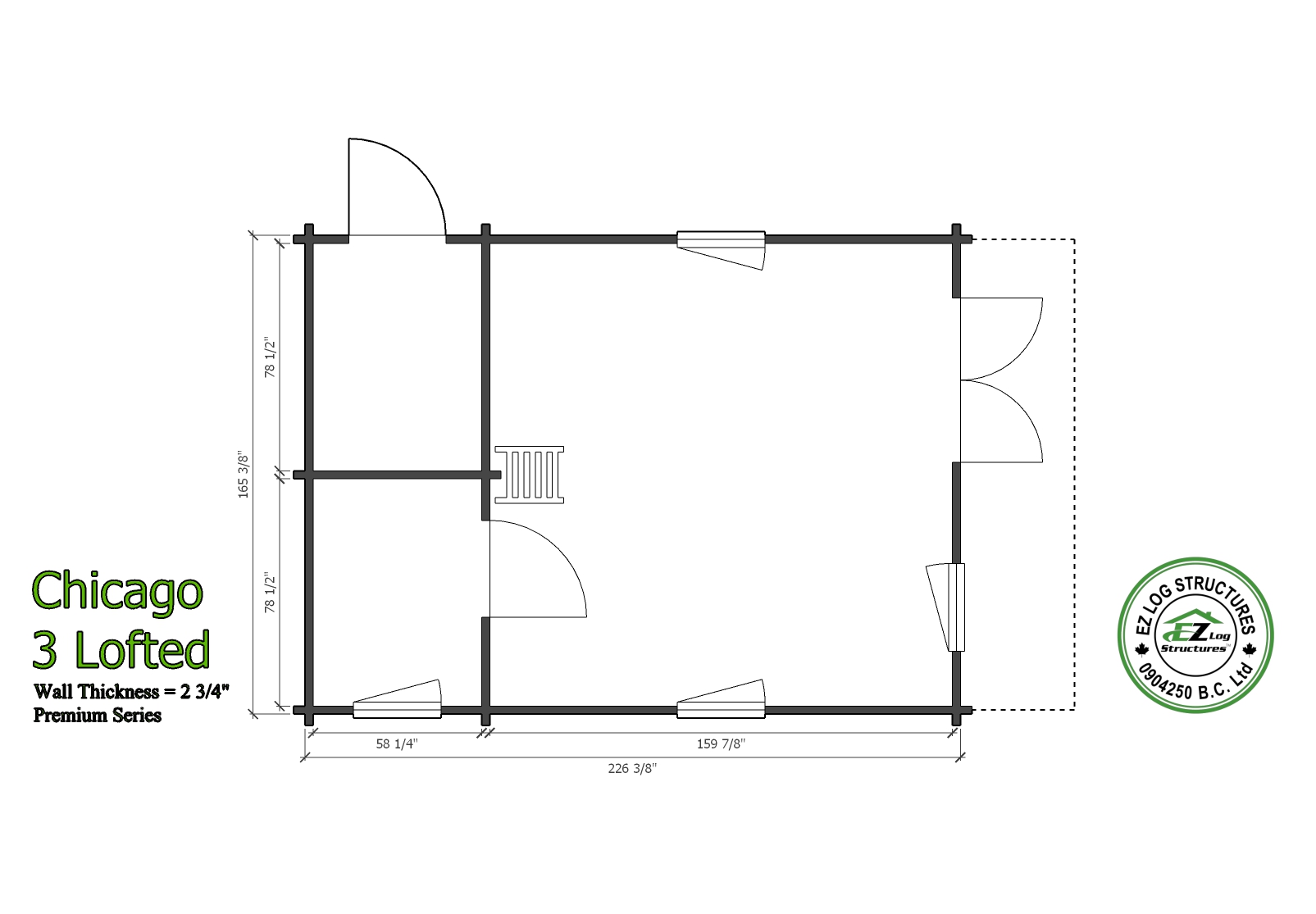

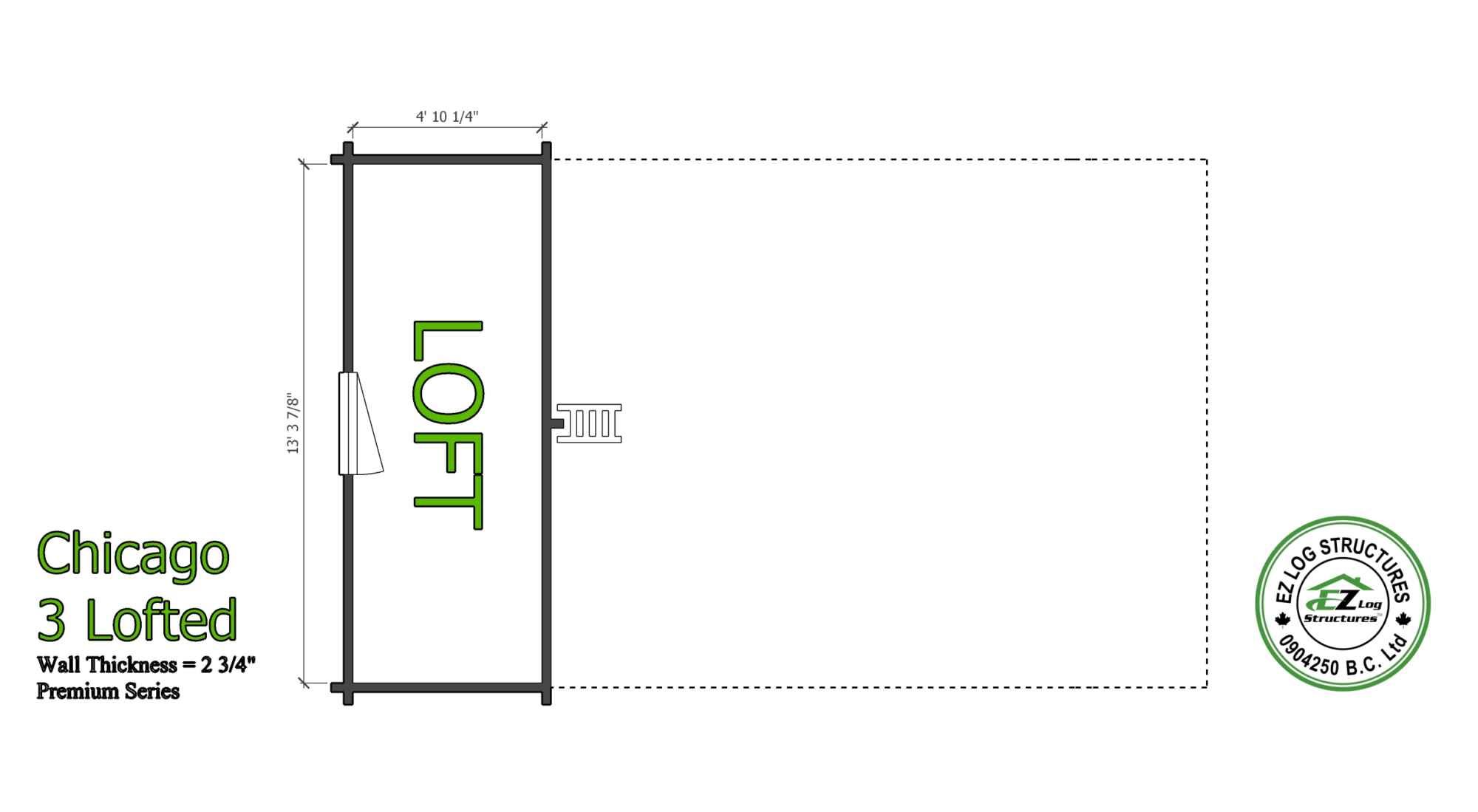

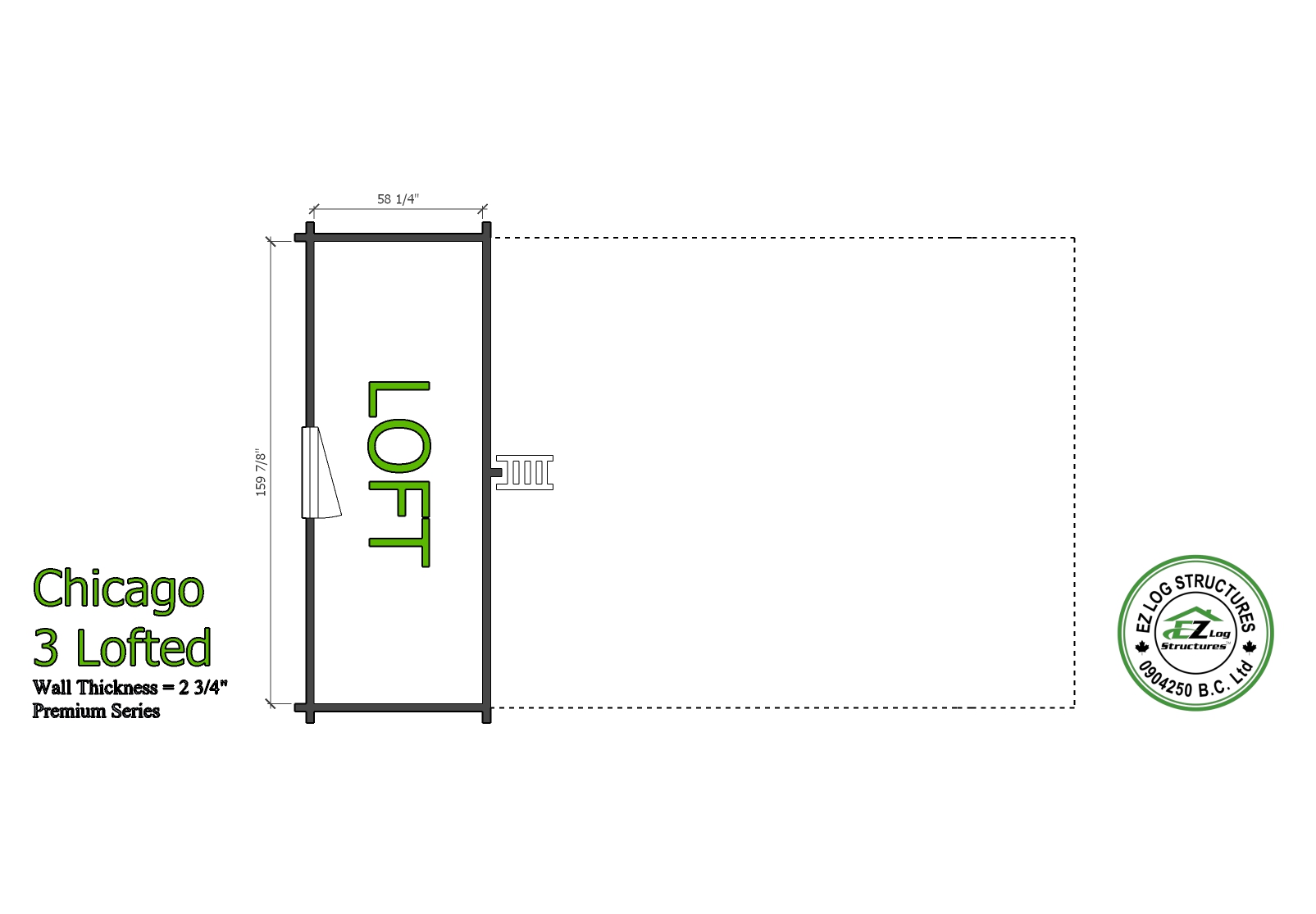

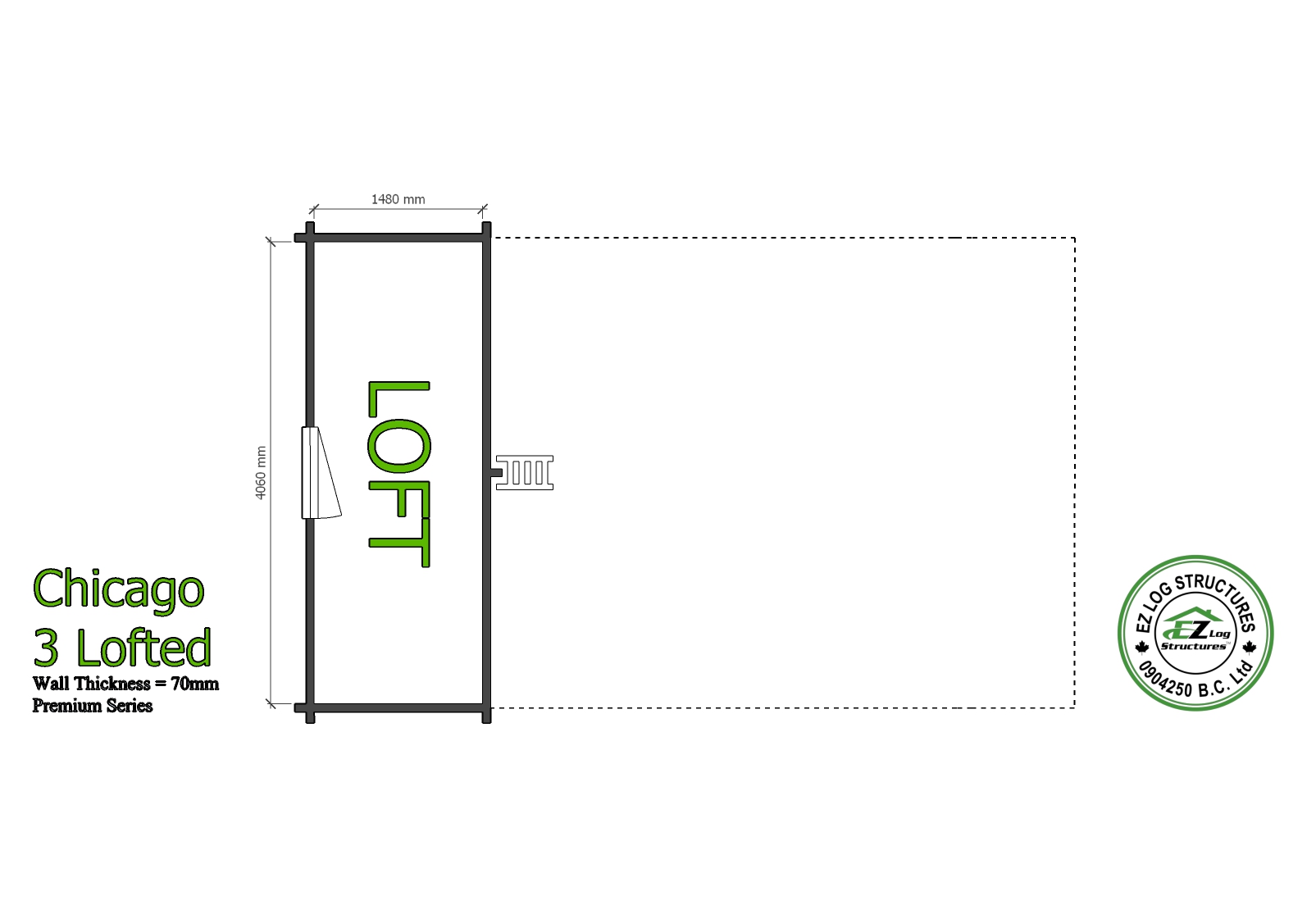

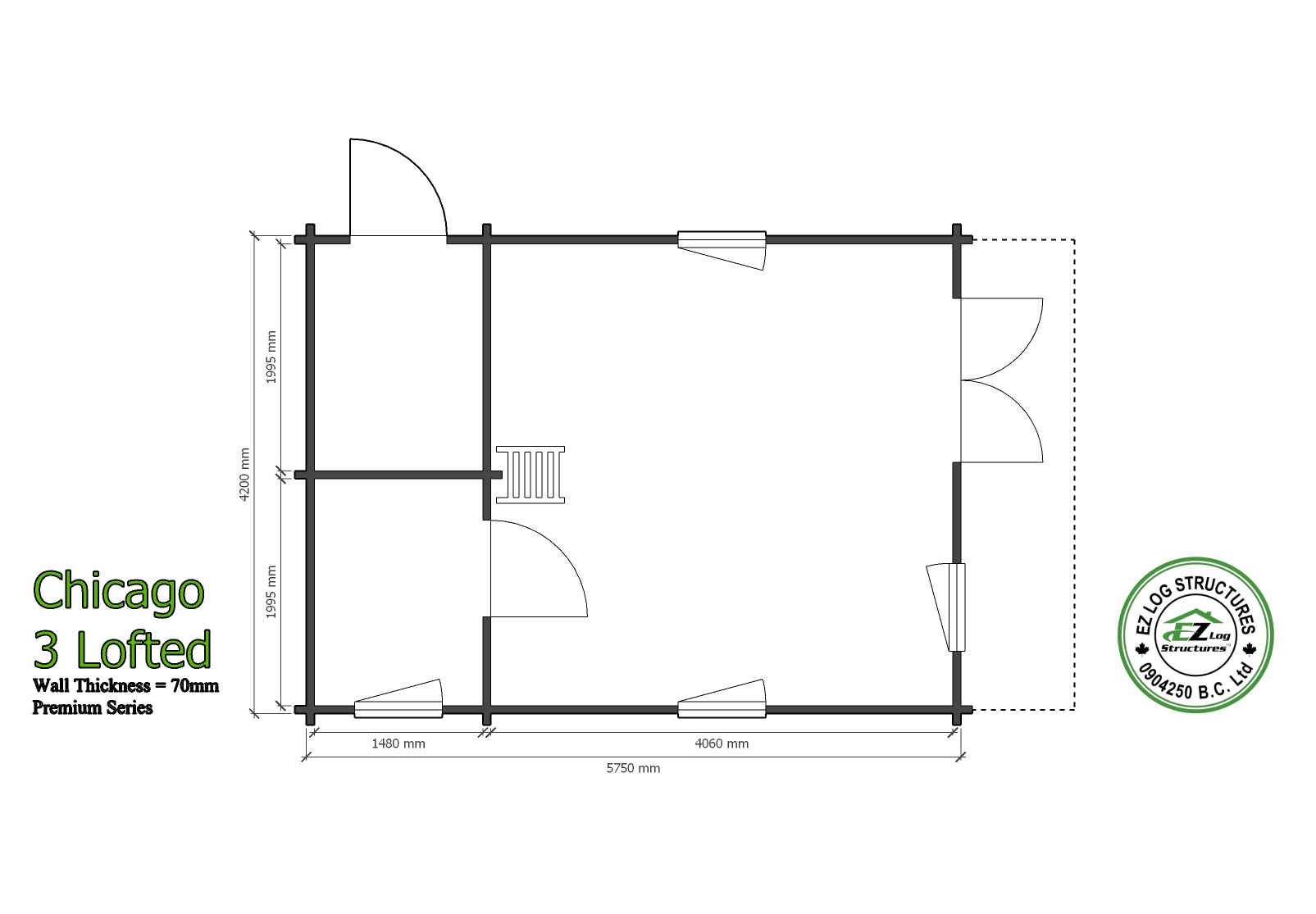

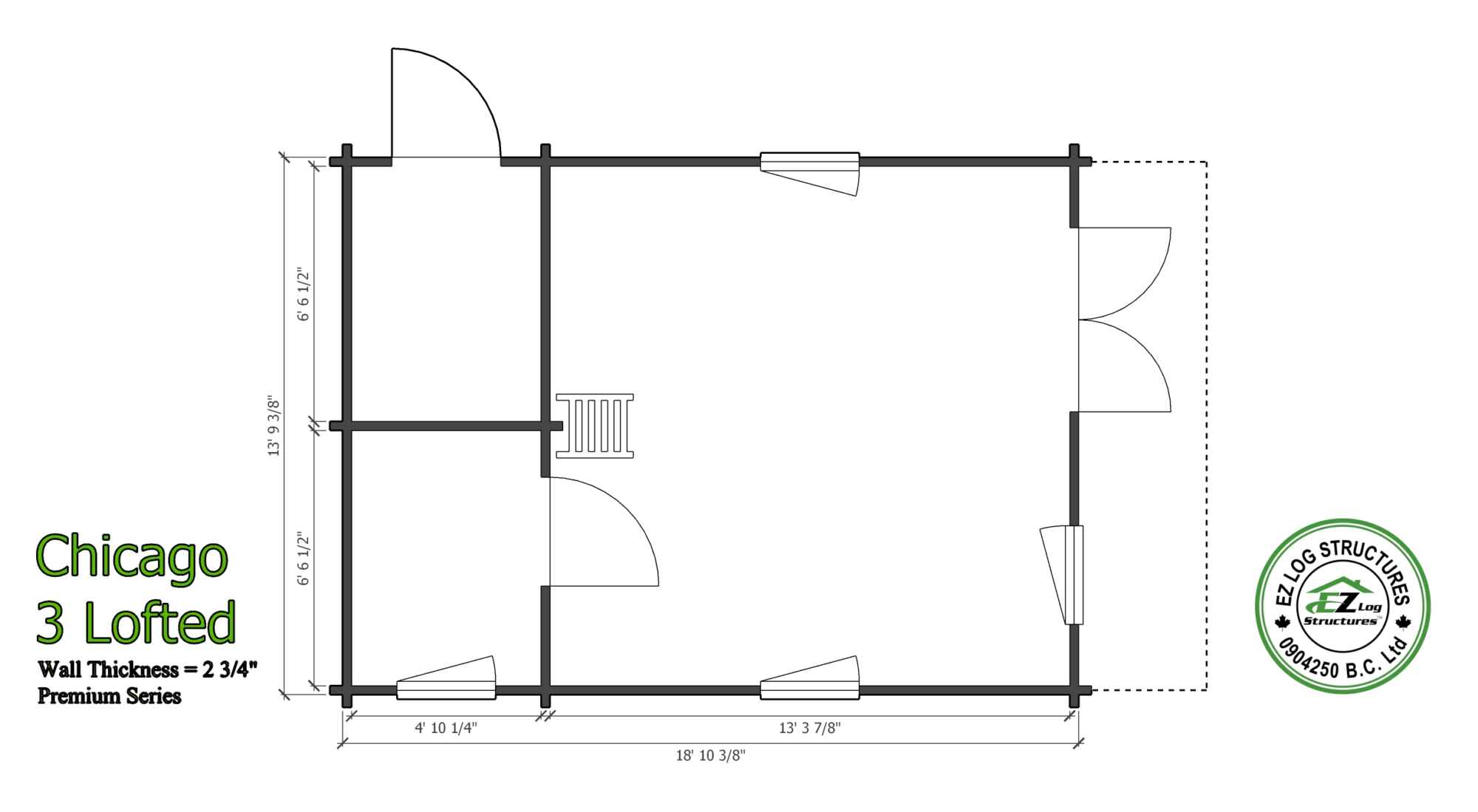

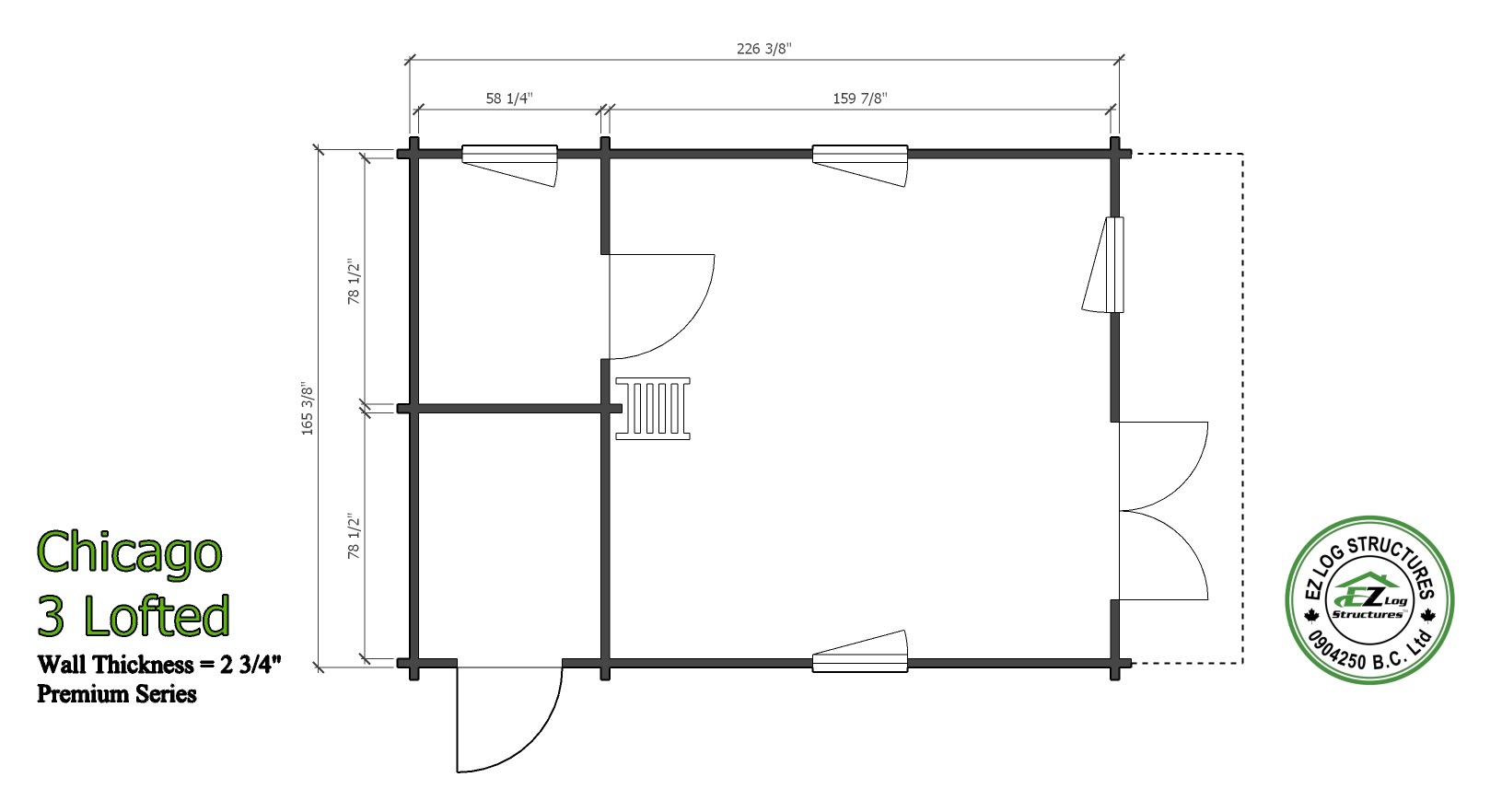

Chicago 3 Lofted is a 1 bedroom lofted cabin or tiny home. The main living space has vaulted/cathedral ceilings and the loft is a great storage or sleeping area. This model has a storage/utility room that is accessed from the exterior. The sidewall height is 89″ to the underside of the loft floor, 9″ thick floor and 33″ loft sidewalls. (sq footage is based the total footprint, living space could be less, see floor plans) Can be assembled in approximately 4 days with 2 people



Kit includes:
  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • 4/12 roof pitch (18 degrees)
  • vaulted, cathedral ceilings
  • pre-cut 100mm x 200mm (4″x8″) numbered glulam floor beams, spaced 558mm (22″) or less
  • pre-cut loft floor boards 28mm (1-18″)
  • loft ladder
  • pre-cut, 100mm x 200mm (4″x8″) glulam roof purlins spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 871 total sq’ of wall area
  • 679 sq’ of exterior wall surface
  • 84 lineal’ per row
  • 1 interior doors 812mm x 2040mm (32″x80″)
  • 1 single wide wood windows 530mm x 530mm (21″ x 21″)
  • 4 single wide wood windows 765mm x 990mm (30″x 39″)
  • 1 exterior door  950mm x 2080mm (36″x80″) 1/2 glass tempered, multi locking hardware
  • 1 exterior double door 1550mm x 2040mm (61″ x 80″) 1/2 glass tempered, multi locking hardware
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped for sequence of assembly
  • SHIPPING request a quote

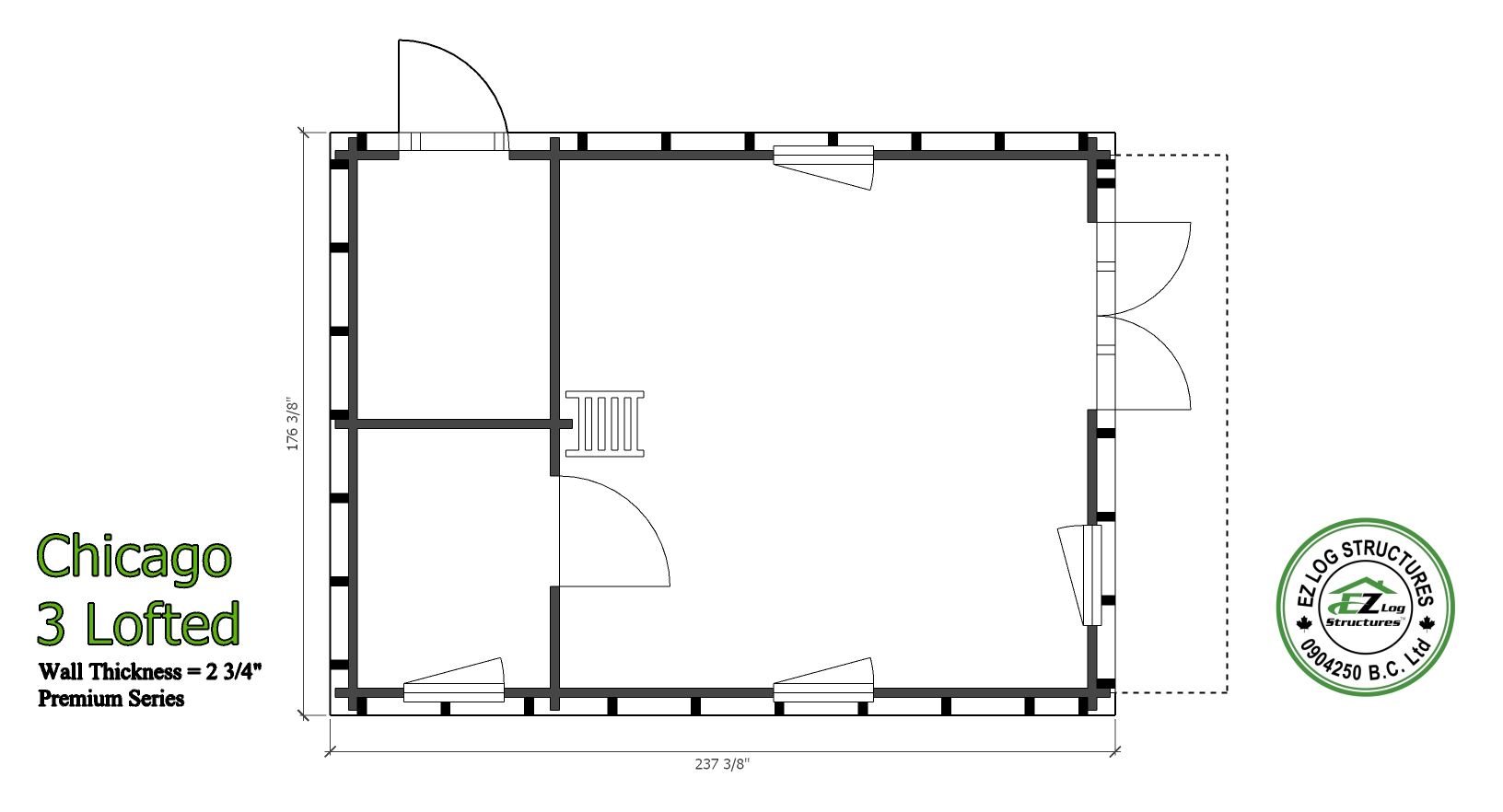

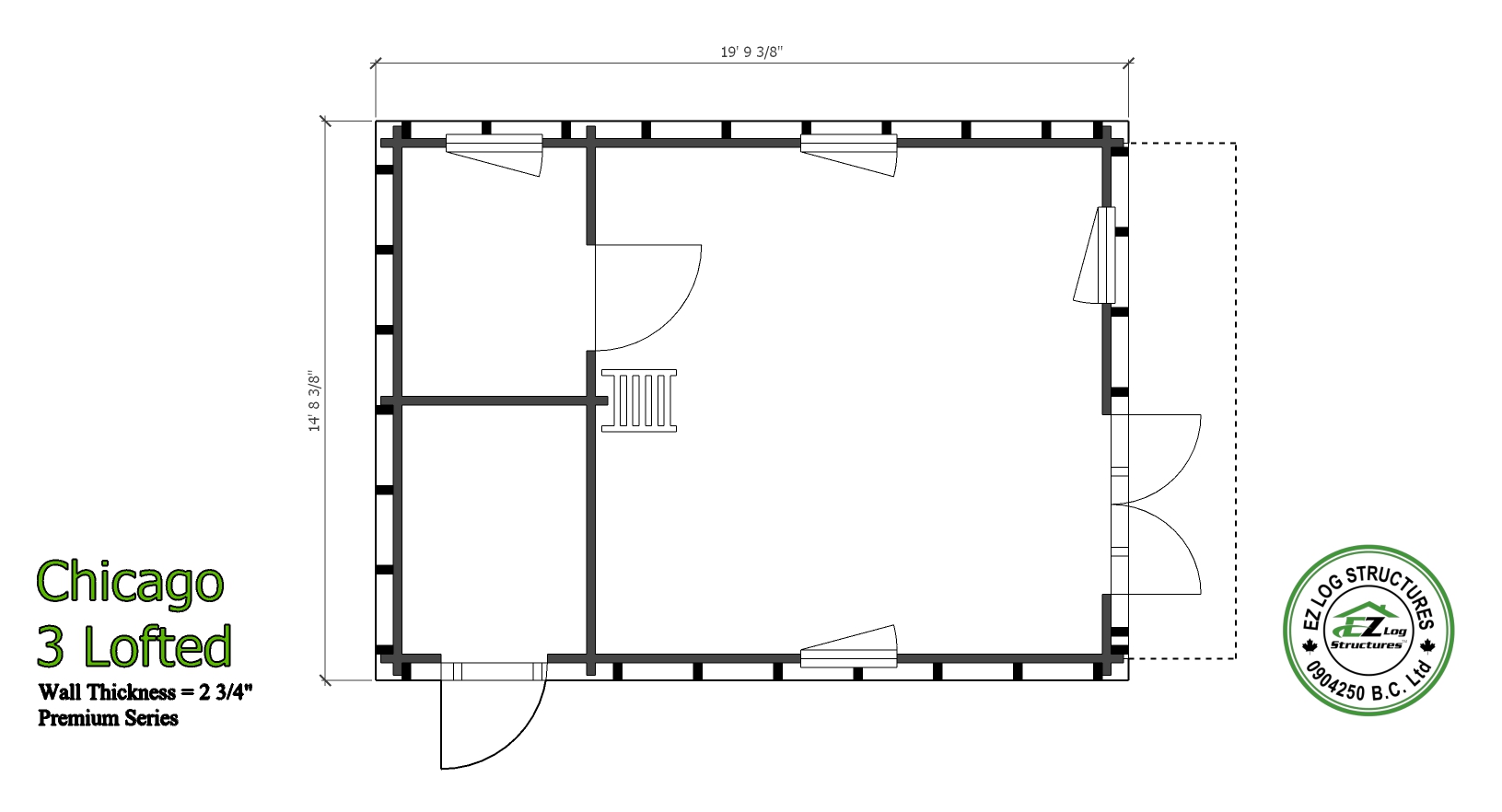

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING





EXTERIOR STUD & SIDING KITS

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.



We offer 3 types of siding kits to cover the exterior of the home or cabin: EZ Log Semi D-Log tongue & groove wood siding, EZ Log Full D-Log tongue & groove wood siding & a heavy duty maintenance free extruded PVC polymer siding



Each kit includes: 2×6 studs, stud screws, siding, corner blocks, trims & extending the roof overhang 6″













1) ADD 10% – Semi D-Log siding (Max)  3/4″ x 5-1/8″ (18mm x 130mm)

































2) ADD 14% – Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)

































3) ADD 20% – Vox extruded prefinished PVC polymer siding 3/8″ x 8″ (8.3mm x 200mm)




















Window Options:










1) Kit includes double glazed residential grade wood windows. To upgrade all windows to triple glazed/Low E/Argon gas filled (5 sash)


Add – $ 546.00 USD


Add – $ 700.00 CAD














OR





PVC window - white frame. PVC window with built-in external shutters. Shutter window.





2) Replace all wood windows with our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)


Add – $ 1,170.00 USD


Add – $ 1,500.00 CAD
