Bismark B

535 sq ft
Premium Model
$33,492.00 USD
$42,939.00 CAD
Rooms
Bedrooms2
Bathrooms1
Cabin sizes

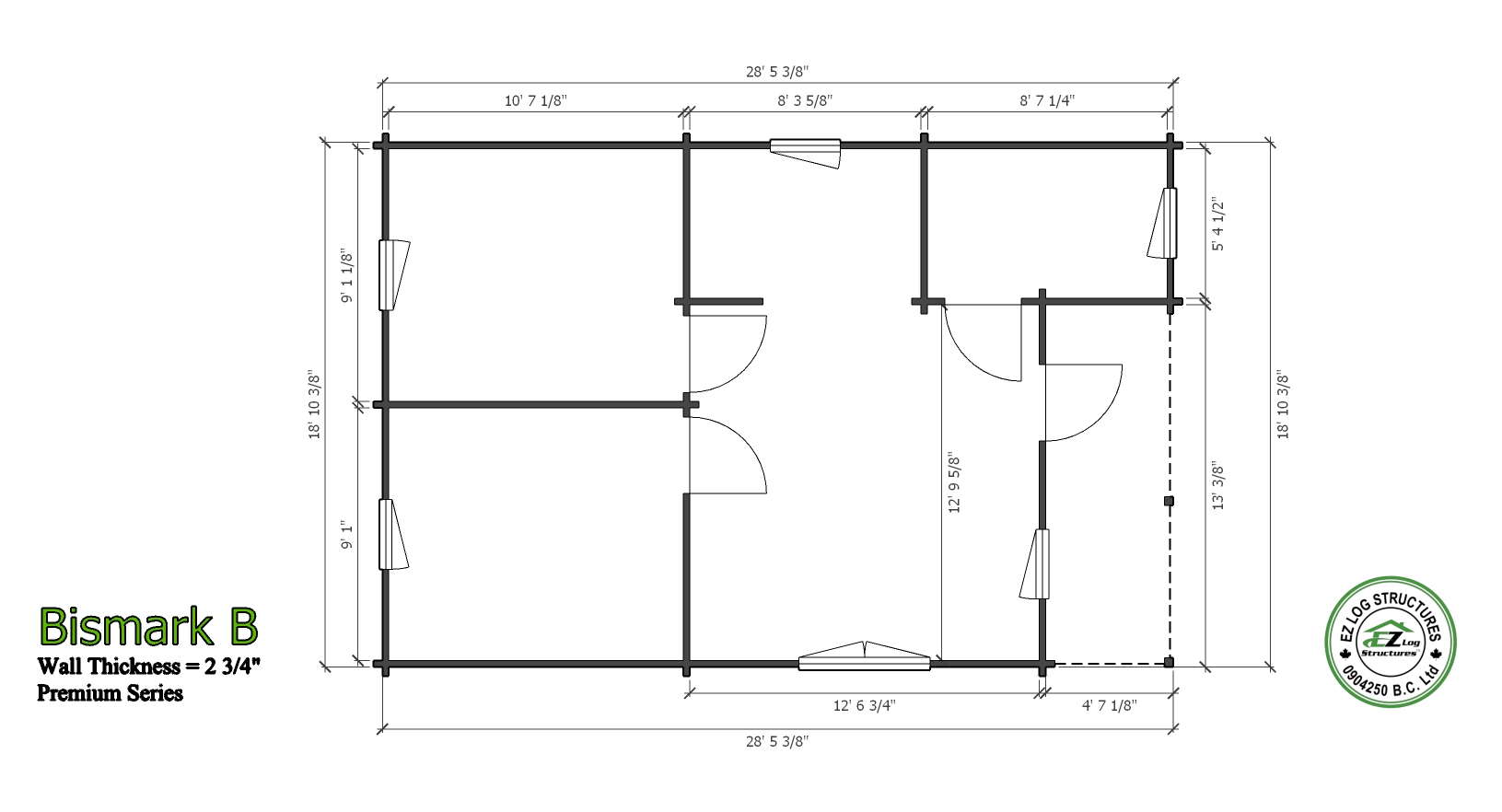

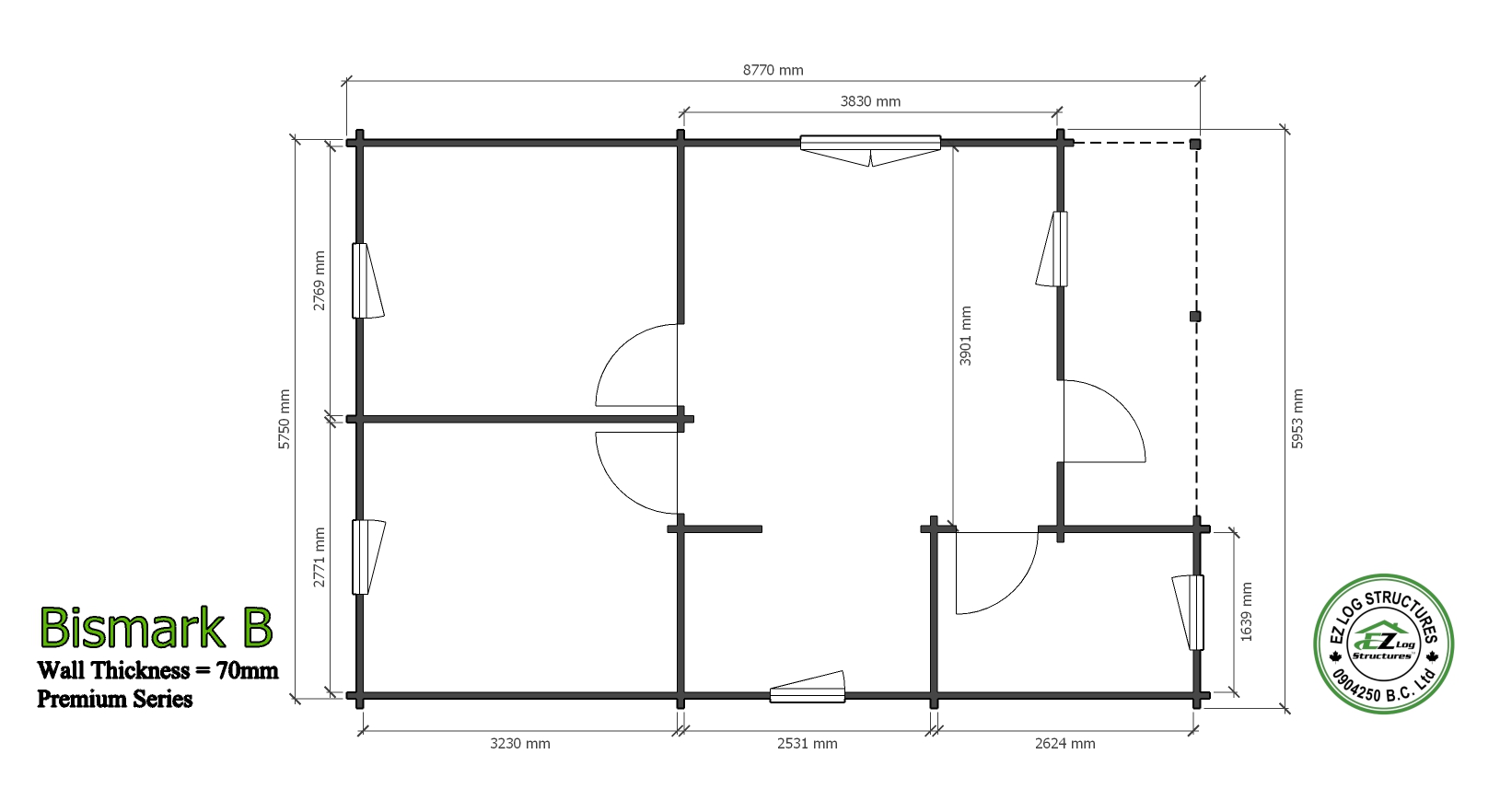

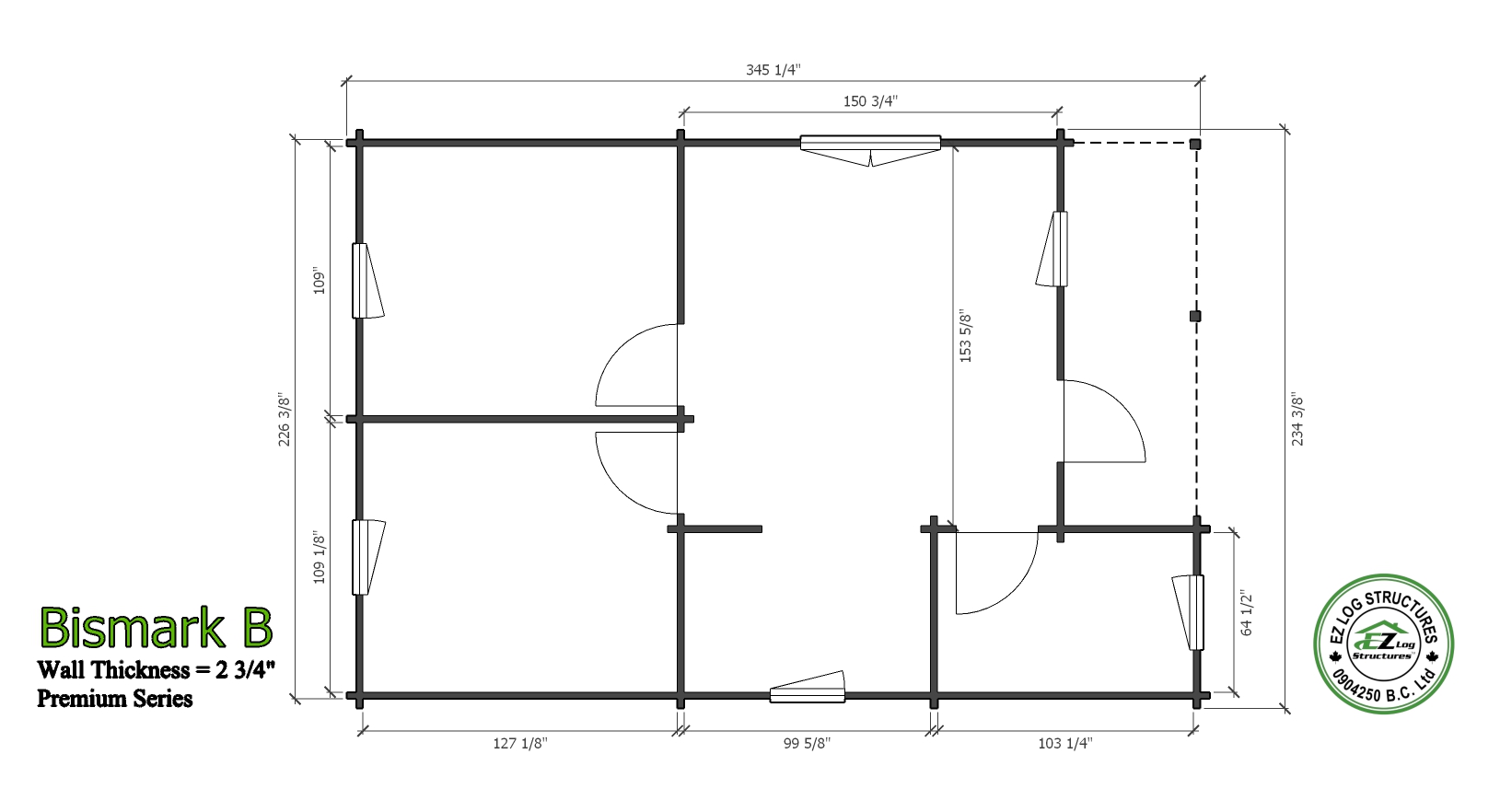

Cabin size226" x 341"
Roof & floor
Roof pitch4/12 - 18D
Roof boards3/4"
Package, area, vol ect.
Size (sq ft)535
Volume1186

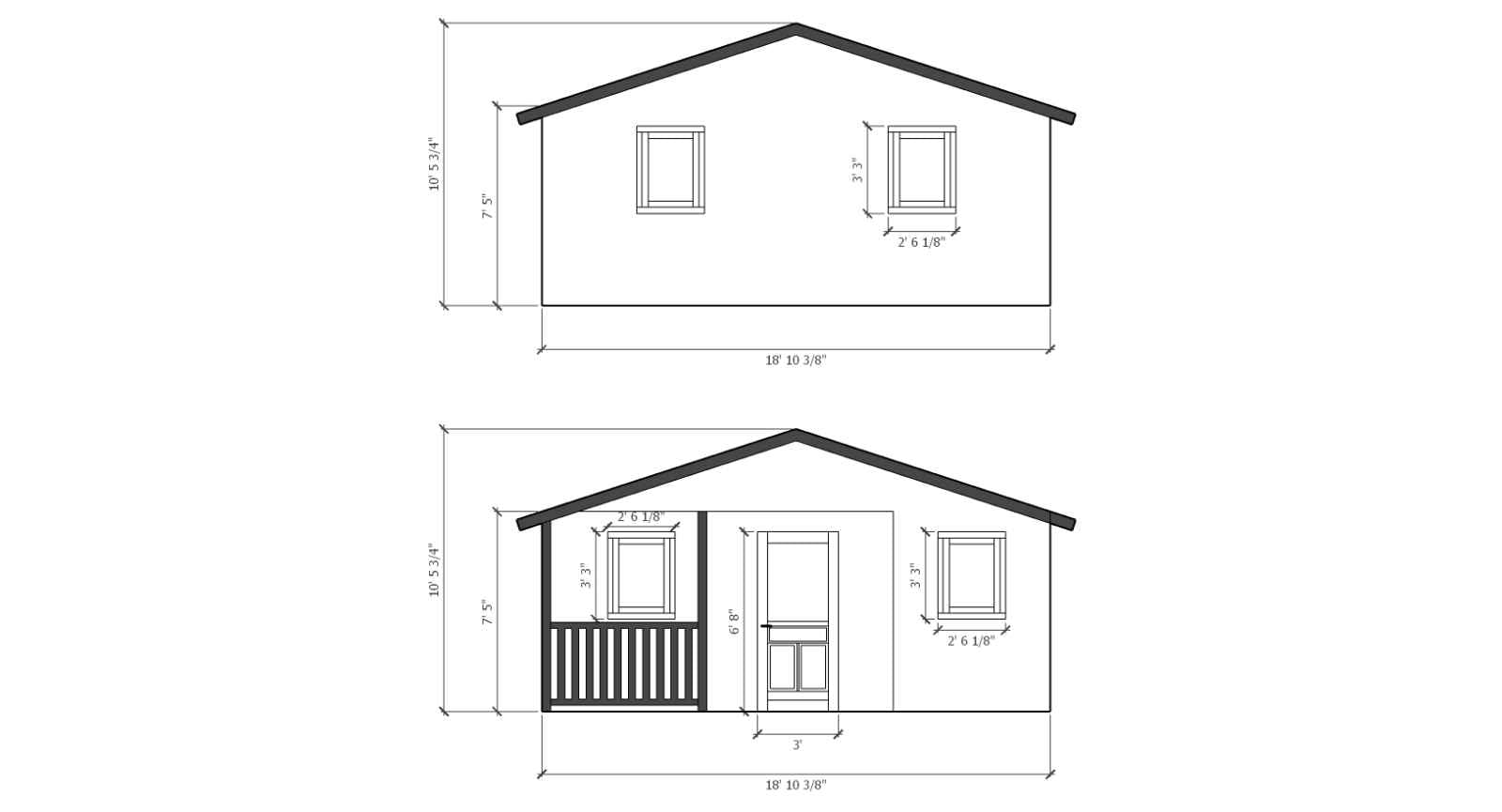

Wall height89"
Ridge height130"
Wall thickness2-3/4”
Contact Us

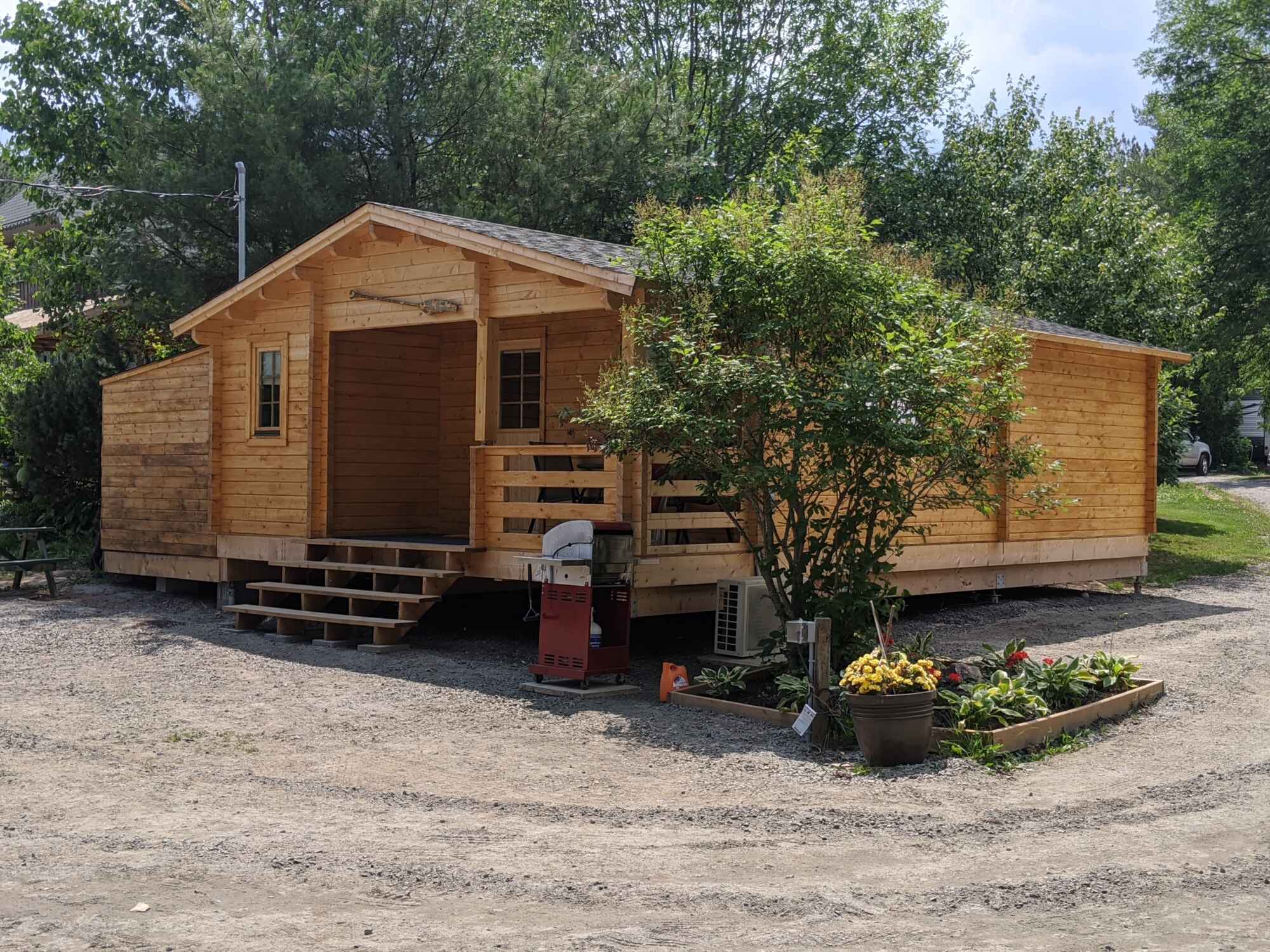

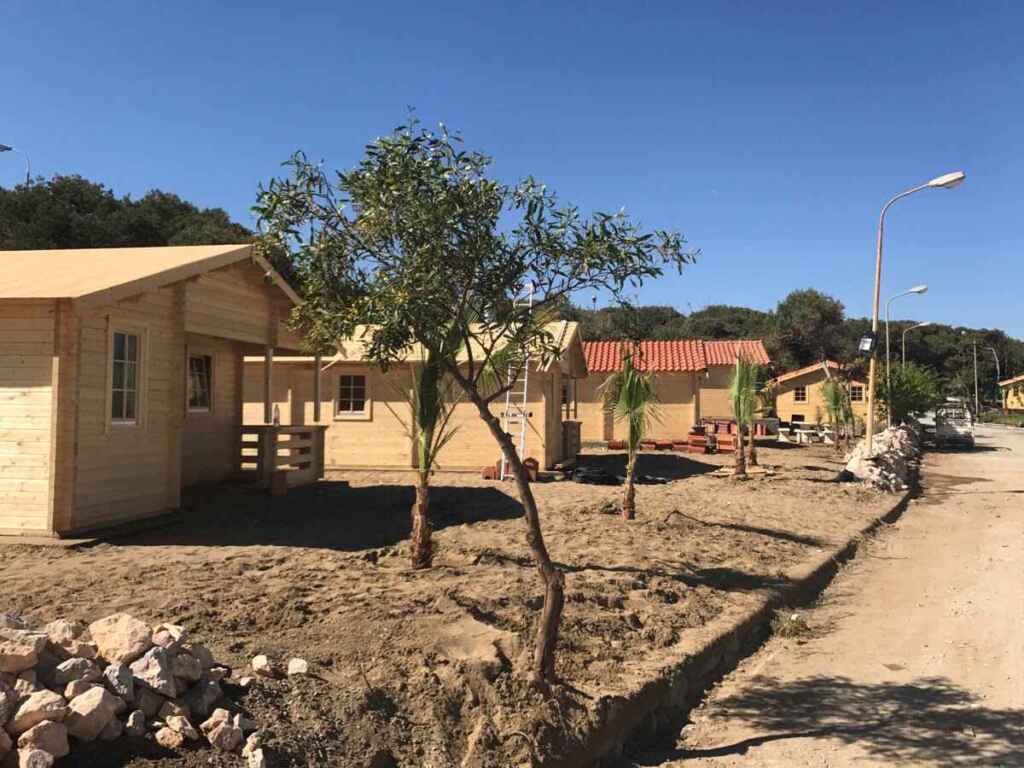

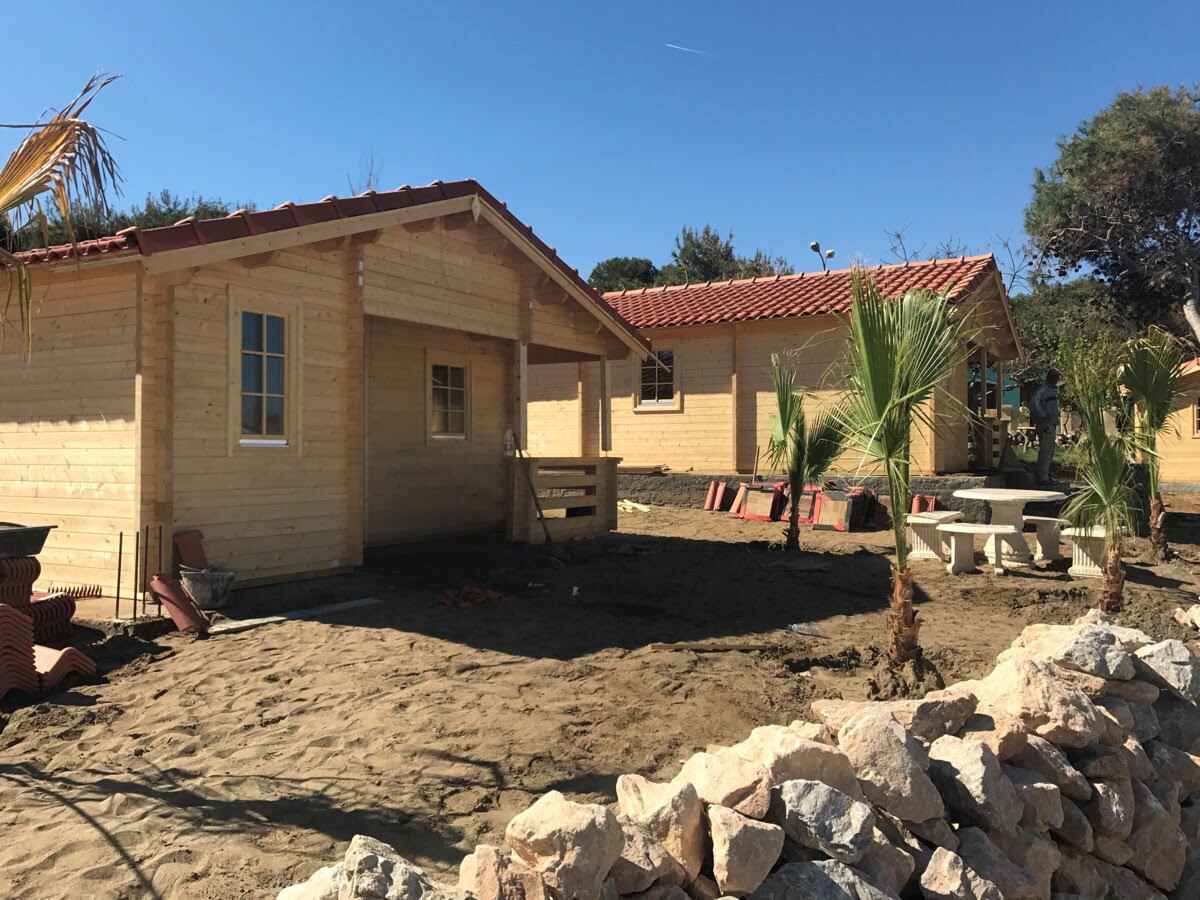

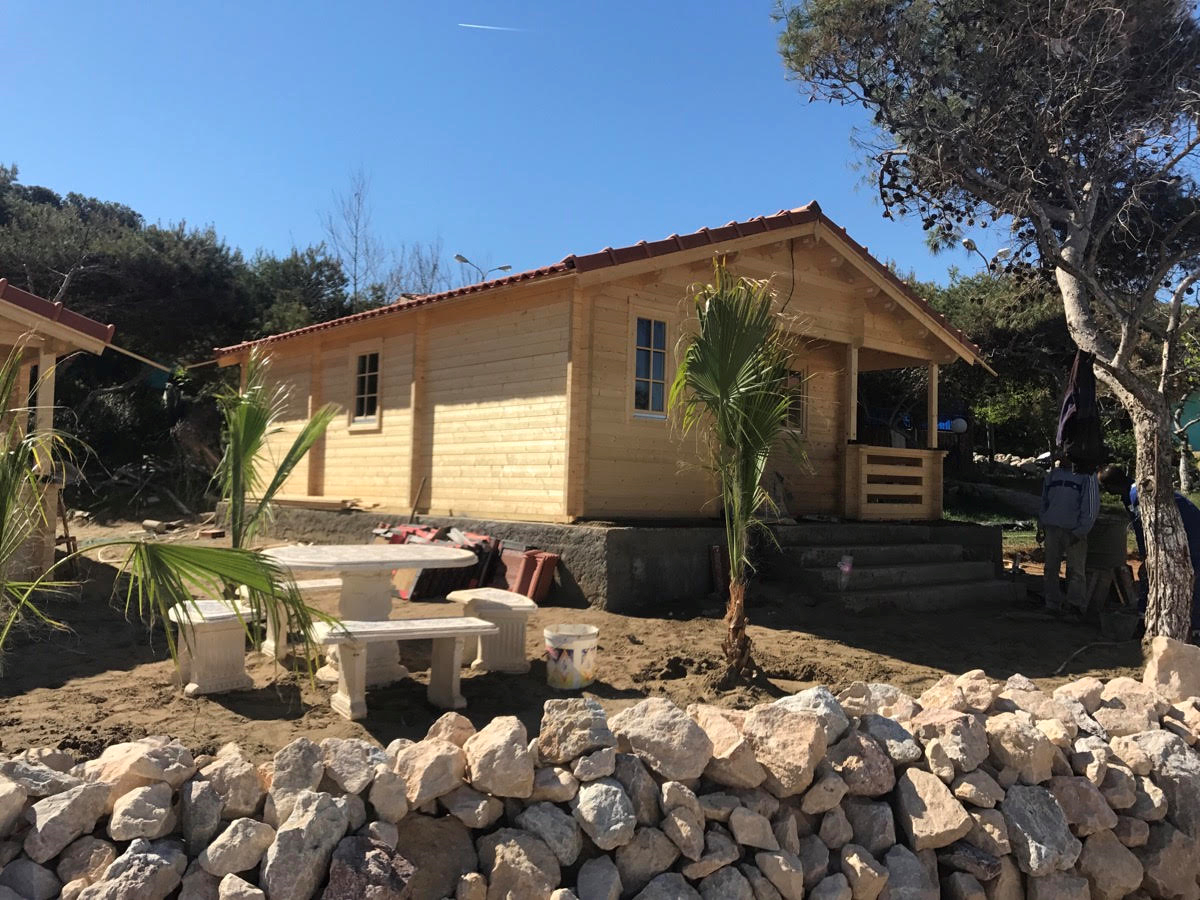

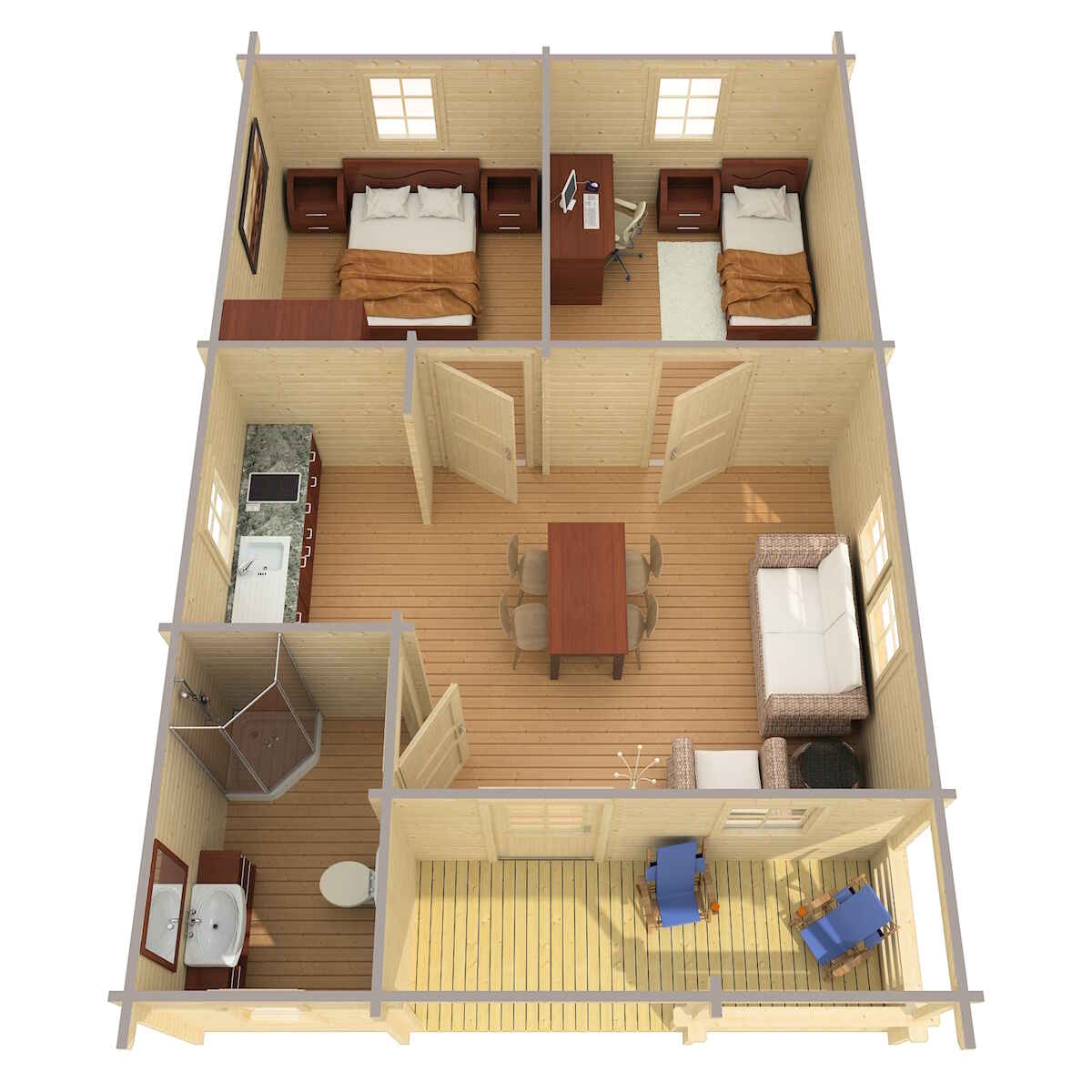

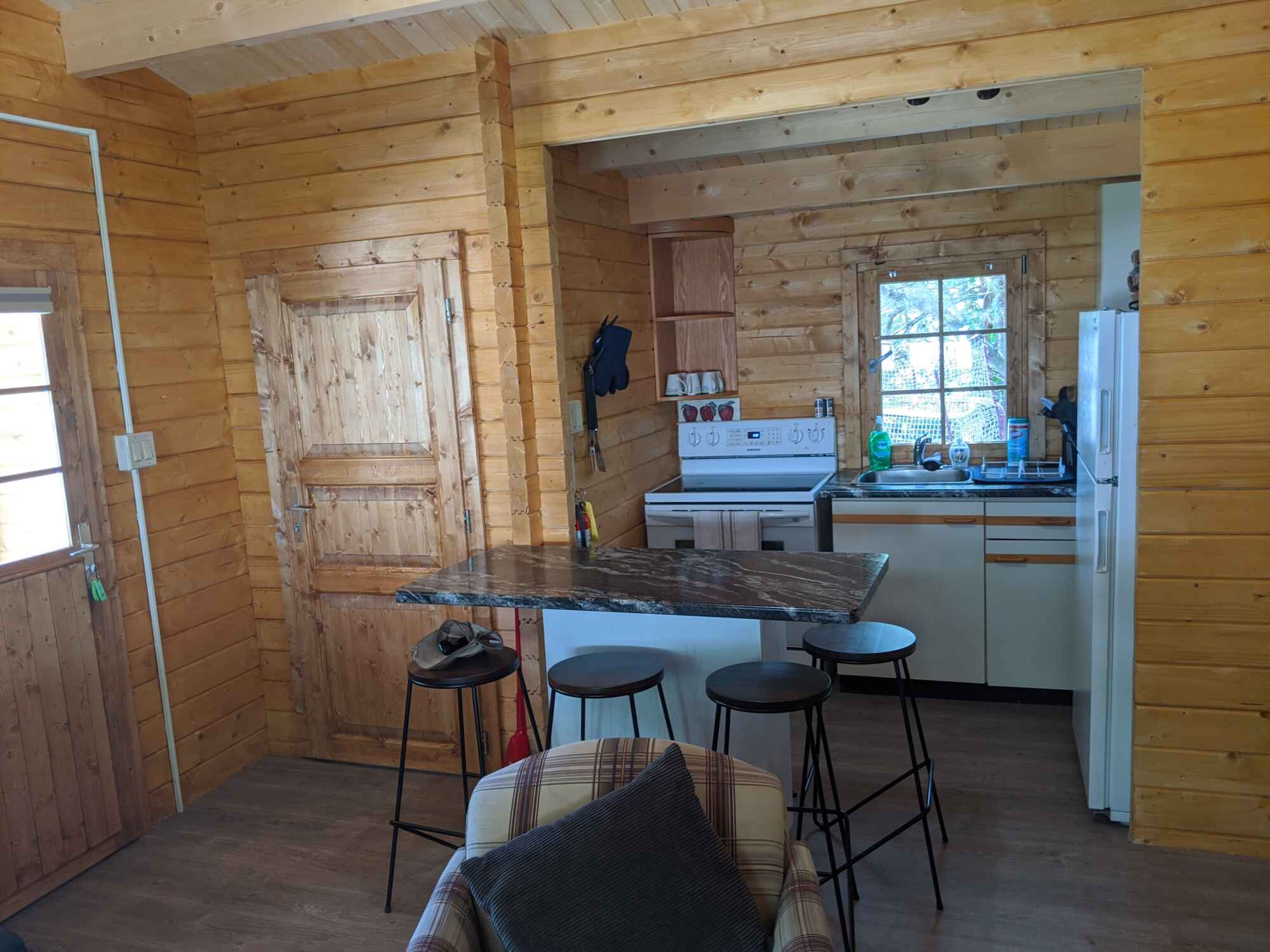

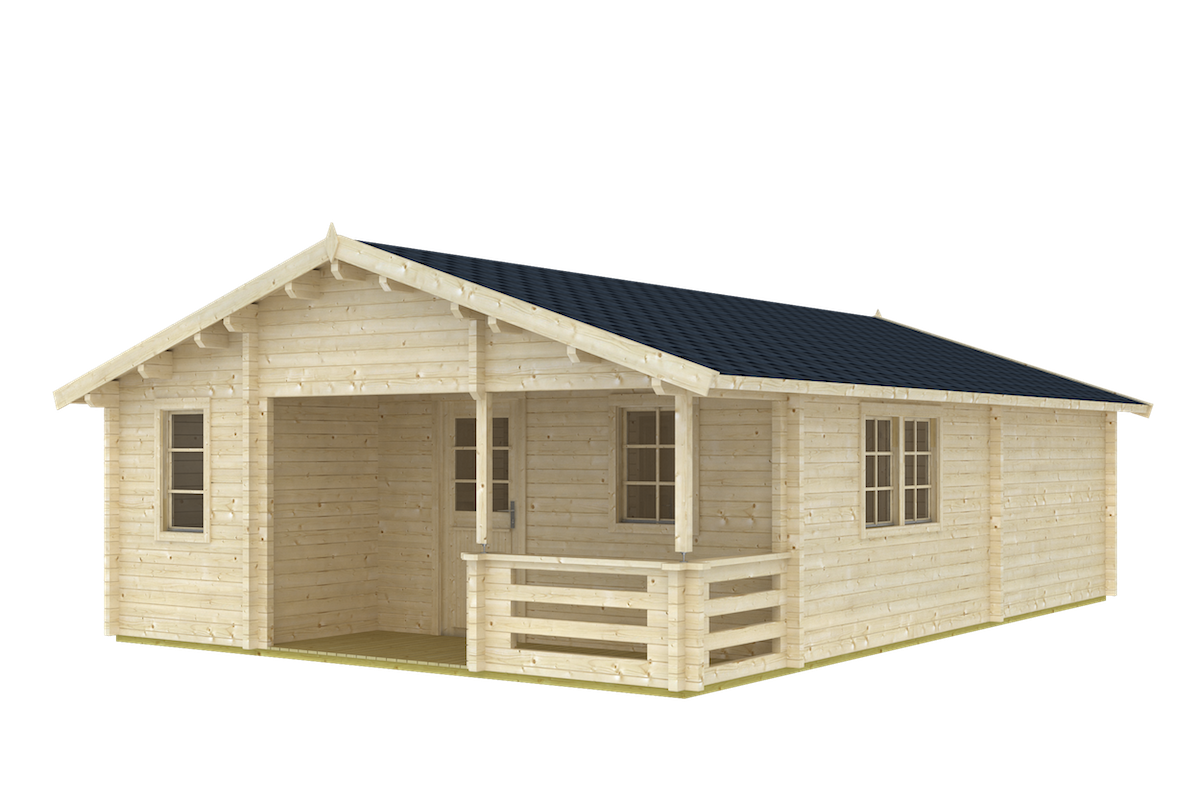

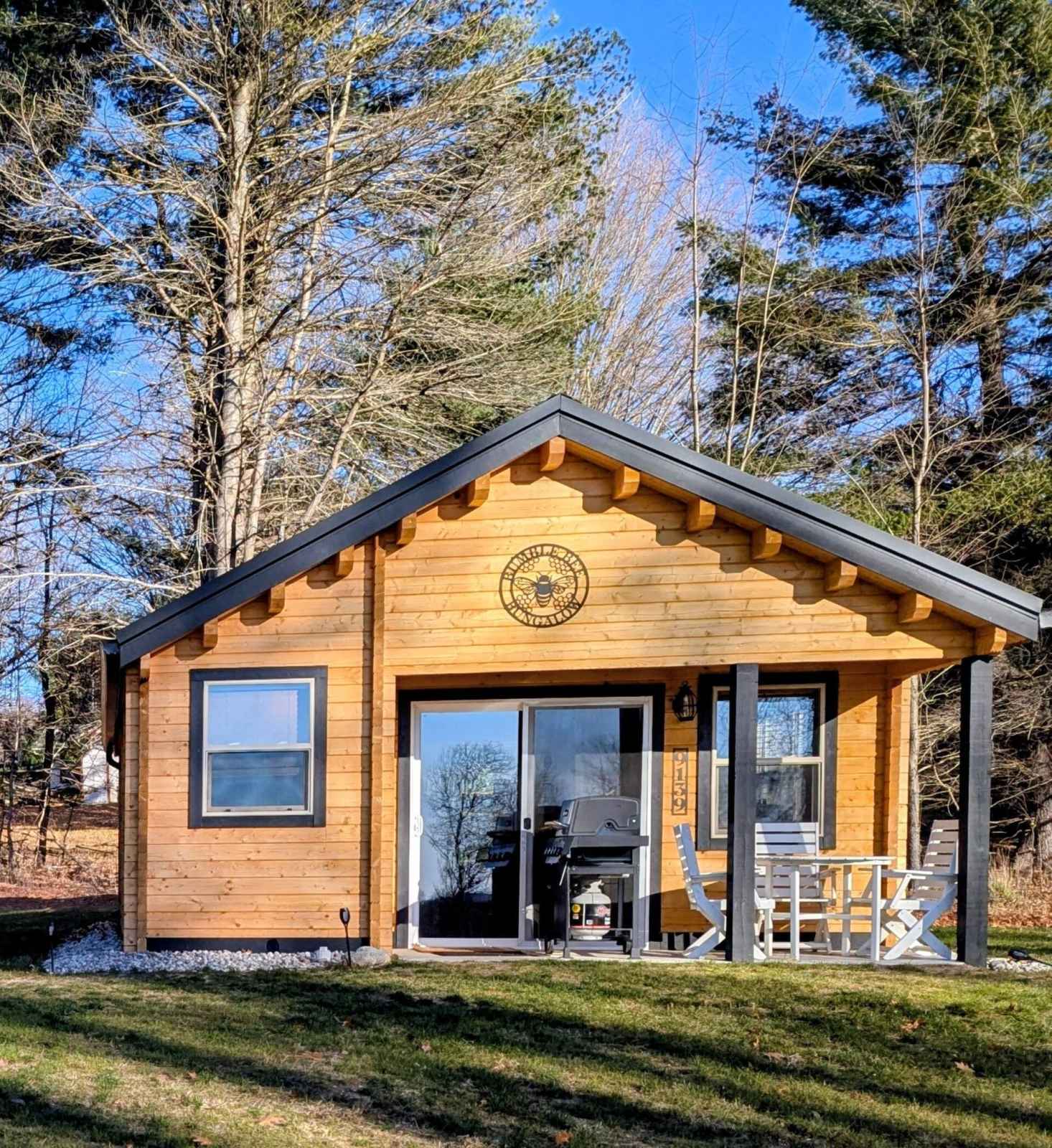

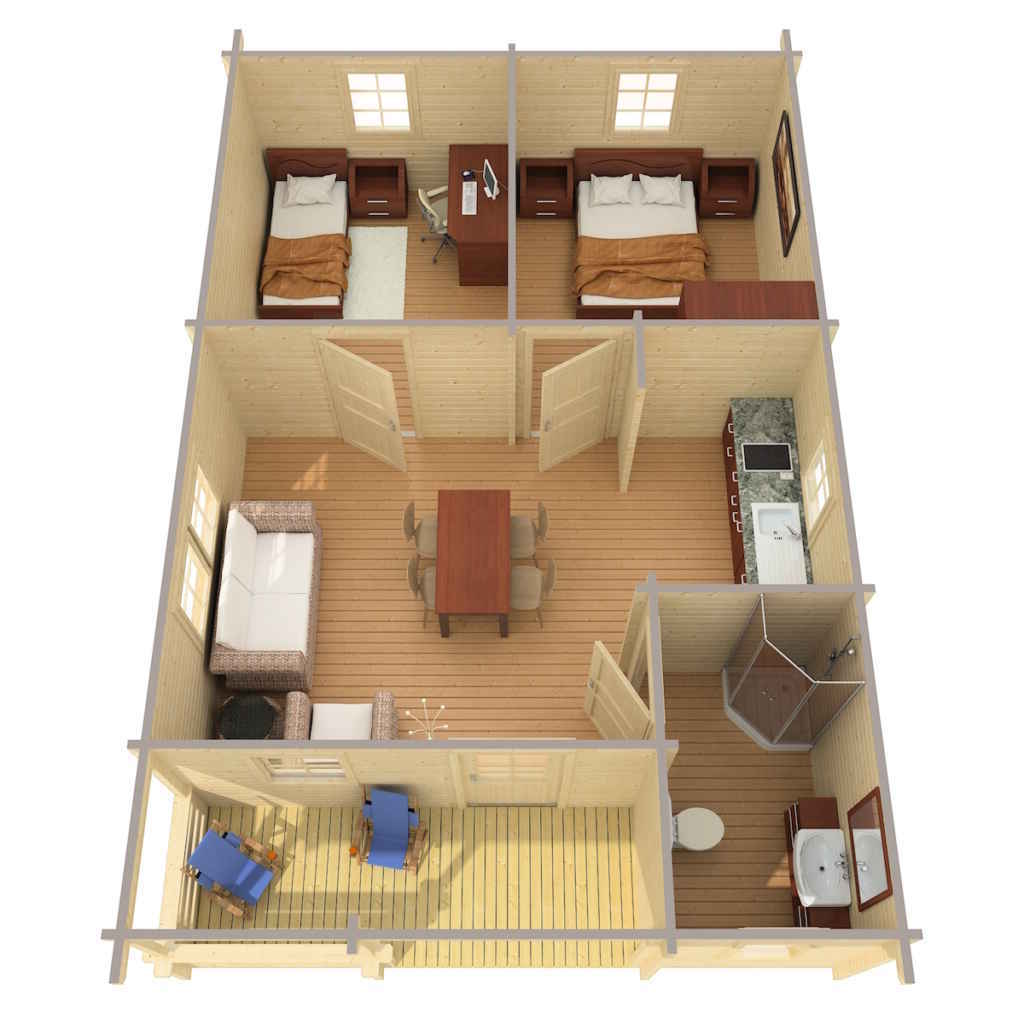

Bismark B kit home or cabin has 70mm (2-3/4″) thick stackable wall logs & includes residential grade, double glazed wood windows & doors. A very affordable 2 bedroom model, ideal for: ADU, additional dwelling unit, granny flat, tiny home or cabin. Can be assembled by 3 people in 3 days
Kit includes:
  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components

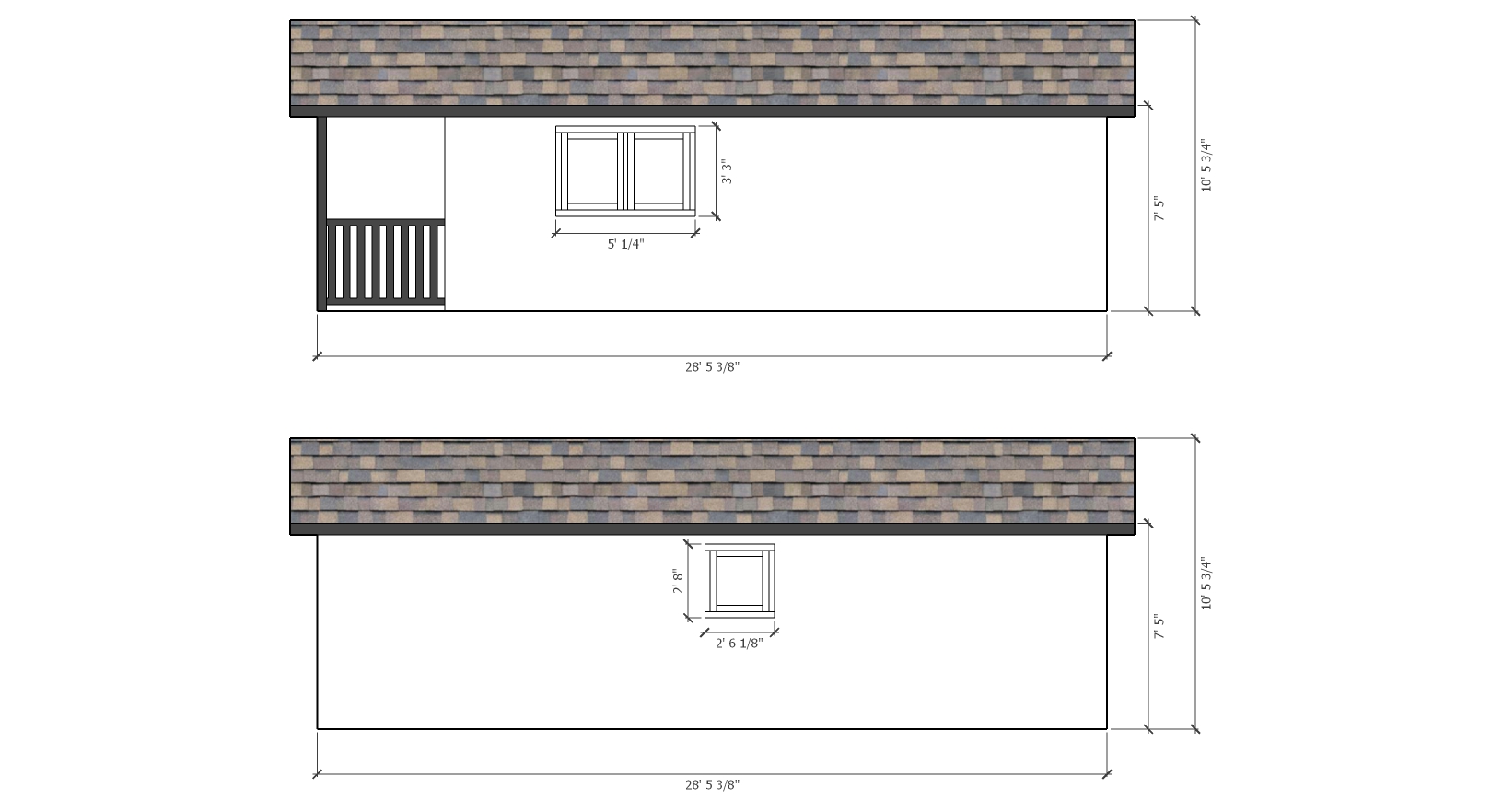

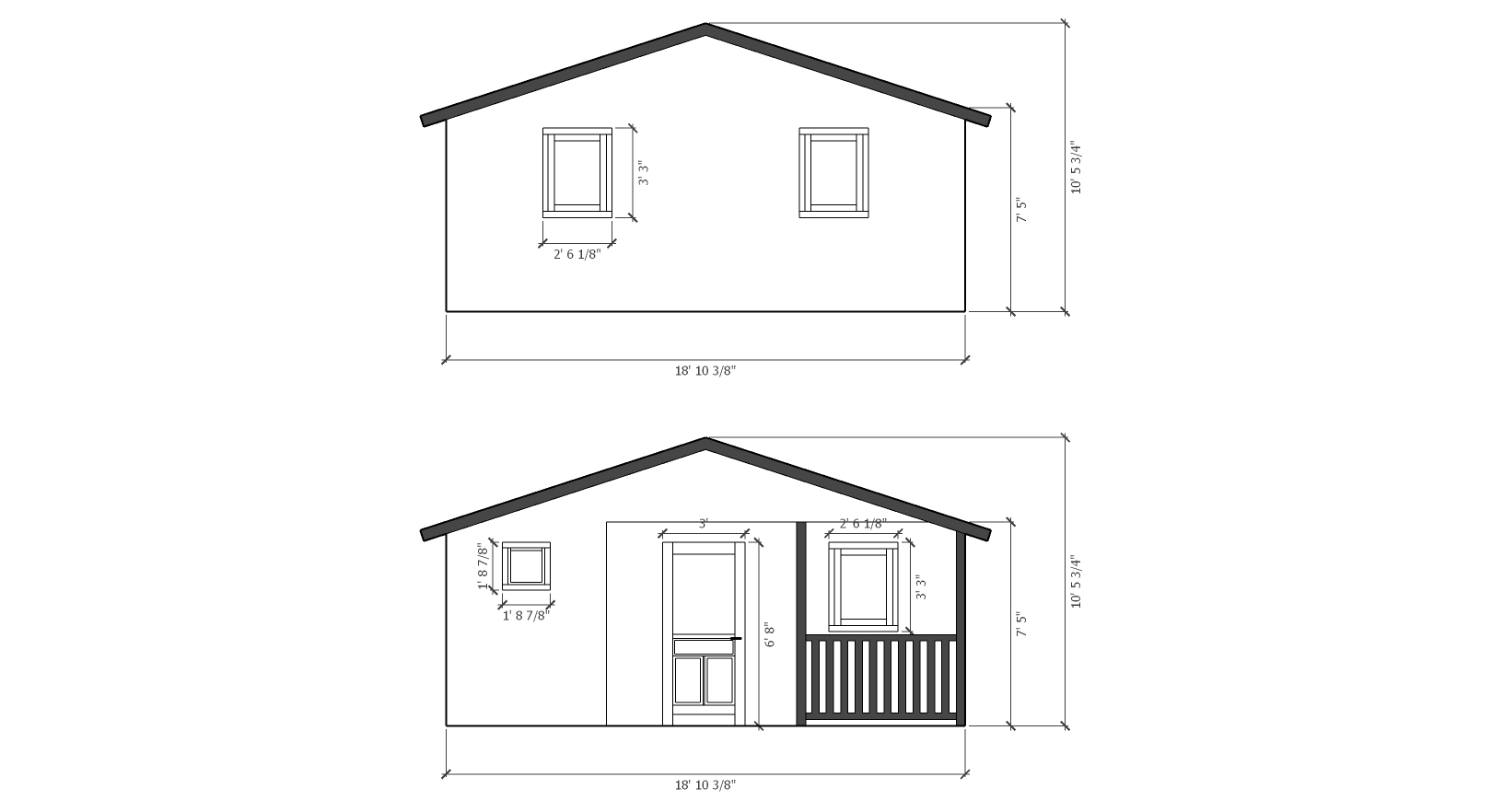

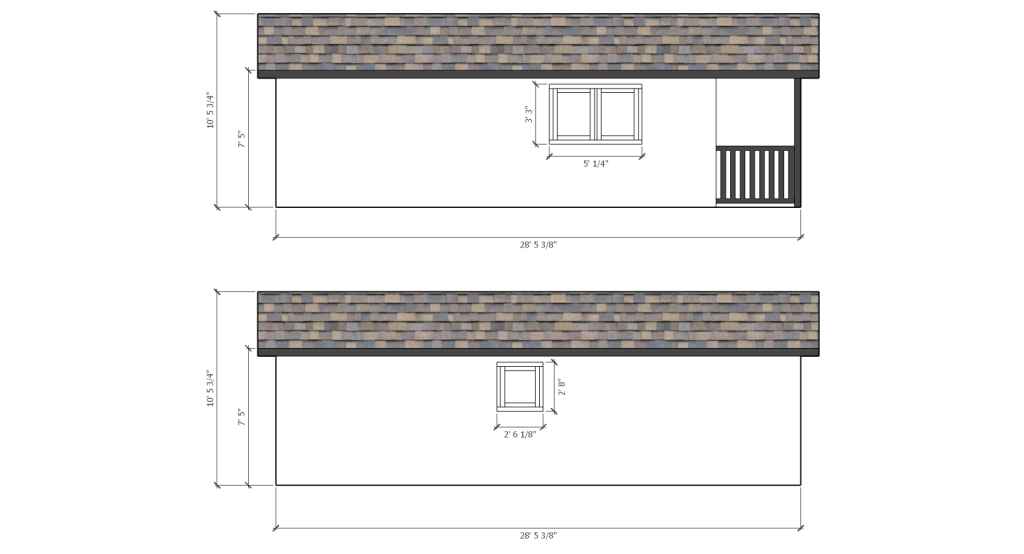

  • sidewall height 89″ (2260mm)

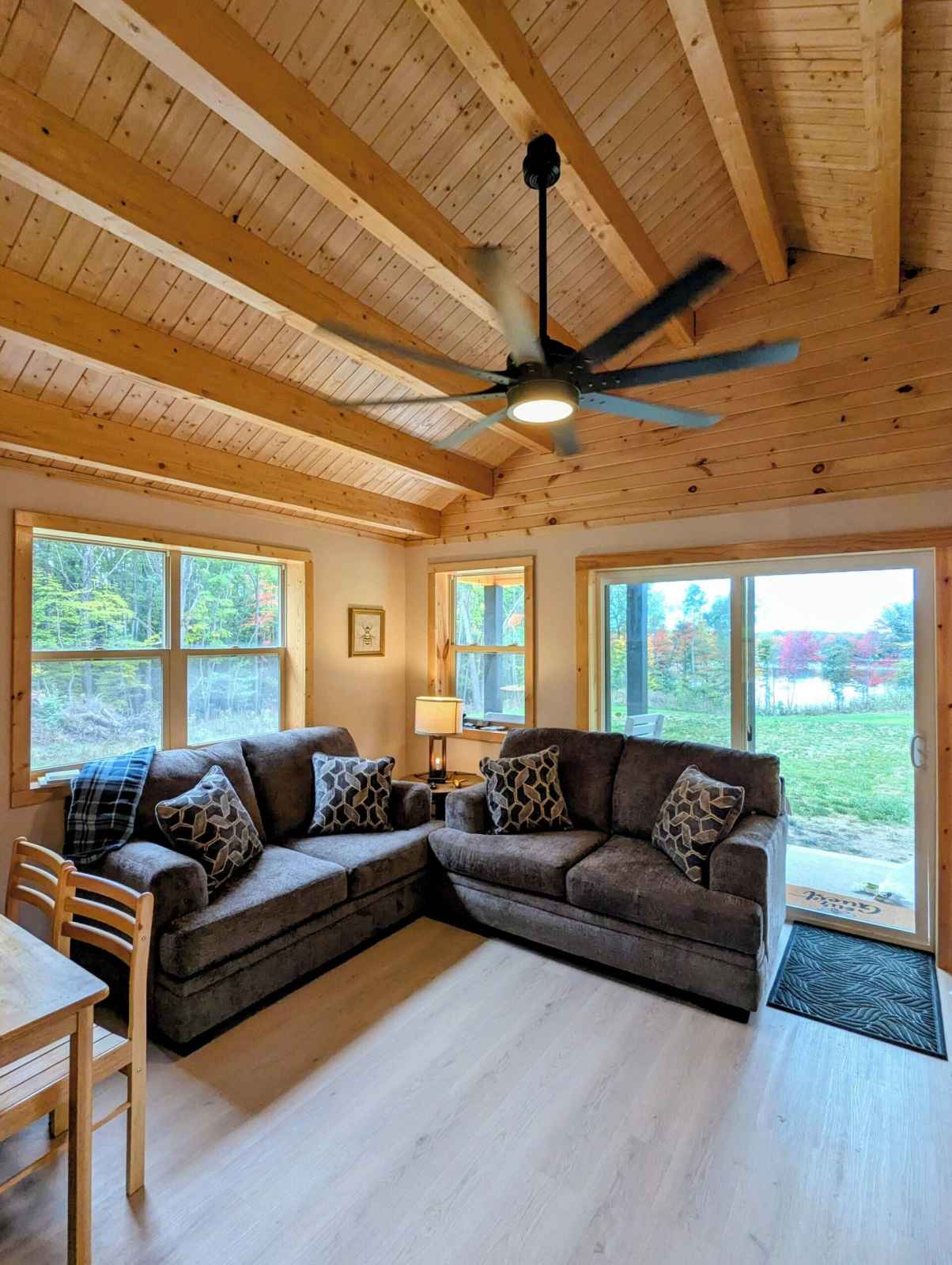

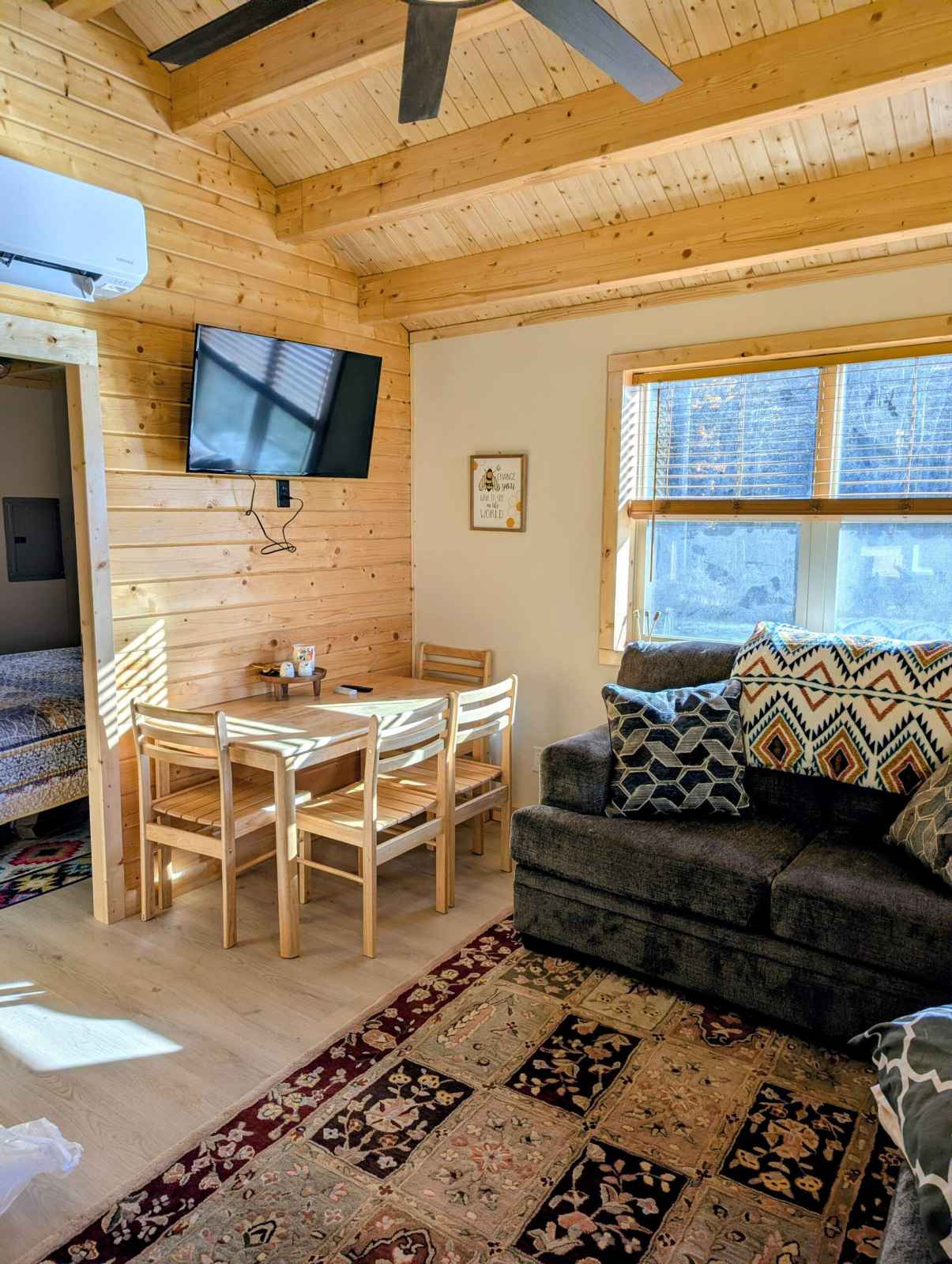

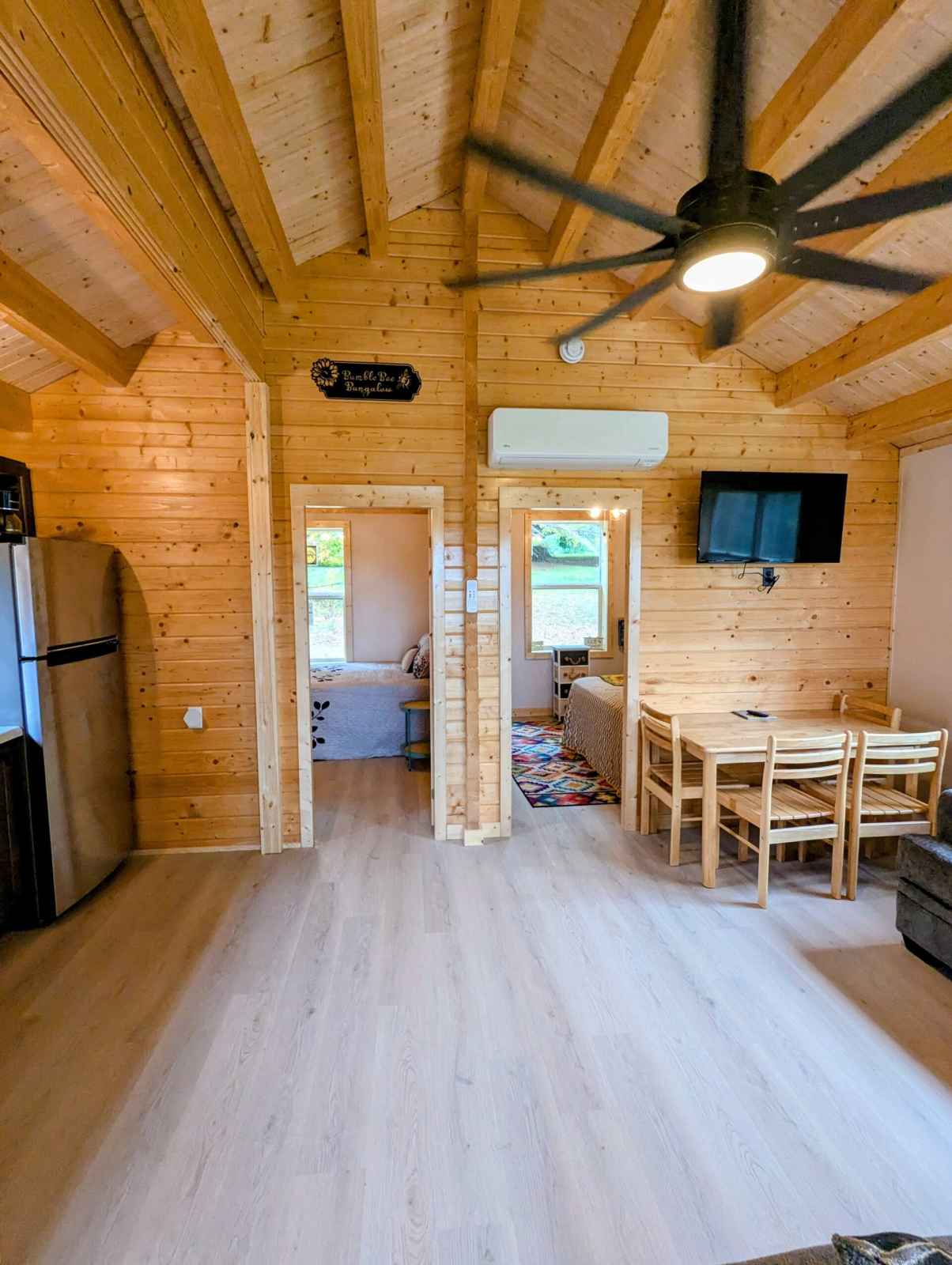

  • vaulted, cathedral ceilings
  • roof pitch 4/12 (18 degrees)
  • pre-cut, 4″ x 8″ (100mm x 200mm) glulam roof purlins/beams, spaced 22″ (558mm) or less
  • pre-cut, numbered 3/4″ (18mm) tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 1186 total sq’ of wall area
  • 754 sq’ of exterior wall surface
  • 161 lineal’ per row
  • 3 interior doors 32″x80″ (812mm x 2040mm), hardware
  • 5 single wide wood windows 30″x39″ (765mm x 990mm)
  • 1 double wide wood window 60″x39″ (1530mm x 990mm)

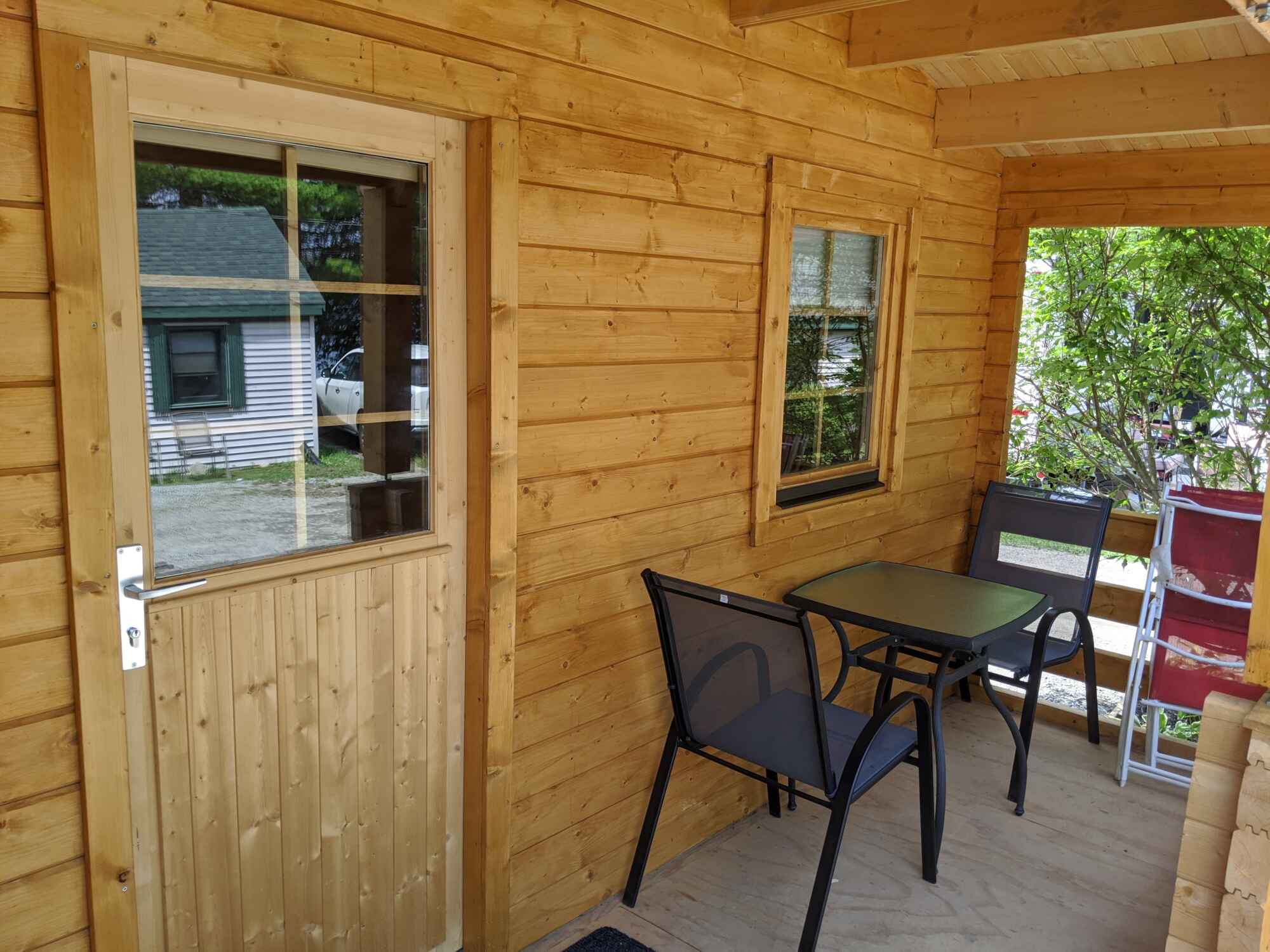

  • 1 exterior door 36″x80″ (990mm x 2040mm) 1/2 glass tempered, multi locking hardware
  • deck posts, railing with vertical balustrades
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped for sequence of assembly
  • SHIPPING request a quote

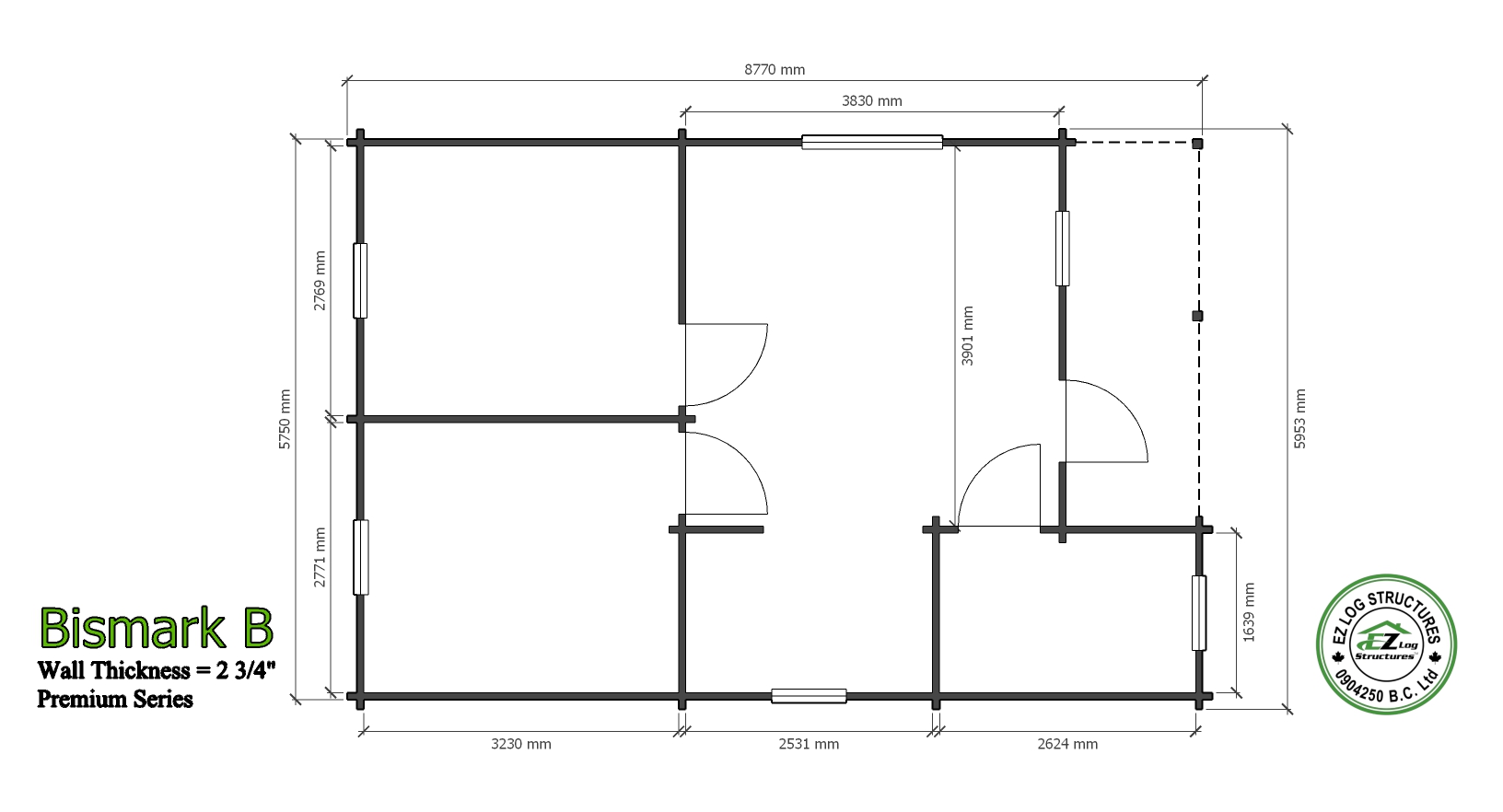

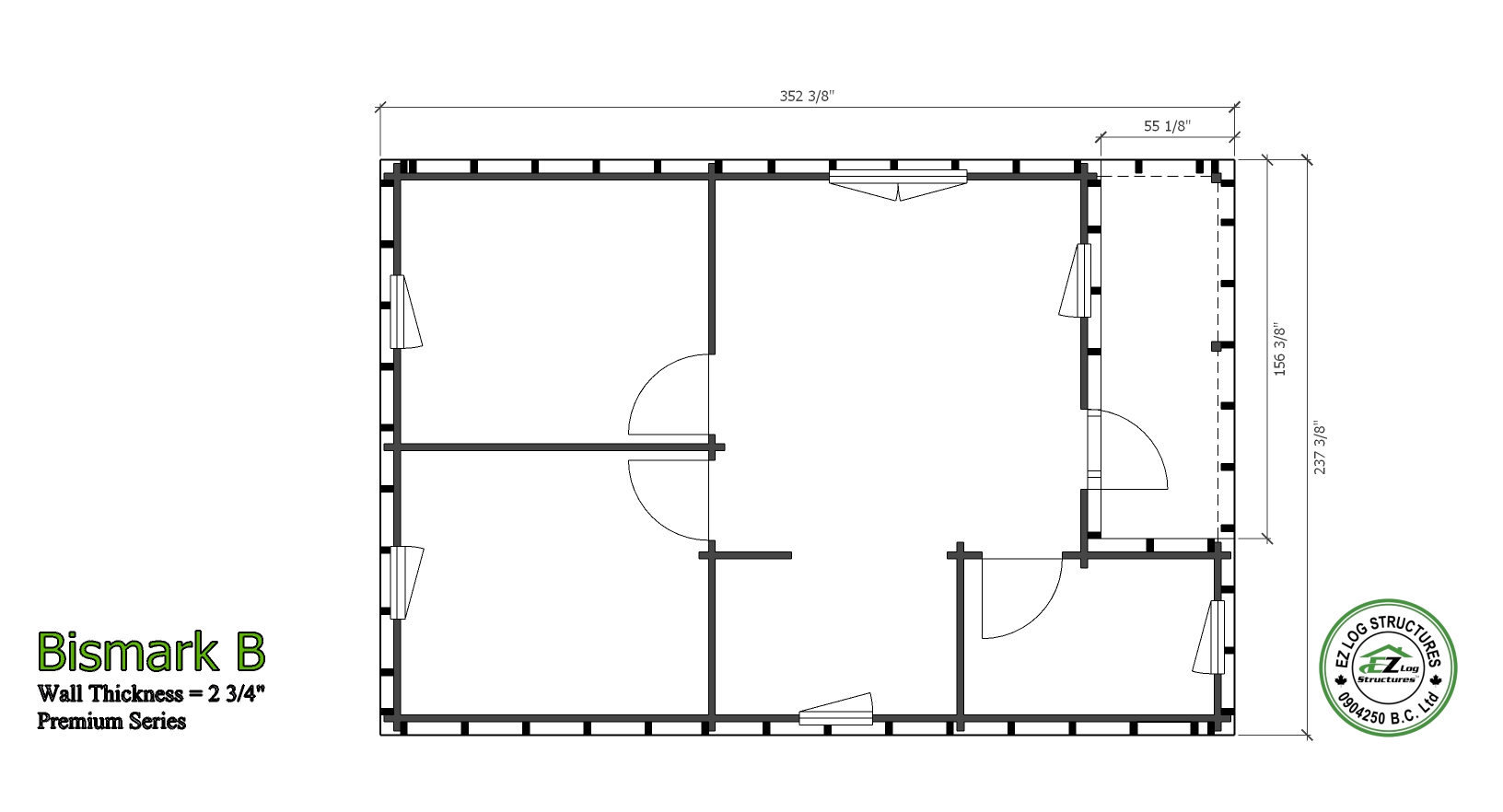

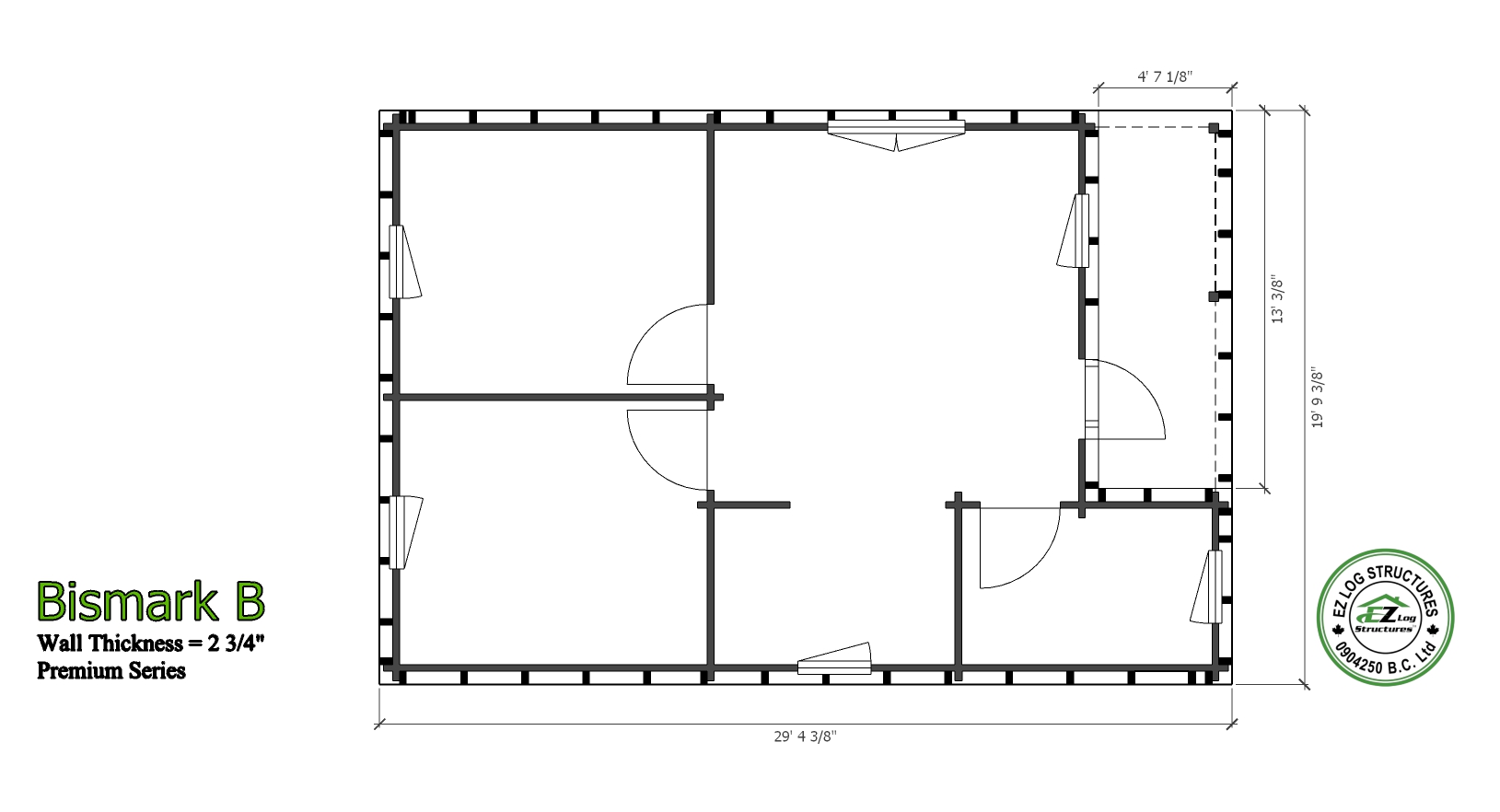

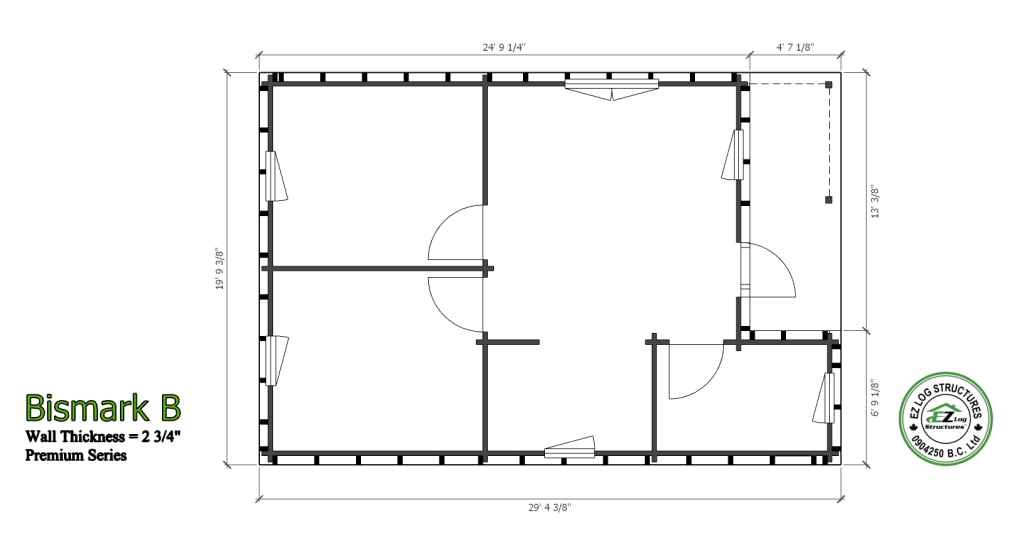

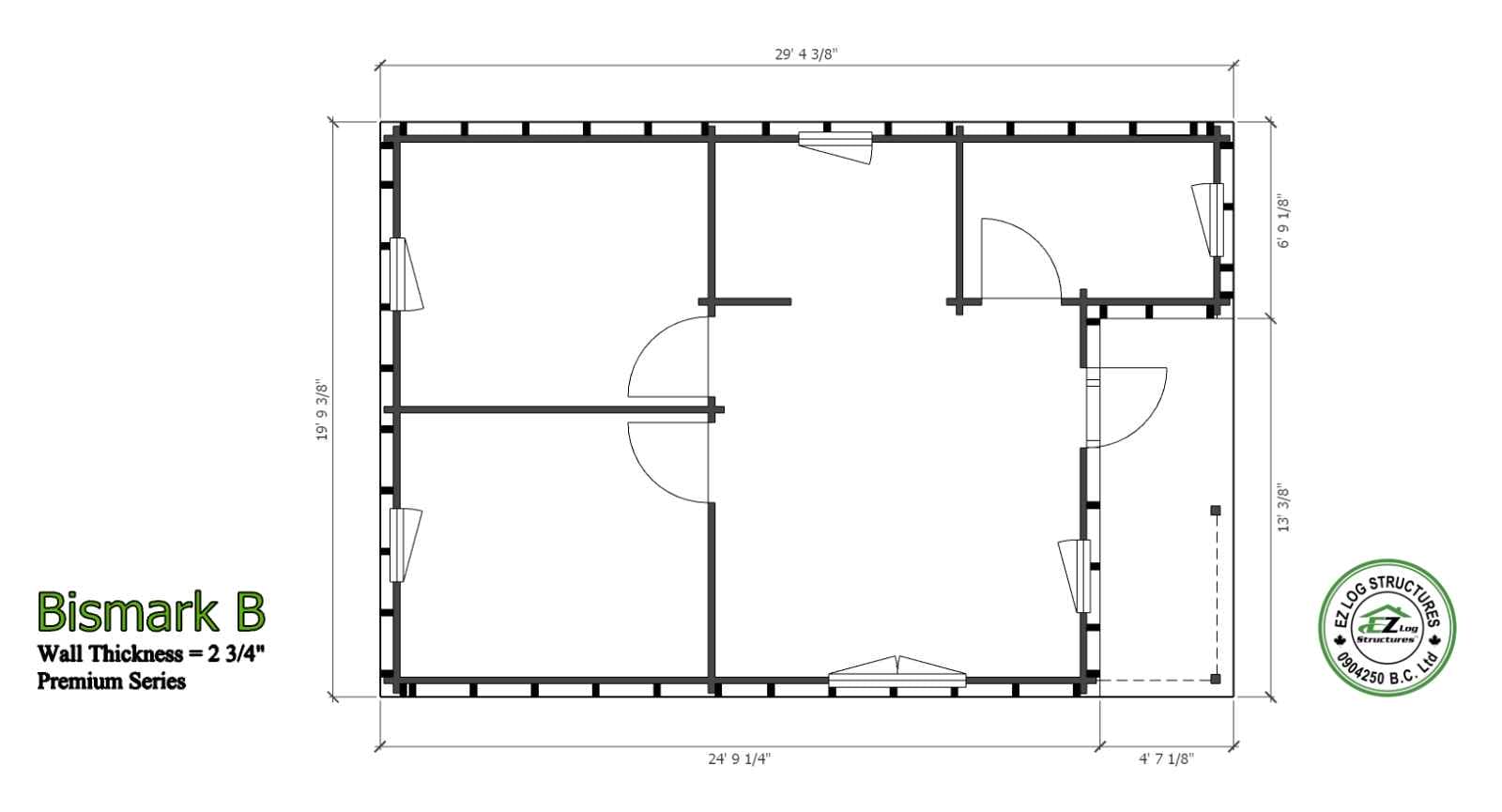

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING





EXTERIOR STUD & SIDING KITS

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.



We offer 3 types of siding kits to cover the exterior of the home or cabin: EZ Log Semi D-Log tongue & groove wood siding, EZ Log Full D-Log tongue & groove wood siding & a heavy duty maintenance free extruded PVC polymer siding



Each kit includes: 2×6 studs, stud screws, siding, corner blocks, trims & extending the roof overhang 6″













1) ADD 10% – Semi D-Log siding (Max)  3/4″ x 5-1/8″ (18mm x 130mm)

































2) ADD 14% – Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)

































3) ADD 20% – Vox extruded prefinished PVC polymer siding 3/8″ x 8″ (8.3mm x 200mm)




















Window Options:










1) Kit includes double glazed residential grade wood windows. To upgrade all windows to triple glazed/Low E/Argon gas filled (7 sash)


Add – $ 764.00 USD


Add – $ 980.00 CAD














OR





PVC window - white frame. PVC window with built-in external shutters. Shutter window.





2) Replace all wood windows with our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)


Add – $ 1,638.00 USD


Add – $ 2,100.00 CAD
