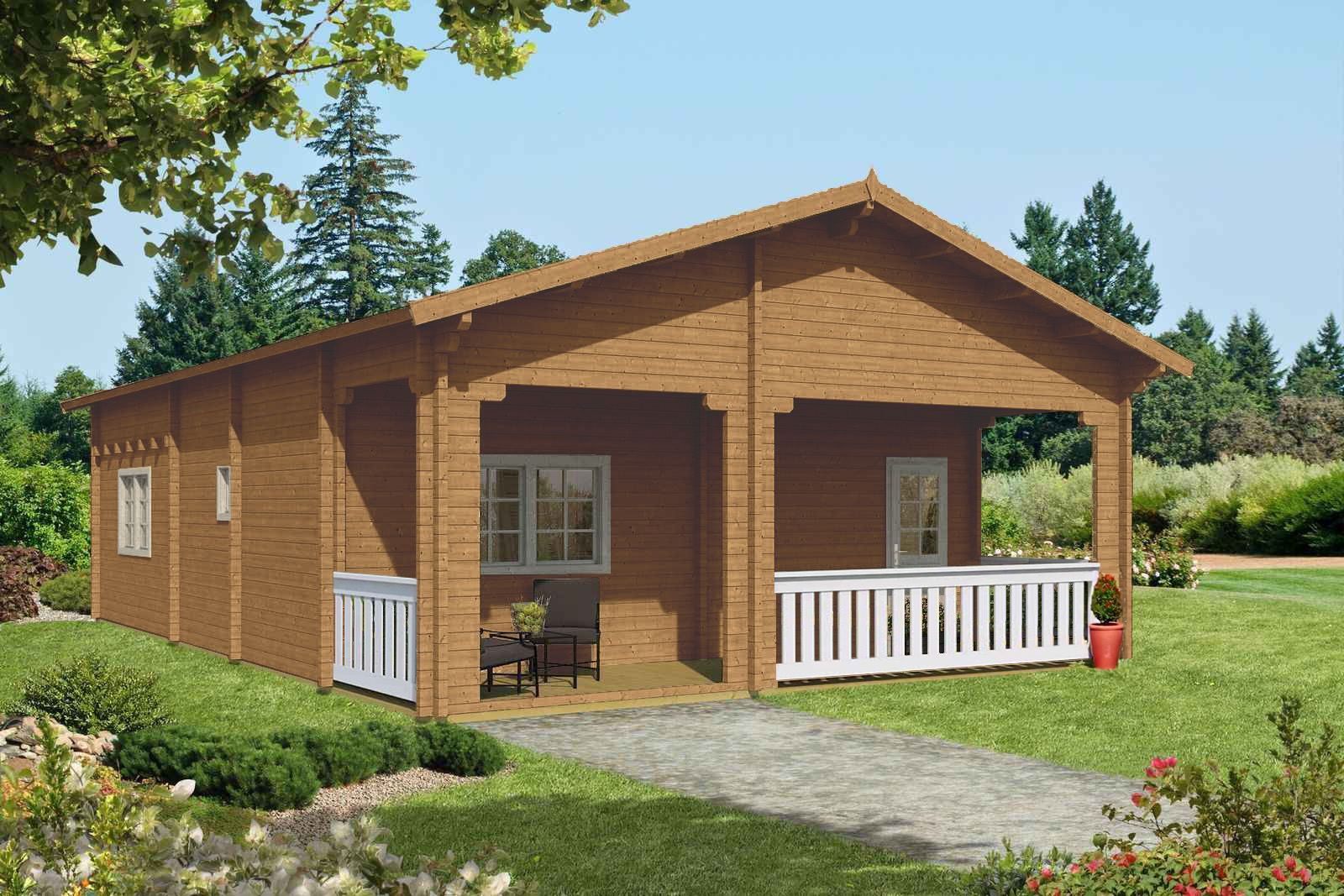

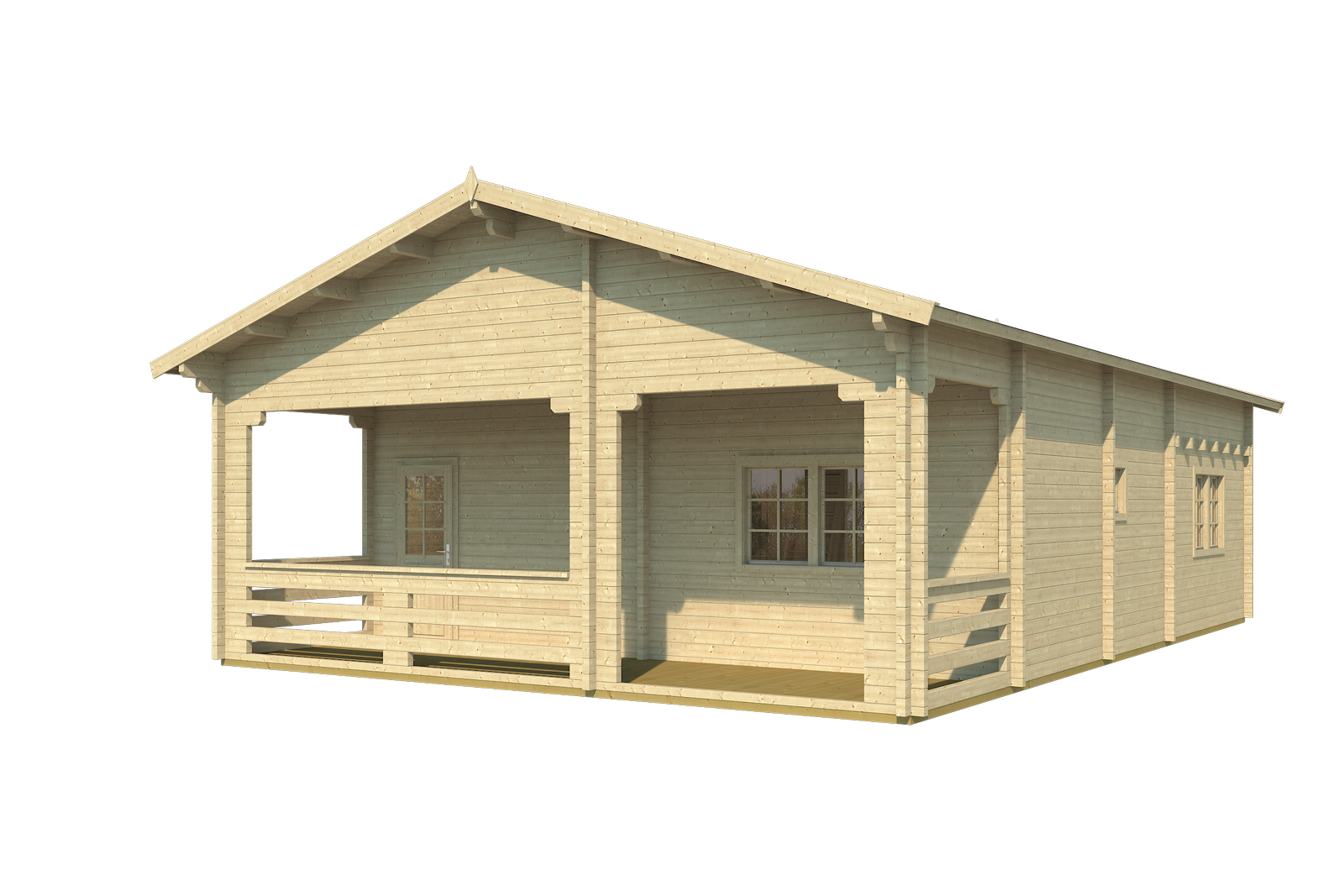

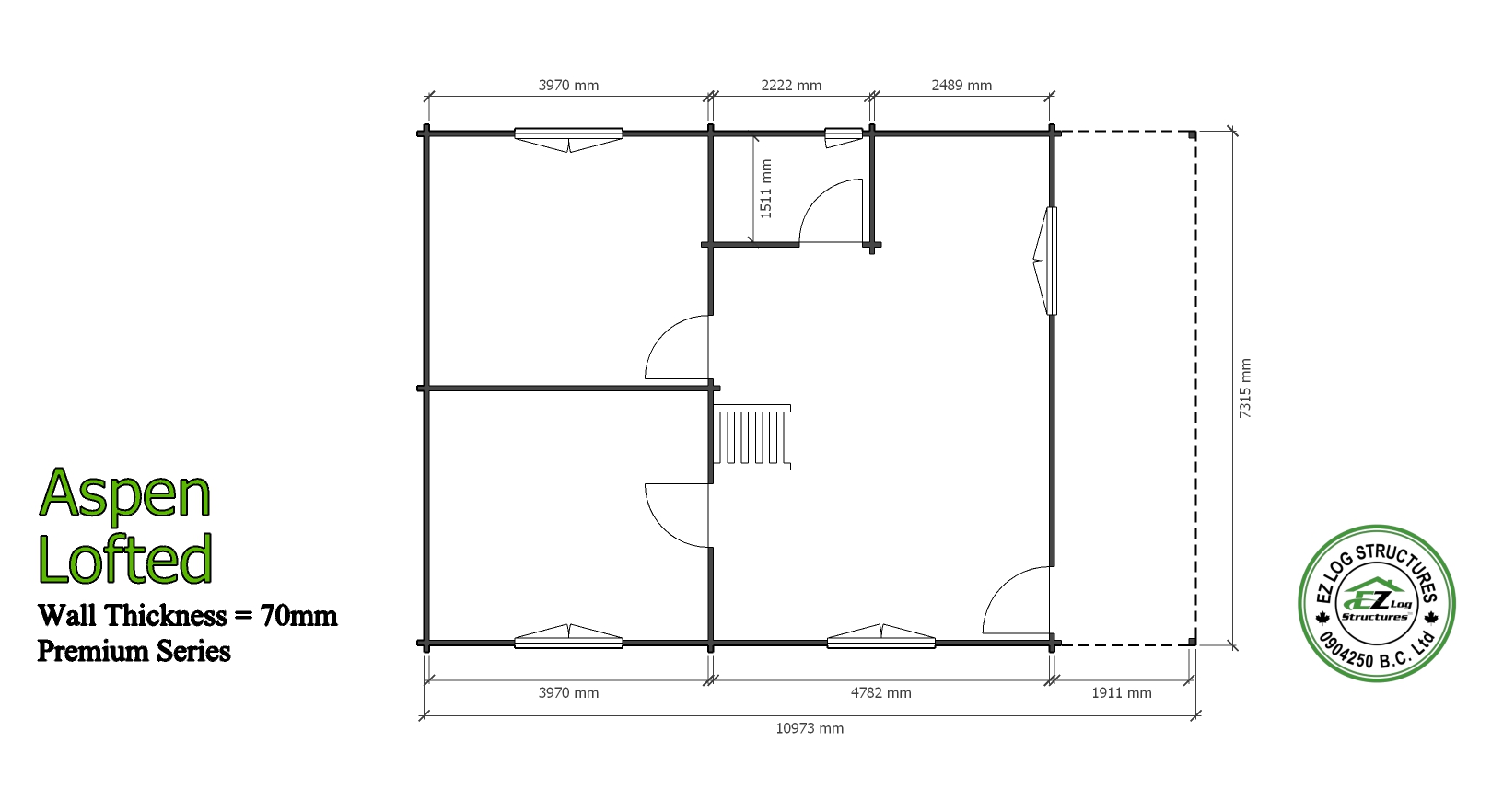

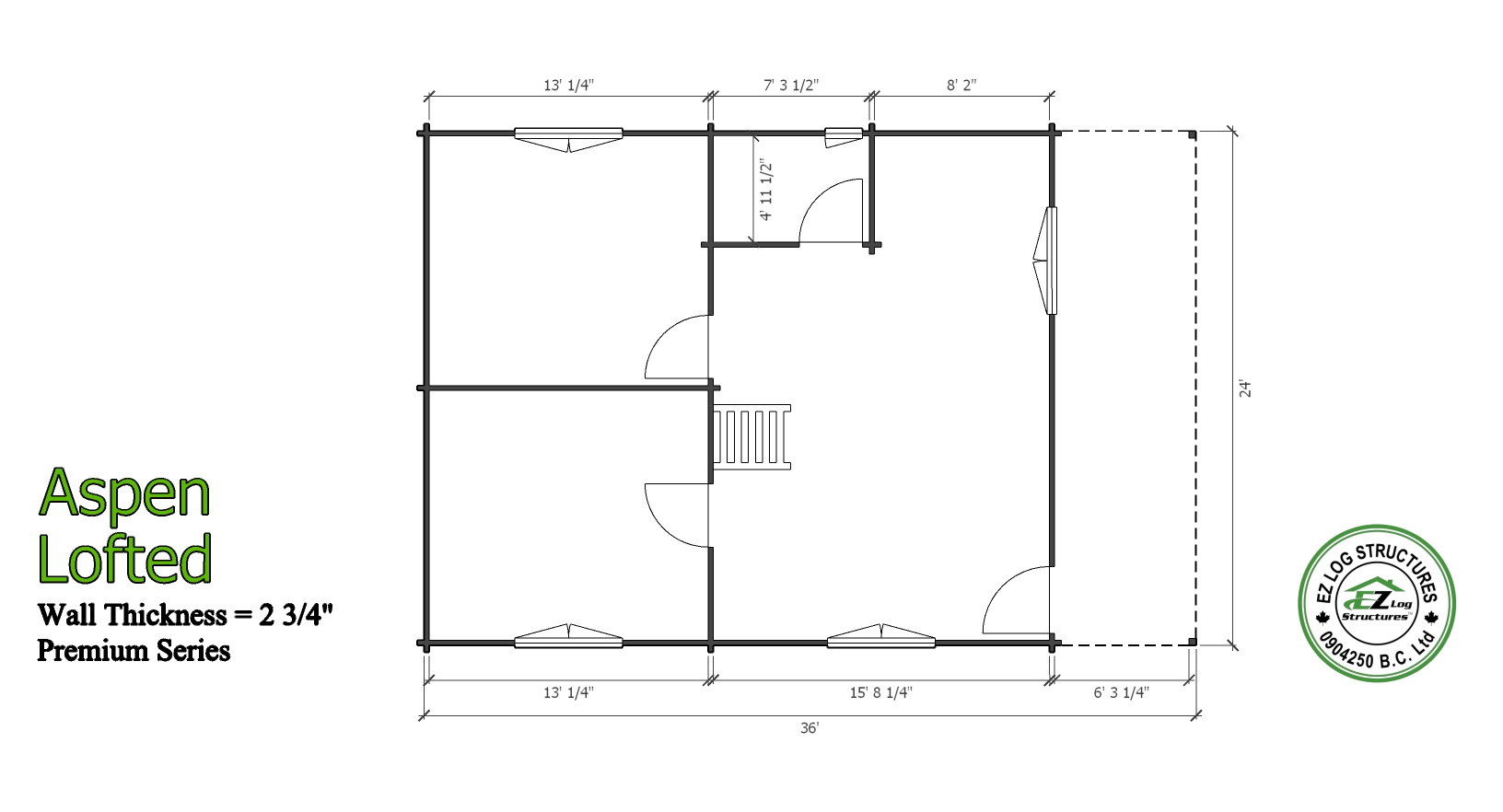

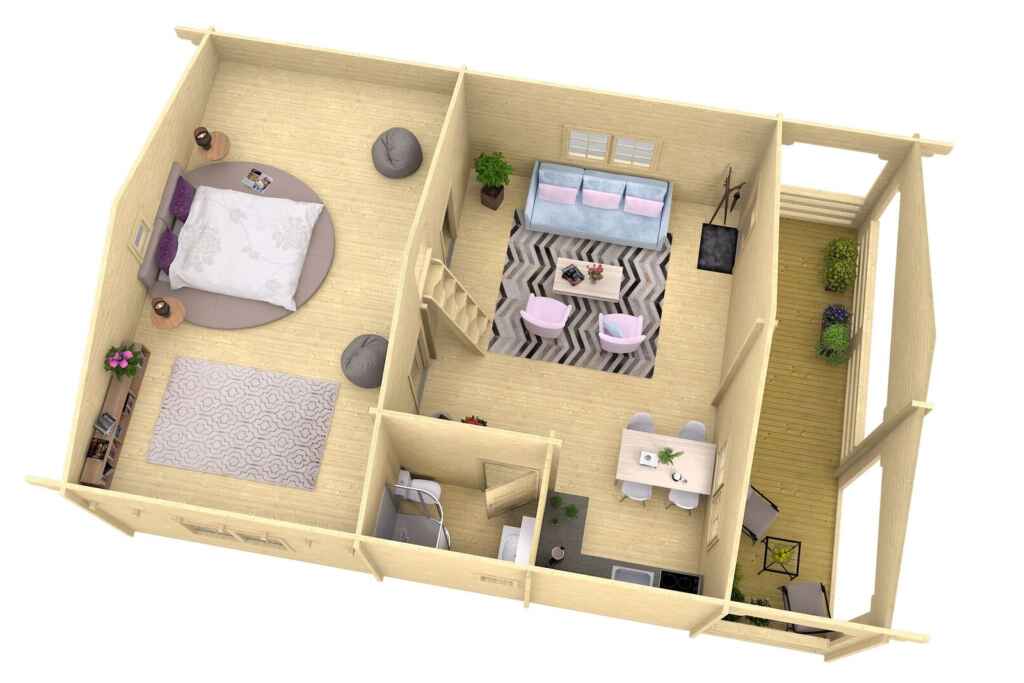

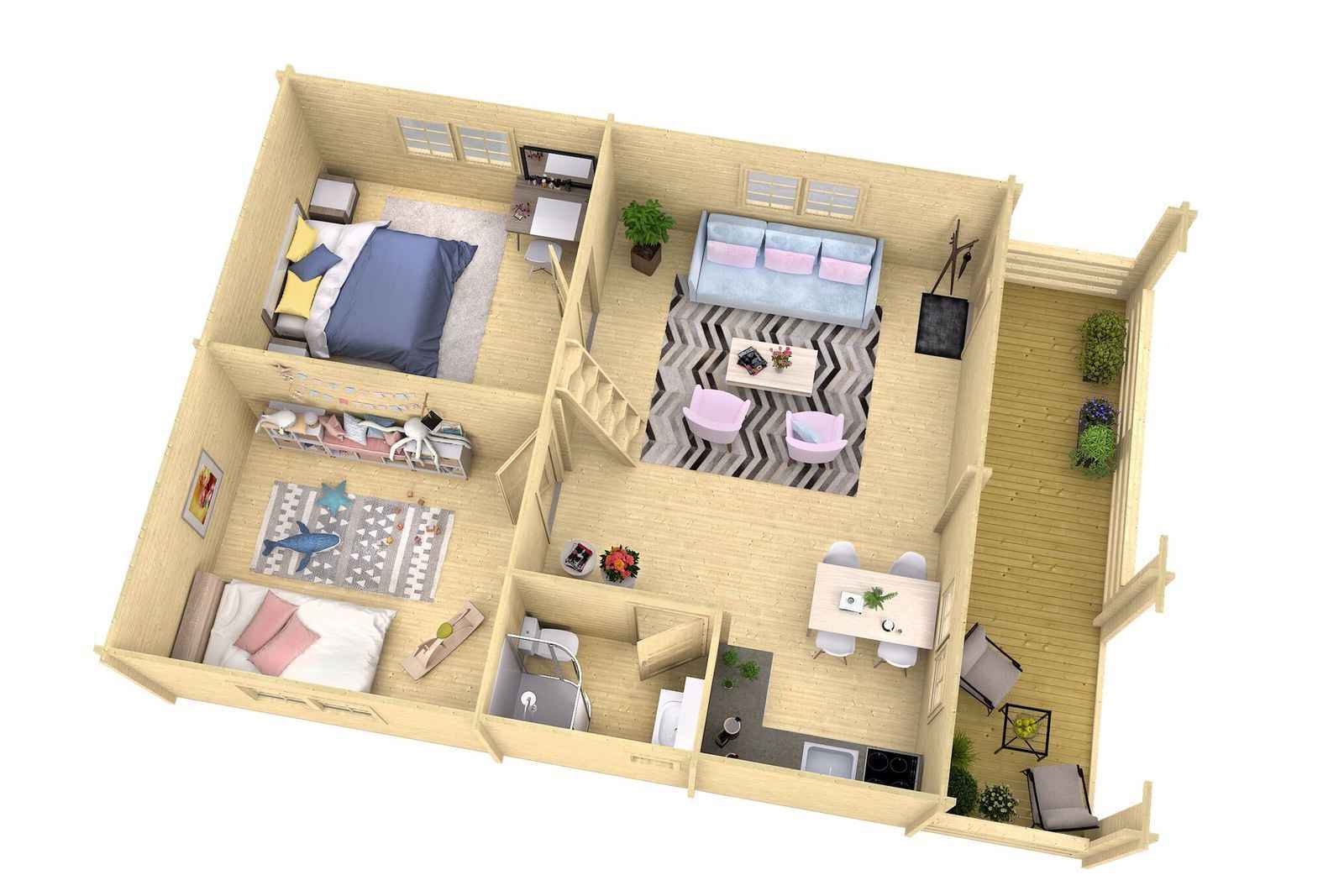

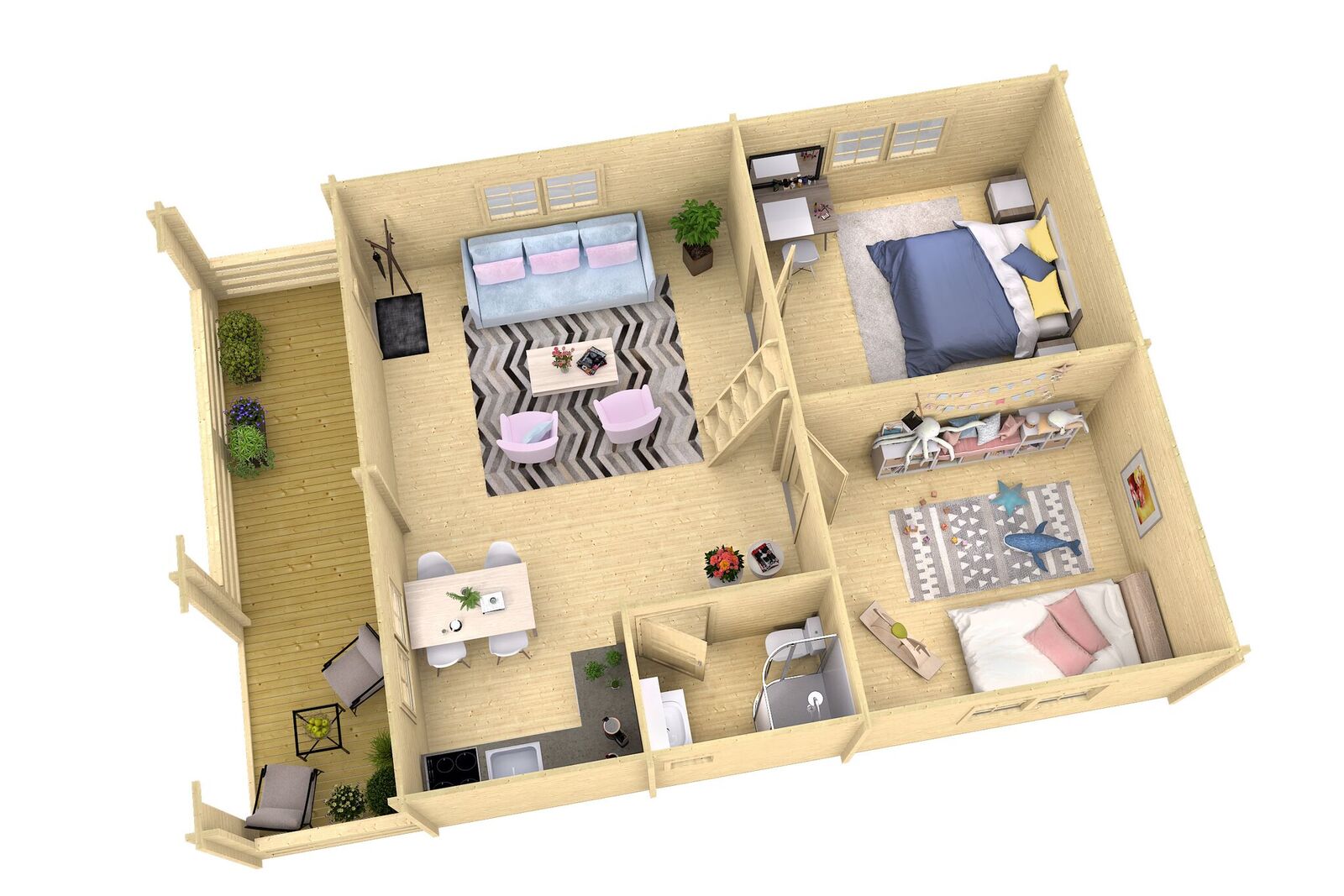

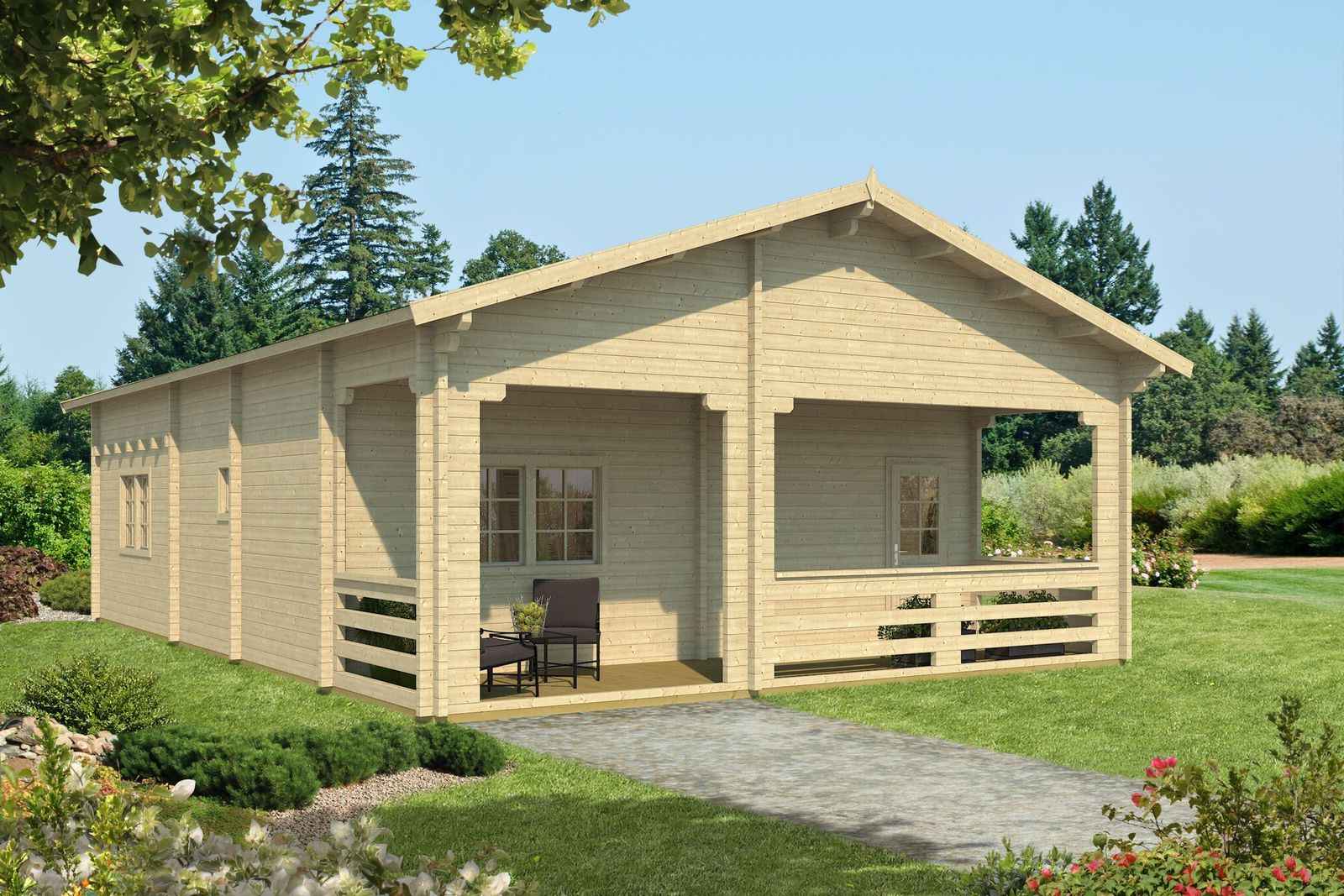

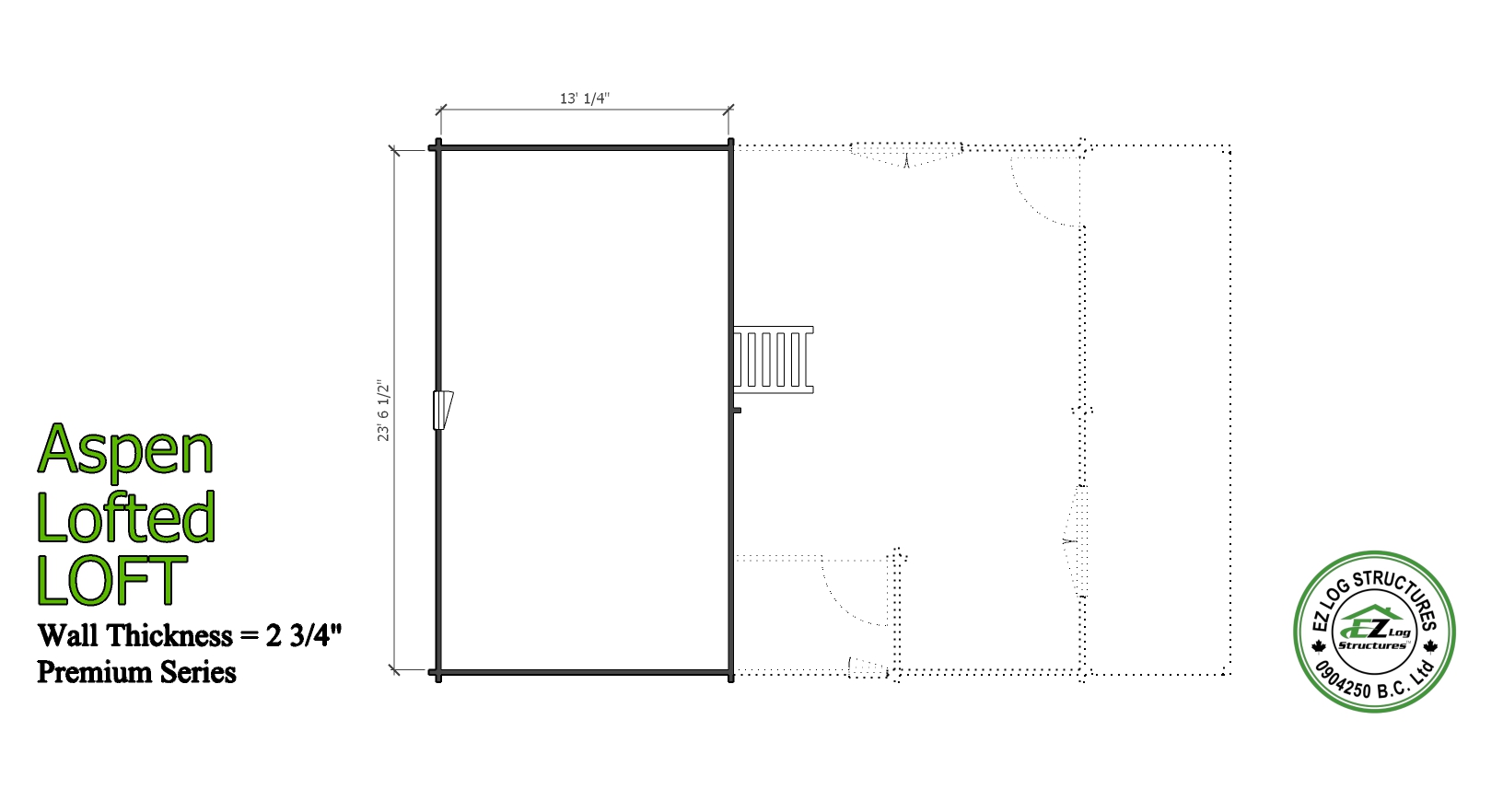

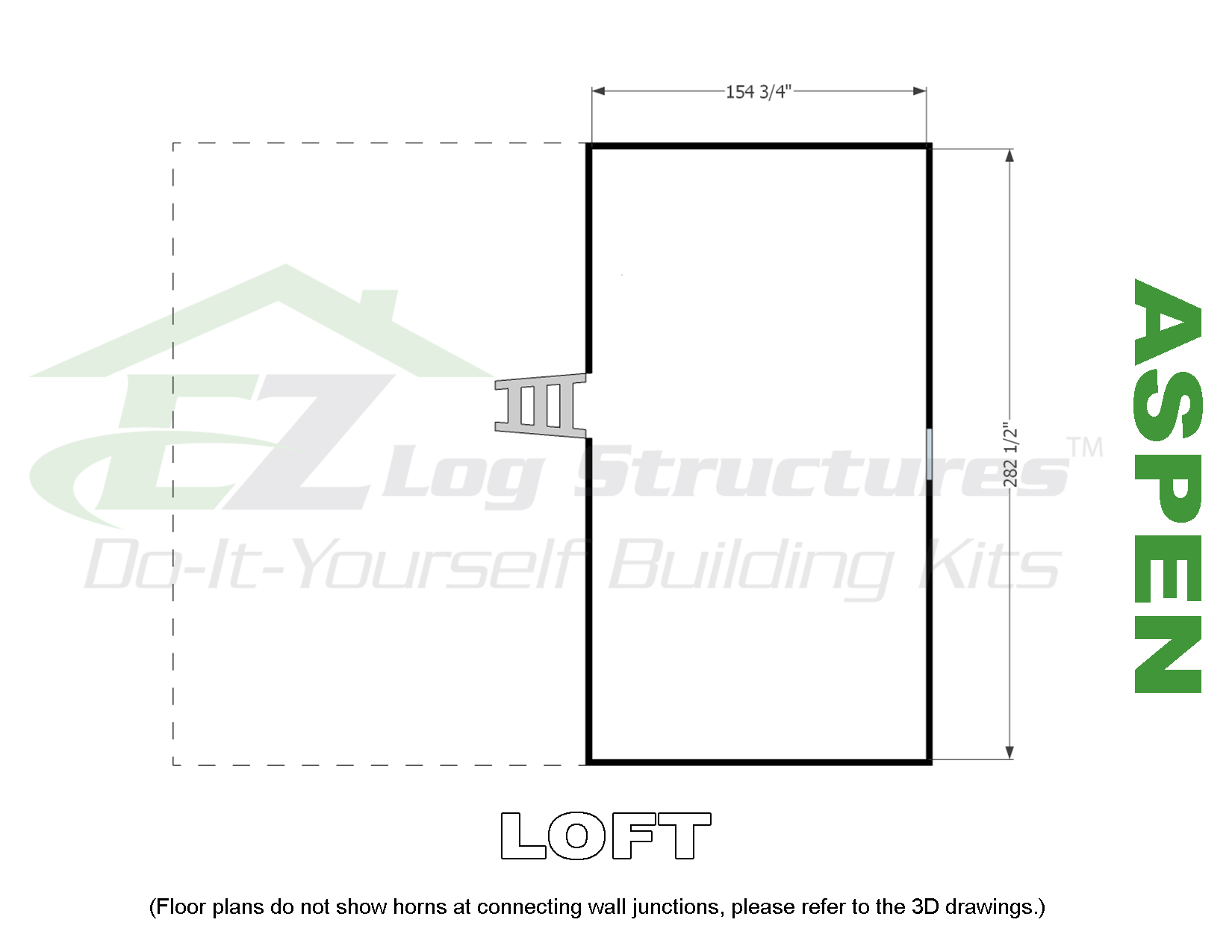

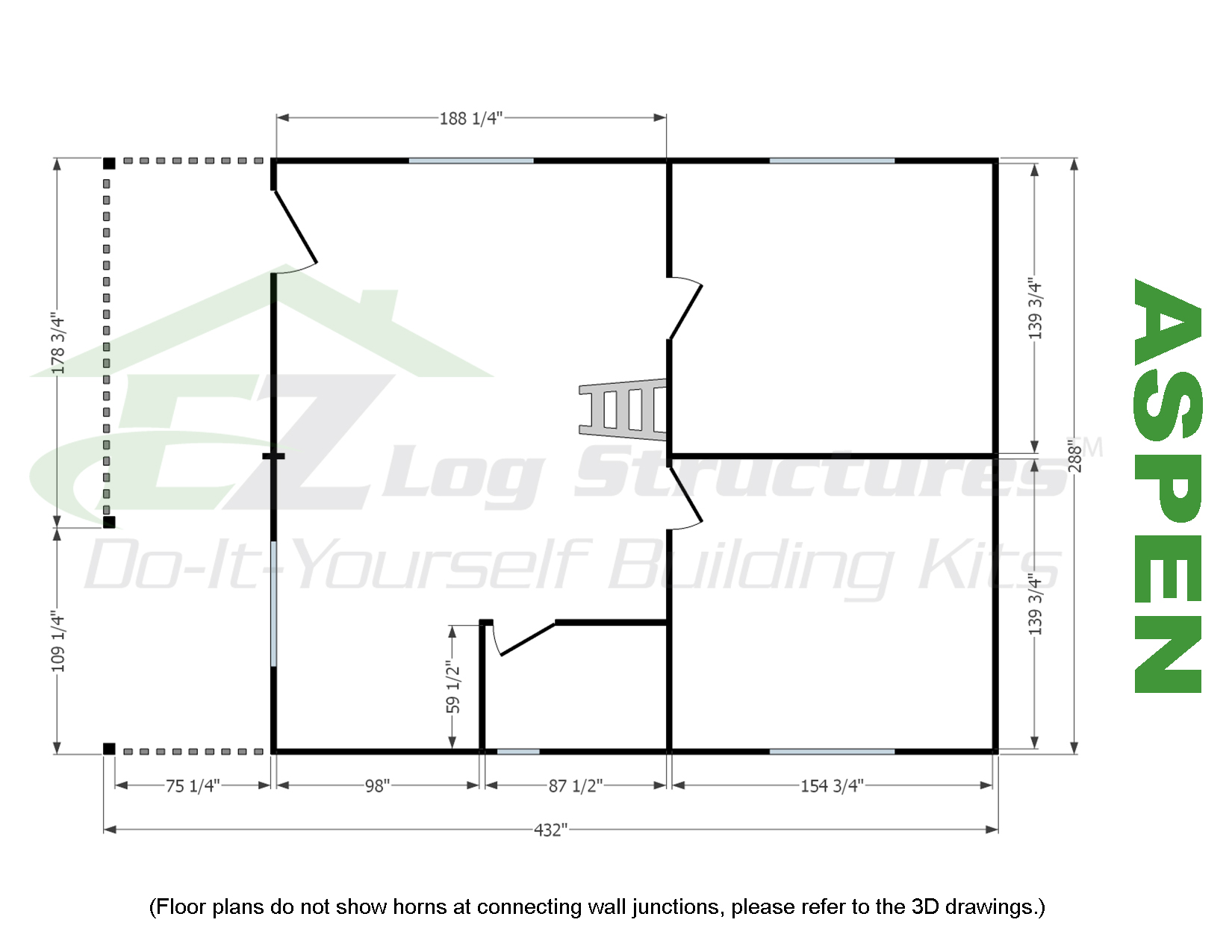

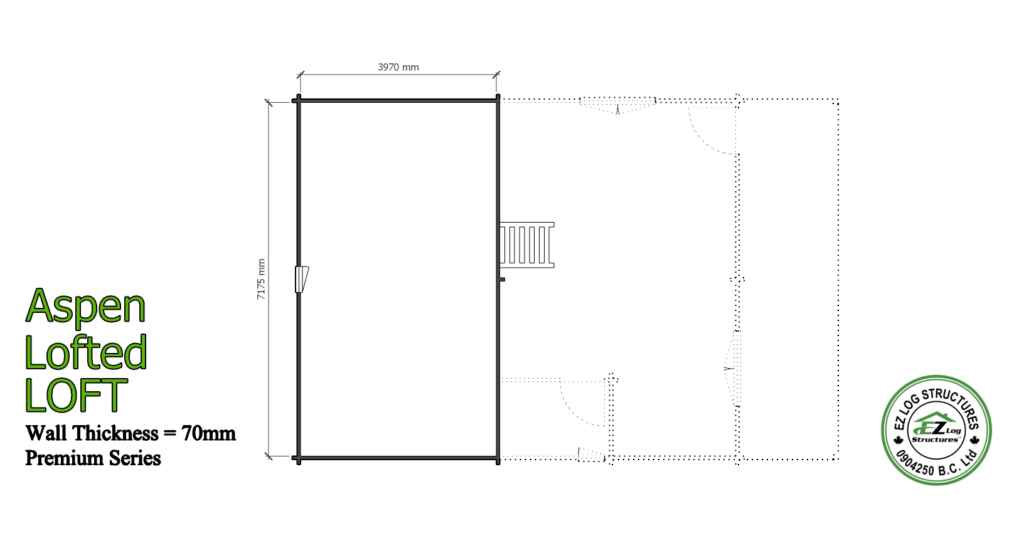

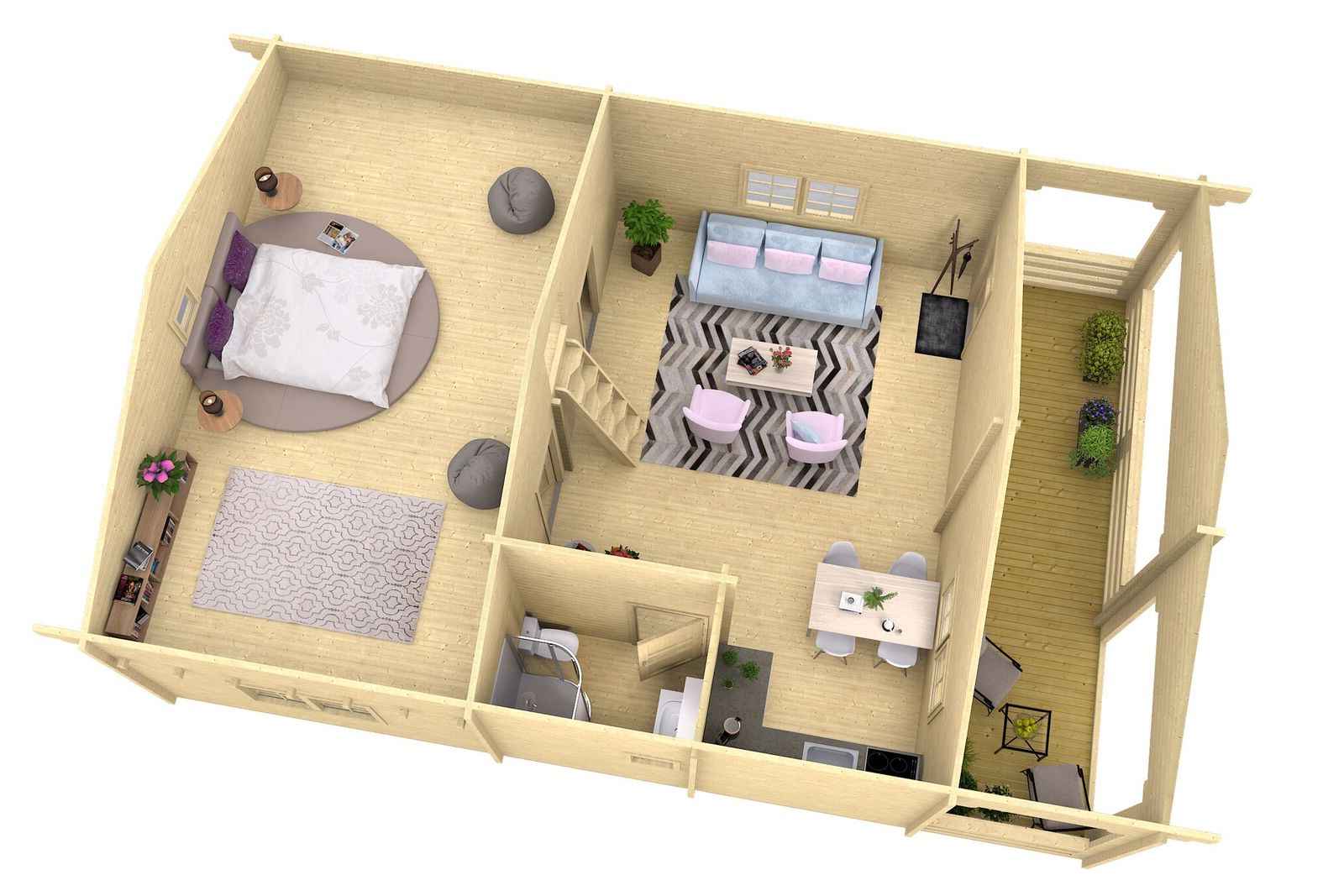

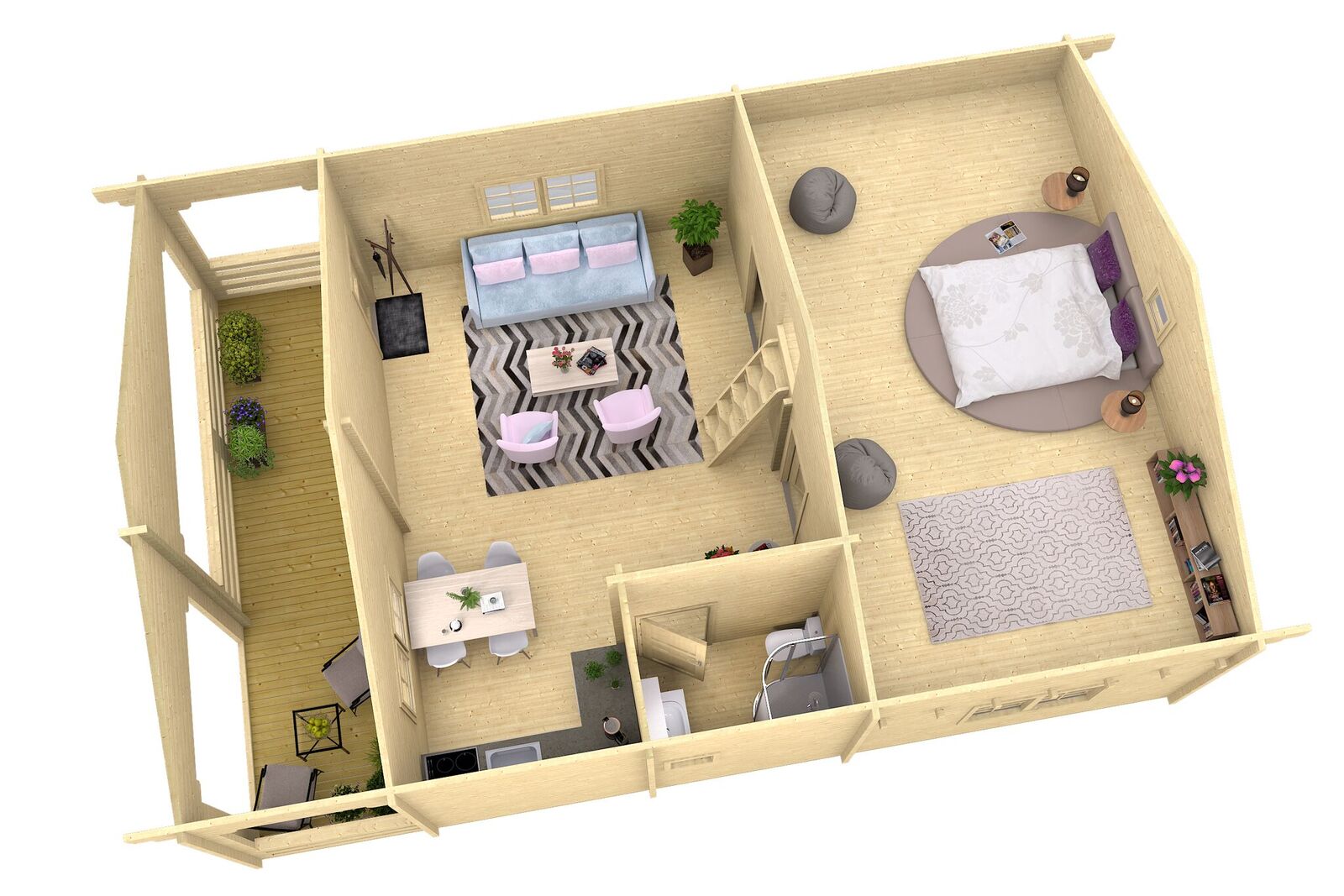

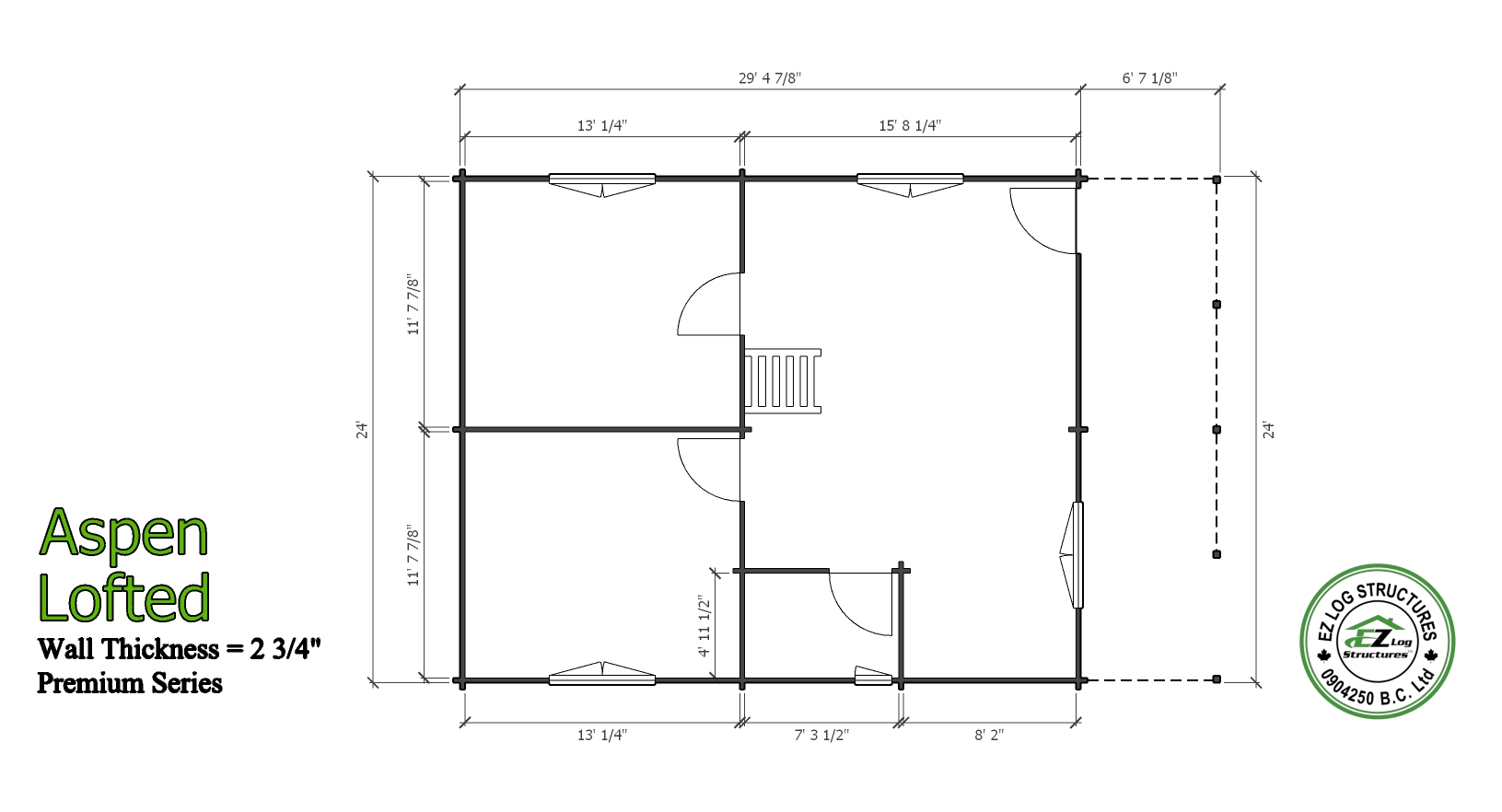

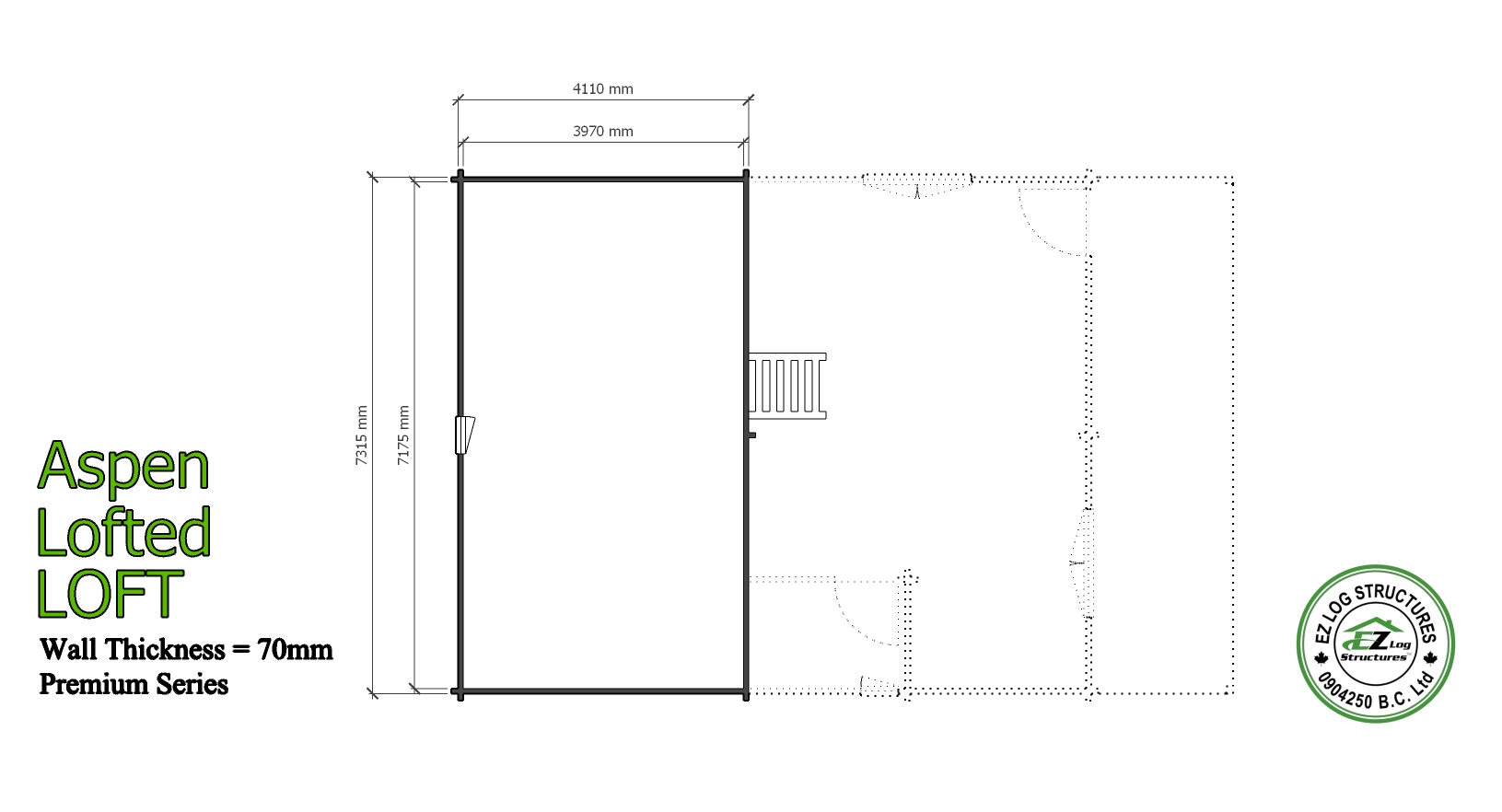

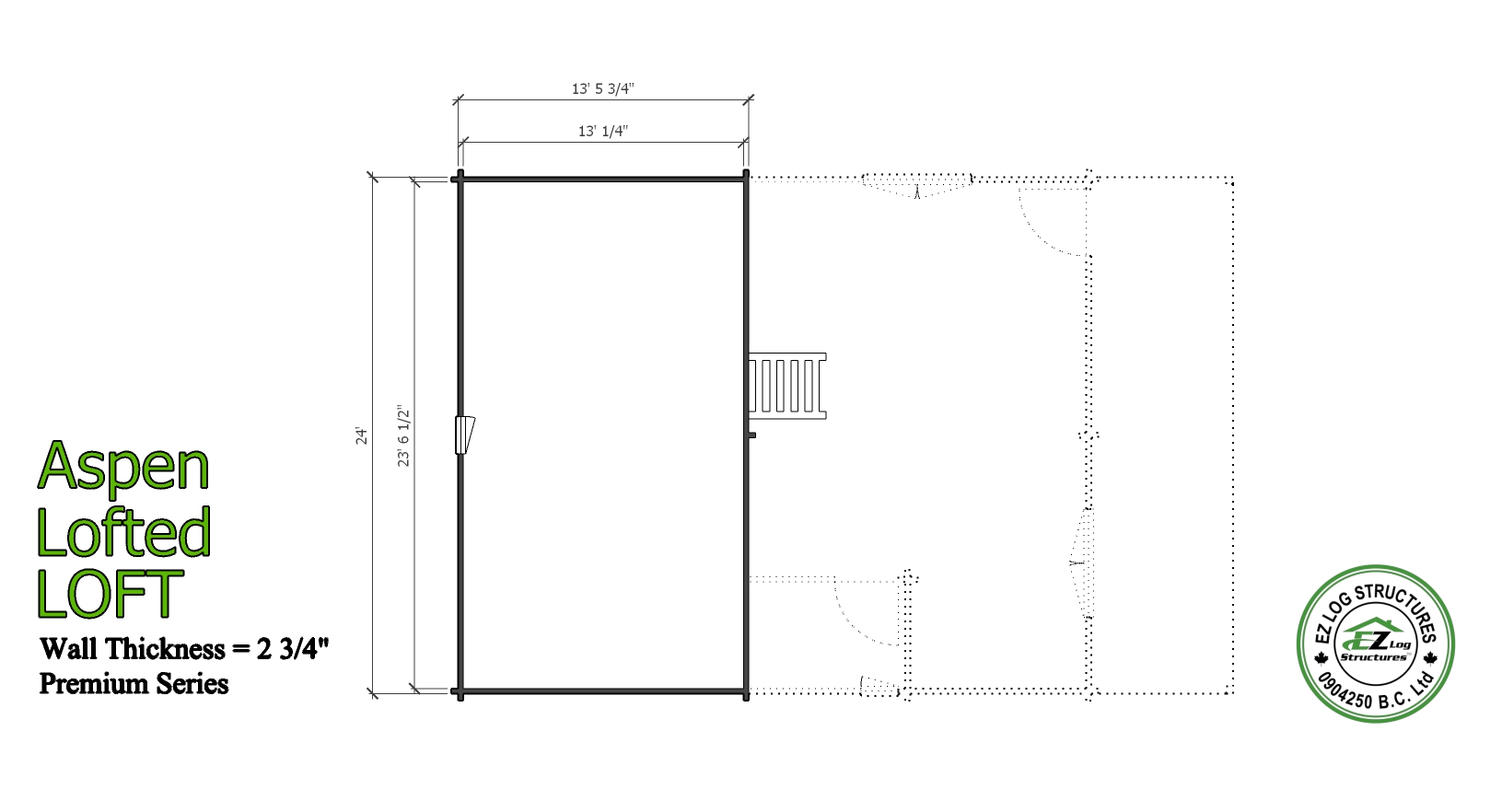

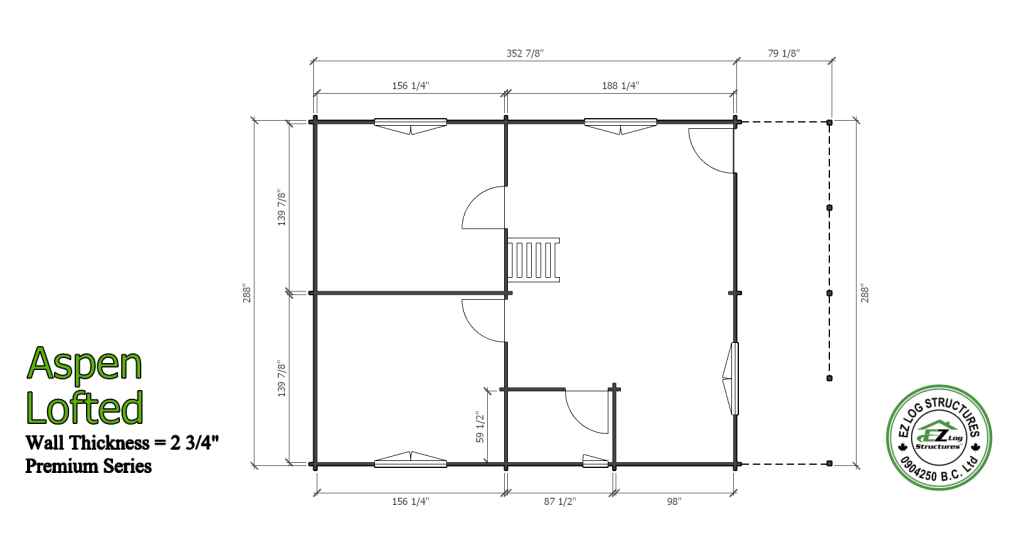

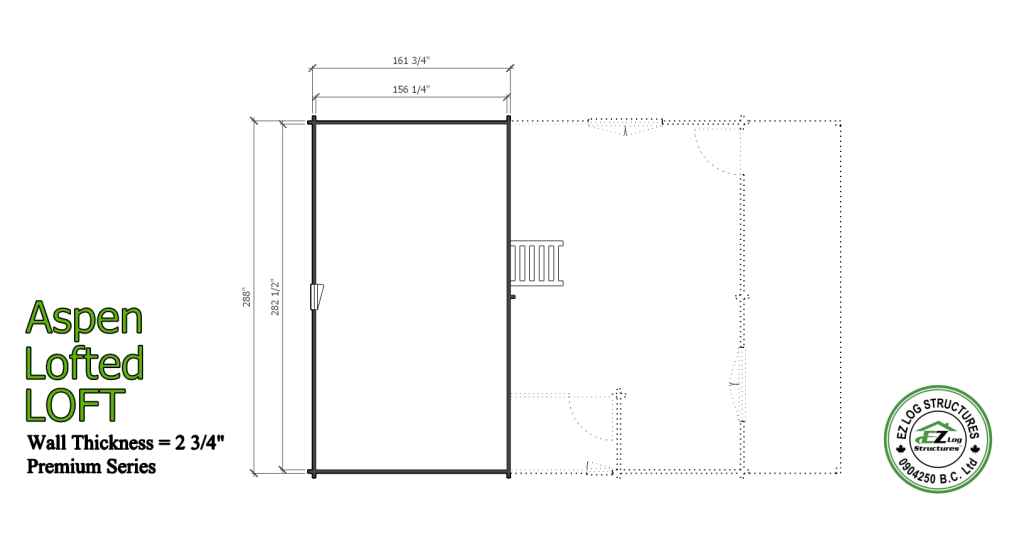

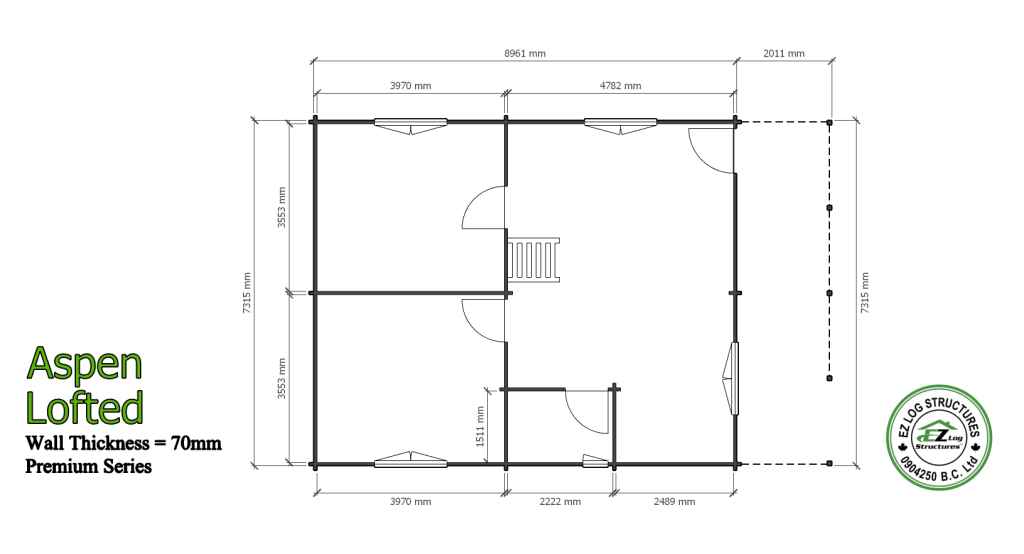

Aspen is a compact 2 bedroom lofted home with a lofted area ideal for storage. The total footprint has 872 sq’ with an additional 247 sq’ of storage in the loft. Sidewall height is 95″ to the underside of the loft floor beams providing plenty of ceiling height in the lower bedrooms. The loft has sidewalls of 16″ and a total of 60″ of ceiling height. The balance of the house has vaulted/cathedral ceilings throughout and provides all the basic for a starter home, granny flat or recreational cabin. This model can be assembled by 3 people in 7 days
- no floor, ready to assemble on a concrete slab or wood foundation
- pre-cut, numbered exterior walls
- pre-cut, numbered interior walls
- pre-cut, numbered gable components
- 4/12 roof pitch (18 degrees)
- vaulted, cathedral ceilings
- pre-cut, 100mm x 200mm (4″x8″) glulam roof purlins spaced 558mm (22″) or less
- pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
- loft ladder
- pre-cut, numbered fascia boards
- 1834 total sq’ of wall area
- 1300 sq’ of exterior wall surface
- 156 lineal’ per row
- 3 interior doors 812mm x 2040mm (32″x80″)
- 4 double wide wood windows 1530mm x 990mm (60″x 39″)
- 2 single wide wood window 530mm x 530mm (21″ x 21″)
- 1 exterior door with multi locking hardware 1/2 glass tempered 990mm x 2040mm (36″x80″)
- pre-built deck railings with vertical balustrades
- adjustable posts
- hardware for doors & windows
- 2 spare wall logs/spare roof boards
- 8″ log screws to connect each row, gable components, purlins
- packaged/wrapped and marked for sequence of assembly
- FREE SHIPPING

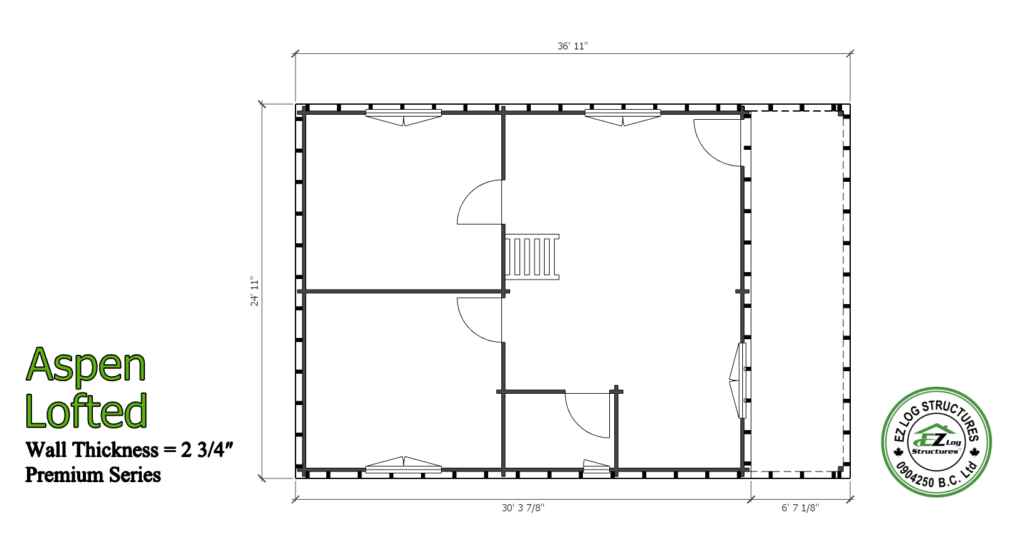

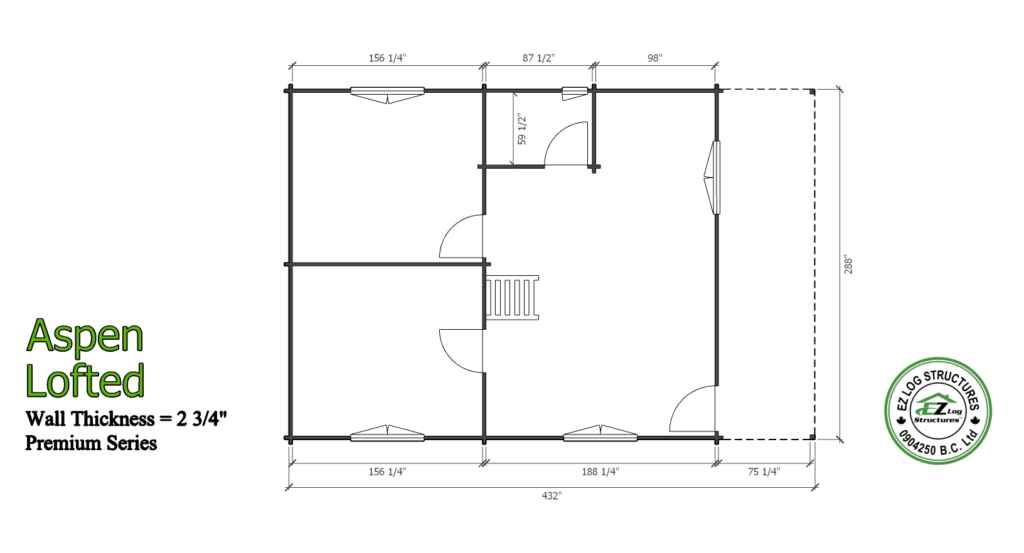

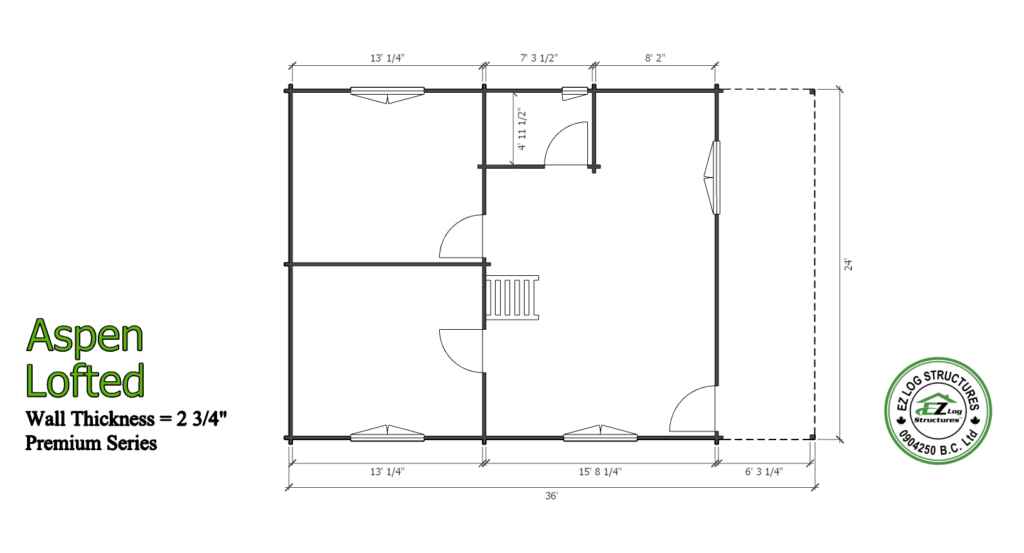

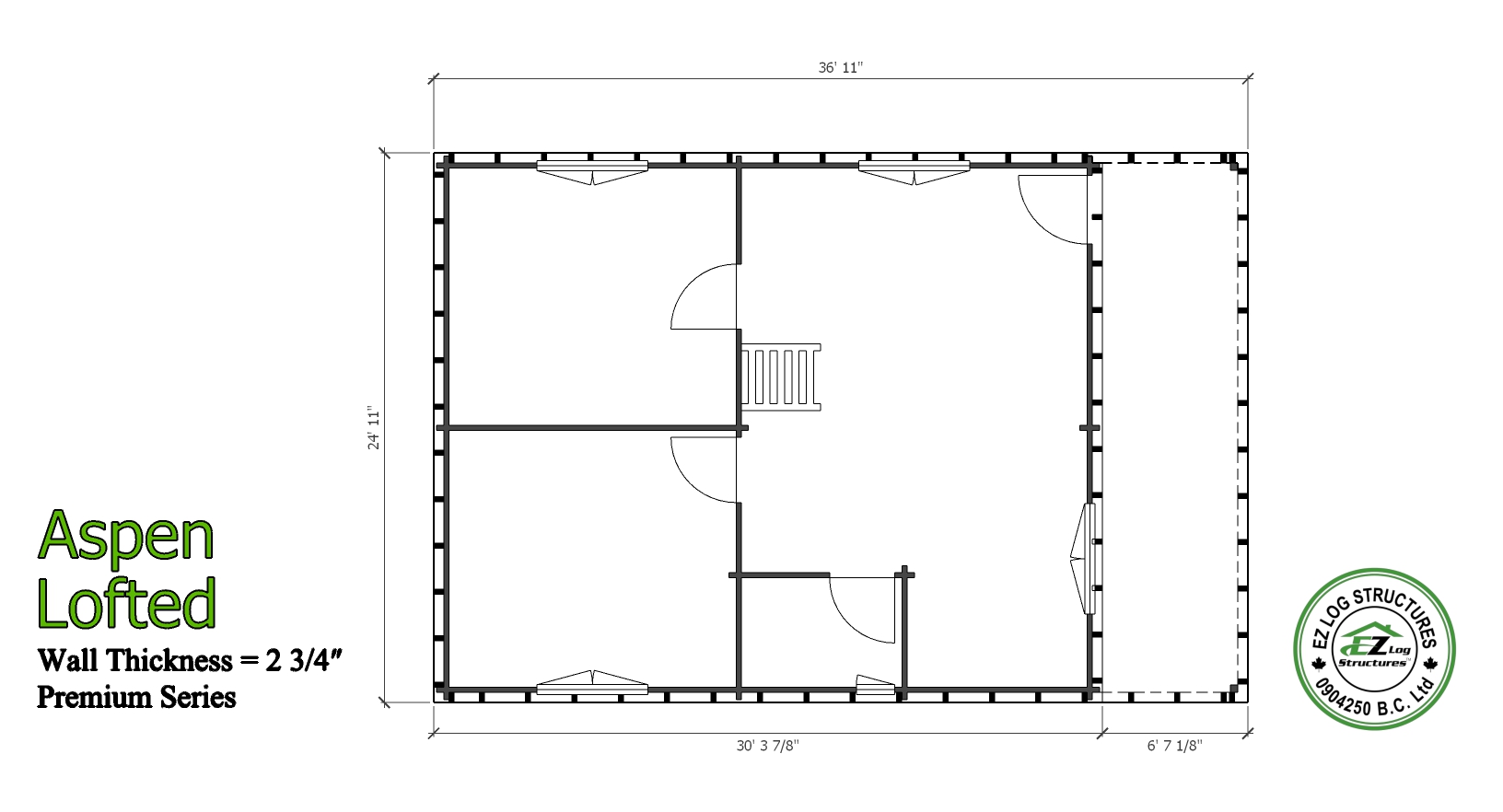

- FOUNDATION SIZE DRAWING
- STAMPED STRUCTURAL ENGINEERING
EXTERIOR STUD & SIDING KITS
We offer 3 types of siding kits to cover the exterior of the home or cabin: EZ Log Semi D-Log tongue & groove wood siding, EZ Log Full D-Log tongue & groove wood siding & a heavy duty maintenance free extruded PVC polymer siding
Each kit includes: 2×6 studs, stud screws, siding, corner blocks, trims & extending the roof overhang 6″
1) ADD 10% – Semi D-Log siding (Max) 3/4″ x 5-1/8″ (18mm x 130mm)
2) ADD 14% – Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)
3) ADD 20% – Vox extruded prefinished PVC polymer siding 3/8″ x 8″ (8.3mm x 200mm)
Window Options:
1) Kit includes double glazed residential grade wood windows. To upgrade all windows to triple glazed/Low E/Argon gas filled (10 sash)
Add – $ 1,092.00 USD
Add – $ 1,400.00 CAD
OR
2) Replace all wood windows with our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)
Add – $ 2,340.00 USD
Add – $ 3,000.00 CAD
